Default Transmission Heat Shield Thread

We got to talking in another thread about this. Six believes that running a super hot exhaust system right by the transmission without a heat shield contributes to making them shift like crap. And I agree, it makes perfect sense. His post from other thread:

Quote:
Originally Posted by sixshooter View Post
I don't want to hear anyone complaining about their transmission not working well with this fluid or that fluid when they get hot and you don't have any heat shields around the exhaust. Even the factory shields the transmission from the exhaust at 100ish horsepower. Double or triple that and you are making 2 or 3 times the heat.
Wouldn't it be 2 or 3 times more important to shield it?


Y'all don't hear me.
/Andre3000
Potential benefits of shielding the exhaust:
1. Better shifting trasnmission
2. Longer transmission fluid life
3. Transmission life increased from not getting beat to death from heat AND power.


So, who has managed to shield their 3" exhaust from the transmission? I want to build a metal shield for mine, but packing looks really tight around the bell housing, and the rest too.
patsmx5 is offline   Reply With Quote
Old 09-23-2015, 02:34 PM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,849
Total Cats: 271
Default

Interested in this... Since it affects most of us

My first 'guess' without looking at my car would be to create a clam shell over the downpipe.

Here are some examples.

I wouldn't do this, but I'm sure it works for heat going in that direction.

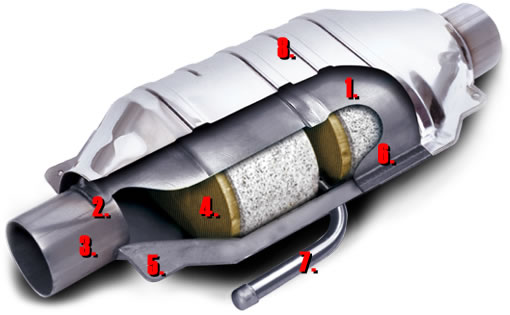

Shell style, kinda like what goes over a catalytic converter. (#8)



Attached Thumbnails
Transmission Heat Shield Thread-heat_shield.jpg   Transmission Heat Shield Thread-catalytic-converter-cutaway.jpg
Girz0r is offline   Reply With Quote
Old 09-23-2015, 03:45 PM   #3
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 429
Total Cats: 30
Default

Could you not use header wrap to insulate/shield the parts that are important to you?
Itty is offline   Reply With Quote
Old 09-23-2015, 03:52 PM   #4
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,406
Total Cats: 200
Default

Quote:
Originally Posted by Itty View Post
Could you not use header wrap to insulate/shield the parts that are important to you?
Header wrap down low, sounds like a fire waiting to happen. Oil and whatnot, with a nice wick.
ryansmoneypit is offline   Reply With Quote
Old 09-23-2015, 04:14 PM   #5
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Itty View Post
Could you not use header wrap to insulate/shield the parts that are important to you?
I did this already, though I'm going to shield it too. The wrap doesn't help as much as I'd like.
patsmx5 is offline   Reply With Quote
Old 09-23-2015, 04:28 PM   #6
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 429
Total Cats: 30
Default

Well based on the baller heat shield you made for your header, it seems like you are a fine candidate for pioneering something for shielding the transmission.

I'm thinking something bolted on to the bellhousing would work well. If you're mostly concerned with hot transmission fluid, then the most important place to shield wouldn't be the low clearance area around the bellhousing.

Even something like a polished stainless half-cylinder shape to go around the header wrap would do a lot for shielding and should add minimal thickness.
Itty is offline   Reply With Quote
Old 09-23-2015, 04:51 PM   #7
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Itty View Post
Well based on the baller heat shield you made for your header, it seems like you are a fine candidate for pioneering something for shielding the transmission.

I'm thinking something bolted on to the bellhousing would work well. If you're mostly concerned with hot transmission fluid, then the most important place to shield wouldn't be the low clearance area around the bellhousing.

Even something like a polished stainless half-cylinder shape to go around the header wrap would do a lot for shielding and should add minimal thickness.
Thanks! That header shield turned out fairly nice when it was done given how much I hate sheet metal.

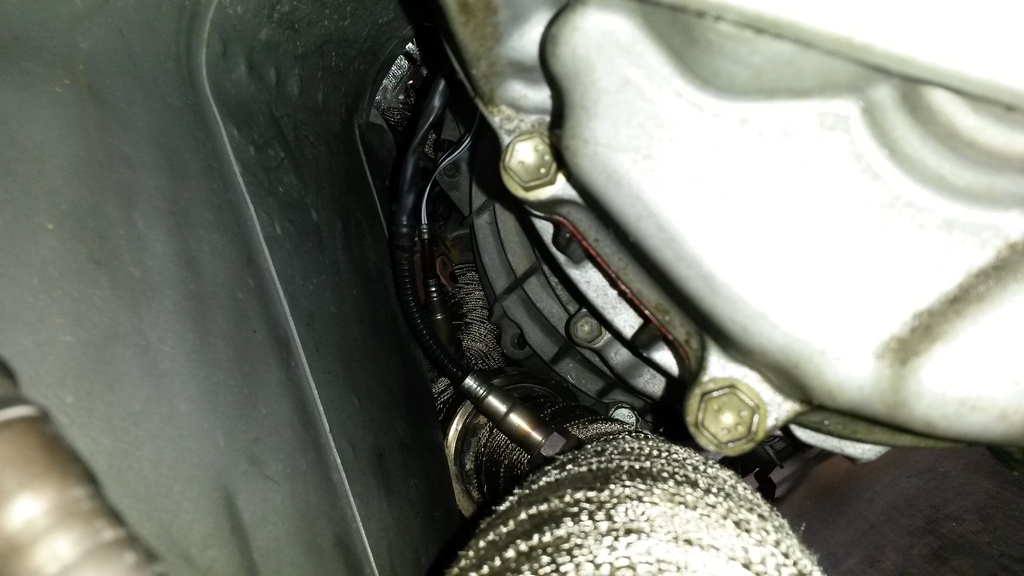

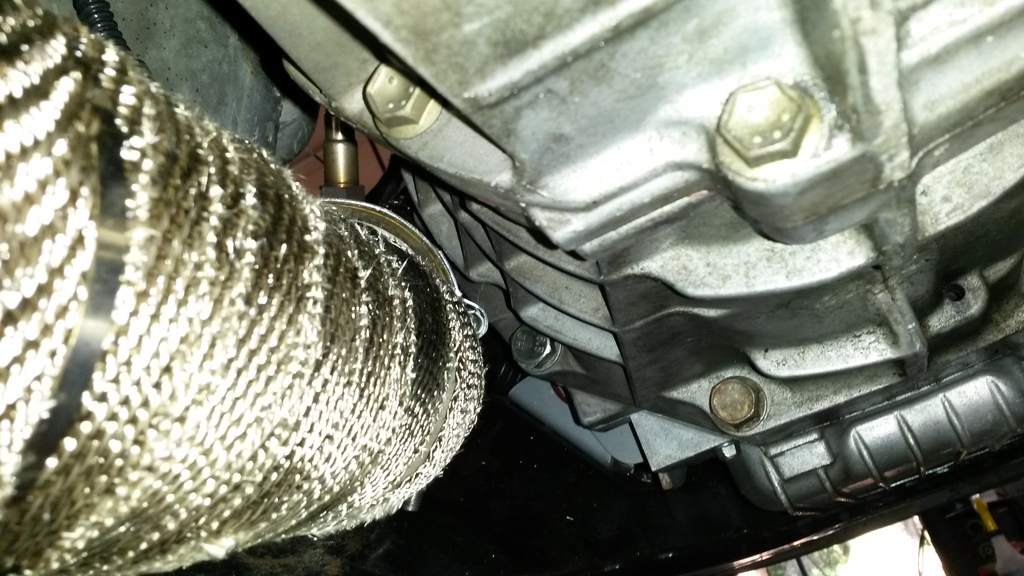

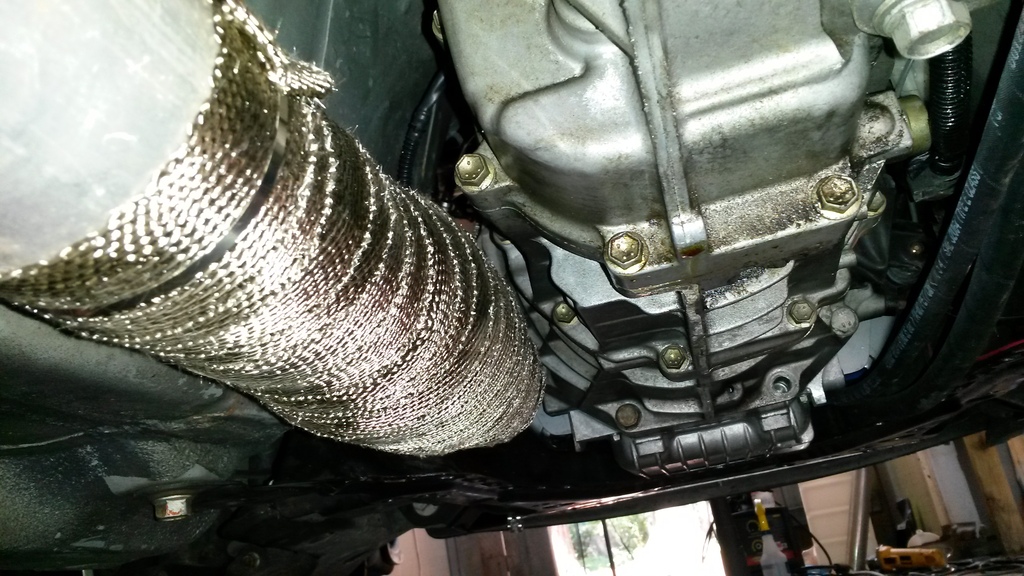

Here are some pics of the area we are discussing on my car. I have a catalytic converter there too, so it makes clearance a bit worse vs a 3" pipe only.









Attached Thumbnails
Transmission Heat Shield Thread-20150923_143611_zpst9mrctja.jpg   Transmission Heat Shield Thread-20150923_143626_zps0b36stia.jpg   Transmission Heat Shield Thread-20150923_143631_zpsadz8tosz.jpg   Transmission Heat Shield Thread-20150923_143643_zpszaxctnit.jpg   Transmission Heat Shield Thread-20150923_143757_zpsj0kykliv.jpg

patsmx5 is offline   Reply With Quote
Old 09-23-2015, 05:17 PM   #8
Junior Member

Join Date: Aug 2009
Posts: 186
Total Cats: 1
Default

I thought this was thread was going to be about shielding the tunnel from the cabin before I clicked on it.

Anyway, I think something like what Girz mentioned may help. I'm surprised your header wrap isn't sufficient.

I am also reminded of what Adam/revlimiter did (for another issue but it can probably be applied here):
How to Eliminate Miata Gas Fumes (I hope?) ? revlimiter.net
greeenteeee is offline   Reply With Quote
Old 09-23-2015, 05:50 PM   #9
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

When I upgrade my transmission I will replace the hodgepodge of metal shields I am using with one nice piece I found. There's good shielding available in the junkyards that the OEMs paid nice money for already. Don't spend too much. Trucks and vans often have 2.5 and 3 inch exhaust pipes that required shields at some point in their length. And cars have nice dual layer shields attached to the body and fuel tanks. Some of them are quite large and can be sized to fit.
sixshooter is offline   Reply With Quote
Old 09-23-2015, 06:04 PM   #10
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

<p>
Quote:
Originally Posted by sixshooter View Post
When I upgrade my transmission I will replace the hodgepodge of metal shields I am using with one nice piece I found. There's good shielding available in the junkyards that the OEMs paid nice money for already. Don't spend too much. Trucks and vans often have 2.5 and 3 inch exhaust pipes that required shields at some point in their length. And cars have nice dual layer shields attached to the body and fuel tanks. Some of them are quite large and can be sized to fit.
</p><p>Good idea. What 1 piece did you find?</p>
aidandj is offline   Reply With Quote
Old 09-23-2015, 06:49 PM   #11
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 699
Total Cats: 50
Default

How did I manage to post this link in the DIY aero thread on the day that you guys made a heat shield thread?

https://www.pegasusautoracing.com/pr...paign=201509-1

This is the nicest aftermarket product I've seen for quick and easy exhaust shielding. It mimics the OEM heat shield design and doesn't create a fire hazard like exhaust wrap.
jpreston is offline   Reply With Quote
Old 09-23-2015, 06:53 PM   #12
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 429
Total Cats: 30
Default

Kinda expensive though.. I like the junkyard option.
Itty is offline   Reply With Quote
Old 09-23-2015, 06:56 PM   #13
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I was about to post the same thing.

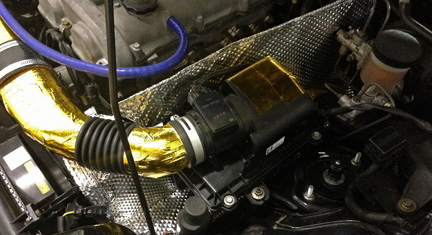

There's also dynamat sheethot, but it's spendy. It's a formable aluminum sheet, mini coopers have lots of this crap, some decent flat and round sections, for the junkyard guys.

Vibrant Performance SheetHot Heat Shields | Vibrant Performance

Look, wild miata in google images!

Attached Thumbnails
Transmission Heat Shield Thread-macvibrant1.jpeg
deezums is offline   Reply With Quote
Old 09-23-2015, 07:10 PM   #14
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

My big double layer one piece came off the side of a plastic fuel tank on some vehicle that was being disassembled. I sell the big loaders with forks that junkyards use to move cars around so I get pretty good access to some of the yards. I don't know what the particular tank came off of because it had already been shucked from the chassis.
sixshooter is offline   Reply With Quote
Old 09-23-2015, 07:28 PM   #15
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

<p>I wonder if my stock heat shield is around. Might try and rig that up to the transmission.</p>
aidandj is offline   Reply With Quote
Old 09-25-2015, 04:15 PM   #16
Junior Member

Join Date: Jul 2015
Location: grayson, ga
Posts: 165
Total Cats: 9
Default

I think painting whatever shield you cobble up with a mixture of microspheres and paint would help isolate the heat. kind of like a homemade lizard skin.
portabull is offline   Reply With Quote
Old 09-25-2015, 07:47 PM   #17
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,669
Total Cats: 1,561
Default

Quote:
Originally Posted by portabull View Post
I think painting whatever shield you cobble up with a mixture of microspheres and paint would help isolate the heat. kind of like a homemade lizard skin.
Overthinking this. ..
sixshooter is offline   Reply With Quote
Old 09-30-2015, 04:35 AM   #18
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Itty View Post
Well based on the baller heat shield you made for your header, it seems like you are a fine candidate for pioneering something for shielding the transmission.
...

Even something like a polished stainless half-cylinder shape to go around the header wrap would do a lot for shielding and should add minimal thickness.

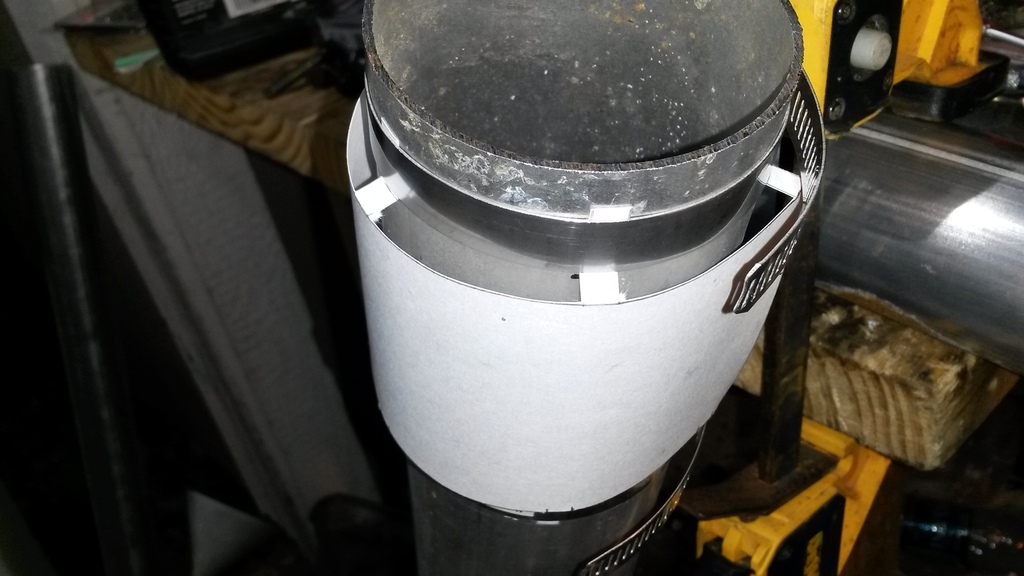

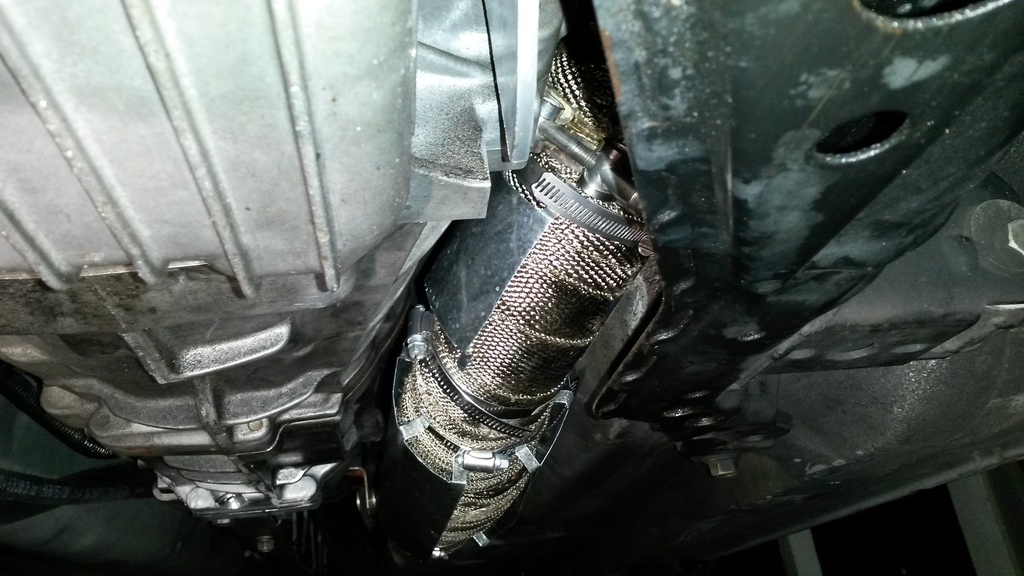

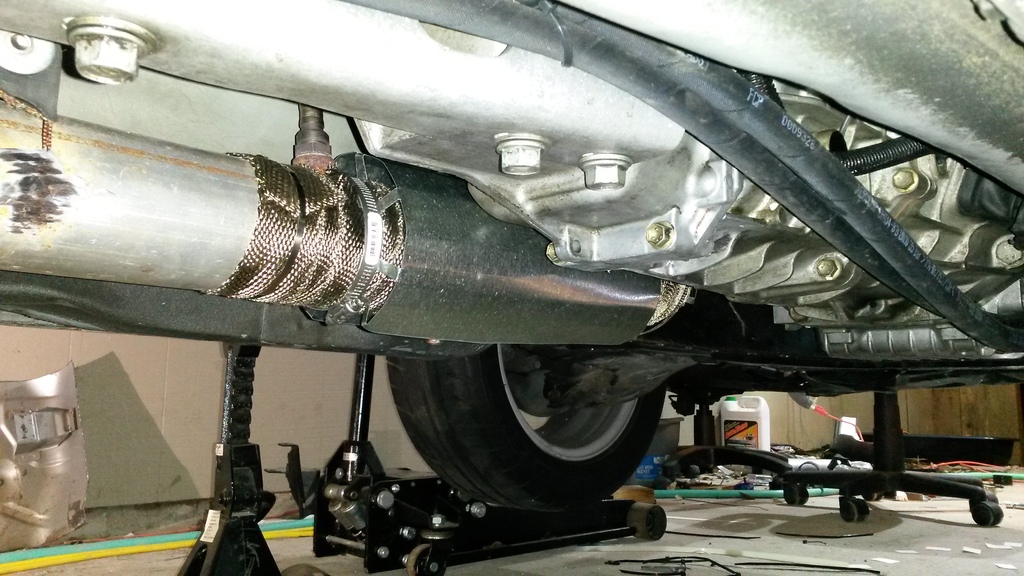

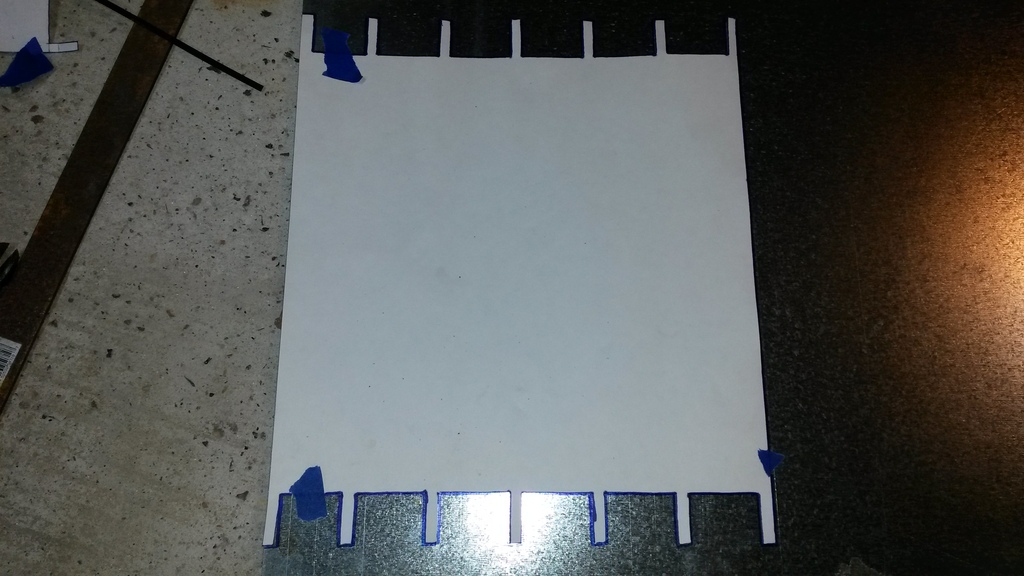

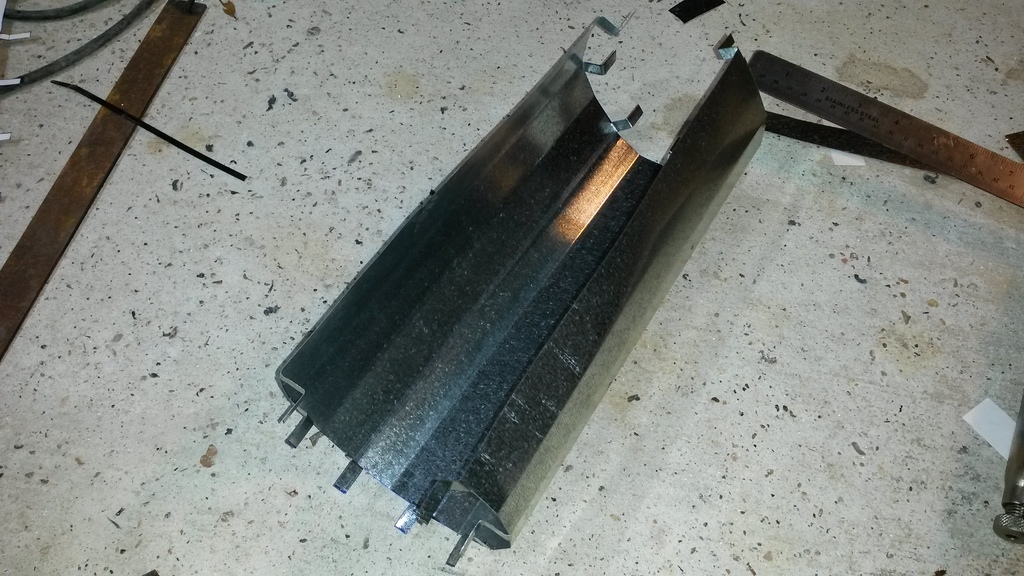

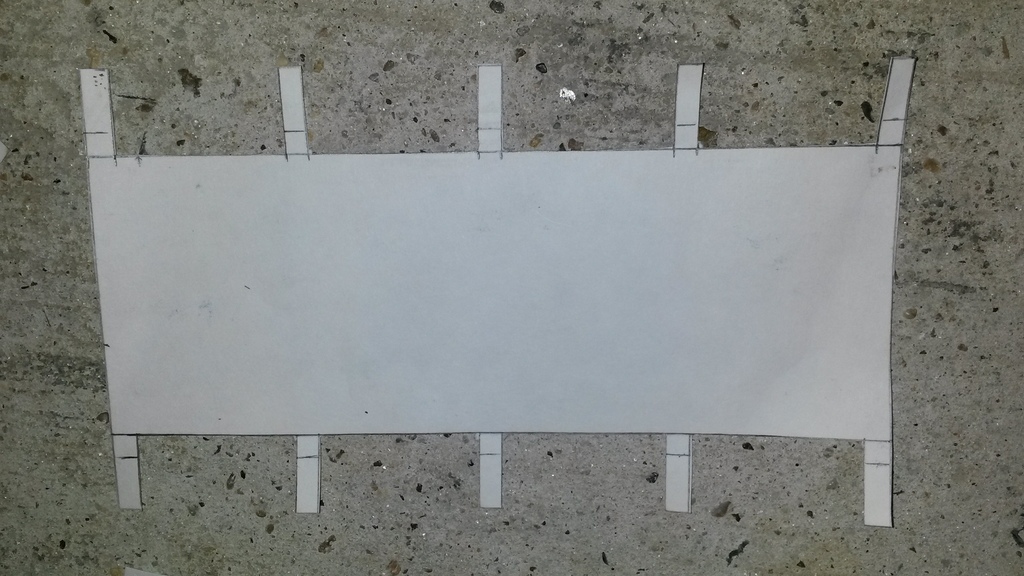

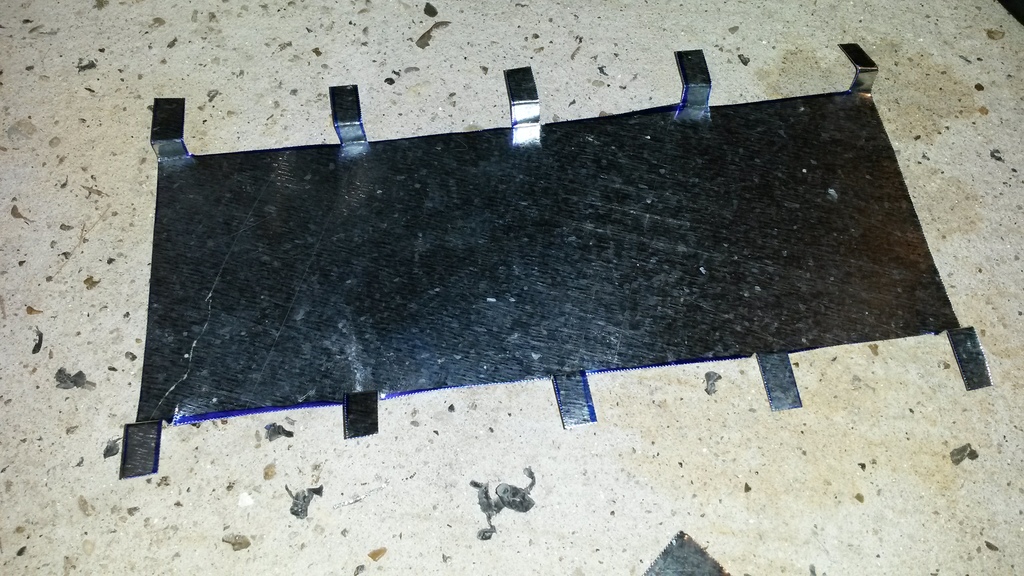

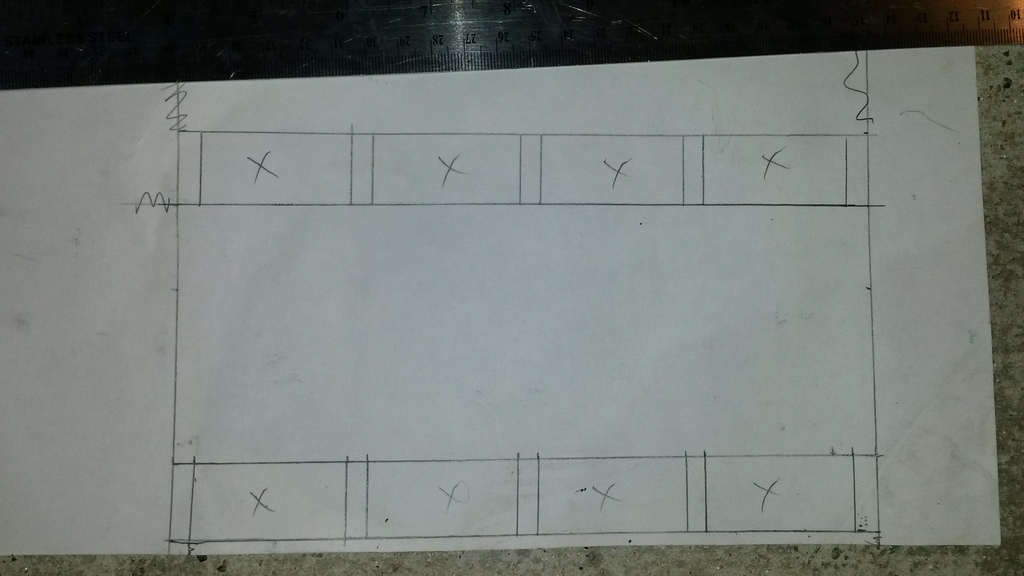

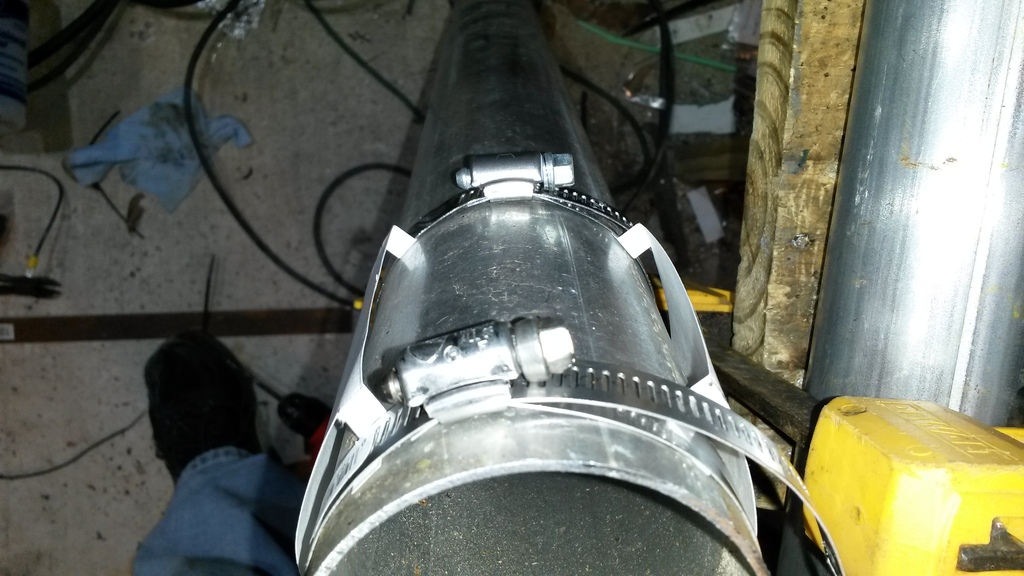

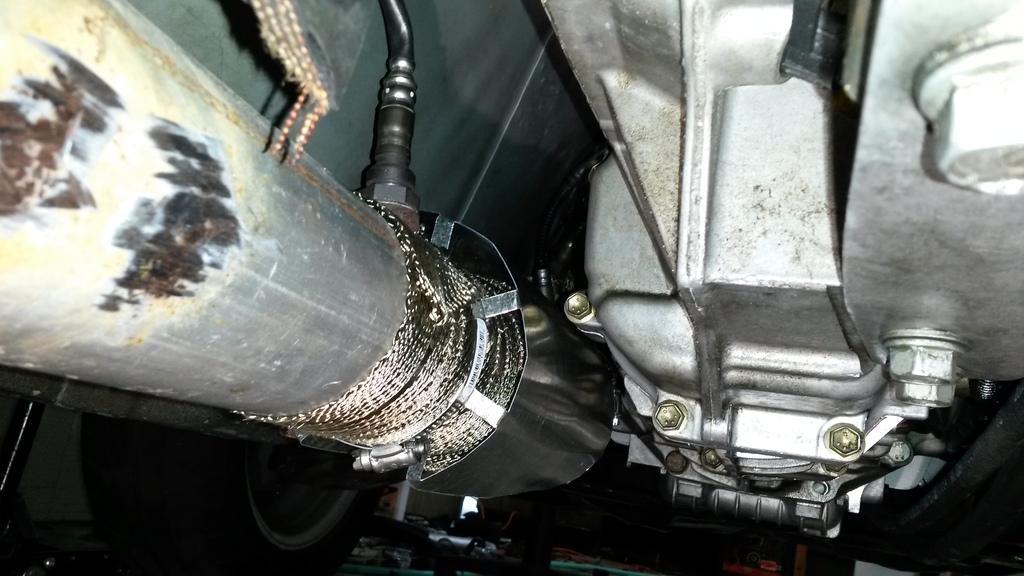

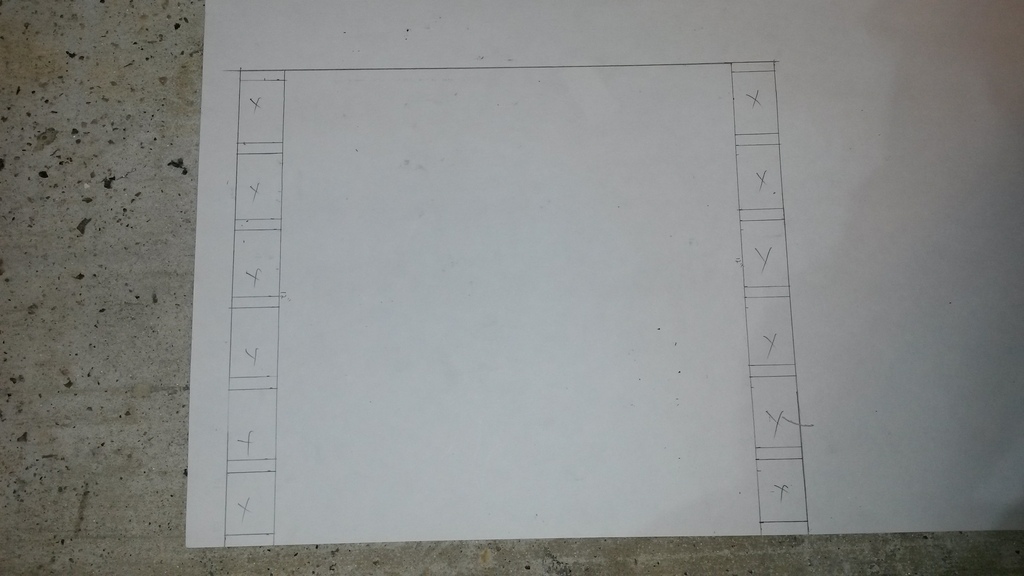

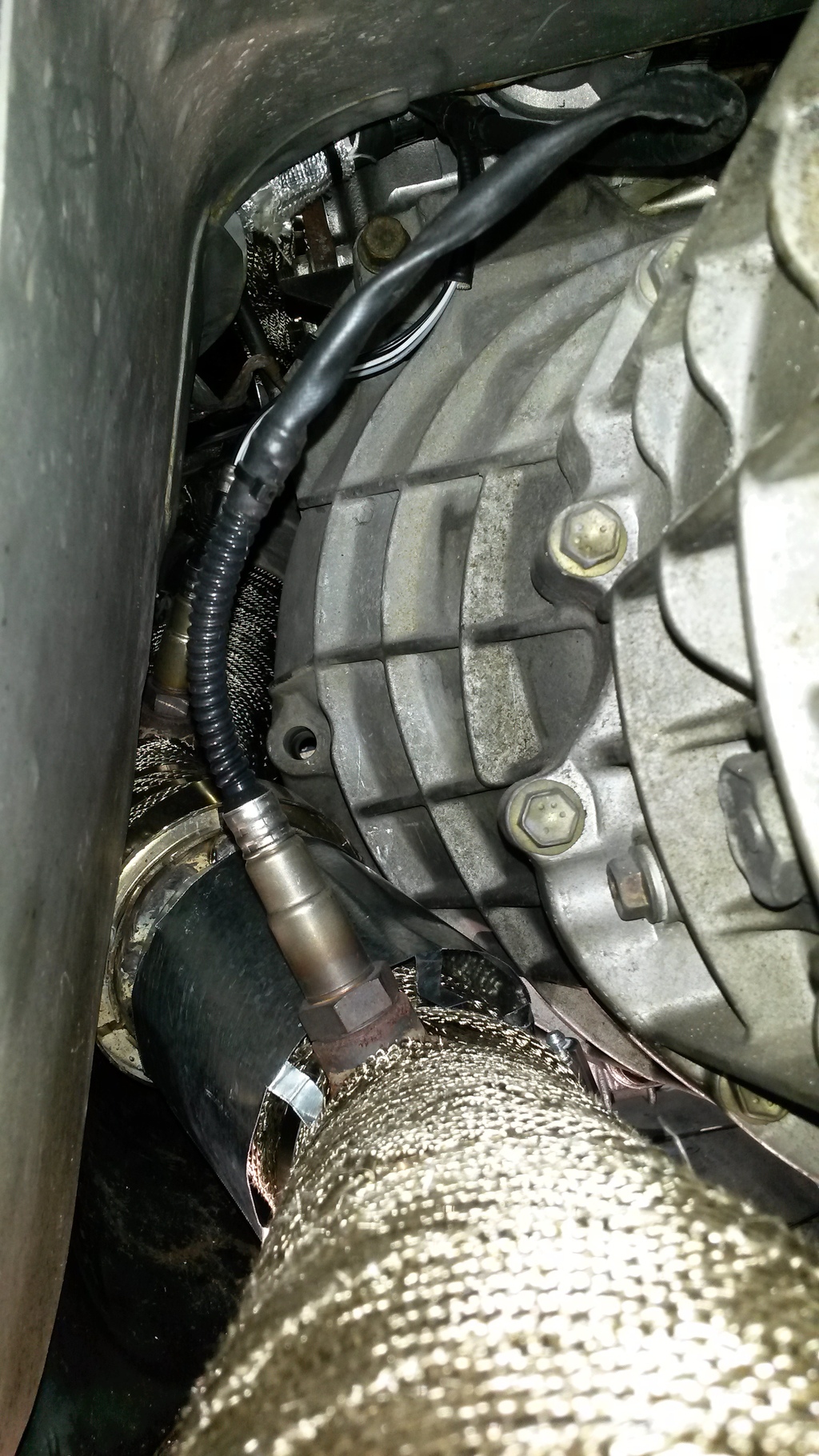

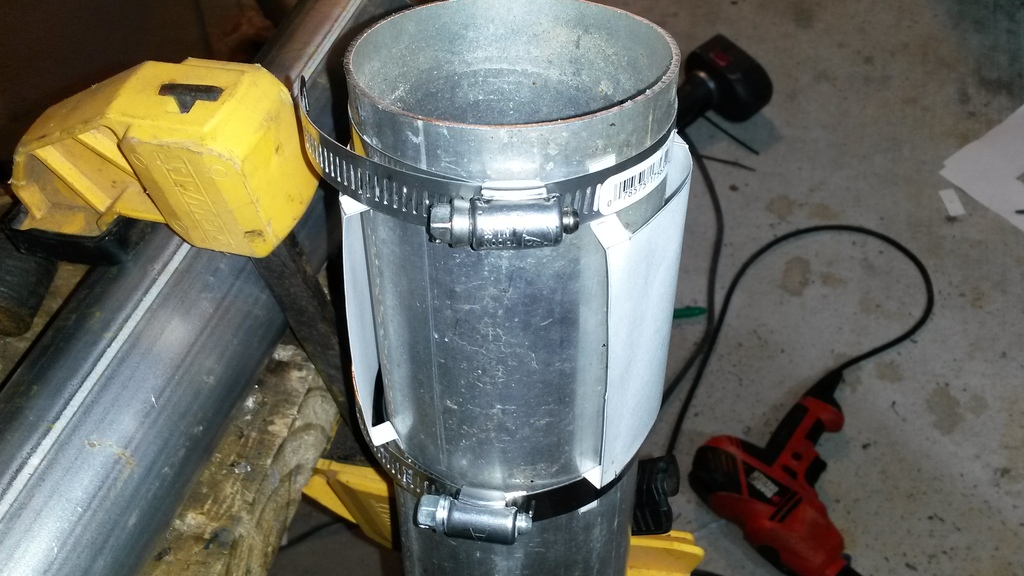

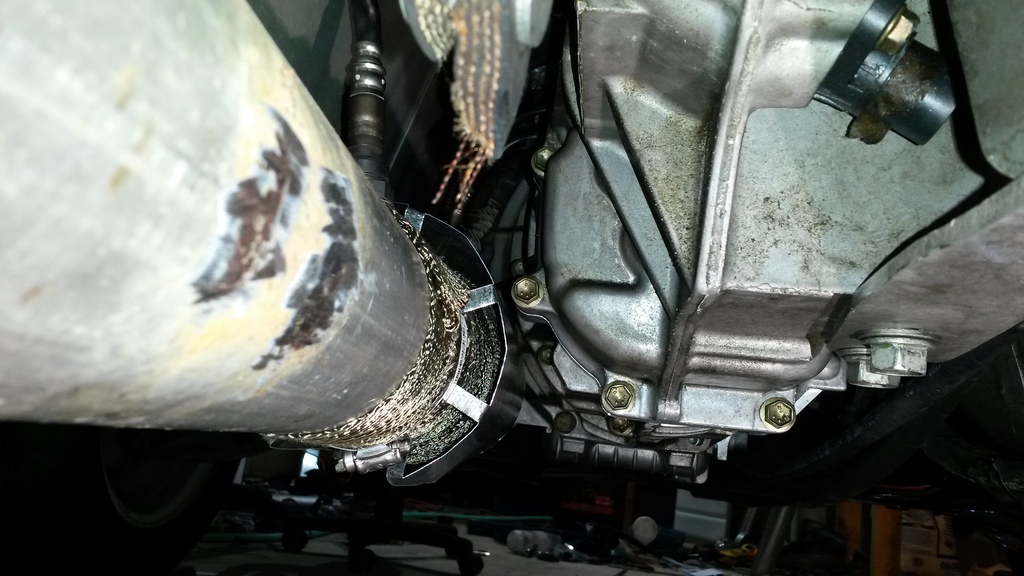

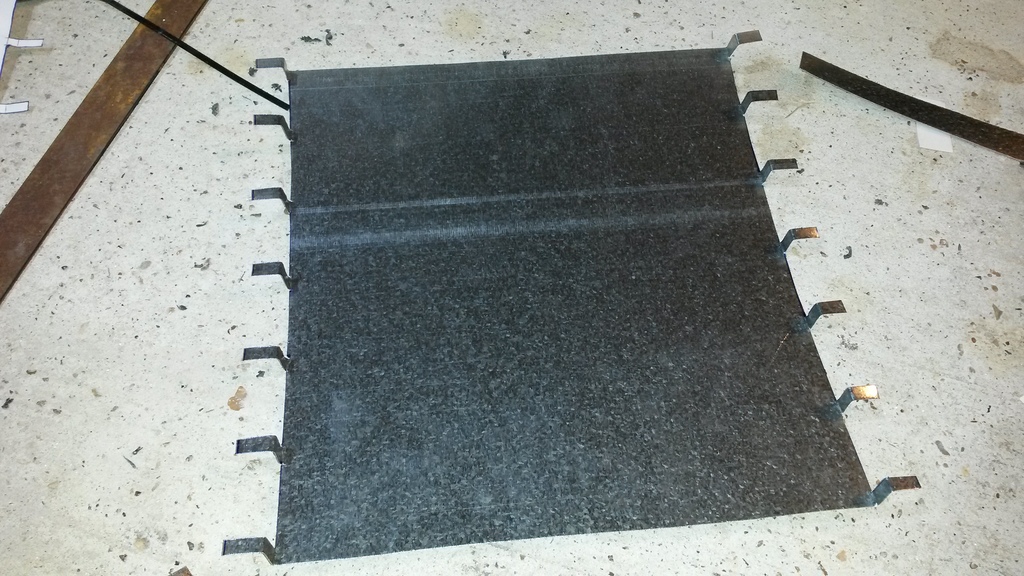

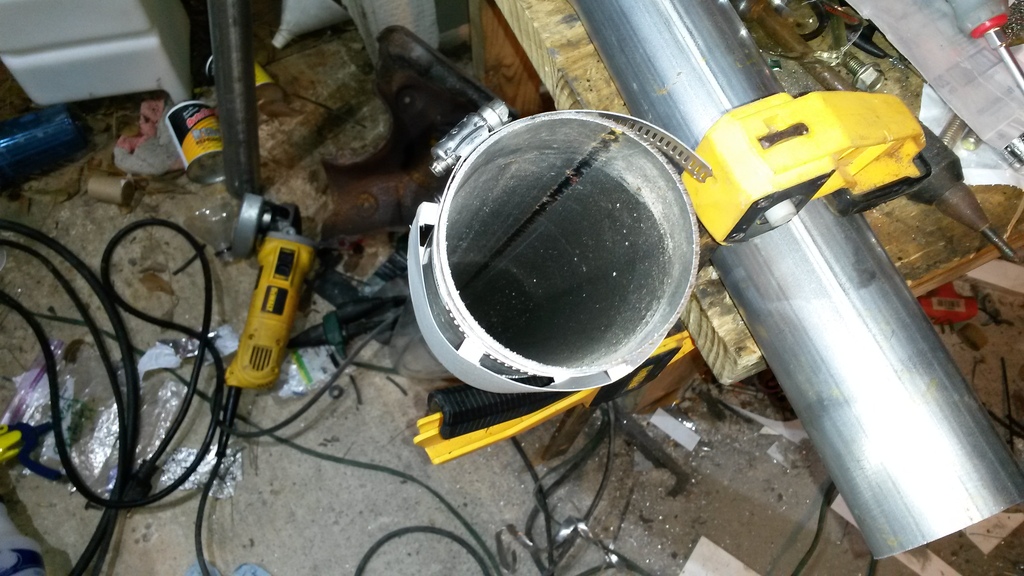

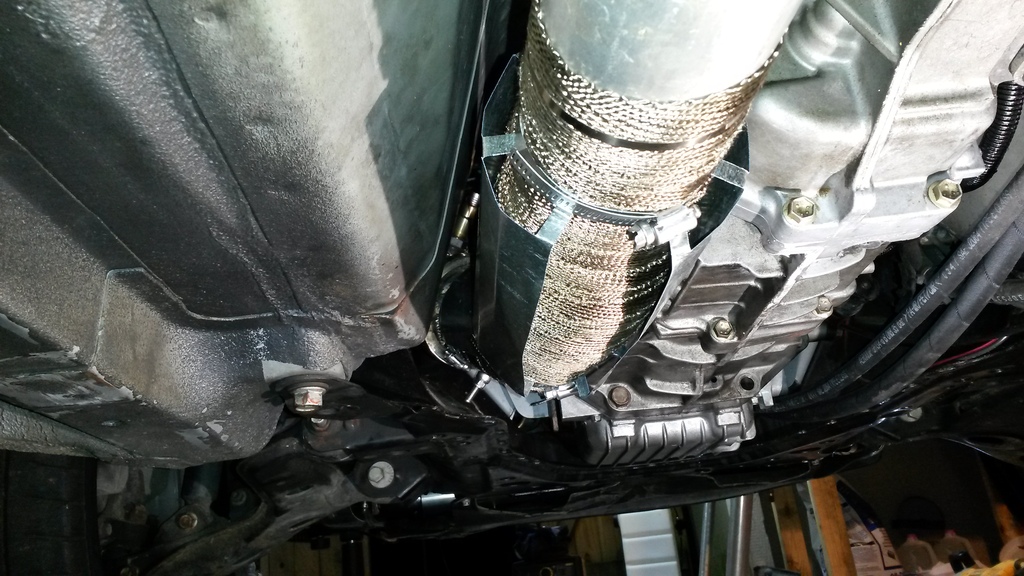

You got it! I didn't make it from stainless because that stuff is really thick and hard to bend, and expensive, and I wasn't sure if these were even going to fit/work. So they're made from galvanized sheet metal for now.

This cost 10 dollars worth of clamps and sheet metal. Maybe.

































Attached Thumbnails
Transmission Heat Shield Thread-20150929_235317_zps8ne8d148.jpg   Transmission Heat Shield Thread-20150929_235858_zpst9eolndr.jpg   Transmission Heat Shield Thread-20150930_000550_zpsuvdknqmx.jpg   Transmission Heat Shield Thread-20150930_000602_zpsomqe2ake.jpg   Transmission Heat Shield Thread-20150930_000650_zpskcgea0a1.jpg

Transmission Heat Shield Thread-20150930_000705_zps32jarenq.jpg   Transmission Heat Shield Thread-20150930_002158_zpsgylmyhye.jpg   Transmission Heat Shield Thread-20150930_003350_zpsmyekkeer.jpg   Transmission Heat Shield Thread-20150930_010742_zps5qtuzy1v.jpg   Transmission Heat Shield Thread-20150930_011744_zpso3vbv6vr.jpg

Transmission Heat Shield Thread-20150930_013736_zpsqvhwrvkj.jpg   Transmission Heat Shield Thread-20150930_014000_zpsrlnwumbn.jpg   Transmission Heat Shield Thread-20150930_015123_zpsovwwgili.jpg   Transmission Heat Shield Thread-20150930_015234_zpsvkt0zm9d.jpg   Transmission Heat Shield Thread-20150930_015252_zpsgnu0ju5d.jpg

Transmission Heat Shield Thread-20150930_015309_zpsjospaqlf.jpg   Transmission Heat Shield Thread-20150930_015342_zps6lz7bznc.jpg
patsmx5 is offline   Reply With Quote
Old 09-30-2015, 11:45 AM   #19
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 429
Total Cats: 30
Default

Nice. I'm all for cheap solutions. Should work pretty well with that big of an air gap too.
Itty is offline   Reply With Quote
Old 09-30-2015, 12:25 PM   #20
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

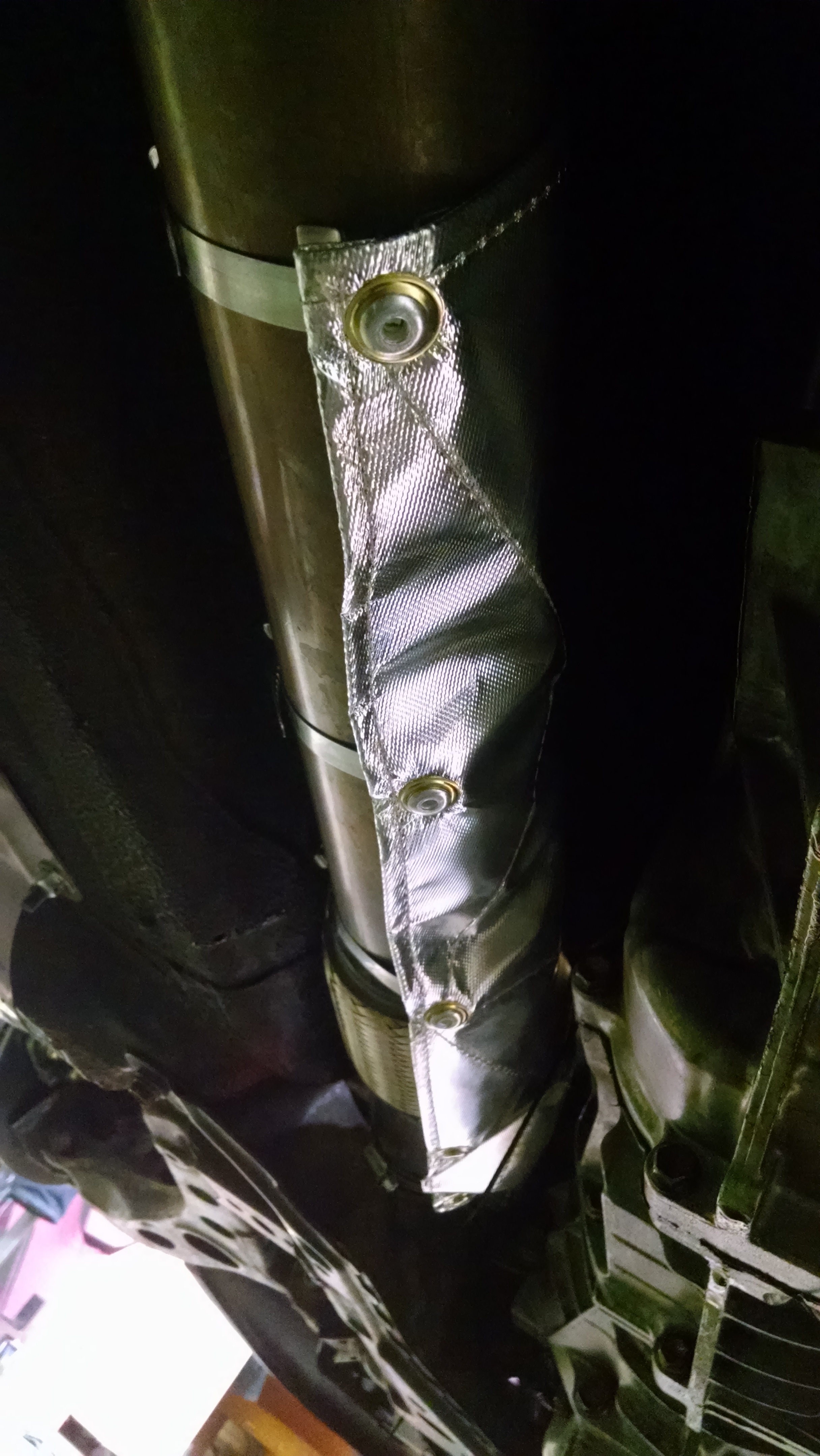

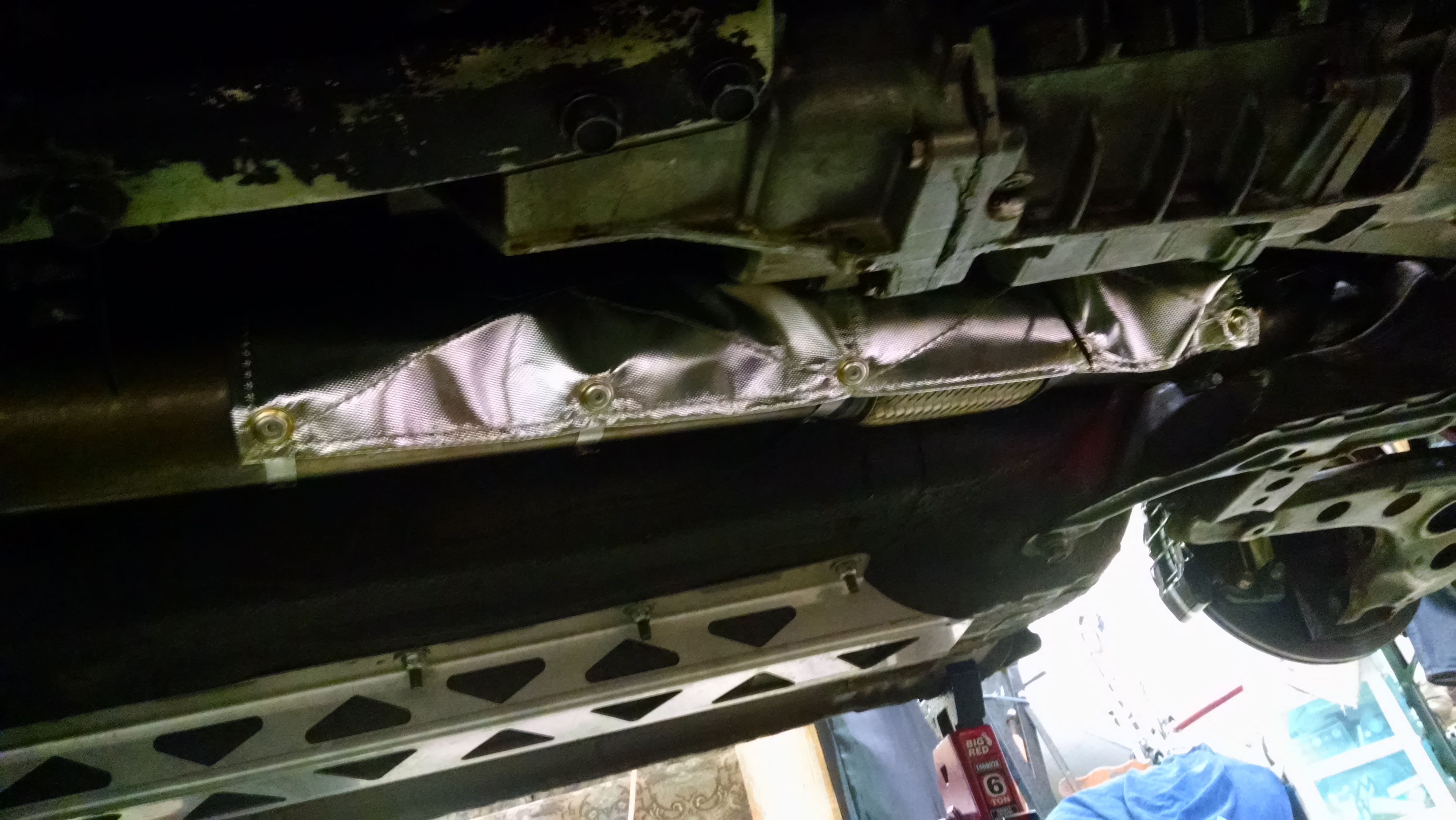

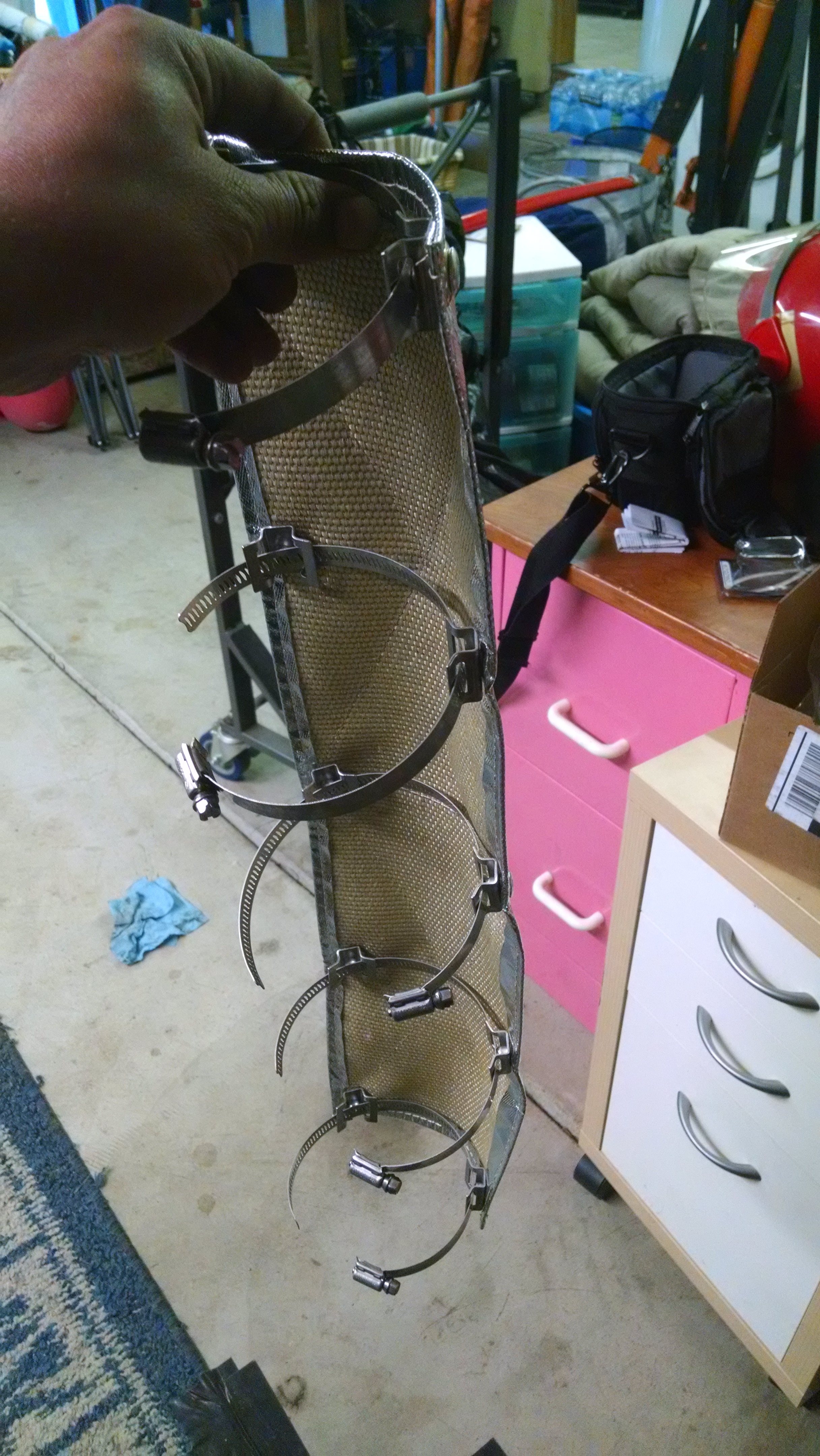

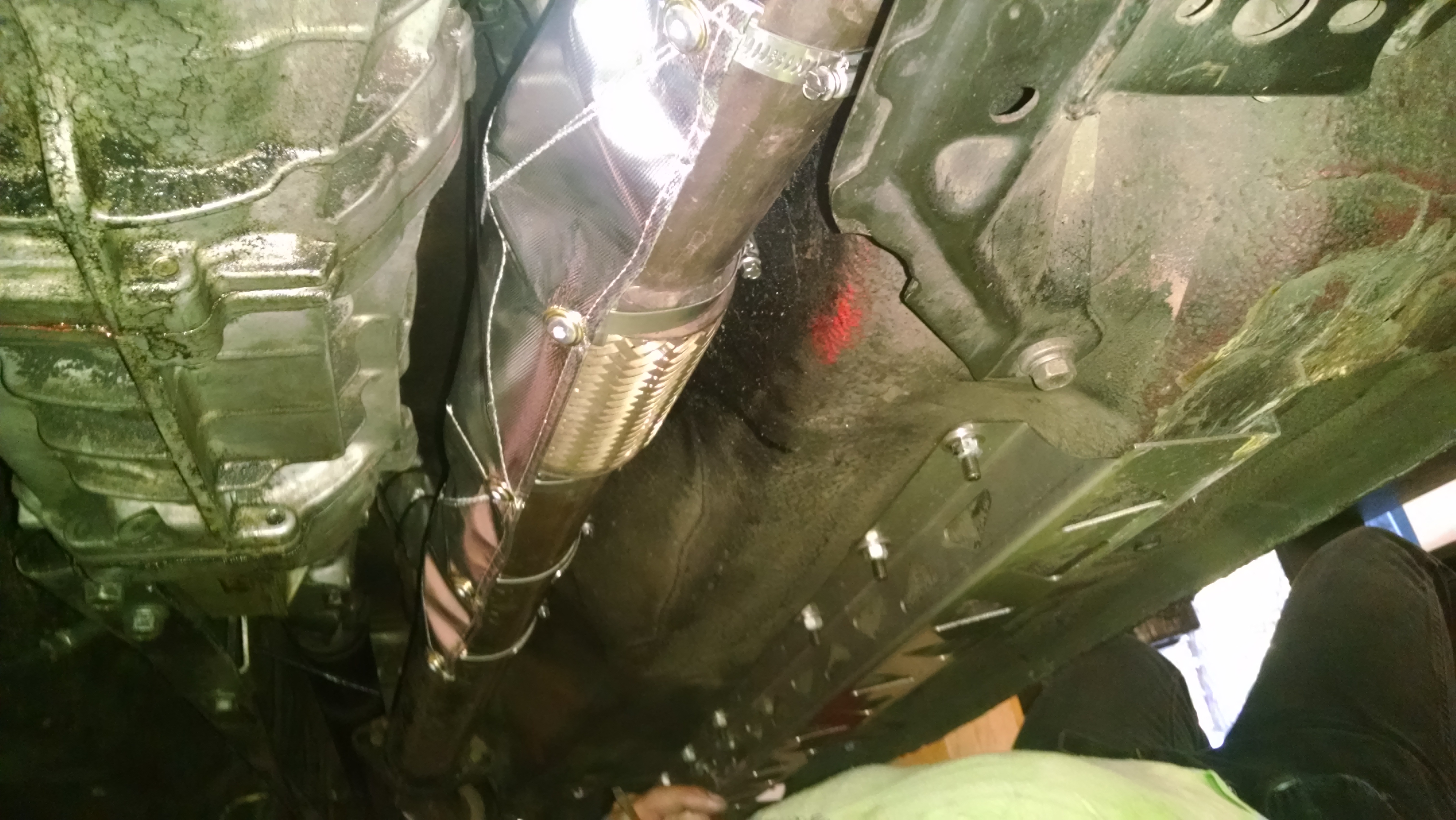

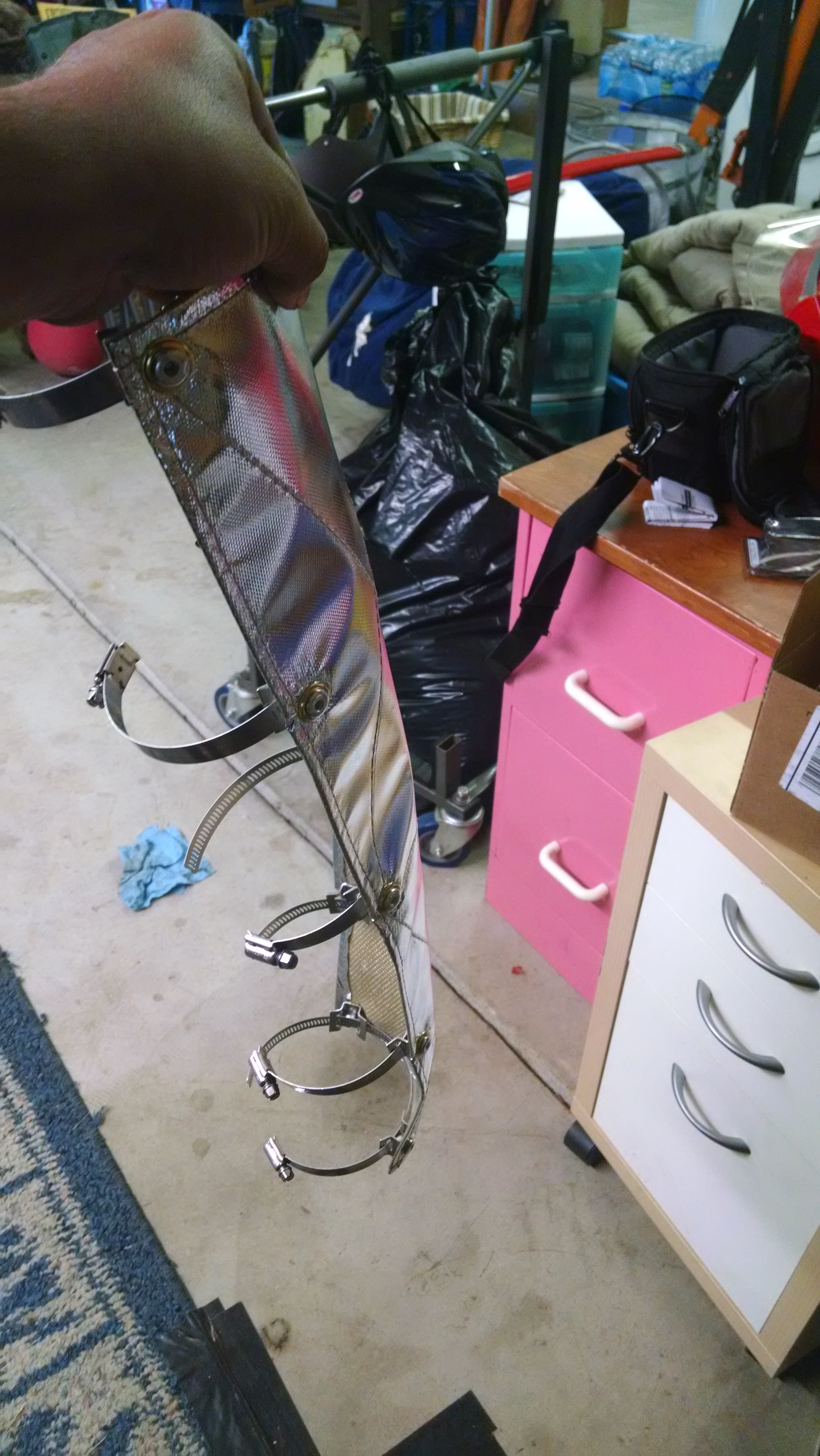

Looks good. That is what I wanted to do but ran out of time. I did this instead.

$35 to my door.





Attached Thumbnails
Transmission Heat Shield Thread-mb8mjas.jpg   Transmission Heat Shield Thread-cfgq4bn.jpg   Transmission Heat Shield Thread-cigd8ov.jpg   Transmission Heat Shield Thread-amuiiqe.jpg   Transmission Heat Shield Thread-ujrkf7q.jpg
