Default Transmission oil changing-is there an easy way to get to the Turret?

Time to go thru all the drive train fluids on the 2000 SE. The underneath stuff seems straight forward, is there an easy easy to get to the 94cc up in the shifter? Is the center console a bitch to get out?

Does the LSD require anything special? I was looking at using one of the major brand synthetics.
Thanks,
-JB
2manyhobyz is offline   Reply With Quote
Old 07-26-2011, 04:58 PM   #2
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default



Console removal is easy. The turret is closed off by rubber boots, so I think removing the console is the only way to get to it.
jasonrobo02 is offline   Reply With Quote
Old 07-26-2011, 05:05 PM   #3
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Console is a piece of cake to take out. There are screws in the armrest cubby, and a few more forward on the outside. Lift up the back, careful of the fuel-lid/trunk releases, and it'll pop right out. There is at least one electrical connector attached to it if I remember right. Oh, and you'll have to take the shift **** off.

For the dif, standard Redline is popular. Do a title search for "fluid", should turn up the answer.
samnavy is offline   Reply With Quote
Old 07-26-2011, 05:19 PM   #4
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

2000 SE should have the 6spd....you can fill the trans from the turret and not worry about the pain in the *** side fill bolt. Just drain, replace drain plug, fill from turret with the required amount of fluid. On the 6spd the turret is lubricated from oil splashing around in the trans....unlike the 5spd that requires a seperate amount for lubrication.

Two screws on the front sides of the console, two in the main cubby and one under the ash/change bin. You'll have 4 10mm bolts to get the rubber boot off (it'll likely rip somewhere too) and 3 10mm bolts holting the shifter in place.

Or if you have the car up in the air and don't mind the pump, you can fill it from the fill hole on the side until it starts to overflow. Just make sure you take off the right "bolt" for the fill as there is a similar looking one on the side that will **** up the transmission if you remove it.
Doppelgänger is offline   Reply With Quote
Old 07-26-2011, 07:24 PM   #5
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Novi, MI
Posts: 308
Total Cats: 1
Default

I would rather fill it at the fill bolt to ensure I don't over/under fill it, personally.
Larimer is offline   Reply With Quote
Old 07-26-2011, 08:07 PM   #6
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Just fyi people say amsoil mtg works the best in the mazda 6 speed.
shuiend is offline   Reply With Quote
Old 07-26-2011, 08:50 PM   #7
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Quote:
Originally Posted by Doppelgänger View Post
Just make sure you take off the right "bolt" for the fill as there is a similar looking one on the side that will **** up the transmission if you remove it.
Pay special attention to this!
olderguy is offline   Reply With Quote
Old 07-26-2011, 09:53 PM   #8
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

The car typically drains the turret over time for you. I'd be surprised if there were any oil inside it.

We use Amsoil MTG in the tranny, and that choice is backed up with UOA data.
Savington is offline   Reply With Quote
Old 07-26-2011, 11:31 PM   #9
Senior Member
Thread Starter
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

Thanks everyone,
Yes it's a 6spd. I went to the "Useful Saved Posts" sticky to look up the locate the shop manual to find the correct bolt on the tranny. The link to the library wasn't working.
Sooo.... How do I tell the difference when I'm looking at the two bolts?
Does the rear diff take the same stuff as the tranny?
-JB
2manyhobyz is offline   Reply With Quote
Old 07-27-2011, 01:25 AM   #10
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by 2manyhobyz View Post
Sooo.... How do I tell the difference when I'm looking at the two bolts?

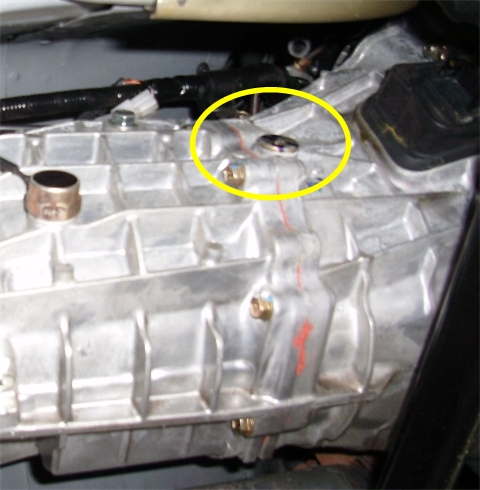

The bolt that you do NOT want to remove is on the passenger side, it looks like this:

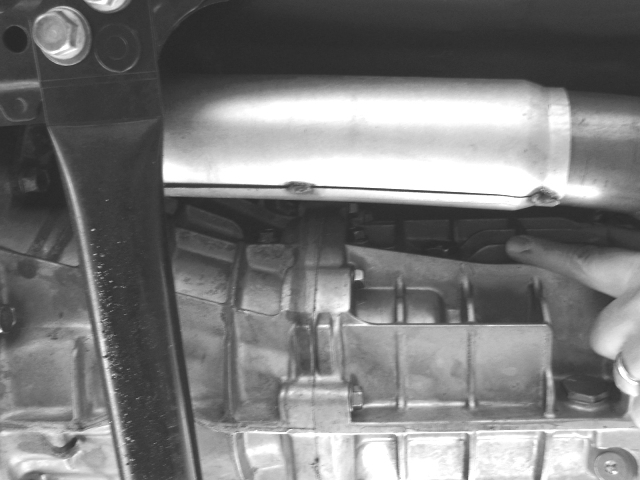

Both the fill and drain ports are on the driver's side, almost in line with each other. (He's pointing at the fill bolt and his middle knuckles are at the drain bolt.)

Attached Thumbnails
Transmission oil changing-is there an easy way to get to the Turret?-dont_remove_this_bolt.jpg   Transmission oil changing-is there an easy way to get to the Turret?-fill_bolt_location_driver_s_side.jpg
RotorNutFD3S is offline   Reply With Quote
Old 07-27-2011, 01:47 AM   #11
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,366
Total Cats: 1,327
Default

I have never removed the fill plug on a 6-speed. Fill it through the turret. Drain everything, add 1.85 quarts through the turret, and you're done.

The diff does not take MTG. Use Amsoil SVG (Severe Gear) in the diff.
Savington is offline   Reply With Quote
Old 07-27-2011, 02:45 AM   #12
Senior Member
Thread Starter
iTrader: (4)

2manyhobyz's Avatar

Join Date: Feb 2011
Location: Joliet, IL
Posts: 622
Total Cats: 16
Default

BDFOTP




(Best Damn Forum On The Planet)
2manyhobyz is offline   Reply With Quote
Old 07-27-2011, 12:53 PM   #13
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

I've never noticed the "do not touch" plug there. +1 for road grime.
