Default Tumbling further down the rabbit hole...

This is mainly for auto-x use, and is completely removable. I've been playing cat n mouse with the fastest cars at the BMWCCA auto-x down here, most of them are on race rubber - last event I was 0.2 sec off of Brian Goodwin in his stripped/supercharged/R-comp NC, and I've taken it upon myself a bit of a quest to see how fast I can make the car on street rubber as the underdog... the tail gets pretty happy on corner exits and I felt the thing holding me back the most at the last event was having to stay really light footed on corner exit..

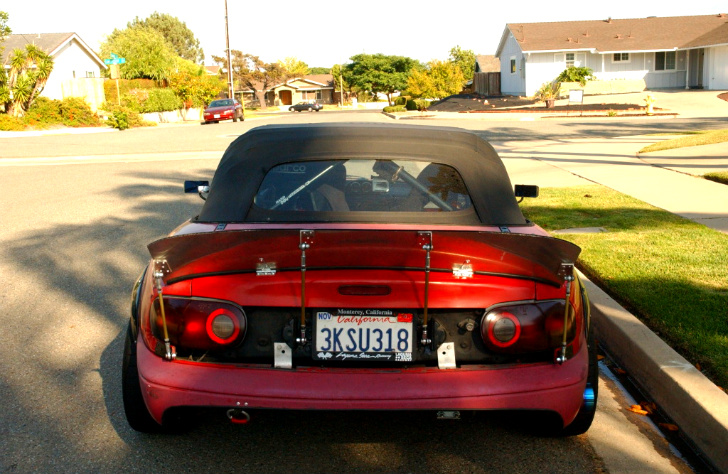

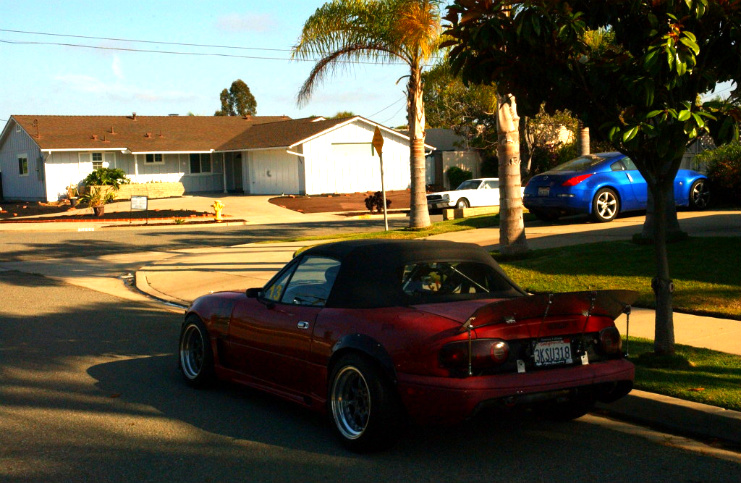

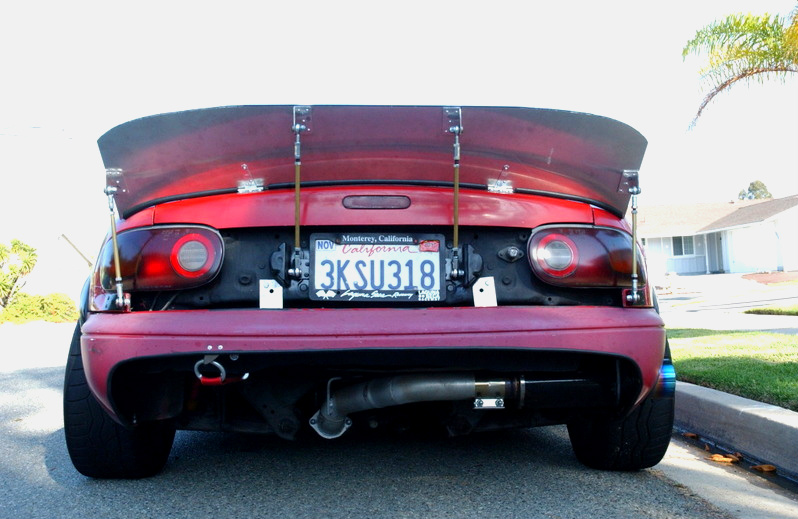

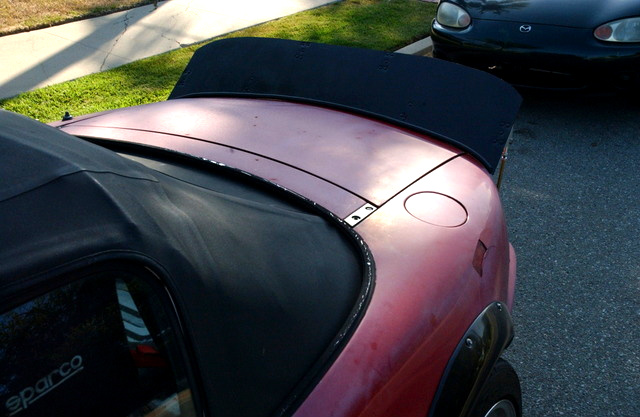

So I made myself some rear downforce. I turned to Moti for initial ideas since he has used such a spoiler with great results back in the day, and went from there.

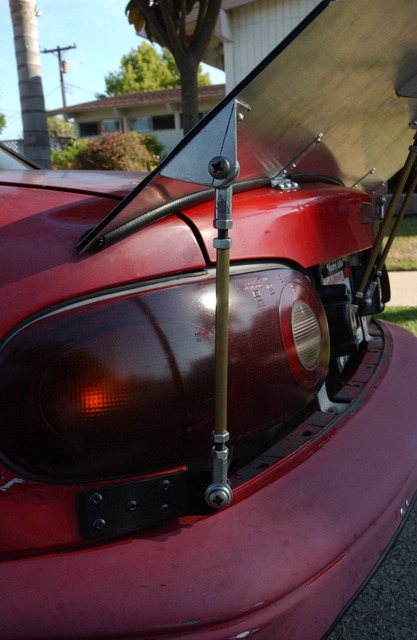

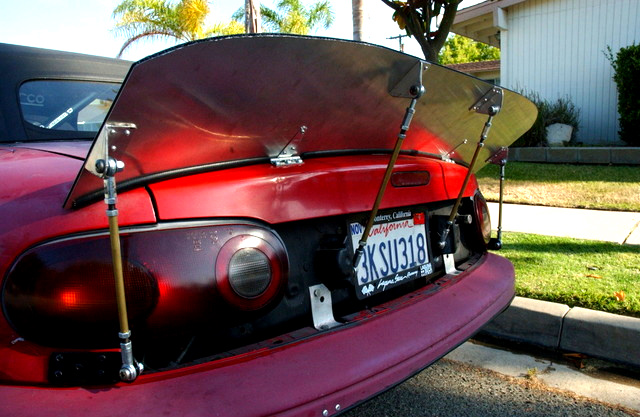

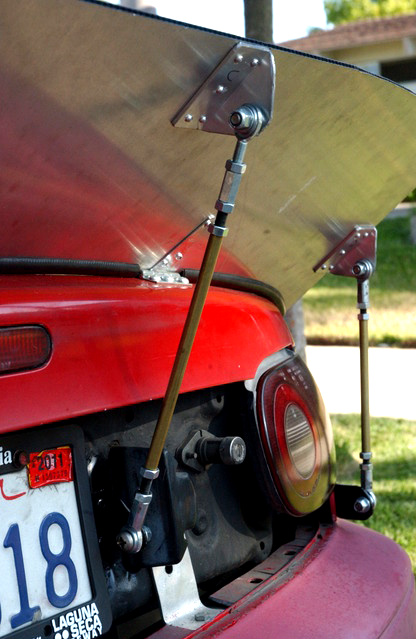

Details: Built with a dremel, drill, and manual rivet tool. Made from 6mm alumalite since I have tons left over from my front splitter project, the brackets are all 1/8" aluminum that I cut from bar stock and shaped with the dremel. The struts I pieced together using 5/16" threaded rod, heim joint ends, nuts and brass tubing as a sheath around the threaded rod. Joins to the bumper with hinges so the angle can be changed. Currently at 45*

It's not the prettiest thing, but I made it myself for pretty cheap and it should work. Will be trying it out on August 13 at the next autocross. All those on R-comps, I'm coming for you.













Attached Thumbnails
Tumbling further down the rabbit hole...-dsc_1359.jpg   Tumbling further down the rabbit hole...-dsc_1355.jpg   Tumbling further down the rabbit hole...-dsc_1364.jpg   Tumbling further down the rabbit hole...-dsc_1362.jpg   Tumbling further down the rabbit hole...-dsc_1361.jpg

Tumbling further down the rabbit hole...-dsc_1360.jpg   Tumbling further down the rabbit hole...-dsc_1354.jpg
ThePass is offline   Reply With Quote
Old 07-28-2011, 07:00 PM   #2
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

It must be a pain getting groceries in the trunk with that on there.
inferno94 is offline   Reply With Quote
Old 07-29-2011, 04:56 AM   #3
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

yeah, because I use this car to go get groceries...
ThePass is offline   Reply With Quote
Old 07-29-2011, 05:34 AM   #4
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

falcon is offline   Reply With Quote
Old 07-29-2011, 10:02 AM   #5
Senior Member
iTrader: (2)

Join Date: Sep 2008
Location: ON
Posts: 523
Total Cats: 2
Default

Quote:
Originally Posted by ThePass View Post
yeah, because I use this car to go get groceries...
Forgot the .

Have you tried it out yet?
inferno94 is offline   Reply With Quote
Old 07-29-2011, 10:07 AM   #6
I'm Miserable!

Join Date: Feb 2010
Posts: 584
Total Cats: 0
Default

Have you considered adding side plates to increase the effect by cutting spillover at each end?
sjmarcy is offline   Reply With Quote
Old 07-29-2011, 03:47 PM   #7
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Quote:
Originally Posted by sjmarcy View Post
Have you considered adding side plates to increase the effect by cutting spillover at each end?
I hadn't thought of that, I like that idea. I'll see how I like the feel of it and I'll play with the angle at the next event and then might consider adding something like that to see how much that helps/changes things.
ThePass is offline   Reply With Quote
Old 08-02-2011, 02:35 PM   #8
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Quote:
Originally Posted by inferno94 View Post
Forgot the .

Have you tried it out yet?
I drove the car at a clinic I was instructing at just to play around on my recon laps and compared to the last event where I had some seat time I noticed a major increase of stability and traction at speed.

Quote:
Originally Posted by ThePass View Post
yeah, because I use this car to go get groceries...
Totally viable.
Lincoln Logs is offline   Reply With Quote
Old 08-02-2011, 03:12 PM   #9
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I thought the rules stated that the trunk must remain functional, as in being able to open and close with the spoiler attached.
Doppelgänger is offline   Reply With Quote
Old 08-02-2011, 04:04 PM   #10
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Doppelgänger View Post
I thought the rules stated that the trunk must remain functional, as in being able to open and close with the spoiler attached.
Someone sounds JELLY OF THE SICK WING
Faeflora is offline   Reply With Quote
Old 08-02-2011, 05:11 PM   #11
Junior Member
iTrader: (1)

Join Date: Sep 2010
Location: Kent, WA
Posts: 97
Total Cats: 0
Default

Most of the top CSP miatas use a similar spoiler out of plexiglass that's curved a bit more. I'm sure you can find photos over on one of the the other Miata forums under the autocross section.
Tim Irwin is offline   Reply With Quote
Old 08-03-2011, 12:11 AM   #12
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Can you send me some pics of that exhaust? I wanna czech it out.

Quote:
Originally Posted by Faeflora View Post
Someone sounds JELLY OF THE SICK WING
homes needs some toast to go with that jelly
pusha is offline   Reply With Quote
Old 08-06-2011, 07:18 PM   #13
Supporting Vendor
Thread Starter
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Quote:
Originally Posted by Doppelgänger View Post
I thought the rules stated that the trunk must remain functional, as in being able to open and close with the spoiler attached.
Don't know what you're talking about - I make my own rules
ThePass is offline   Reply With Quote
