Default Turbo Hole?

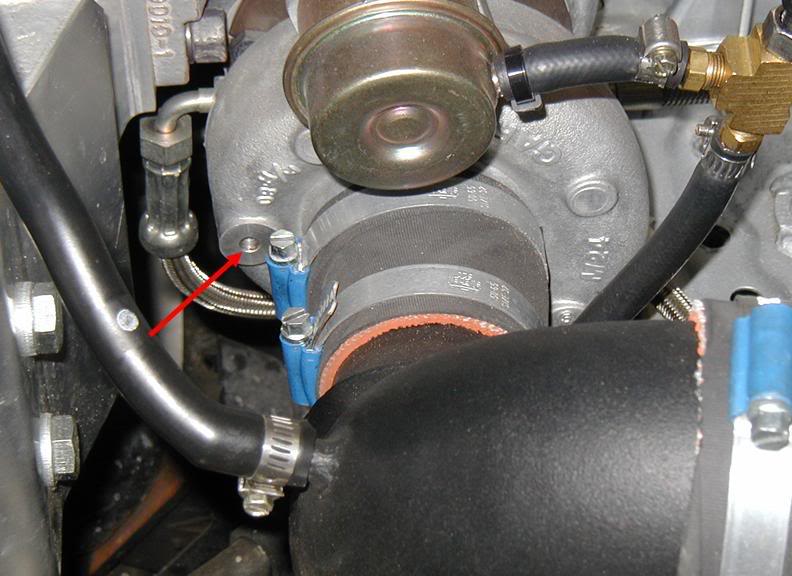

What's this hole for - pressure relief? Just noticed air (intake) coming out of it at idle. There's another one on the bottom but it's not venting.

Name:  turbohole-1.jpg
Views: 0
Size:  66.4 KB
sv650_ck is offline   Reply With Quote
Old 02-27-2009, 03:50 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

It's purpose is to mount a wastegate; it needs to be plugged with a bolt.
Braineack is offline   Reply With Quote
Old 02-27-2009, 03:50 PM   #3
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Those 2 holes are on my SR20 T25 for the stock WGA mounting. One goes all the way through, put a bolt in it to seal it up.

Edit: Brain wins.
wayne_curr is offline   Reply With Quote
Old 02-27-2009, 03:56 PM   #4
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

Thanks. It's been this way since it was first installed. I wonder why Begi didn't plug it or make mention of it in their manual.
sv650_ck is offline   Reply With Quote
Old 02-27-2009, 06:26 PM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Wow, you've been running that way since it was installed?
Your turbo has been working hardddddddd to prduce that 8 psi you've been running. You're gonna notice a difference when you plug that hole.
Use a short bolt and put some sealant on it, but not so much that it gets in the housing, just the threads.
cjernigan is offline   Reply With Quote
Old 02-27-2009, 06:46 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

and turn your MBC down.
Braineack is offline   Reply With Quote
Old 02-27-2009, 07:08 PM   #7
Junior Member
Thread Starter
iTrader: (9)

Join Date: Jan 2007
Posts: 455
Total Cats: 3
Default

With it plugged, it definitely has more go. Of course the boost is up almost 1psi - will have to loosen the MBC up.
