Default Uber-long clutch line - where to buy?

I planned on running a single braided ptfe line from the clutch master to slave ... I was so confident I was going to do this that I ditched my OEM hardline.

Now that Bill @ miataroadster has his site temp down, ordering his line appears to not be an option.

This leads to the question - anyone else sell a long line? Or am I going to have to hit a Parker/brake shop and have one made?

This would leads to a second question - Assuming I have one made, can someone provide the fitting specs?

-Zach
thasac is offline   Reply With Quote
Old 08-27-2013, 06:58 PM   #2
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Ellicott City, MD
Posts: 458
Total Cats: 6
Default

MicaCeli is offline   Reply With Quote
Old 08-27-2013, 07:28 PM   #3
Senior Member
Thread Starter
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

949's only eliminates the section post-firewall.

Miataroadster isn't taking orders right now (as stated in my post).

-Zach
thasac is offline   Reply With Quote
Old 08-27-2013, 10:03 PM   #4
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

I've bought 3 of these so far. great price and product. gets rid of the curly Q hardline

5X Racing Extended Length Clutch Line for Mazda Miata
bmxfuel007 is offline   Reply With Quote
Old 08-27-2013, 10:13 PM   #5
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Not what he's looking for.
mgeoffriau is offline   Reply With Quote
Old 08-27-2013, 10:19 PM   #6
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

NM.. didn't seee from the master.
FRT_Fun is offline   Reply With Quote
Old 08-27-2013, 10:24 PM   #7
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

lol, I didn't actually read the OP. if you're going with a ptfe line, you could easily just make your. I buy a lot of stuff from siliconeintakes.com

Braided Stainless Steel Lines
bmxfuel007 is offline   Reply With Quote
Old 08-27-2013, 10:31 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

why not make a single uber long hard line?

just add lots of flexy service loop coils. can prob get it at auto parts store "in the back" where they likely have many hanging.
y8s is offline   Reply With Quote
Old 08-28-2013, 08:21 AM   #9
Senior Member
Thread Starter
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Boom: 5X Racing Extended Length Clutch Line for Mazda Miata

Late night googling success - thanks for nuttin' MT.netters!
thasac is offline   Reply With Quote
Old 08-28-2013, 08:25 AM   #10
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

Which is exactly what I posted. Good thing you read what we wrote moron
bmxfuel007 is offline   Reply With Quote
Old 08-28-2013, 09:08 AM   #11
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

That won't reach the master cylinder.

That is basically the same as the TSE one.

This thread sucks. 0/10
FRT_Fun is offline   Reply With Quote
Old 08-28-2013, 10:05 AM   #12
Senior Member
Thread Starter
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by bmxfuel007 View Post
Which is exactly what I posted. Good thing you read what we wrote moron
Moron of the day - it is just like the 949 (which is not what I'm looking for).

-Zach
thasac is offline   Reply With Quote
Old 08-28-2013, 10:20 AM   #13
Senior Member
Thread Starter
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Okay ... plan B time.

Does anyone know the fitting for the slave/master? It appears to be the same pitch inverted flare. At this point I'd like to just get some JIC adapter fittings and run a -3an line between the two.

-Zach
thasac is offline   Reply With Quote
Old 08-28-2013, 10:37 AM   #14
Senior Member
Thread Starter
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Me thinks this(10x1mm inverted flare to -3) + this(-3 line) will do the trick.

-Zach
thasac is offline   Reply With Quote
Old 08-28-2013, 12:07 PM   #15
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Quote:
Originally Posted by thasac View Post
Me thinks this(10x1mm inverted flare to -3) + this(-3 line) will do the trick.

-Zach
Get your butt to a hose shop and get a hose made for M10x1 brake line?

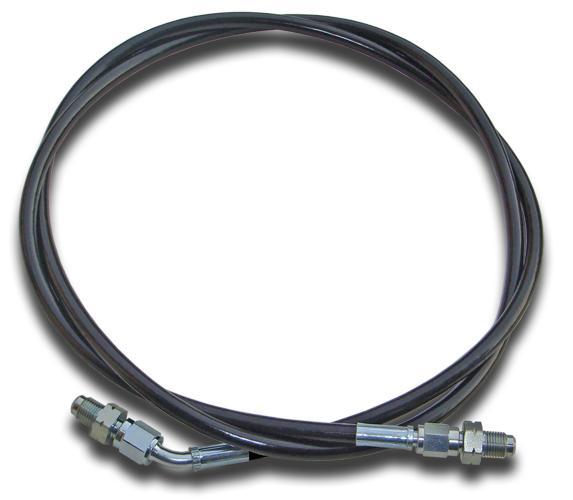

Inspirational image...


Why go the AN route? You can always use your nail polish to color the fittings.



But since you're in no hurry (apparently), you can always wait until MR can take orders.
Attached Thumbnails
Uber-long clutch line - where to buy?-b1e3c54a-0a3f-42b8-a1f6-cf800b5e80ec-800.jpg

Last edited by NiklasFalk; 08-28-2013 at 12:19 PM.
NiklasFalk is offline   Reply With Quote
Old 08-28-2013, 12:51 PM   #16
Senior Member
Thread Starter
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by NiklasFalk View Post
Get your butt to a hose shop and get a hose made for M10x1 brake line?
Inspirational image...


Why go the AN route? You can always use your nail polish to color the fittings.



But since you're in no hurry (apparently), you can always wait until MR can take orders.
The links I posted are for reference, I plan on sourcing it from the local Parker/Omni vendor. Also, I'm pretty sure the the image you posted (which I believe is the MR line) illustrates exactly what I described: a -3 line with adapter fittings ... otherwise there would only be a single hex on each end.

The 'best' option, IMO, would be a single line with 10mm inverted flare ends crimped directly to the line/hose ... doubtful I can find that local.

Regardless, this thread sucks and I apologize to all involved.

-Zach
thasac is offline   Reply With Quote
Old 08-31-2013, 02:45 AM   #17
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

why not just get another upper oem hardline for pennies from someone and run the curly Q delete from whatever vendor you like? or you just trying to be unique and have your own custom clutch line all the way to the slave?

EDIT: I called you a moron because you posted a link that I had just posted, which was a result of me not reading your post, but then you didn't read my post so there
bmxfuel007 is offline   Reply With Quote
Old 08-31-2013, 03:19 PM   #18
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Quote:
Originally Posted by thasac View Post
The 'best' option, IMO, would be a single line with 10mm inverted flare ends crimped directly to the line/hose ... doubtful I can find that local.
Or at all. Nobody makes a 10x1.0mm inverted flare swivel fitting, and you would need at least one (preferably two) to actually get that line installed. We looked long and hard for that fitting when we designed our clutch line, and it definitely isn't out there AFAIK.

Two adapters and a long -3AN line is what you want. Or get the OEM hardline out of a yard and buy our clutch line.
Savington is offline   Reply With Quote
Old 09-01-2013, 11:24 AM   #19
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by Savington View Post
Or at all. Nobody makes a 10x1.0mm inverted flare swivel fitting, and you would need at least one (preferably two) to actually get that line installed. We looked long and hard for that fitting when we designed our clutch line, and it definitely isn't out there AFAIK.

Two adapters and a long -3AN line is what you want. Or get the OEM hardline out of a yard and buy our clutch line.
i just had them compression fit a few ends off normal brake line into a ptfe line works great. I have had 4 lines made this way 20 on brake systems and none have failed yet.
magnamx-5 is offline   Reply With Quote
Old 09-01-2013, 01:33 PM   #20
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Just order two of TSE's special fittings and a long -3 line. They appear to be the same on both ends. Might wanna double check that before going this route.

Also, this method has 4 leak points, 2 on either adapter. Which happens to be the same as an OEM hardline and TSE's clutch line. Food for thought.
