Question Urgent! Please advice... Engine woes

I keep having the same problem over and over again. I can't seem to make my engine stop leaking oil. About two months ago I replaced the front main seal, and the camshafts seals. However, it appears that the unmodified PCV system was causing the crankcase to pressurize, causing the seals to fail. I band-aid that by blocking the IM port and venting the passenger side of the valve cover.

I've had this same leak on both of the engines I have used. The only thing in common both these engines had was the replacement of the head gasket, and the unmodified PCV system.

I will replace the crank and camshafts seals tomorrow... again. I've read about using black rtv to improve the seals' performance. I was thinking on trying this out and see. However, I feel there's is something else going on. Could it be the head gasket?

I took the car on a round trip from Miami to Orlando. On the return trip my alternator belt ripped due to excess oil that leaked. I have to move this Saturday to Orlando to start classes. This is why I must figure this out ASAP. Thanks
buffon01 is offline   Reply With Quote
Old 08-15-2012, 09:00 AM   #2
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Put vacuum on the breather. The crankcase like to have vacuum on it.
Doppelgänger is offline   Reply With Quote
Old 08-15-2012, 12:19 PM   #3
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Isn't that what the PCV is for?
buffon01 is offline   Reply With Quote
Old 08-15-2012, 12:20 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Condition of valve seals and piston rings?
hustler is offline   Reply With Quote
Old 08-15-2012, 12:32 PM   #5
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Both unknown in this engine. In the previous one the head had new valve seals and it only leaked once the turbo was running.

I don't have that bluish/heavy smoke out the tail pipe at start up, just the occasional black smoke that follows load runs. From the information I've collected this is due to faulty crank ventilation systems.
buffon01 is offline   Reply With Quote
Old 08-15-2012, 02:34 PM   #6
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Option A: Route both breather ports to a catch can.

Option B: Route both breather ports to an exhaust vacuum

Not an option: Use the PCV valve knowing that when your crankcase needs ventilation the most, your PCV valve will - best case: be closed - worst case: provide boost to your crankcase.
fooger03 is offline   Reply With Quote
Old 08-15-2012, 02:46 PM   #7
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by fooger03 View Post
Option A: Route both breather ports to a catch can.

Option B: Route both breather ports to an exhaust vacuum

Not an option: Use the PCV valve knowing that when your crankcase needs ventilation the most, your PCV valve will - best case: be closed - worst case: provide boost to your crankcase.
Wouldn't option A equate to vent the port to atmosphere?

Exhaust vacuum? as in, tapping the exhaust plumbing for a hose barb?

I also ran into people that have used a Turbo Supra PCV valve, option C?
buffon01 is offline   Reply With Quote
Old 08-15-2012, 02:51 PM   #8
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Just make a catchcan and run both lines to it.
Fireindc is offline   Reply With Quote
Old 08-15-2012, 02:59 PM   #9
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Quote:
Originally Posted by buffon01 View Post
Wouldn't option A equate to vent the port to atmosphere?

Exhaust vacuum? as in, tapping the exhaust plumbing for a hose barb?

I also ran into people that have used a Turbo Supra PCV valve, option C?
Yes, Option A would equate to venting the port to atmosphere - after dumping all the liquid mist crap into the catch can.

For exhaust vacuum - search "slash cut"

Turbo Supra PCV valve is not an option C - if you're really super dead set on burning your crankcase fumes in your combustion cycle, then you need to vent both of them to your intake tract pre-turbo. I have no idea what several months worth of fine oily mist will do to your compressor, intercooler, or various intake air sensors, but even a NASA developed PCV can deliver - at best - zero ventilation when you need ventilation the most.
fooger03 is offline   Reply With Quote
Old 08-15-2012, 03:17 PM   #10
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by Fireindc View Post
Just make a catchcan and run both lines to it.
I've been trying to dodge that bullet, but I guess I can't. Venting to atmo will do for now since I have to order the can and I'm in the middle of moving.

Quote:
Originally Posted by fooger03 View Post
Yes, Option A would equate to venting the port to atmosphere - after dumping all the liquid mist crap into the catch can.

For exhaust vacuum - search "slash cut"

Turbo Supra PCV valve is not an option C - if you're really super dead set on burning your crankcase fumes in your combustion cycle, then you need to vent both of them to your intake tract pre-turbo. I have no idea what several months worth of fine oily mist will do to your compressor, intercooler, or various intake air sensors, but even a NASA developed PCV can deliver - at best - zero ventilation when you need ventilation the most.
Thanks, I'll look into it.

What about the black RTV to help the seals to not leak?
buffon01 is offline   Reply With Quote
Old 08-15-2012, 03:20 PM   #11
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Run both lines to a catch can and put vacuum on the catchcan pre turbo (or use exhaust as venturi effect). Keep the catchcan as far away from heat as possible to help condense oil vapors. Some even put steelwool in catchcans to help with scrubbing vapros.

Furthermore, black smoke is fuel smoke.
Doppelgänger is offline   Reply With Quote
Old 08-15-2012, 03:32 PM   #12
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Quote:
Originally Posted by buffon01 View Post
What about the black RTV to help the seals to not leak?
Assuming this would work as you expect it to, you would not be solving the problem, you would only be hiding a symptom...so you would be sort of like a socialist government for your engine.
fooger03 is offline   Reply With Quote
Old 08-15-2012, 03:46 PM   #13
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by Doppelgänger View Post
Run both lines to a catch can and put vacuum on the catchcan pre turbo (or use exhaust as venturi effect). Keep the catchcan as far away from heat as possible to help condense oil vapors. Some even put steelwool in catchcans to help with scrubbing vapros.

Furthermore, black smoke is fuel smoke.
Okay, will do.

Quote:
Originally Posted by fooger03 View Post
Assuming this would work as you expect it to, you would not be solving the problem, you would only be hiding a symptom...so you would be sort of like a socialist government for your engine.
oh lawd

Like I said I wanted to avoid the catchcan due to money issues. I see now that I can't escape it. I will do the can and the vacuum pre-turbo. However, I don't have the access to the part needed for this immediately. I will have to order them online and wait for delivery. As I mentioned I need to at least be able to drive the car 260 miles again this weekend when I move. Once there I will work on getting the catch can set.

As of right now the best I can do is vent both ports to atmo and replace the seals.
buffon01 is offline   Reply With Quote
Old 08-15-2012, 03:48 PM   #14
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by buffon01 View Post
Okay, will do.



oh lawd

Like I said I wanted to avoid the catchcan due to money issues. I see now that I can't escape it. I will do the can and the vacuum pre-turbo. However, I don't have the access to the part needed for this immediately. I will have to order them online and wait for delivery. As I mentioned I need to at least be able to drive the car 260 miles again this weekend when I move. Once there I will work on getting the catch can set.

As of right now the best I can do is vent both ports to atmo and replace the seals.
I built a very legitimate catch-can for under 20 bucks including all materials and under 2 hours of my time. You can do it!. JB weld+metal container+3 brass barbs and a filter.
Fireindc is offline   Reply With Quote
Old 08-16-2012, 03:44 AM   #15
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Doppelgänger View Post
Put vacuum on the breather. The crankcase like to have vacuum on it.
Yah you can route the breather to your intake. That works. But. Oil in your combustion chamber causes detonation. Note that this is only really a problem when you approach 300hp. If you are stock or lower HP just do this.

Quote:
Originally Posted by fooger03 View Post
Option A: Route both breather ports to a catch can.

Option B: Route both breather ports to an exhaust vacuum

Not an option: Use the PCV valve knowing that when your crankcase needs ventilation the most, your PCV valve will - best case: be closed - worst case: provide boost to your crankcase.

For option A, catch can NEEDS TO BE VTA.

Option B. If you are boosted take off PCV valve or drill it out and make it VTA. I do not recommend exhaust vacuum.

Quote:
Originally Posted by Fireindc View Post
Just make a catchcan and run both lines to it.
IF CATCHCAN IS VTA.

Quote:
Originally Posted by fooger03 View Post
Yes, Option A would equate to venting the port to atmosphere - after dumping all the liquid mist crap into the catch can.

For exhaust vacuum - search "slash cut"

Turbo Supra PCV valve is not an option C - if you're really super dead set on burning your crankcase fumes in your combustion cycle, then you need to vent both of them to your intake tract pre-turbo. I have no idea what several months worth of fine oily mist will do to your compressor, intercooler, or various intake air sensors, but even a NASA developed PCV can deliver - at best - zero ventilation when you need ventilation the most.

Several months of oily mist will not break ouyr sensors, compressor, or IC. But as I said, oil will cause detonation at higher boost.

I DO NOT recommend slash cut for anything other than a track car. It sucks to have oil get into your exhaust, and then for your exhaust to annoyingly pour out oil smoke while you're cruising down the highway. It smells. You look stupid. It sucks. Yes it works under boost, but you can just VTA your crankcase and it will still work without the horrible smoke BS.

I am an expert in this crap because I need crankcase vent more than anyone else on this forum.

Buffon. Do this.

Stick a little filter on the drivers side vent.

Drill out PCV valve. With a drill. Stick a little filter on the PCV valve.

And *** that damn girl you had the 1 night stand wih again.
Faeflora is offline   Reply With Quote
Old 08-16-2012, 03:45 AM   #16
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by buffon01 View Post
I've been trying to dodge that bullet, but I guess I can't. Venting to atmo will do for now since I have to order the can and I'm in the middle of moving.



Thanks, I'll look into it.

What about the black RTV to help the seals to not leak?

Regarding RTV. If your shiz is pressurized, sealing it up won't help. Why? Because the gas will come out elsewhere. Most likely through a seal. Since the current vent is broekd. Also RTV doesn't exactly stick firmly to metal. It is just a gasket maker
Faeflora is offline   Reply With Quote
Old 08-16-2012, 08:43 AM   #17
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I vote to reban.

-failing to simply edit you post insted of making multiple posts
-Completely missing what I said...even when you quoted it.
Doppelgänger is offline   Reply With Quote
Old 08-16-2012, 09:07 AM   #18
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,464
Total Cats: 782
Default

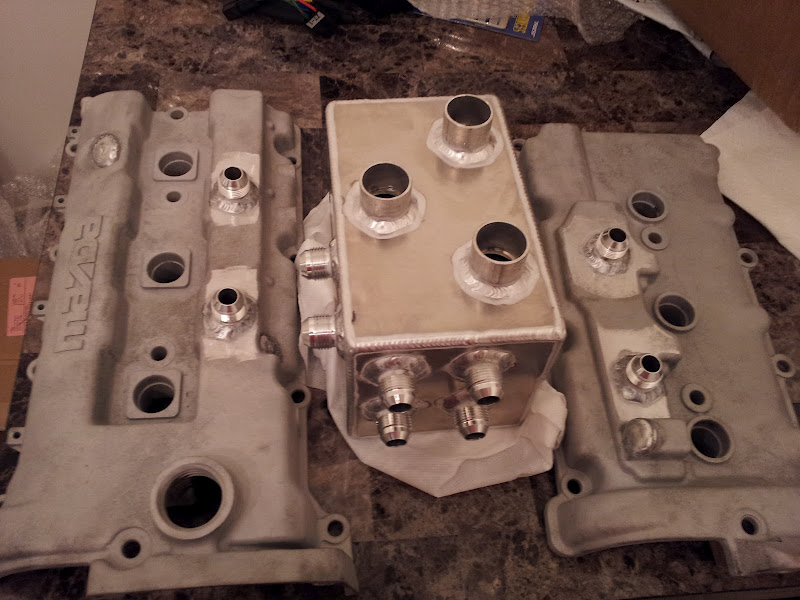

This is what you need:

Attached Thumbnails
Urgent! Please advice... Engine woes-20120515_172727.jpg
concealer404 is online now   Reply With Quote
Old 08-16-2012, 10:06 AM   #19
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

A 3 cylinder?
Doppelgänger is offline   Reply With Quote
Old 08-16-2012, 10:09 AM   #20
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,464
Total Cats: 782
Default

Quote:
Originally Posted by Doppelgänger View Post
A 3 cylinder?
Picture was more about the catch can, but yes... he needs a 3 cylinder. Two of them, actually!
concealer404 is online now   Reply With Quote
