Default V-Mount or conventional IC placement?

I have a lot of room to work with and trying to decide intercooler placement.

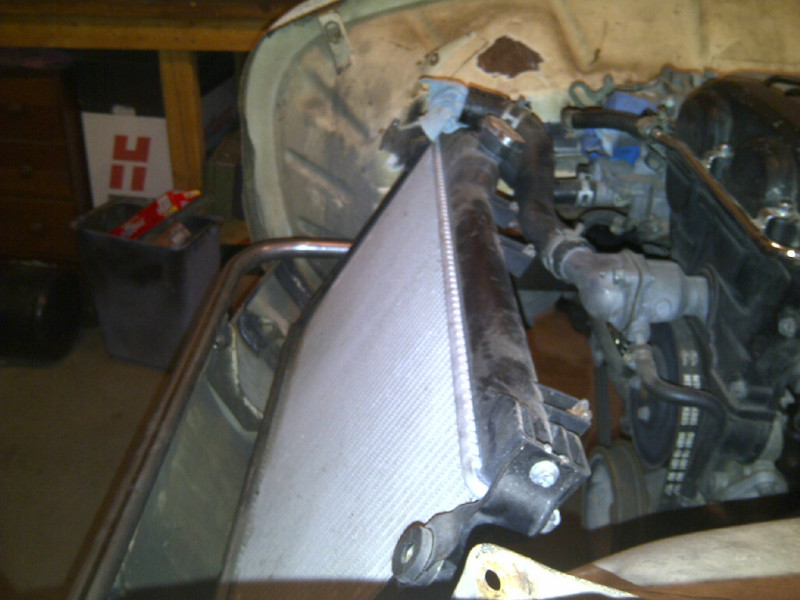

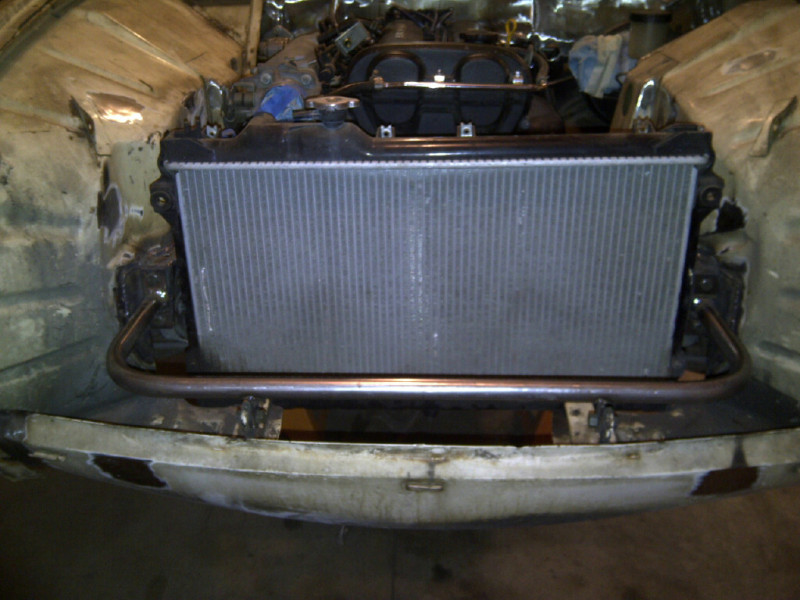

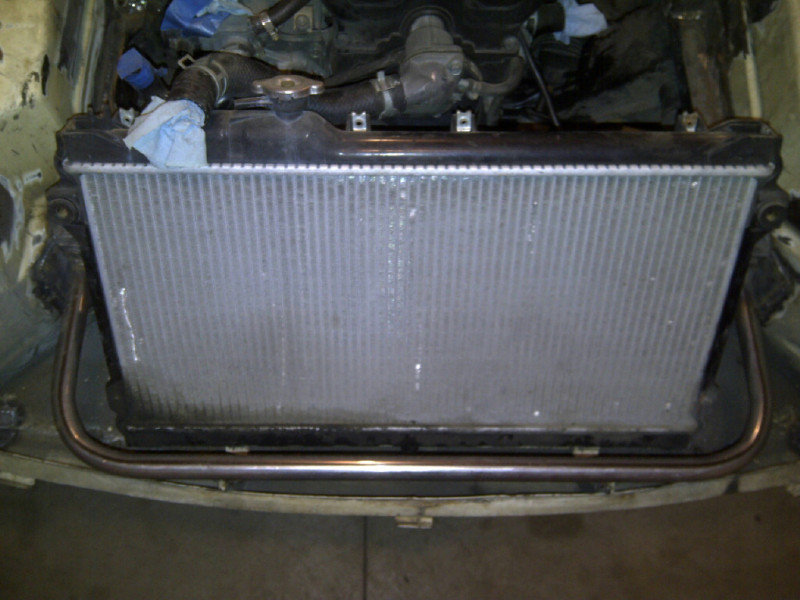

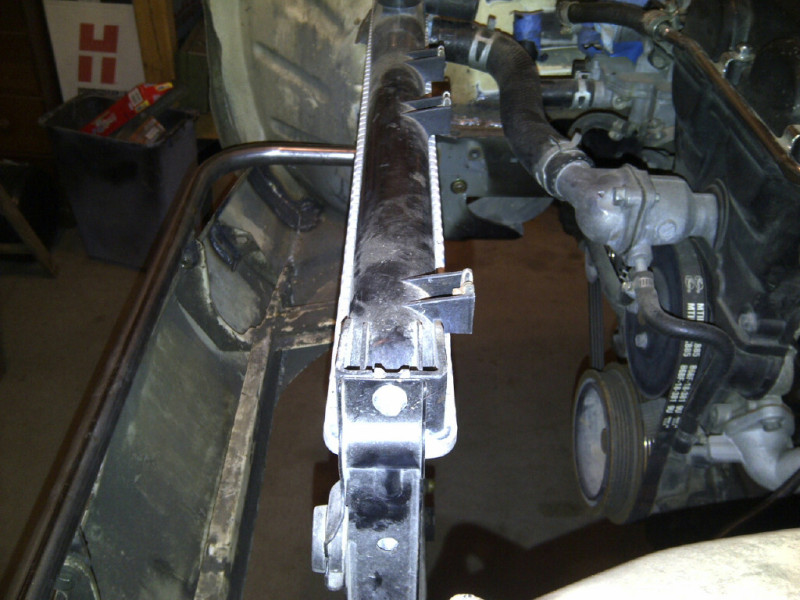

If I keep the radiator upright I have tons of room to place the IC in front of the radiator and can duct as needed. The bar at the bottom is inside of the grille so all of that real estate is available.





If I lean it back I have lots of room to V-Mount it but I am guessing on location/angle/placement of the IC. If I use an IC with top mounted outlets it will be a straight shot from the turbo to the IC and to the TB. I have at least 6" above the radiator to the hood. It will also be pretty easy to seal and duct both.




So, conventional or V-mount and why? If V-mount any suggestions on angles, etc?
Attached Thumbnails
V-Mount or conventional IC placement?-img-20130113-00098.jpg   V-Mount or conventional IC placement?-img-20130113-00095.jpg   V-Mount or conventional IC placement?-img-20130113-00094.jpg   V-Mount or conventional IC placement?-img-20130113-00097.jpg   V-Mount or conventional IC placement?-img-20130113-00096.jpg

Stein is offline   Reply With Quote
Old 01-20-2013, 02:07 AM   #2
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Nobody has an opinion on MT? That's a first. I took pichers and err'ythin.
Stein is offline   Reply With Quote
Old 01-20-2013, 02:53 AM   #3
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Them's good pitchers. Dunno what to tell you to do, though.
Mobius is offline   Reply With Quote
Old 01-20-2013, 03:03 AM   #4
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

V mounts are not common in the miata world because we are lapping with supercars with conventional mouth placed ebay intercoolers.

Id go a V mount for the benefits you have listed, on a miata there is a bit of engineering to be done to do a V mount and its probably not worth it.

Dann
nitrodann is online now   Reply With Quote
Old 01-20-2013, 11:48 AM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,913
Default

Personally, I'mm too busy trying to figure out what the hell kind of vehicle that engine is in to proffer an opinion on something as trivial as intercooler placement.
Joe Perez is offline   Reply With Quote
Old 01-20-2013, 11:50 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,830
Total Cats: 1,786
Default

conventional, no extractor hood.
Braineack is offline   Reply With Quote
Old 01-20-2013, 12:03 PM   #7
Elite Member
Thread Starter
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Joe Perez View Post
Personally, I'mm too busy trying to figure out what the hell kind of vehicle that engine is in to proffer an opinion on something as trivial as intercooler placement.
My 1968 saab 96. I have a worklog.
