Default Vgauges-Water/Oil temp gauge install question

ive got this:
vGauges

But cant seem to find any sort of instructions, google turns up little to nothing about this company and it looks like only a few on here have even linked vgauges to the site.

Its got:
Red/Black/Green on top i assume black is ground and red is power, but wtf is green?

White & Gray on the bottom, im assuming these are the inputs for the "temp" sensors.

Anyone have any idea? I emailed vgauges looking for instructions but found nothing elsewhere.


Edit: looks like i found what im looking for here:
http://veisystems.com/technical.html

Only thing is, their part numbers are all scrambled up.

Edit #2
Gray= water temp
White=oil temp
Green= lights
Red= switched 12v ( main power )
Black= ground
thesnowboarder is offline   Reply With Quote
Old 05-07-2009, 01:44 AM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Looks like you found it. Good job. The green is supposed to be for the dimmer.
I love my vgauges.
cjernigan is offline   Reply With Quote
Old 05-07-2009, 04:30 AM   #3
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Which gauges do you have? Do you mind posting some pics? They look like quality gauges but i was a bit hesitant upon purchasing mine. Not much info about them.
thesnowboarder is offline   Reply With Quote
Old 05-07-2009, 09:36 AM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

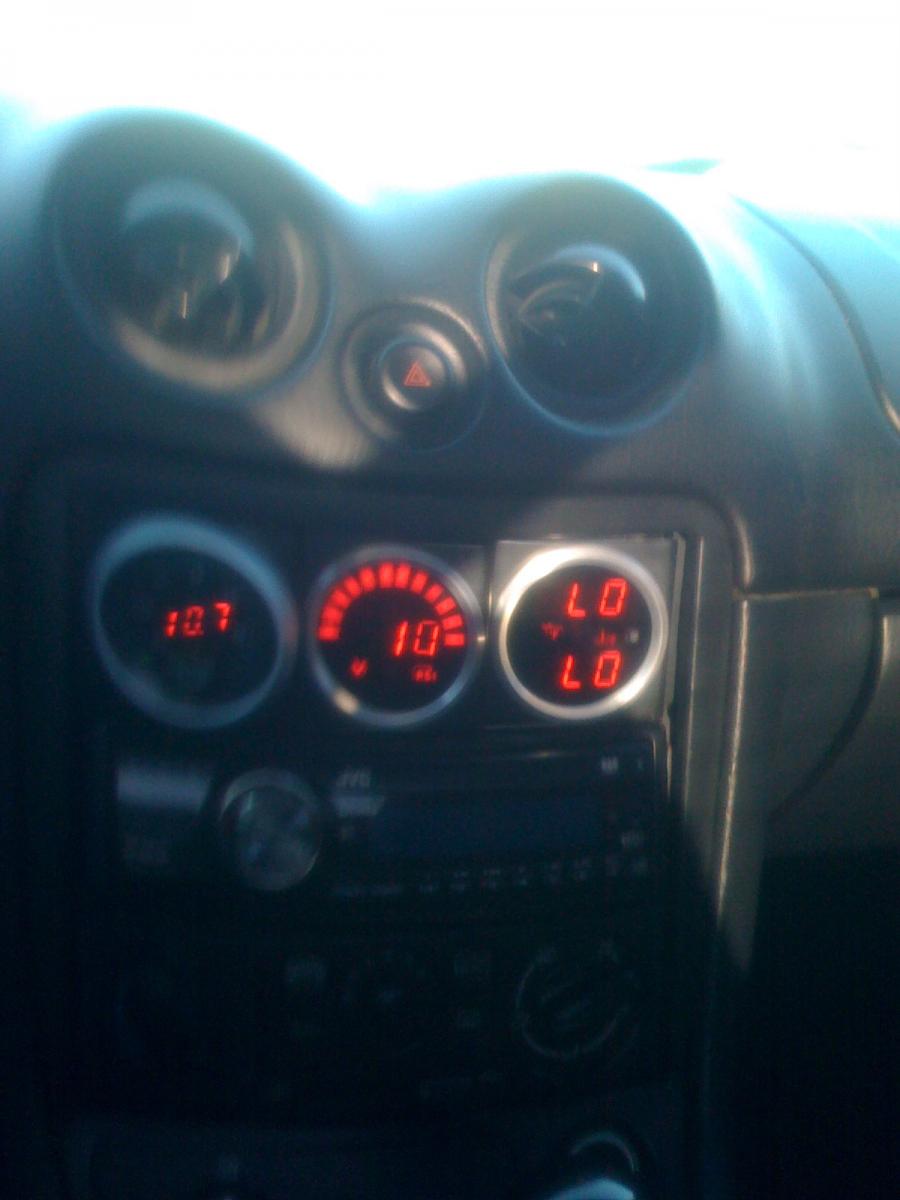

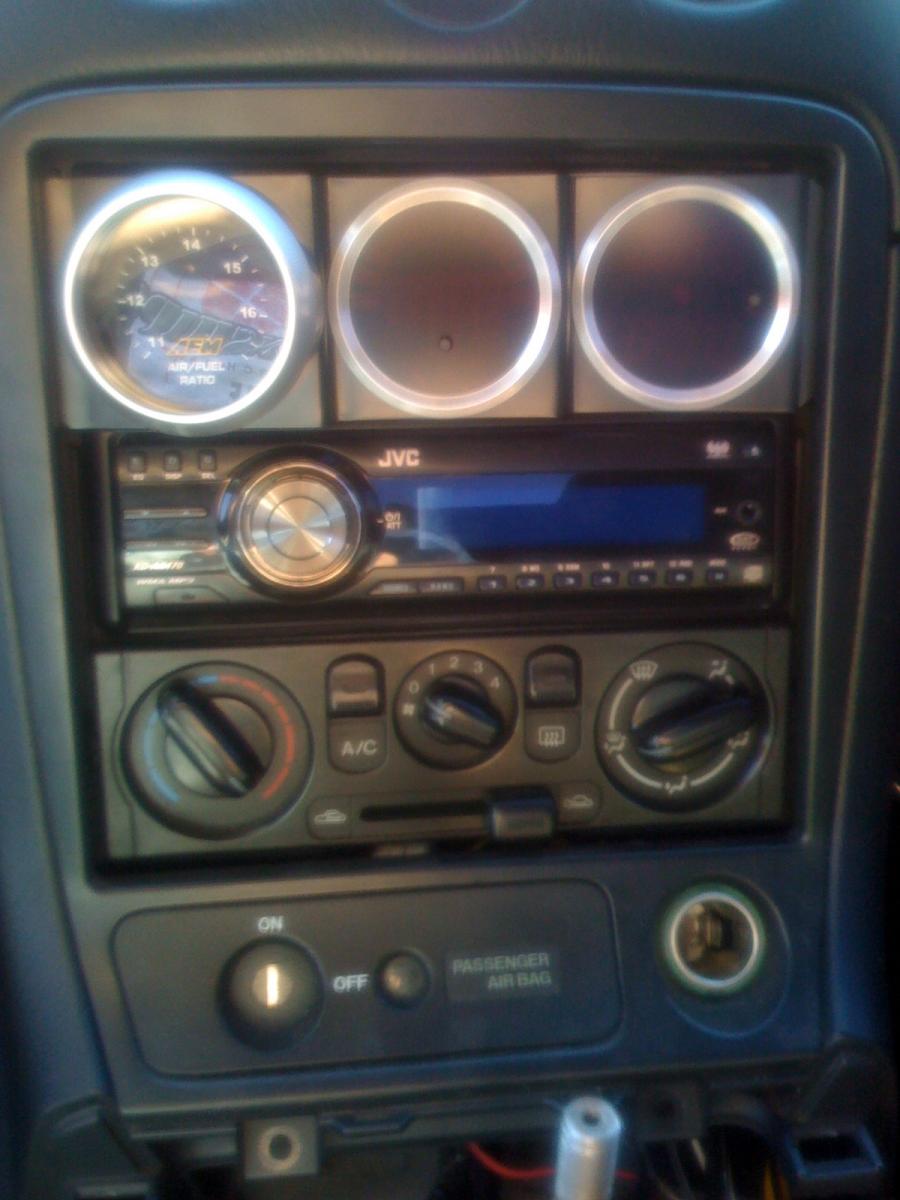

Don't you have the gauge in your hand now to look at in person?
Sorry about the shitty cell pics.
Attached Thumbnails
Vgauges-Water/Oil temp gauge install question-img_0470.jpg   Vgauges-Water/Oil temp gauge install question-img_0472.jpg
cjernigan is offline   Reply With Quote
Old 05-23-2009, 10:18 PM   #5
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I just installed my water/oil temp gauge and the readings are way off. I can't find much for instructions out there. Do they need to be calibrated or something? Also, does it matter how the wire is connected to the sensor?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 05-26-2009, 02:38 PM   #6
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by Phillatio View Post
I just installed my water/oil temp gauge and the readings are way off. I can't find much for instructions out there. Do they need to be calibrated or something? Also, does it matter how the wire is connected to the sensor?
VEI Systems -- Intelligent Vehicle Instrumentation -- Technical Info

Sensor:
D1-OTF-WTF-M

I don't believe it matters how its connected. I am yet to have my car running so I am un sure if it reads "correct" or not yet.
thesnowboarder is offline   Reply With Quote
