Default VVT searching makes my eyes hurt.

I been at the search for hours. Just looking for the best way to get my DD back on the road. I lost compression in cyc 1 on my 2000 and just bought a 2001 motor complete. 2000 is mostly stock DD, except header, re-route, and cold air intake.

Option 1)So should I pull the 2000 head and swap it onto the good 2001 short block to eliminate the VVT.

Option 2)Put the complete 2001 motor in the 2000 car not using the VVT for now and maybe down the road hook it up. I read is can be run with out the VVT wired up, right? Just have or wire up the cam sensor. Anything else different that I need to address?

I'm leaning to option 2

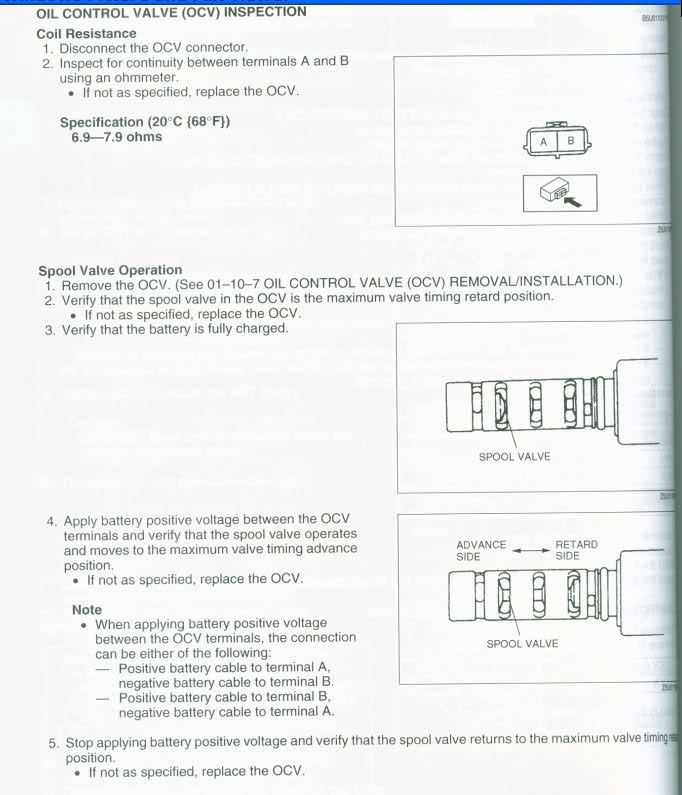

I also found in a search this attached page. Is it true that I could activate the VVT with just 12V switch. I know its not the optimal way of doing things but a flip of a switch it goes from more tq down low to a more rev happy motor. Day spirited driving vs driving in traffic.

Thanks!
Attached Thumbnails
VVT searching makes my eyes hurt.-vvt.jpg
IcantDo55 is offline   Reply With Quote
Old 01-16-2012, 04:12 AM   #2
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

http://www.diyautotune.com/catalog/v...57c1c357eee5d5

I would lean toward option 2 and this controller. But why wait? I would assume the easiest time to make this happen was while you were installing the new engine.
TNTUBA is offline   Reply With Quote
Old 01-16-2012, 05:01 AM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,335
Default

Option two. The car will feel doggy without the VVT hooked up, but you can run it like that until you get the controller.
Savington is offline   Reply With Quote
Old 01-16-2012, 05:15 AM   #4
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

I never read much about this VVT before because I did not have it, but when I got the 2001 motor..... I originally thought it had to be controlled by MS or another standalone, but seems this controller can work on its own, nice.

What else do I need for the swap. I see the cam sensor is no longer on front of the valve cover, where is it? It also has a waste spark system on it I guess I just remove it and go back to the 2000 coil pack.
IcantDo55 is offline   Reply With Quote
Old 01-16-2012, 05:52 AM   #5
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Savington View Post
Option two. The car will feel doggy without the VVT hooked up, but you can run it like that until you get the controller.
My NA with a VVT engine but no VVT control doesn't feel doggy.

Hell it's miles quicker than my mates otherwise completely stock NA.

You loose midrange sure and it's not optimal, but to imply the car will be a dog afterwards is untrue.
richyvrlimited is offline   Reply With Quote
Old 01-16-2012, 11:12 AM   #6
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

Quote:
Originally Posted by IcantDo55 View Post
What else do I need for the swap. I see the cam sensor is no longer on front of the valve cover, where is it? It also has a waste spark system on it I guess I just remove it and go back to the 2000 coil pack.
The Cam Sensor is on the rear part of the valve cover, just open up the harness and pull the cables back so they reach the new location.

There are no easy way to bolt the 99/00 coil packs to the back of the VVT valve cover. Elongate the connectors and use 2001 COPs is one way (moving the injector/coil/water temp harness over from the 2000 engine, the 2001 one is different).
NiklasFalk is offline   Reply With Quote
Old 01-16-2012, 11:42 AM   #7
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

Quote:
Originally Posted by richyvrlimited View Post
My NA with a VVT engine but no VVT control doesn't feel doggy.

Hell it's miles quicker than my mates otherwise completely stock NA.

You loose midrange sure and it's not optimal, but to imply the car will be a dog afterwards is untrue.
pretty much any miata N/A is a dog
jbrown7815 is offline   Reply With Quote
Old 01-16-2012, 11:56 AM   #8
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by jbrown7815 View Post
pretty much any miata N/A is a dog
True, I should've added 'relative' in there
richyvrlimited is offline   Reply With Quote
Old 01-18-2012, 12:09 AM   #9
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Quote:
Originally Posted by NiklasFalk View Post
There are no easy way to bolt the 99/00 coil packs to the back of the VVT valve cover. Elongate the connectors and use 2001 COPs is one way (moving the injector/coil/water temp harness over from the 2000 engine, the 2001 one is different).
So elongate what?

I like to keep the cops if possible.
IcantDo55 is offline   Reply With Quote
Old 01-18-2012, 12:10 AM   #10
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

One more, keep the reroute I had on the 2000 or don't bother now that its a 2001 motor.
IcantDo55 is offline   Reply With Quote
Old 01-18-2012, 12:47 AM   #11
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

After reading around on other car forums, i learned that vvt tunig is nOthing new under the sun. Its a total waste to run fixed cam gears when u can have variable.

Your switch idea will really not be that great. Better than no vvt head ever though.
Faeflora is offline   Reply With Quote
Old 01-18-2012, 12:51 AM   #12
Senior Member

Join Date: Aug 2010
Location: Maumelle, AR
Posts: 618
Total Cats: 2
Default

Quote:
Originally Posted by IcantDo55 View Post
One more, keep the reroute I had on the 2000 or don't bother now that its a 2001 motor.
There's recent threads on this and the COPS deal... you have to remove a lot of material from the 01 VC and one or two of the COPS to make the toyota coils work, hours of work... little benefit (if any other than not redoing your harness)

reroutes are a no-go on VVT heads with VVT head gaskets. There is debate about the merit of VVT heads w/ NA 1.8 head gaskets and a reroute.
ianferrell is offline   Reply With Quote
Old 01-18-2012, 02:16 AM   #13
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Anyone got the wiring diagram to connect the 2001 COPs to the 2000 harness.
IcantDo55 is offline   Reply With Quote
Old 01-18-2012, 02:24 AM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

everything 99+ is return-less
18psi is offline   Reply With Quote
Old 01-18-2012, 02:28 AM   #15
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Quote:
Originally Posted by 18psi View Post
everything 99+ is return-less
Just read that. My bad.
IcantDo55 is offline   Reply With Quote
Old 01-18-2012, 03:34 AM   #16
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

Quote:
Originally Posted by IcantDo55 View Post
Anyone got the wiring diagram to connect the 2001 COPs to the 2000 harness.
1. Move the injector+coil+water temp harnes from the 2000 head to the 2001 one (you want to use the injector harness that is matched to your main engine harness).
2. make the cables to the coilpack connectors longer so they will reach the COPs (keep track of which one is 1-4 vs 2-3)
Done.

The reason to exchanging the injector harness is that they a different regarding the coil connections (the 01 harness have the coils connected to the main harness and not through the injector harness which is then used for grounds).
NiklasFalk is offline   Reply With Quote
Old 01-18-2012, 03:36 AM   #17
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,392
Total Cats: 58
Default

Quote:
Originally Posted by 18psi View Post
everything 99+ is return-less
In the US at least.
98-00 in JP and EU have return systems. Just to confuse us.
NiklasFalk is offline   Reply With Quote
Old 03-06-2012, 07:07 PM   #18
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

IcantDo55: what did you end up doing?

I find it interesting to learn that the VVT cam sensor works with the stock 2000 ECU, and possibly VVTuner? That might be kinda fun.

I'm in a similar position as I just picked up a VVT head and I'm trying to decide what I want to do with it. Sorry for the thread resurrection but I figured 49 days wasn't so bad

Last edited by EO2K; 03-06-2012 at 07:19 PM.
EO2K is offline   Reply With Quote
Old 03-06-2012, 07:43 PM   #19
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Quote:
Originally Posted by EO2K View Post
IcantDo55: what did you end up doing?

I find it interesting to learn that the VVT cam sensor works with the stock 2000 ECU, and possibly VVTuner? That might be kinda fun.

I'm in a similar position as I just picked up a VVT head and I'm trying to decide what I want to do with it. Sorry for the thread resurrection but I figured 49 days wasn't so bad
I have not read any issues with cam sensor other than having to extend the wires.

I ordered a clutch and as soon as that comes in I'll be doing the swap, prob next week.
I'll keep the thread updated.

Only thing I'm think I'm still hazy on is the coil wiring, but ill figure it out.
IcantDo55 is offline   Reply With Quote
Old 03-06-2012, 08:03 PM   #20
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by EO2K View Post
I find it interesting to learn that the VVT cam sensor works with the stock 2000 ECU, and possibly VVTuner?
Mazda used the same part for the cam sensor on all NB Miatas, 99-05.
Ben is offline   Reply With Quote
