Default

Quote:
Originally Posted by EO2K View Post
I'm in a similar position as I just picked up a VVT head and I'm trying to decide what I want to do with it.

It puts the head on the block.
Faeflora is offline   Reply With Quote
Old 03-06-2012, 09:42 PM   #22
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by IcantDo55 View Post
I have not read any issues with cam sensor other than having to extend the wires.

I ordered a clutch and as soon as that comes in I'll be doing the swap, prob next week.
I'll keep the thread updated.

Only thing I'm think I'm still hazy on is the coil wiring, but ill figure it out.
Awesome! Coils should be easy-peasy, both the NB1 & NB2 use wasted spark, do they not? TIA for updates!
Quote:
Originally Posted by Faeflora View Post
It puts the head on the block.
Oh, most definitely. More torquees with the rotrex will be
Quote:
Originally Posted by Ben View Post
Mazda used the same part for the cam sensor on all NB Miatas, 99-05.
This is good news, I guess they just moved it from the front to the back? Too easy! I was stressing this after reading about it on m.net (probably my first mistake)

My situation is slightly different as I need to maintain my stock ecu for emissions compliance. Smog techs out here aren't going to know what all that stock looking VVT crap is on the engine. The VVTuner can easily be mounted up under the dash and the wiring should be the same with the stock ECU or with my DIYPNP, unless I've totally missed something. The rotrex, injectors, MS and COPs can be easily swapped for stock parts for my biennial emissions testing, but the head is a little more of a pain in the ***.

Last edited by EO2K; 03-06-2012 at 10:01 PM.
EO2K is offline   Reply With Quote
Old 03-25-2012, 03:11 PM   #23
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Ok so I'm switching my injector harness from my 2000 motor to my 2001 motor to install in my 2000 car.....get that?

I'm going to run the 2000 coil pack for the time being (just bought it for $250 from mazda). So whats this black thing on the back of the 2001 head?


I will eventually be hooking up the4 VVT with the standalone kit for $200 so I want to know if this is needed???


Another question....are the injectors the same? They are different colors?
Thanks
Attached Thumbnails

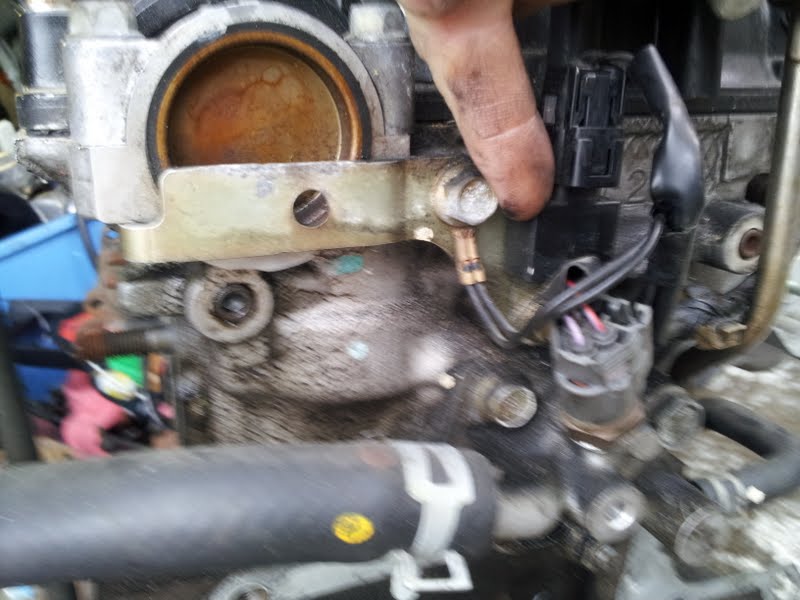

VVT searching makes my eyes hurt.-backof2001.jpg
IcantDo55 is offline   Reply With Quote
Old 03-25-2012, 03:25 PM   #24
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Capacitor for RFI supression. Its not 100% needed, ECU won't even know.
Reverant is offline   Reply With Quote
Old 03-25-2012, 03:40 PM   #25
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Quote:
Originally Posted by Reverant View Post
Capacitor for RFI supression. Its not 100% needed, ECU won't even know.
Its gone.
Thanks!
IcantDo55 is offline   Reply With Quote
Old 03-25-2012, 05:42 PM   #26
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

So how about the injectors? They the same?

Or others searching this later..... the fitted plastic fuel line under the intake manifold is different too but the 2000 one will swap on as long as you loose the mounting thingie near the oil filter and make your own.
IcantDo55 is offline   Reply With Quote
Old 03-25-2012, 09:11 PM   #27
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Injectors are different...

http://miataturbo.wikidot.com/fuel-injectors
99-00 (red) 260cc - #195500-3310
01-05 (purple) 265cc - #195500-4060

...But I honestly wouldn't worry about it at this point

Are you going to try to fire it up with the stock 99/00 ECU? I'm seriously curious if this will work on a US spec car.
EO2K is offline   Reply With Quote
Old 03-25-2012, 09:55 PM   #28
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Quote:
Originally Posted by EO2K View Post
Injectors are different...

http://miataturbo.wikidot.com/fuel-injectors
99-00 (red) 260cc - #195500-3310
01-05 (purple) 265cc - #195500-4060

...But I honestly wouldn't worry about it at this point

Are you going to try to fire it up with the stock 99/00 ECU? I'm seriously curious if this will work on a US spec car.
That was the plan...use stock ECU. Think that is a big enough difference in injector to matter?
IcantDo55 is offline   Reply With Quote
Old 03-25-2012, 10:07 PM   #29
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

According to Brain, its not 260cc vs 265cc...



Year Make/Model Engine Size/Color Part #
87-88 Toyota MR2 4AGE NA 213cc Beige Top #23250-16080
89-91 B2220 Truck 224cc - Yellow Top? #23250-74040?
99-00 Mazda Miata 240cc - Thin Red Body #195500-4430
Toyota 4AGE 250cc Green Top
Toyota 4AGE 250cc Violet Top
94-97 Mazda Miata 265cc - Tan Top #195500-2180
01-06 Mazda Miata 265cc - Thin Lt. Prple #195500-4060
Toyota 3SGE 295cc Green Top
89-92 Toyota Supra 7MGE NA 305cc LT Green Top #23250-70080
93-95 Toyota Supra 3.0L 312cc - Maroon Top #23250-46030
Toyota 3SGE 315cc Pink Top
90-92 MX6/626/Probe Turbo 326cc - Gray Top #195500-2150
89-91 B2600 Truck 326cc - Gray Top #195500-2150
Mazda 323 GTX TURBO 360cc - Black Top #195500-2130
Celica/MR2 3SGE NA 370cc - Green Top #23250-74160
Mazda RX8 420cc - Yellow Body #195500-4450
89-92 Mazda RX-7 NA 440cc - Blue Top #195500-5740
89-91 RX-7 NA 460cc - Red Top #195500-2010
89-91 RX-7 TURBO 550cc - purple top #195500-2020


Looks like I'll be pulling them out and swapping them tmw...yea
IcantDo55 is offline   Reply With Quote
Old 03-26-2012, 11:57 AM   #30
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Honestly, I think the stock ECU can handle the variance. Don't people run Supra 305's with the stock ECU?

And just for the sake of argument, (lol) IIRC when WitchHunter cleaned and flowed my NB1 reds, they did 258cc across the board @ 3bar. I'll see if i can find the flowchart tonight.

Edit: Well, I just found this on the WitchHunter site

So I guess that answers that.

If you are using the 99/00 ECU I'd use the 99/00 injectors, but that's just me. Are you going to use the 99/00 VICS intake or the 01/05 VTCS manifold? I've always wanted to run a VVT head with VICS + VVTuner. It seems like it would be the best of all worlds.
Attached Thumbnails
VVT searching makes my eyes hurt.-d1955004430.jpg

Last edited by EO2K; 03-26-2012 at 12:22 PM.
EO2K is offline   Reply With Quote
Old 03-26-2012, 01:10 PM   #31
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Quote:
Originally Posted by EO2K View Post
Honestly, I think the stock ECU can handle the variance. Don't people run Supra 305's with the stock ECU?

And just for the sake of argument, (lol) IIRC when WitchHunter cleaned and flowed my NB1 reds, they did 258cc across the board @ 3bar. I'll see if i can find the flowchart tonight.

Edit: Well, I just found this on the WitchHunter site

So I guess that answers that.

If you are using the 99/00 ECU I'd use the 99/00 injectors, but that's just me. Are you going to use the 99/00 VICS intake or the 01/05 VTCS manifold? I've always wanted to run a VVT head with VICS + VVTuner. It seems like it would be the best of all worlds.
I had not considered using the 99-00 intake. Think there would be any benefit?
IcantDo55 is offline   Reply With Quote
Old 03-26-2012, 01:56 PM   #32
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

VTCS was for emissions compliance or some such, it blocks the runners. It looks like this:


VICS actually had a performance benefit by changing the plenum volume. It looks like this:


http://www.mazdaspeedy.com/2010/03/v...fold-pics.html
^^ Good info with diagrams and pics

http://forum.miata.net/vb/showthread.php?t=428283

Keith: VTCS holds no performance benefit at all. It's a restriction in the intake if anything. Think of it as a choke and you've pretty much got it figured out.

JasonC SBB: I have a VICS mani on a VVT head. The VICS setpoint adjustment behaves the same way as the 99 head - adds torque in the midrange, ideal switchover ~5600 RPM.

http://forum.miata.net/vb/showthread.php?t=301535
^^ That's Jason's question about the same. Good commentary here from MT bros.

https://www.miataturbo.net/megasquirt-18/standard-vics-vtcs-behaviour-52479/
^^ More commentary on the operation of the VTCS system.

You are already wired for VICS with the stock 99/00 ECU, its proven to add torque in the midrange, why not use it?

Moar torques = winning https://www.miataturbo.net/diy-turbo-discussion-14/dyno-effect-vics-99-00-turbo-20742/

I've got a complete VVT head in the garage and I've been giving some though to installing it, but I need to maintain my stock ECU for CA emissions. I seriously doubt a smog tech would notice all the VVT crap on top of the head, and the VVTuner could easily live under the dash. I'm SO in for win and awesome on this.

EDIT:

Just found this related post by Jason w/dyno results from a non-boosted FM 2.0 stroker: https://www.miataturbo.net/engine-performance-56/im-dyno-comparo-vics-vs-vtcs-vs-flat-top-eudm-62200/

FM looks like they did some pretty good comparison stuffs, but this is a turbo car: http://forum.miata.net/vb/showthread.php?t=453219
Attached Thumbnails

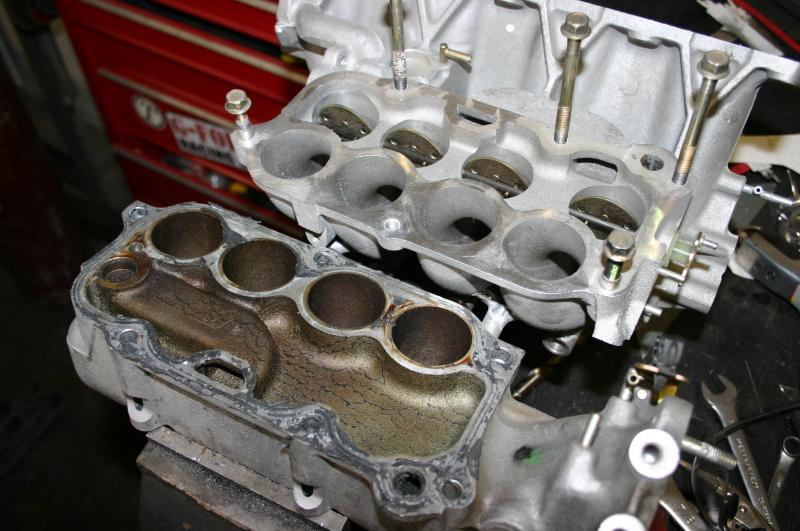

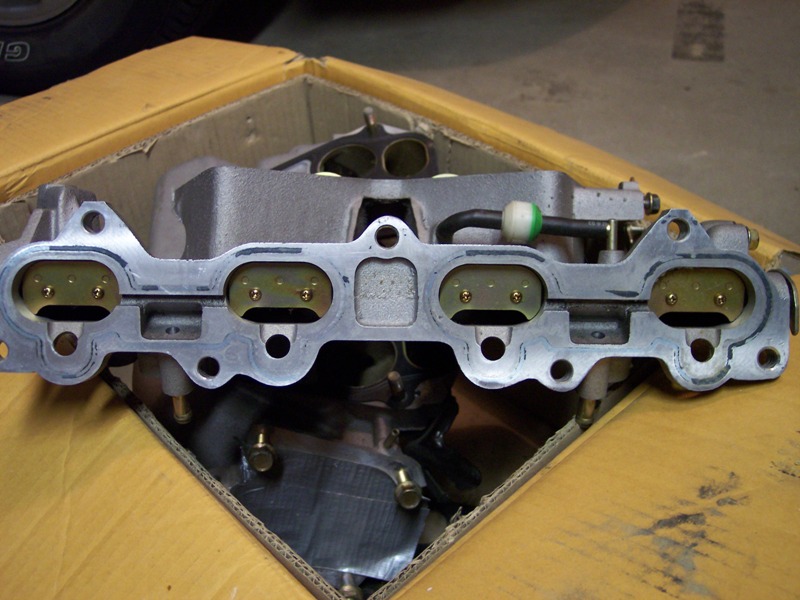

VVT searching makes my eyes hurt.-vtcs_pics_-4-.jpg   VVT searching makes my eyes hurt.-img_3639.jpg

Last edited by EO2K; 03-26-2012 at 03:49 PM.
EO2K is offline   Reply With Quote
Old 03-27-2012, 06:35 PM   #33
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Here it is in all its glory a VVT + VICS 1.8L Wit new FM1 Clutch.


Attached Thumbnails

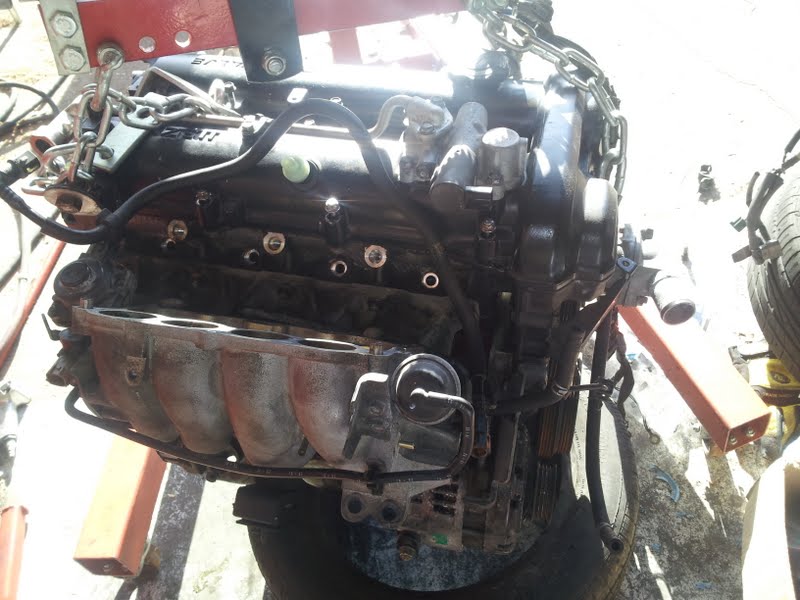

VVT searching makes my eyes hurt.-vvtvcis.jpg
IcantDo55 is offline   Reply With Quote
Old 03-27-2012, 06:58 PM   #34
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

It appears to be missing a car

Glad you with for the VICS, can't wait for results on this!

My VVT head will probably visit the machine shop in a few weeks for a bit of a refresh and a skim. I don't have a 10:1 bottom end so I'm hoping to make up a little compression that way.
EO2K is offline   Reply With Quote
Old 03-27-2012, 07:00 PM   #35
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

...and all the injector isolators are cracked so I'm waiting on them to come in. Prob put it in tmw. Everything fighting me on this simple swap.
IcantDo55 is offline   Reply With Quote
Old 03-27-2012, 07:03 PM   #36
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Its always the small stuff that kicks your ***, keep the faith!
EO2K is offline   Reply With Quote
Old 03-28-2012, 03:41 AM   #37
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Sweetness! Looks good.

I may have to research how to put a vics intake on and keep my ecu happy about the missing vtcs.
Mobius is offline   Reply With Quote
Old 03-28-2012, 04:43 AM   #38
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by Mobius View Post
Sweetness! Looks good.

I may have to research how to put a vics intake on and keep my ecu happy about the missing vtcs.
Just leave the VTCS solenoid plugged in and you won't throw a code.


I'm currently running with VICS and VVTS to the V. It's pretty sweet.
Bryce is offline   Reply With Quote
Old 03-31-2012, 04:49 AM   #39
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,772
Total Cats: 18
Default

Its in and running well. Here is how to fit 99 coils to a 2001-05 motor. Simple.



Time to order the VVTuner.
Attached Thumbnails

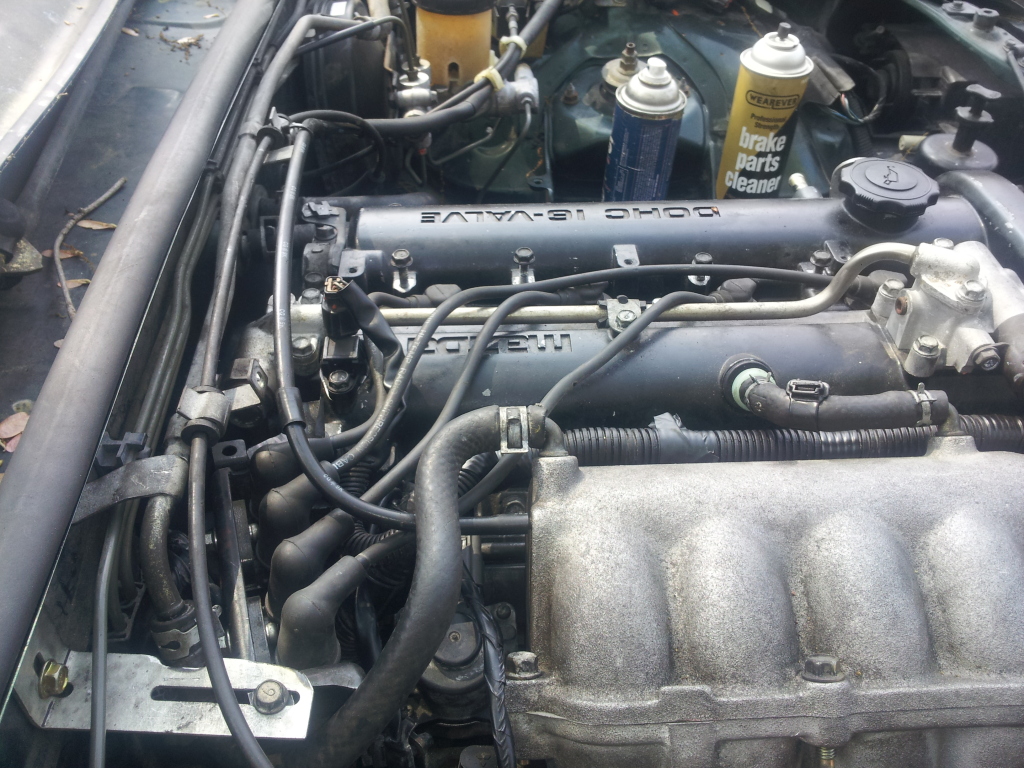

VVT searching makes my eyes hurt.-20120330_143405.jpg
IcantDo55 is offline   Reply With Quote
Old 04-01-2012, 06:37 PM   #40
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

I was just talking with bryce yesterday about the 01 motor that he has in his car till the built one gets back. Now I am really interested. I'd love to pick your brain about what you did.

Quote:
Originally Posted by Bryce View Post
Just leave the VTCS solenoid plugged in and you won't throw a code.


I'm currently running with VICS and VVTS to the V. It's pretty sweet.

now I really want your block when you get the built motor back Bryce!!!
Pitlab77 is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
WTB MP62 (Hotside) (NB2) Rick02R WTB 3 01-03-2016 08:18 PM
Changing from 460cc to flow force 610cc in diypnp 90 Turbo MEGAsquirt 19 10-19-2015 04:23 PM
Noob to Miataturbo from MA JxPhan Meet and Greet 3 10-02-2015 03:17 AM
Going back to stock. Need some 1.6 parts. Trent WTB 2 10-01-2015 01:15 PM
ISO 1.6 turbo cast iron manifold cale saurage DIY Turbo Discussion 16 10-01-2015 12:25 PM


Thread Tools

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 05:06 AM.
