Boost is creeping so I'm porting the wastegate, does this look like I've removed enough?

I think I took a pretty big chunk out but i would appreciate opinions.

Also, do people usually port the WG hole itself? Seems like that would be hard to do
Hopefully the images work.. Using the phone

Thanks guys!

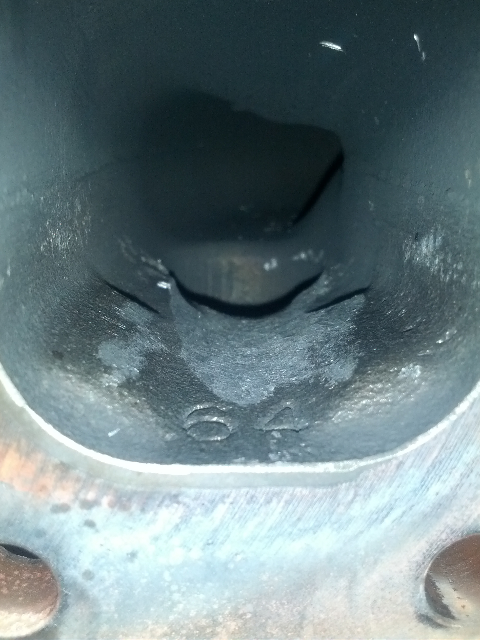

Wastegate port - have i removed enough material?-forumrunner_20140719_144619.png

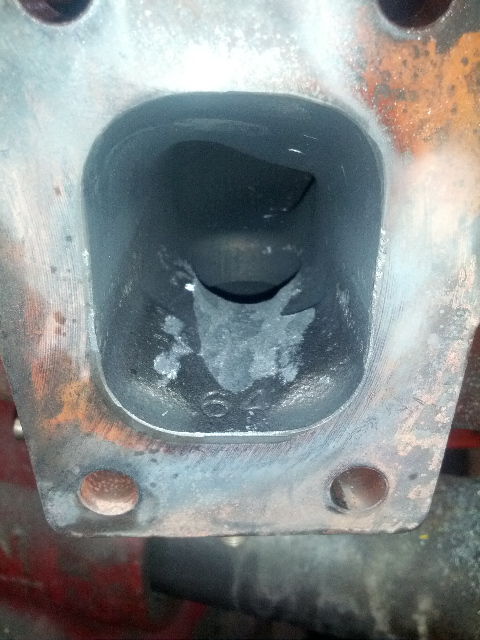

Wastegate port - have i removed enough material?-forumrunner_20140719_144636.png

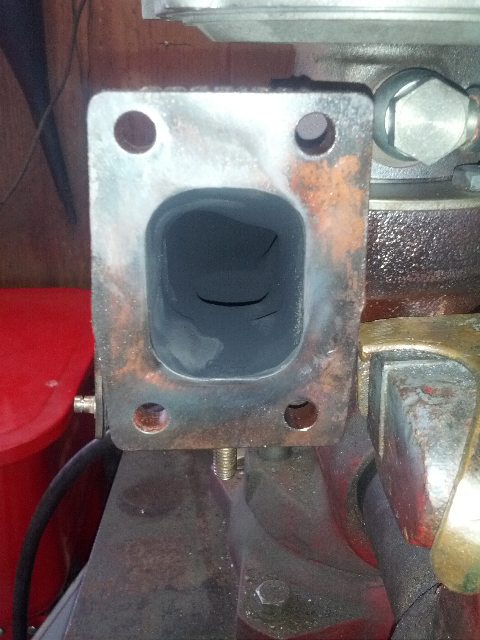

Wastegate port - have i removed enough material?-forumrunner_20140719_144650.png
Onyxyth is offline   Reply With Quote
Old 07-19-2014, 05:18 PM   #2
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Interested to see what others have to say, I need to port my wastegate as well. AFAIK, you don't want to port the hole itself at all since that would affect the seal with the flapper when closed, and that's not where the restriction is happening.

-Ryan
ThePass is offline   Reply With Quote
Old 07-19-2014, 05:21 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

You can port the hole if you're careful, make sure to deburr it afterwards so it seals right.
Also you'd have to decide whether there's enough room to port it, some are real close, and on some the door is way bigger than the port, allowing you to enlarge the port quite a bit.

As for what you've already done - looks good.
18psi is offline   Reply With Quote
Old 07-19-2014, 06:07 PM   #4
Senior Member
Thread Starter
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

I ended up going a bit farther, and coming in from the wastegate side a bit. I'm pretty happy with it.. Time to bolt things back up.

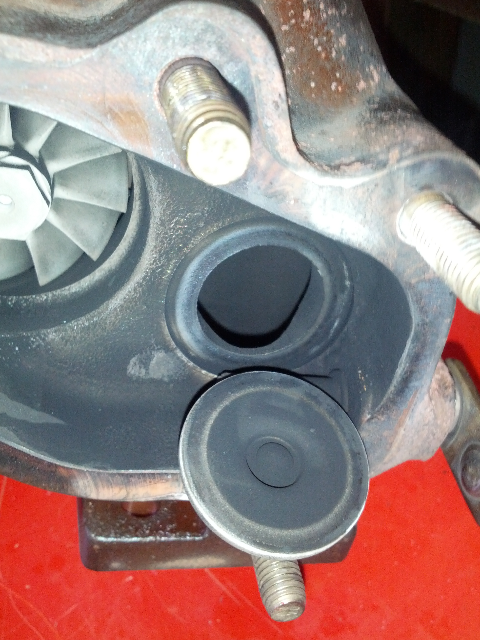

Wastegate port - have i removed enough material?-forumrunner_20140719_170730.png

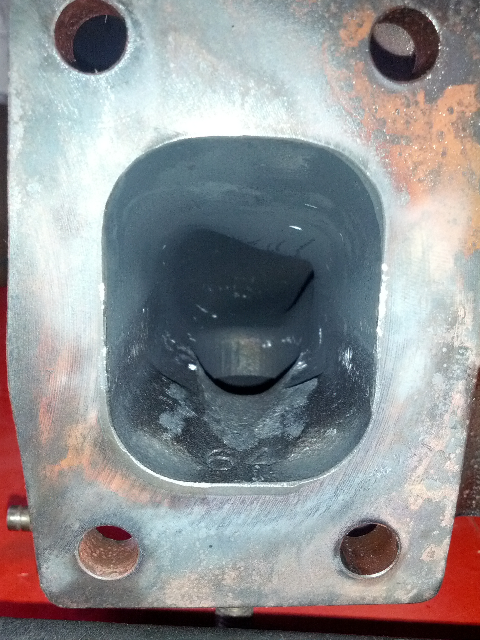

Wastegate port - have i removed enough material?-forumrunner_20140719_170738.png
Onyxyth is offline   Reply With Quote
Old 07-19-2014, 06:35 PM   #5
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

I was trying to run about 6psi so take with a grain of salt.

I had 2 housings. One of them I ported similar to yours. Still had creep issues. The other housing, I just opened up the hole so that there was about .150" sealing area for the flapper. That also had creep.

I had to both port as you have done, and open the hole to hold 6 psi with 2554. Either operation on its own didn't to the trick.
williams805 is offline   Reply With Quote
Old 07-19-2014, 07:22 PM   #6
Senior Member
Thread Starter
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Hmm, I'll have to see then. This is a 2560, and I'll be running 12 psi once I get an EBC. I'll have to see if it holds wastegate pressure which is like 7psi.
Onyxyth is offline   Reply With Quote
Old 07-19-2014, 10:44 PM   #7
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

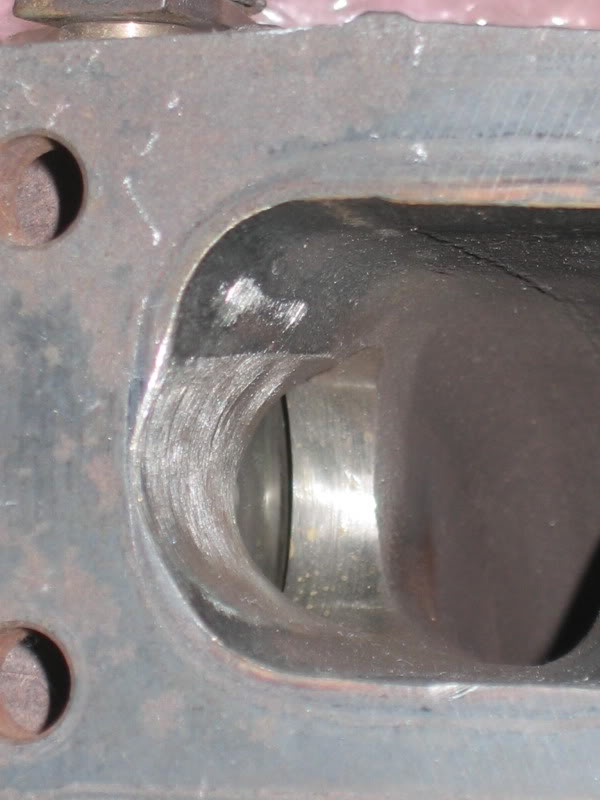

Attached Thumbnails
Wastegate port - have i removed enough material?-porting004.jpg
kenzo42 is offline   Reply With Quote
Old 07-19-2014, 11:11 PM   #8
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

Quote:
Originally Posted by Onyxyth View Post
Hmm, I'll have to see then. This is a 2560, and I'll be running 12 psi once I get an EBC. I'll have to see if it holds wastegate pressure which is like 7psi.
I think the housing looks much better the second time around. My feeling towards this topic is, if it looks good, do a little more.

I've ported my MSM housing to the point where I can get it to hold less than 10psi to redline no problem. Granted now I can't get it to hold closed over 25psi. But I don't think most will have to worry about that problem.
slmhofy is offline   Reply With Quote
Old 07-19-2014, 11:32 PM   #9
Senior Member
iTrader: (8)

Join Date: Feb 2012
Location: Raleigh, NC
Posts: 617
Total Cats: 53
Default

Mine looks like Kenzo's but a bit narrower and less perfect. 0% boost creep on my t25 at 6, 9, or 11 psi and stays flat to redline. I wouldn't be afraid to do some more from what I see in your pics.
petrolmed is offline   Reply With Quote
Old 07-20-2014, 12:16 AM   #10
Senior Member
Thread Starter
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Cool, well I didn't bolt things back up yet. Maybe I'll bring the channel out toward the flange more like kenzo's pic.

Does anyone know what size studs FM uses?
I know theyre M8 1.25, but I'm looking for the A/B thread length.. shoulder size etc.
One of my studs came out, and when I got the nut off it just fucked all the threads. Looking to replace.

Last edited by Onyxyth; 07-20-2014 at 12:44 AM.
Onyxyth is offline   Reply With Quote
Old 07-21-2014, 05:14 PM   #11
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

Sort of late to the party, but a great trick to use on stuff like this that may or may not be common knowledge in here:

Get a fine point Sharpie, firmly seat the WG flapper, and draw around it. You get a great idea of where you an and cant port. This works wonderfully for gasket matching too.

Also, look at what prevents the door opening farther. Sometimes it's simply the actuator's range of motion. But sometimes its actually the turbine housing itself interfering with the door mechanism. A little notch can give you a few degrees more opening and that can make a difference.

I have never understood why people don't port turbine housings as much as possible. Even if you don't have creep, the more flow you get through the wastegate the more top end you have. Its the seldom-explained benefit of a external WG. You get another ~1.5 inches of ex flow right where you need it most.
Sparetire is offline   Reply With Quote
Old 07-21-2014, 06:04 PM   #12
Senior Member
Thread Starter
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

^ I was actually going to do something similar, but with spray paint. Just close the flapper and hit it with a shot of paint.

So anyway, I got everything bolted back up and... it still creeps. Not as bad, but it'll still creep to ~11psi from the 7psi on a 3rd gear pull. I'll have to get a log for exact figures.

I'll probably pull it apart again and port it more + do the flapper. I'll also have to look into getting full range of motion from the actuator because it probably only opens 70-80%. I'm not sure how im going to do that though, as the FM WG mount thing doesn't seem to have a lot of movement.
Onyxyth is offline   Reply With Quote
Old 07-21-2014, 07:18 PM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

Quote:
Originally Posted by Sparetire View Post

I have never understood why people don't port turbine housings as much as possible. Even if you don't have creep, the more flow you get through the wastegate the more top end you have. Its the seldom-explained benefit of a external WG. You get another ~1.5 inches of ex flow right where you need it most.
Because they often tend to crack
18psi is offline   Reply With Quote
Old 07-21-2014, 08:30 PM   #14
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

You can take it down pretty far...

I would also suggest just running like 10-12psi.

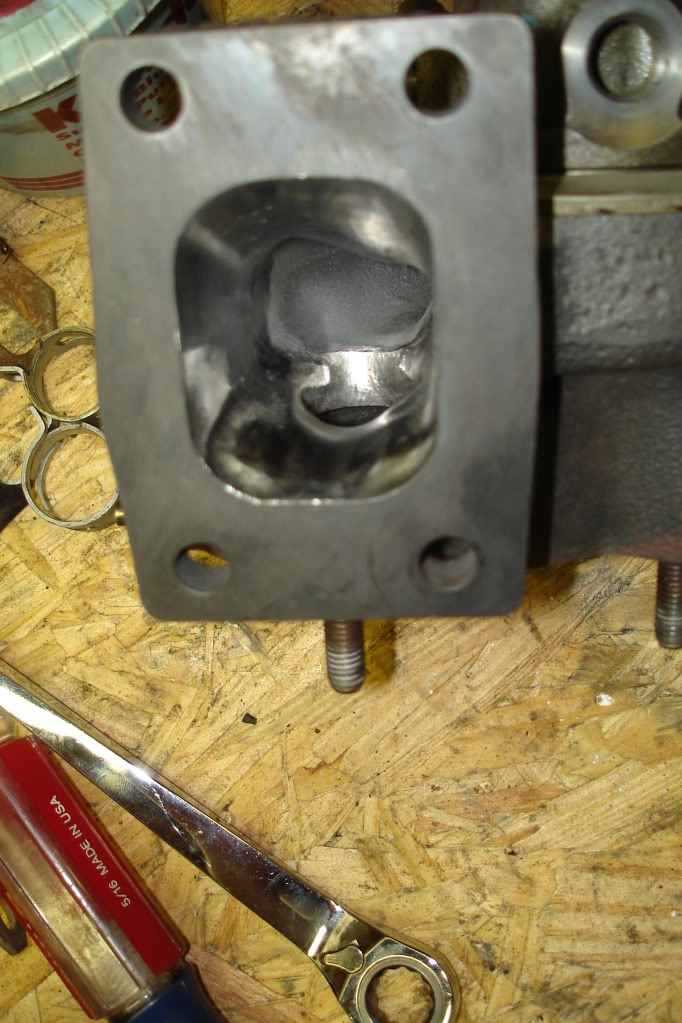

Attached Thumbnails
Wastegate port - have i removed enough material?-dsc04288.jpg
Erat is offline   Reply With Quote
Old 07-22-2014, 12:27 AM   #15
Senior Member
Thread Starter
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Do you think it would creep less at 10-12 ish? That's my target boost once I get EBC but I'm concerned it'll just creep up to 14+
Onyxyth is offline   Reply With Quote
Old 07-22-2014, 12:31 AM   #16
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

As erat said, you can go miles further than you have, if you do the port (and I suggest you do) leave a good millimetre or 1.5 around the port for the flapper door to seal against. I have run a GT2876r on an NB8B at under 4 psi this way with a 7psi wastegate actuator, to show how well you can control it this way.

Dann
nitrodann is offline   Reply With Quote
Old 07-22-2014, 09:41 AM   #17
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

The more boost you run the less it will creep. If you'r afraid it will creep to 14 psi when running 12 psi, bumping up to running 14psi will mean it wont creep at all.
Leafy is offline   Reply With Quote
Old 07-22-2014, 11:56 AM   #18
Senior Member
Thread Starter
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Cool, and that totally makes sense now that I think about it. I'm gonna go forward and get the EBC solenoid, we'll see if it creeps at 12psi.
Onyxyth is offline   Reply With Quote
Old 07-26-2014, 11:50 AM   #19
Junior Member
iTrader: (1)

Join Date: Jun 2013
Location: Akron OH
Posts: 128
Total Cats: 2
Default

Quote:
Originally Posted by Sparetire View Post
Sort of late to the party, but a great trick to use on stuff like this that may or may not be common knowledge in here:

Get a fine point Sharpie, firmly seat the WG flapper, and draw around it. You get a great idea of where you an and cant port. This works wonderfully for gasket matching too.

Also, look at what prevents the door opening farther. Sometimes it's simply the actuator's range of motion. But sometimes its actually the turbine housing itself interfering with the door mechanism. A little notch can give you a few degrees more opening and that can make a difference.

I have never understood why people don't port turbine housings as much as possible. Even if you don't have creep, the more flow you get through the wastegate the more top end you have. Its the seldom-explained benefit of a external WG. You get another ~1.5 inches of ex flow right where you need it most.


dont use this method!!!

The sealing surface is not the perimeter of the flap, take some grease and rub it on the flap, close, and thats where you can port to!
