Default wastegate signal line

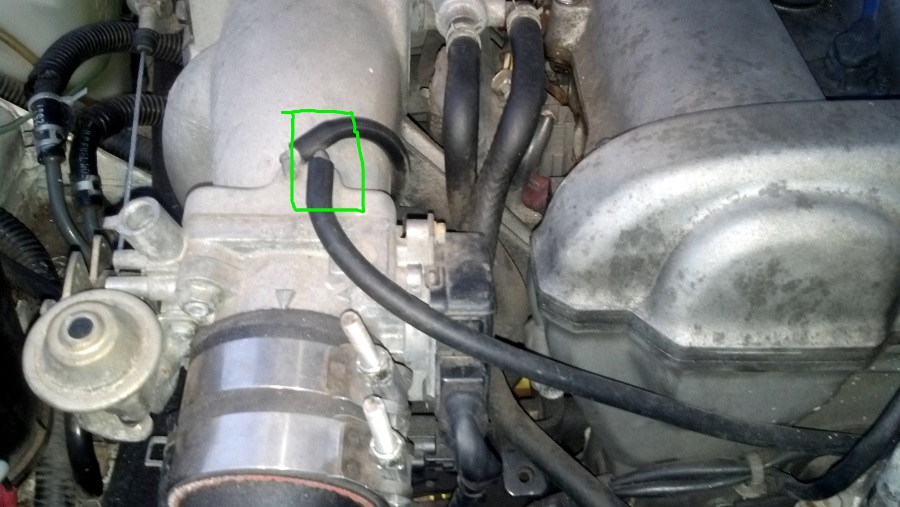

The previous owner of my car ran the wastegate signal line from the actuator to the top of the intake. See the attached pictures.

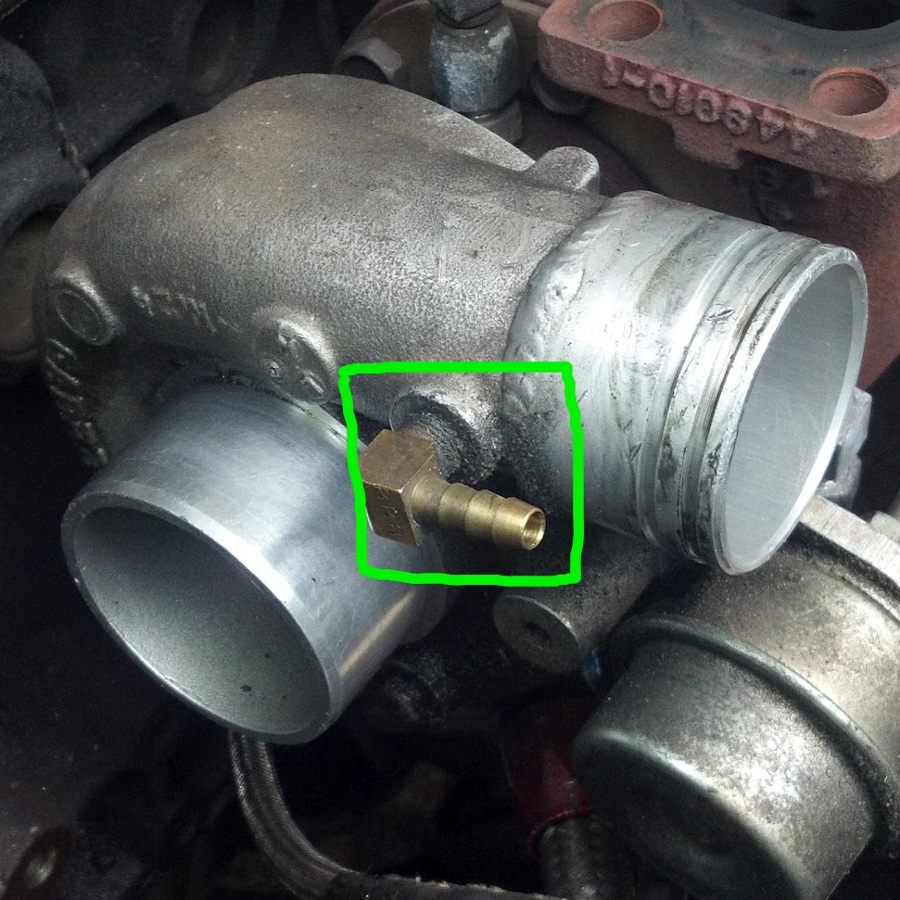

I believe the installation manual from BEGi says to run the line from the actuator to the compressor right next to the actuator.

Now the question I have is should the open connector on the compressor be sealed if not in use? I realize that may be a stupid question, but I have not seen it documented.

I did put a cap on the end, but I just want to make sure that is correct.

Thanks!
Attached Thumbnails
wastegate signal line-2012-12-18_16-56-34_78a.jpg   wastegate signal line-2012-08-05_14-46-27_743.jpg
travisb is offline   Reply With Quote
Old 12-19-2012, 03:48 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Yes.
18psi is offline   Reply With Quote
Old 12-19-2012, 04:03 PM   #3
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Another yes, just because. However, if I recall correctly, the optimal placement for the wastegate signal line is post-intercooler but pre-throttle body.
RotorNutFD3S is offline   Reply With Quote
Old 12-19-2012, 08:05 PM   #4
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yeah, that's not an ideal location, you want it about an inch or two forward. There's a sticky in the DIY turbo section titled "you don't need ebc" or something like that written by joe Perez that does a great job explaining the pros and cons of your locations, and one just before the throttle body. Which BTW, has no cons
curly is offline   Reply With Quote
Old 12-19-2012, 08:43 PM   #5
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

Thanks for the info!
travisb is offline   Reply With Quote
Old 03-16-2013, 04:58 PM   #6
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

I moved the line to just after the IC. Do I need to adjust anything in the tune? It seems to run ok, but I just want to make sure.
travisb is offline   Reply With Quote
Old 03-17-2013, 10:43 AM   #7
Junior Member
iTrader: (5)

Join Date: Mar 2012
Location: Gilbert, Az
Posts: 337
Total Cats: 26
Default

Quote:
Originally Posted by travisb View Post
I moved the line to just after the IC. Do I need to adjust anything in the tune? It seems to run ok, but I just want to make sure.
As long as it's holding steady the boost target you want, it should be fine.

Get an 1/8 NPT plug for the turbo compressor housing. It's more reliable than a cap on the outlet, and only costs like $2 at Home Depot Racing.
SJP0tato is offline   Reply With Quote
