Default Water port on side of block?

I think I remember that the other port on the exhaust side of the block (other than the oil feed port) is a coolant port.

Can anyone confirm this? What thread is it?

Is it a good place to install an aftermarket coolant temp sensor? Why/why not?
crashnscar is offline   Reply With Quote
Old 02-19-2009, 09:59 AM   #2
Newb

Join Date: Apr 2008
Location: Northern VA
Posts: 31
Total Cats: 0
Default

I use that port in my coolant reroute to feed the heater.
I'll have to go through my receipts to find out what the thread size and pitch was for the fitting I used.
wroark is offline   Reply With Quote
Old 02-19-2009, 10:01 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

its just above the stock oil port, it's m12x1.25.

It's probably not the best place for a coolant temp sensor as it's going to represent to coolest water in the block, not the warmest.
Braineack is offline   Reply With Quote
Old 02-19-2009, 10:04 AM   #4
Newb

Join Date: Apr 2008
Location: Northern VA
Posts: 31
Total Cats: 0
Default

M12 x 1.25.
wroark is offline   Reply With Quote
Old 02-19-2009, 10:36 AM   #5
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Don't remember the size though.

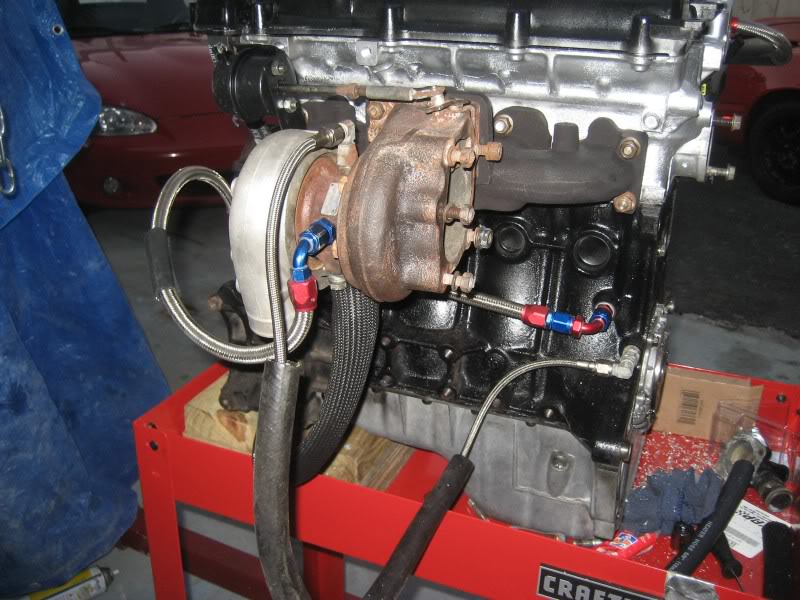

Name:  IMG_8392800x600.jpg
Views: 233
Size:  103.0 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 02-19-2009, 12:20 PM   #6
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Why dont we use that port more often?
Saml01 is offline   Reply With Quote
Old 02-19-2009, 12:30 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by Saml01 View Post
Why dont we use that port more often?

we are old school and don't have water-cooled turbos?
Braineack is offline   Reply With Quote
Old 02-19-2009, 12:33 PM   #8
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
we are old school and don't have water-cooled turbos?
my old school 16g is water cooled, but I was planning on following the route shown in Braineack's FAQ thread unless this would provide better results due to cooler liquid
mazda/nissan is offline   Reply With Quote
Old 02-19-2009, 12:34 PM   #9
Newb

Join Date: Apr 2008
Location: Northern VA
Posts: 31
Total Cats: 0
Default

Dunno, any excuse to use more AN fittings and braided hose is a winner !
Attached Thumbnails

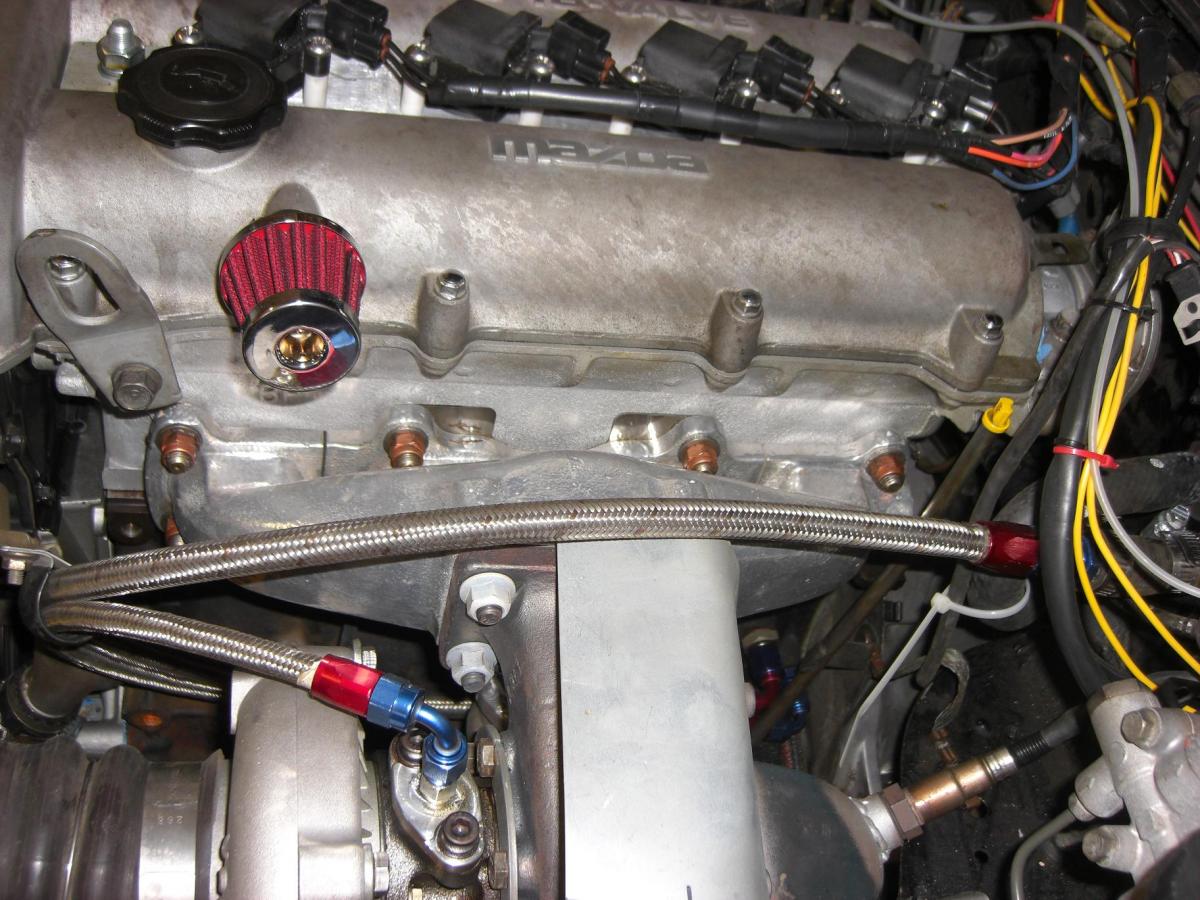

Water port on side of block?-topview.jpg
wroark is offline   Reply With Quote
Old 02-19-2009, 12:45 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by mazda/nissan View Post
my old school 16g is water cooled, but I was planning on following the route shown in Braineack's FAQ thread unless this would provide better results due to cooler liquid

its probably a better feed port, since it's sourcing from water that hasn't gone through the motor first. However, the other way is easier :P
Braineack is offline   Reply With Quote
Old 02-19-2009, 01:13 PM   #11
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

MSMs have a line in that feed port and have a return line going to the heater hose hardpipe, but aside from modifying that hardpipe, where can the return line go?
RotorNutFD3S is offline   Reply With Quote
Old 02-19-2009, 01:27 PM   #12
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

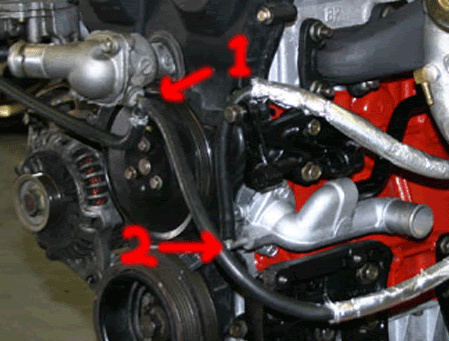

Name:  turbowaterlines-miata.gif
Views: 65
Size:  106.0 KB
mazda/nissan is offline   Reply With Quote
Old 02-19-2009, 01:33 PM   #13
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Any way to post that as an attachment? Can't see photobucket links at work. :(
RotorNutFD3S is offline   Reply With Quote
Old 02-19-2009, 01:35 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

return needs to go back into the mixing manifold and water pump inlet.
Braineack is offline   Reply With Quote
Old 02-19-2009, 01:37 PM   #15
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

OK, so if you're getting coolant from the block and returning it to the water pump inlet, what do you do with the line coming off of the thermostat? Cap it?
RotorNutFD3S is offline   Reply With Quote
Old 02-19-2009, 01:38 PM   #16
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

tada
Attached Thumbnails

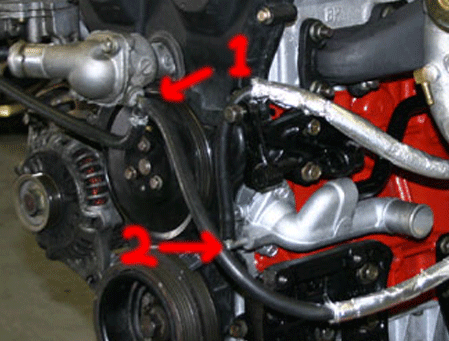

Water port on side of block?-turbowaterlines-miata.gif
mazda/nissan is offline   Reply With Quote
Old 02-19-2009, 01:40 PM   #17
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by RotorNutFD3S View Post
MSMs have a line in that feed port and have a return line going to the heater hose hardpipe, but aside from modifying that hardpipe, where can the return line go?

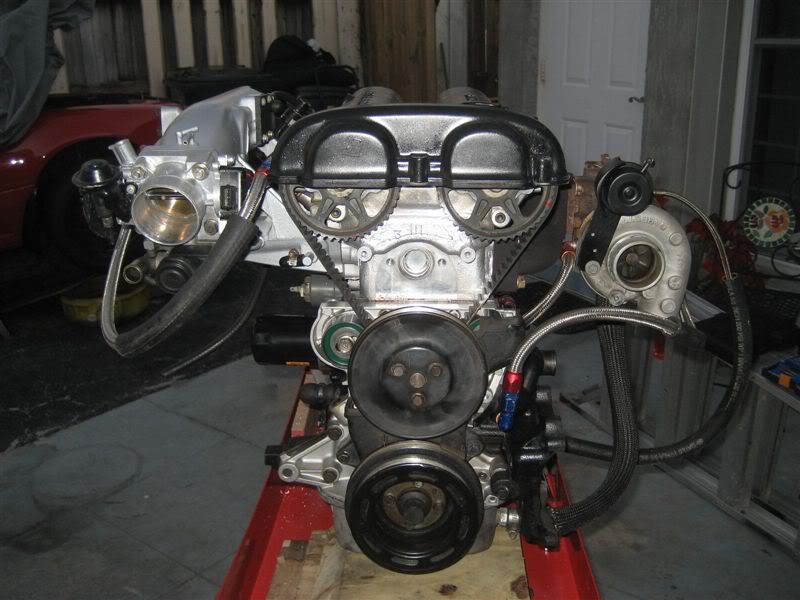

Name:  IMG_8396.jpg
Views: 66
Size:  70.7 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 02-19-2009, 01:41 PM   #18
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Can't see photobucket pictures at work... I'll look later.
RotorNutFD3S is offline   Reply With Quote
Old 02-19-2009, 01:42 PM   #19
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by RotorNutFD3S View Post
OK, so if you're getting coolant from the block and returning it to the water pump inlet, what do you do with the line coming off of the thermostat? Cap it?
Yes
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 02-19-2009, 01:44 PM   #20
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by RotorNutFD3S View Post
Can't see photobucket pictures at work... I'll look later.
Here ya go.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote

Last edited by levnubhin; 10-07-2009 at 04:02 PM.
