Default water pump help

im replacing a water pump in my 91 miata and ive got all the bolts off the timing belt out of the way and everything else but the water pump is stuck where its inside the block...ive tried wiggling it out no luck. i put the pully back on and tried pulling from there with no luck.

the whole pump can wiggle in any direction. it seems to piviot at one point, thats why im saying it might be stuck in the block

any ideas as to how i can get this pump out? any tricks i should know?
bayside blue is offline   Reply With Quote
Old 11-27-2010, 06:02 PM   #2
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Pivot around one point? Are you sure that you didn't miss a single bolt? The tolerance to the block is pretty close, but mine just kinda fell out. Other than that, I'm no help.
baron340 is offline   Reply With Quote
Old 11-28-2010, 12:01 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: seabrook nh
Posts: 397
Total Cats: 0
Default

Quote:
Originally Posted by baron340 View Post
Pivot around one point? Are you sure that you didn't miss a single bolt? The tolerance to the block is pretty close, but mine just kinda fell out. Other than that, I'm no help.
didnt miss a bolt at all.. all 4 front bolts, the two pullys are removed, and the 2 water pipe bolts are out.

it piviots on where the wheel of the pump is inside the block.. i know the pump is broken because it makes a nasty noise when its spun(hence why im replacing it). im thinking thats the problem tho
bayside blue is offline   Reply With Quote
Old 11-28-2010, 03:11 AM   #4
Senior Member
iTrader: (1)

Join Date: Jul 2009
Location: Batavia, IL
Posts: 604
Total Cats: 0
Default

My first one was rough to get out too. It just takes some creative jiggling to remove. Make sure you're pulling perpendicular from the block.
Cococarbine3 is offline   Reply With Quote
Old 11-28-2010, 03:18 AM   #5
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

the location where it mates with the block is flat on both surfaces. No part of the waterpump goes inside the block aside from the propeller wheel or whatever its called. and that's way smaller than the hole that it sits in.

What about the alternator bolt?
18psi is offline   Reply With Quote
Old 11-28-2010, 01:36 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: seabrook nh
Posts: 397
Total Cats: 0
Default

Quote:
Originally Posted by 18psi View Post
the location where it mates with the block is flat on both surfaces. No part of the waterpump goes inside the block aside from the propeller wheel or whatever its called. and that's way smaller than the hole that it sits in.

What about the alternator bolt?
the wheel is where its pivioting. im figuring since its broken maybe something is stuck in there.

the alternator bolt was covered on m.net.... its on 1.8 cars. i dont have one. since mine is a 91
bayside blue is offline   Reply With Quote
Old 11-28-2010, 02:42 PM   #7
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

just yank the bastard out, if its broken it cant hurt anything. It may have been replaced by a previous owner and they may have used high tack on the gasket. Which once it sets is a bitch. If you are 110% sure all the bolts are out your next bet is to get in there with a screwdriver or pry bar and start prying on it

edit for fail of not fully reading first post...go to the second part of my message, screwdrivers and/or pry bars are now your friends
RyanRaduechel is offline   Reply With Quote
Old 11-28-2010, 06:48 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: seabrook nh
Posts: 397
Total Cats: 0
Default

ended up getting it out.. there was a chunk of metal stuck in there..
bayside blue is offline   Reply With Quote
Old 11-28-2010, 10:30 PM   #9
Senior Member
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

pics or it didn't happen
baron340 is offline   Reply With Quote
Old 11-29-2010, 12:30 AM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2008
Location: seabrook nh
Posts: 397
Total Cats: 0
Default

Quote:
Originally Posted by baron340 View Post
pics or it didn't happen

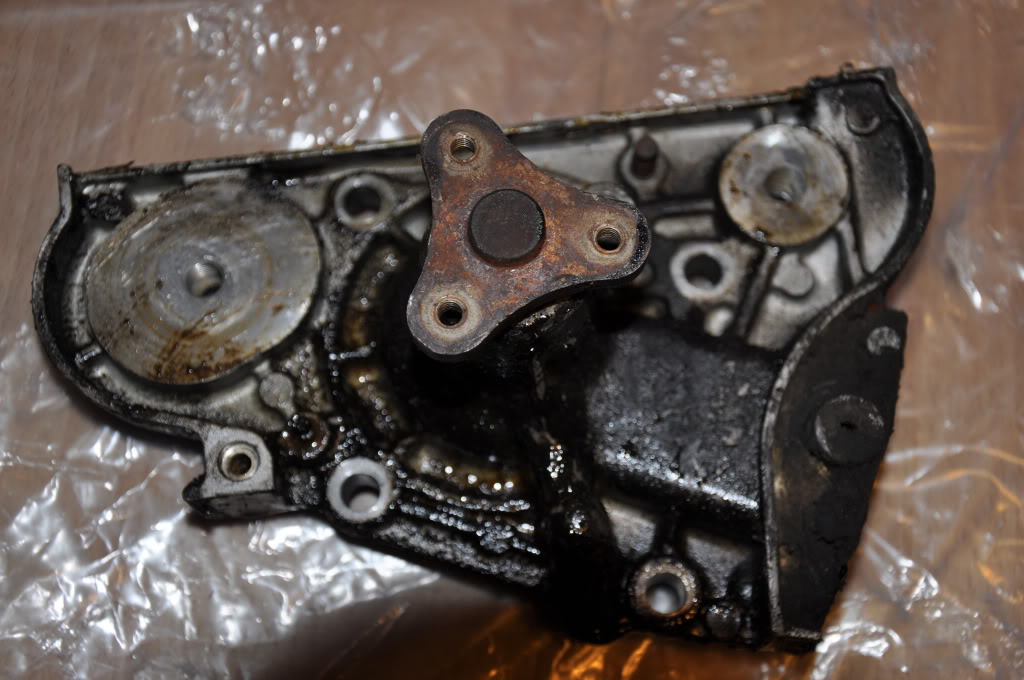

old pump
Name:  DSC_0004-3.jpg
Views: 8
Size:  104.7 KB

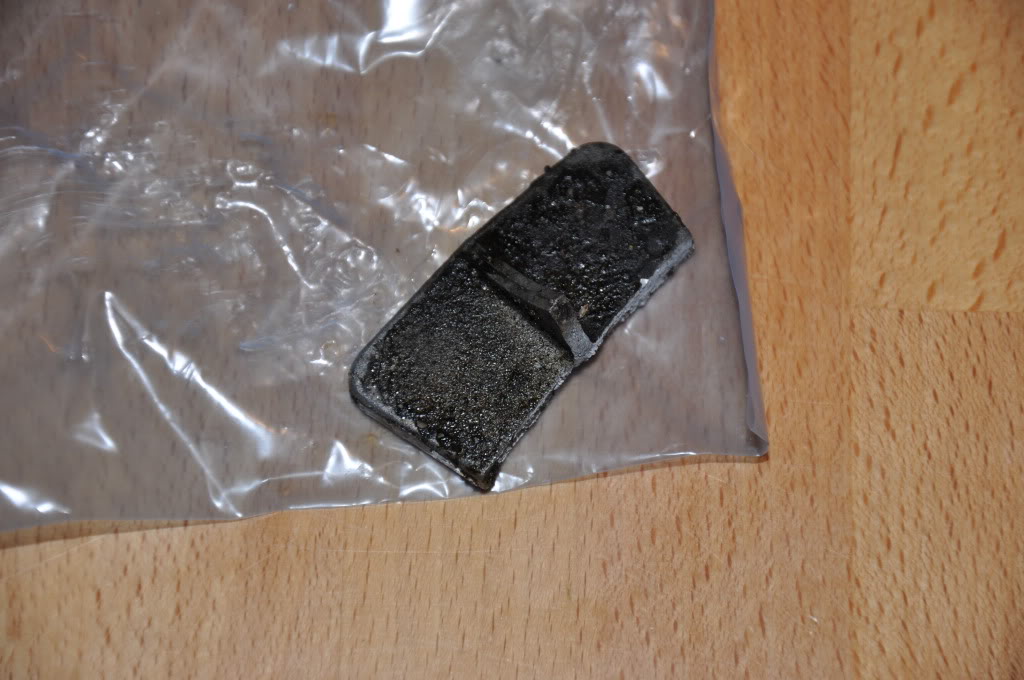

piece of metal
Name:  DSC_0005-2.jpg
Views: 9
Size:  98.3 KB

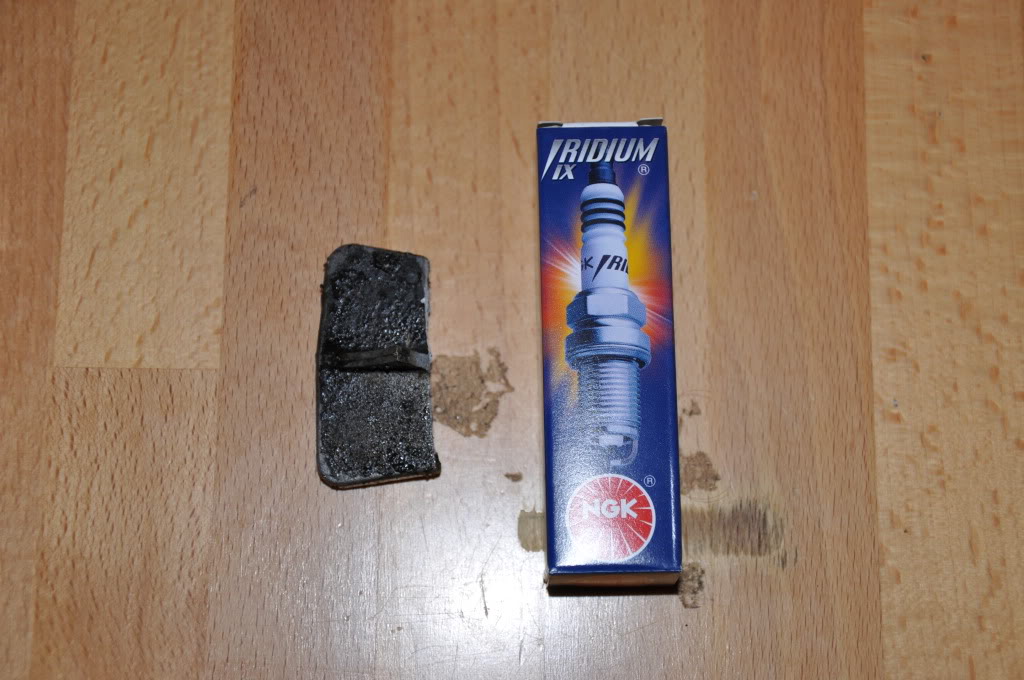

Name:  DSC_0006-2.jpg
Views: 8
Size:  111.6 KB

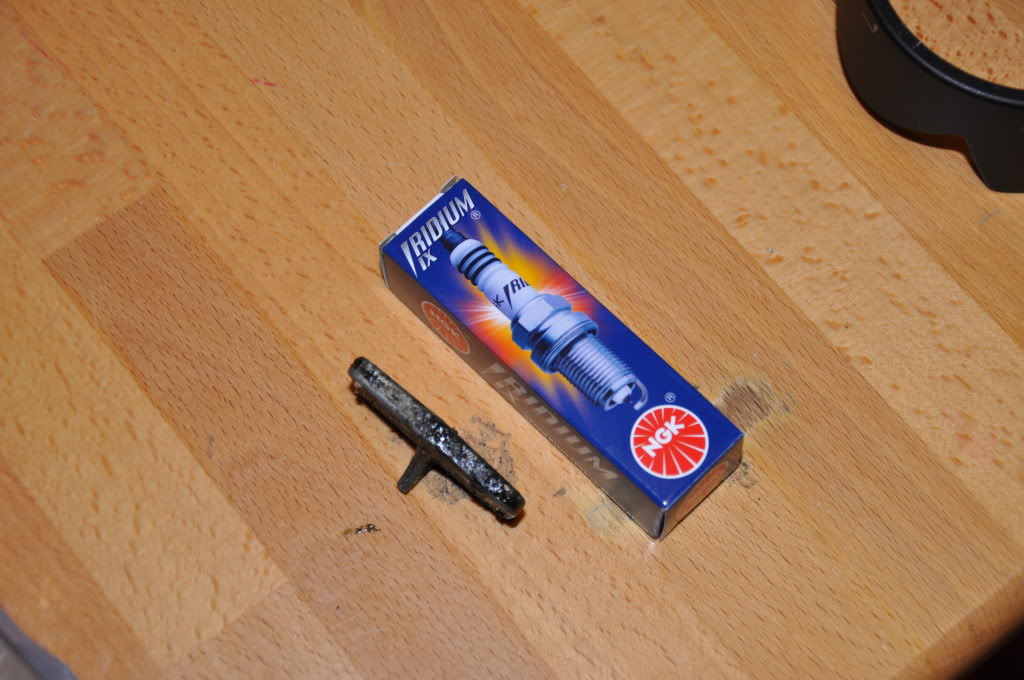

Name:  DSC_0007-2.jpg
Views: 8
Size:  112.2 KB
bayside blue is offline   Reply With Quote
Old 11-29-2010, 12:21 PM   #11
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

that thing is disgusting.
RyanRaduechel is offline   Reply With Quote
Old 11-30-2010, 11:59 AM   #12
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

chunk o metal looks like part of the aluminum water outlet neck
fooger03 is offline   Reply With Quote
