Default Weird Leak

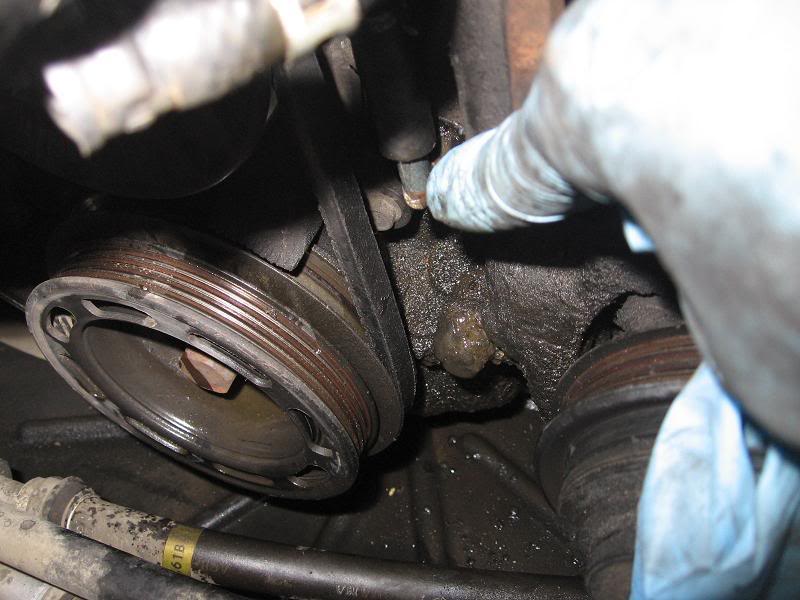

Name:  car003.jpg
Views: 1
Size:  65.4 KB


Leaking at the 90* @ #2. Hose goes from #2 into #1.

I replaced the hose and water is still leaking. Appears that the metal tubing sprung a leak. I'm assuming this whole unit needs to be taken off and welded. Are there any other alternatives you guys can think of? Or should I just cut the 90* bend part where it's leaking?

Looks like a pain to remove.

Edit: this is coming from the heater and runs from under the exhaust manifold towards the front to the thermostat.

Thanks.

Last edited by kenzo42; 02-14-2009 at 11:08 PM.
kenzo42 is offline   Reply With Quote
Old 02-14-2009, 10:55 PM   #2
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I'm trying to recall where this is in relation to the other coolant lines up front. My memory is ****.

2 things:

If that coolant line is coming from where I think it is (near the t-stat if memory serves) you should check for clogs upstream from that point. I know there is a point around there that is notorious for clogging and causing issues (happened on my old motor).

If it isn't a clog, you can repair a leak with black RTV. I did it on my miata at the heater core lines and patched a huge crack in my integra's old radiator. This is if you're absolutely sure you are leaking from that point and not somewhere else dripping down.
wayne_curr is offline   Reply With Quote
Old 02-14-2009, 11:52 PM   #3
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

There is an oring on the solid line where it connects to the metal pipe your onsite pics i suspect water pup failure. Some RTV or JB weld will help u for alil while if u have hairline cracks however i would not trust that as a permanent solution.
magnamx-5 is offline   Reply With Quote
Old 02-15-2009, 12:47 AM   #4
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,793
Total Cats: 247
Default

That metal 90* fitting is pressed into the water pump inlet neck that bolts to the water pump. Just get a new (used) water pump inlet. Fixed.
patsmx5 is offline   Reply With Quote
Old 02-15-2009, 01:01 AM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You might be able to braze that, welding isn't an option for steel tubing to aluminum. Like pat said that fitting is pressed into the housing, there is no other sealing element there besides a press fit piece of tubing into a soft cast aluminum housing.
If it's super loose you might be able to get a "hardening" thread sealant, pull the tubing out and then re-seat it with the sealant.
cjernigan is offline   Reply With Quote
Old 02-15-2009, 03:12 AM   #6
Elite Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Can the water pump inlet be separated from the metal tube that runs under the exhaust manifold? Or is it all 1 piece?
kenzo42 is offline   Reply With Quote
Old 02-15-2009, 04:01 AM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The metal tube that goes under the manifold is sealed into the water pump inlet with a fat o-ring. Nothing else, it pulls right out.
cjernigan is offline   Reply With Quote
