Default What AFM is this?

hello to all,
i was at a track day recently and my m45 miata started to have some hickups, i tracked the problem down to the air flow meter, my question is which one is the one on my miata, please refer to pics..
i believe its an rx7(86-88) but correct me if im wrong

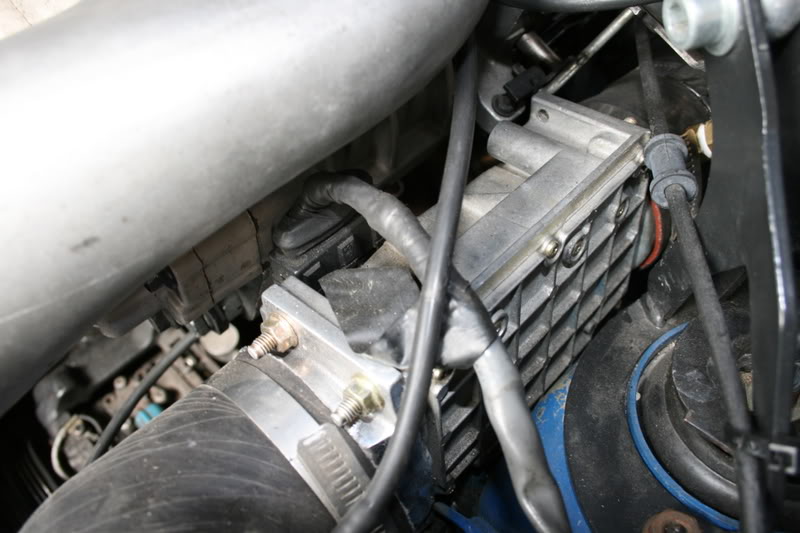

Name:  089.jpg
Views: 4
Size:  68.8 KB

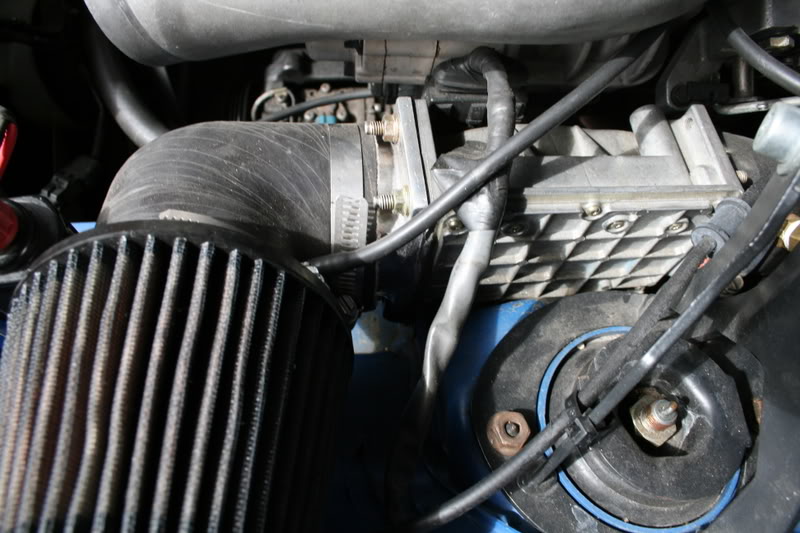

Name:  070.jpg
Views: 7
Size:  82.6 KB
also pics of me getting sideways due to mass amounts of rain and also my brake setup being too aggresive for this weather
Name:  miatadrift4.jpg
Views: 3
Size:  29.0 KB
Name:  miatadrift2.jpg
Views: 3
Size:  33.5 KB

Last edited by tpod; 08-04-2008 at 06:31 AM.
tpod is offline   Reply With Quote
Old 08-04-2008, 07:55 AM   #2
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

There are several dozen factory OEM cars that used that style flapper-door MAF. Pinpointing the exact car will be tough simply by looking at the bottom of it. But since I'm in a good mood, the standard upgrade to the stock 90-93 AFM is from an late 80's RX7.

If you're just getting started in Miata modifications and what not, it's a good idea to look through the m.net garage and be familiar with what's in there:
http://www.miata.net/garage/
click on the POWER link
then AIRFLOW METER REPLACEMENT

Also, if you google Miata airflow meter, guess where the first link points you?

There's also a very good chance that it's stock. Only looking at the part number will tell you. If you plug the part number into Google, it'll probably answer your question.
samnavy is offline   Reply With Quote
Old 08-04-2008, 10:50 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

mmmm, flapper working against gravity... ftl.
Braineack is offline   Reply With Quote
Old 08-08-2008, 06:19 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2007
Location: Chitown Illinois
Posts: 55
Total Cats: 0
Default

i have searched, im not new to miata.net garage section nor other forums, but i cant find one that looks like it. as for looking up the serial number on it, thats a great idea unfortunatly im not in the states currently and i cant check that out. i found couple more 'better' pictures, so perhaps someone might recognize it from these pictures

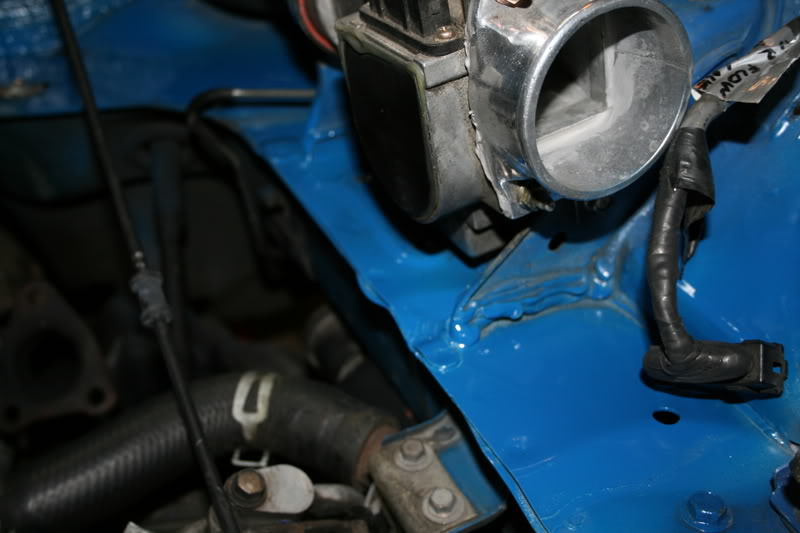

Name:  204.jpg
Views: 2
Size:  54.2 KB

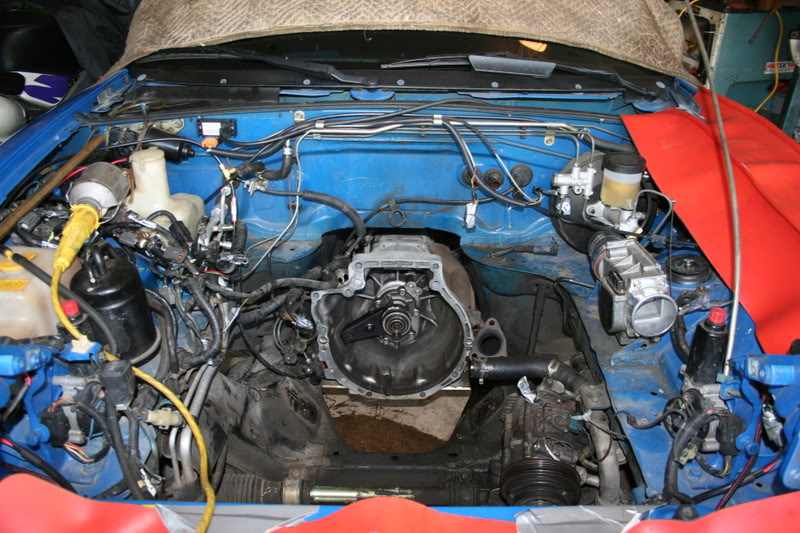

Name:  182.jpg
Views: 2
Size:  116.6 KB
tpod is offline   Reply With Quote
Old 08-08-2008, 07:23 PM   #5
Senior Member

Join Date: Nov 2005
Location: Austin, TX yall
Posts: 849
Total Cats: 0
Default

RX7 AFM Pics






http://members.aol.com/solomiata/airflowmtr.html
Surprised AOL still hosts the site after all these years. Please send me AOL cd's, I'm almost out of my minutes for the month b/c of this tedious search.


Chris
Miatamaniac92 is offline   Reply With Quote
Old 08-08-2008, 07:27 PM   #6
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

It's either stock or the RX7.
