Default What is this one for...

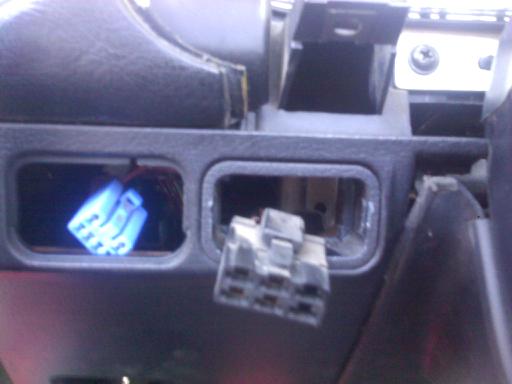

Hey guys, I was going to try the OEM cruise control install on my 90. So I started looking to see if it had the wiring harness behind the dash and in the engine compartment. Going from the pictures off of M.net I have neither. But it does have this one, its directly to the left of the steering column next to the the dimming switch. It has a blank cover over it. Any ideas what its for?

Thanks,
Ryan
Attached Thumbnails
What is this one for...-downsized_0825001520.jpg
RyanRaduechel is offline   Reply With Quote
Old 08-25-2010, 08:41 PM   #2
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

was going to say power mirrors....but i dont think 1.6's had that option. could have also been rear defroster...but again, the 1.6's didnt have it...
fooger03 is offline   Reply With Quote
Old 08-25-2010, 08:44 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by fooger03 View Post
was going to say power mirrors....but i dont think 1.6's had that option. could have also been rear defroster...but again, the 1.6's didnt have it...
Wrong and wrong. Good try though.
curly is offline   Reply With Quote
Old 08-25-2010, 09:07 PM   #4
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Could be for DRL module

Edit: No, sorry, Fog Light Option
olderguy is offline   Reply With Quote
Old 08-25-2010, 09:08 PM   #5
Junior Member
iTrader: (2)

rbluemx6's Avatar

Join Date: Apr 2009
Location: San Antonio, TX
Posts: 179
Total Cats: 0
Default

comprehension fail is me.
rbluemx6 is offline   Reply With Quote
Old 08-26-2010, 09:17 PM   #6
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

if that is there, would there be a wiring harness in the front bumper or radiator cowl for it?
RyanRaduechel is offline   Reply With Quote
Old 08-26-2010, 09:50 PM   #7
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

Foglights.
rleete is offline   Reply With Quote
Old 08-26-2010, 10:03 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,322
Total Cats: 1,918
Default

Quote:
Originally Posted by rleete View Post
Foglights.
CorrectPost is Correct:



I think that the blue connector to the left of the one you've got hanging out is the cruise switch.

Here's the complete system diagram for cruise control:



Note that if the vehicle was not originally equipped with cruise control, some of these wires may be missing from the harness. For instance, I know that in 1.6 vehicles with neither an automatic transmission nor factory cruise, the G/R wire (at position P here) is missing between common connector X-17 and the instrument panel connector. Annoyingly, the actual VSS itself is present, there's just no wire going to it.
Joe Perez is online now   Reply With Quote
Old 08-26-2010, 10:09 PM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,322
Total Cats: 1,918
Default

Also, I think fooger03 may be half-right on the rear defogger. I know that the later 1.6 cars were pre-wired for it, but I don't think that the '90-'91 cars were.
Joe Perez is online now   Reply With Quote
Old 08-27-2010, 02:40 AM   #10
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

the blue connector to the left of it is the dimmer switch. I had it pulled out and unplugged so I could change the light in it. I was hoping the I would be lucky and have some of the cruise control stuff pre-wired, but its not looking that way. And looking at that wiring diagram right now looks like a bunch of scribbles. I will have to look at it again tomorrow, thank you for posting that though. I love cruise control and would love to go OEM but if I have to go aftermarket thats fine too
RyanRaduechel is offline   Reply With Quote
Old 08-27-2010, 01:47 PM   #11
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i have a full oem cruise setup i pulled off my car whats it worth to ya?
magnamx-5 is offline   Reply With Quote
Old 08-29-2010, 02:31 PM   #12
Senior Member
Thread Starter
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

well I was offered $125 by another board member for his complete setup. My only concern is I was reading and it people have said if you dont have to wiring looms present to go aftermarket and save yourself the headache. So I am not entirely sure what I want to do...
