Old 08-28-2013, 06:48 PM   #21
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Let me ask you this then, do you know what tooth count you are using now?
FRT_Fun is offline   Reply With Quote
Old 08-28-2013, 06:50 PM   #22
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

No, I did not count the teeth. I'm actually going to swap back, because there's a probability that it could be the wrong one installed and the correct final drive would be 4.5... but that still leaves me asking the same question.
Nagase is offline   Reply With Quote
Old 08-28-2013, 06:53 PM   #23
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Did you look at the link I posted?
FRT_Fun is offline   Reply With Quote
Old 08-28-2013, 06:54 PM   #24
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

If you aren't sure of the sensor that's in there, I would be suspicious because there IS a kia 4.77 ring gear that fits our diffs, and you might somehow have a VSS set up for that.
thenuge26 is offline   Reply With Quote
Old 08-28-2013, 07:01 PM   #25
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

I did, read it... found it full of electronics.

Not so good with those.

Admittedly, got attached to the idea of having a mechanical fix. I'm very much more on the mechanical side of engineering than the electronic... or my turbo car would be running. :/
Nagase is offline   Reply With Quote
Old 08-28-2013, 07:18 PM   #26
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

You are a very confusing person. In the beginning you wanted something electrical that you could use to calibrate the signal. Both my links offered that. You only other option as I see it is to find the correct tooth gear, or make one (3d printer ?)
FRT_Fun is offline   Reply With Quote
Old 08-28-2013, 07:26 PM   #27
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

I'm sorry, I was originally looking for something plug and play.

Saw a bunch of wiring points and my brain went into no way mode.
Nagase is offline   Reply With Quote
Old 08-28-2013, 07:28 PM   #28
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Well if you can figure out how many teeth you need I can count the two I have and see if they will work.
FRT_Fun is offline   Reply With Quote
Old 08-28-2013, 07:50 PM   #29
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Will do. I'll jack up my car and take out the other sender too.

Best case scenario, I find out I accidently put in a 3.9 sender, replace it with a 4.3 and everything is perfect.
Nagase is offline   Reply With Quote
Old 08-28-2013, 09:42 PM   #30
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

The one I think is a 4.3 has 22 teeth, it seems.

The one I think is a 4.1 has 20 teeth.

These numbers line up?
Nagase is offline   Reply With Quote
Old 08-28-2013, 09:58 PM   #31
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

My 4.3 that came out of my 99 5-speed a few weeks ago has 23, just counted.

It wasn't even the problem, my damn speedo is still broke.
thenuge26 is offline   Reply With Quote
Old 08-28-2013, 10:06 PM   #32
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Damn, either I miscounted or...

Is there a listing of different available tooth amounts?
Nagase is offline   Reply With Quote
Old 08-28-2013, 10:16 PM   #33
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

The one I think is from a 4.3 is red, and the one I thought was from a 4.1 is white, not sure if they're color coded.
Nagase is offline   Reply With Quote
Old 08-28-2013, 10:26 PM   #34
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

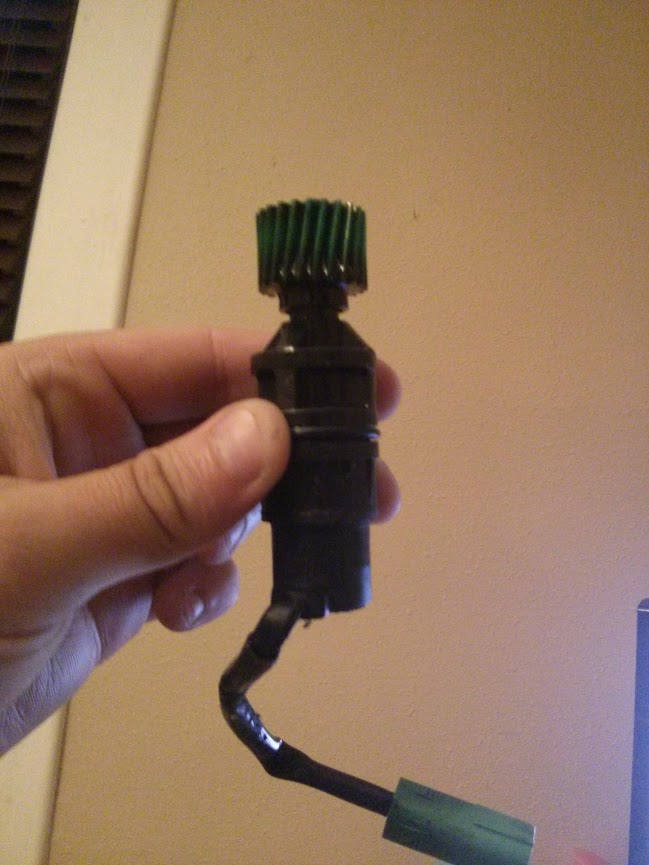

Mine is green. Don't remember the color of the replacement I put in.

Attached Thumbnails
What to use to tune my NB's speedometer?-m1rqmpg.jpg
thenuge26 is offline   Reply With Quote
Old 08-28-2013, 10:28 PM   #35
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Thank you for that. Some good data there.
Nagase is offline   Reply With Quote
Old 08-28-2013, 10:32 PM   #36
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Here, I took some with the good camera for backup counting purposes.

Still got 23.

99 5-speed 4.3 vss - Imgur
thenuge26 is offline   Reply With Quote
Old 08-28-2013, 10:37 PM   #37
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

There was a thread with hustler that talked about the gears and how many teeth for what models. I'll see if I can find it.

F all that, just do it through the MS3x

http://www.msextra.com/doc/ms3/speedgear.html

M502-17-441 (19 tooth) gear or an M503- (20 tooth) gear

Last edited by FRT_Fun; 08-28-2013 at 10:48 PM.
FRT_Fun is offline   Reply With Quote
Old 08-28-2013, 10:52 PM   #38
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

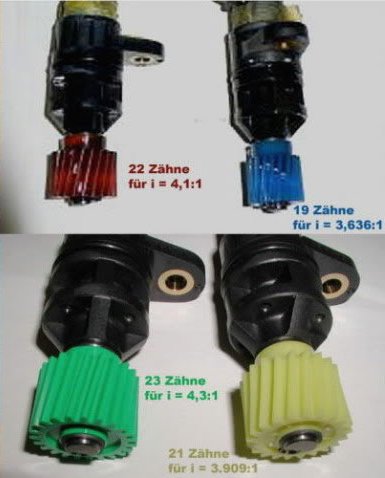

Boom



From some post by WestfieldMX5
Attached Thumbnails
What to use to tune my NB's speedometer?-speedo_sensors2.jpg

Last edited by FRT_Fun; 08-29-2013 at 11:53 PM.
FRT_Fun is offline   Reply With Quote
Old 08-28-2013, 11:05 PM   #39
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Niiiiice. Big thumbs up! I just need to get a green then!
Nagase is offline   Reply With Quote
Old 08-28-2013, 11:18 PM   #40
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Just checked, two yellows.
