Old 08-29-2013, 12:58 PM   #41
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

Quote:
Originally Posted by Nagase View Post
Tires are smaller than stock.
Actually, 185/55R15 is a 23.0 inch nominal diameter, which is slightly taller than the stock 195/50R15, but almost identical to the common aftermarket 205/50R15 or 225/45R15s.

(Totally unrelated, but I'm curious why that size? It seems an odd choice.)

Having the wrong sender explains everything. Used green 4.3 senders are cheap, because pretty much every 5-speed NB came with one and they rarely break. Mazda wants an arm and a leg for a new one.

If you've been running around with a sender that's 10% too low, then your odometer is probably also 10% too low for however long it's been in. Might want to factor that into your service periods and mpg calculations.

--Ian
codrus is offline   Reply With Quote
Old 08-29-2013, 01:04 PM   #42
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Yeah I think mine was $85 shipped from Planet Miata. Might be cheaper if you can find just the gear.
thenuge26 is offline   Reply With Quote
Old 08-29-2013, 03:42 PM   #43
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

I'm pretty sure I have a couple green senders left in my garage. I can check in a few hours when I'm there.

FWIW, Red and Green geared senders were both used on 4.3/5-speed NBs. Red on the cars that came with 15" wheels and Green on the cars that came with 14" wheels.
RotorNutFD3S is offline   Reply With Quote
Old 08-29-2013, 06:51 PM   #44
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

My car is a 2001 Sport, so it came with 16" wheels.

The tires I have on are shorter than the 16's that came on it.

Anyway, the solution was that a 3.9 got swapped in my car without me realizing it, making my math way off. Just need a 4.3, as said above.

As far as why the 185's... that's a whole thread (filled with flames) in itself.
Nagase is offline   Reply With Quote
Old 08-29-2013, 07:22 PM   #45
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Attached Thumbnails

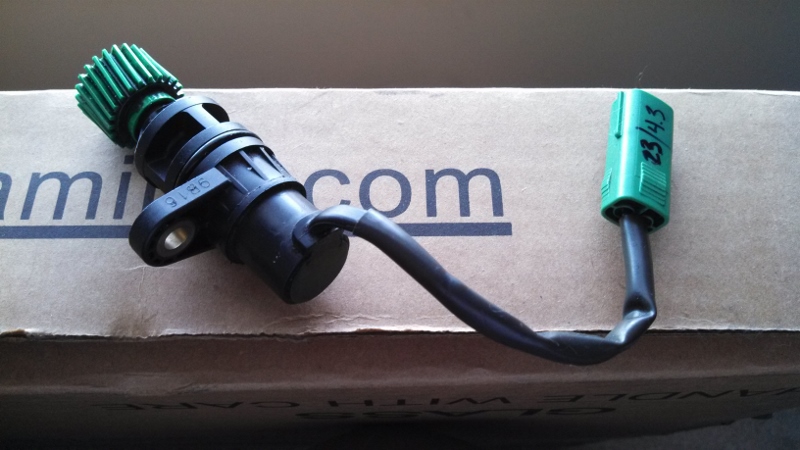

What to use to tune my NB's speedometer?-20130829-4.3-gear.jpg
RotorNutFD3S is offline   Reply With Quote
Old 08-29-2013, 07:31 PM   #46
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

How much money?
Nagase is offline   Reply With Quote
Old 08-29-2013, 07:42 PM   #47
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Say $30 via Flat Rate Priority?
RotorNutFD3S is offline   Reply With Quote
Old 08-29-2013, 07:43 PM   #48
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Give me your paypal and money will be yours!
Nagase is offline   Reply With Quote
Old 08-29-2013, 07:49 PM   #49
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Sent you a PM.
RotorNutFD3S is offline   Reply With Quote
Old 08-29-2013, 10:06 PM   #50
MT Pony Underground
Thread Starter
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

So, if anyone searches for this problem later...

Just because your car has a 4.3 doesn't mean it came with the 4.3 speedo sender.
Nagase is offline   Reply With Quote
Old 08-29-2013, 11:33 PM   #51
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Yeah this has been good, I haven't put my 3.9 in yet because I want to swap it with a 3.636 R&P before I do. Now I know which speed sensor gear I need.
thenuge26 is offline   Reply With Quote
Old 09-03-2013, 01:41 PM   #52
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Quote:
Originally Posted by Savington View Post
Nope
Never trust my memory...found it!
Yellow Box Speedometer Recalibrator 99-05

Rev said it too...yellowbox.
Preluding is offline   Reply With Quote
