Default Where do these brackets go? (pics)

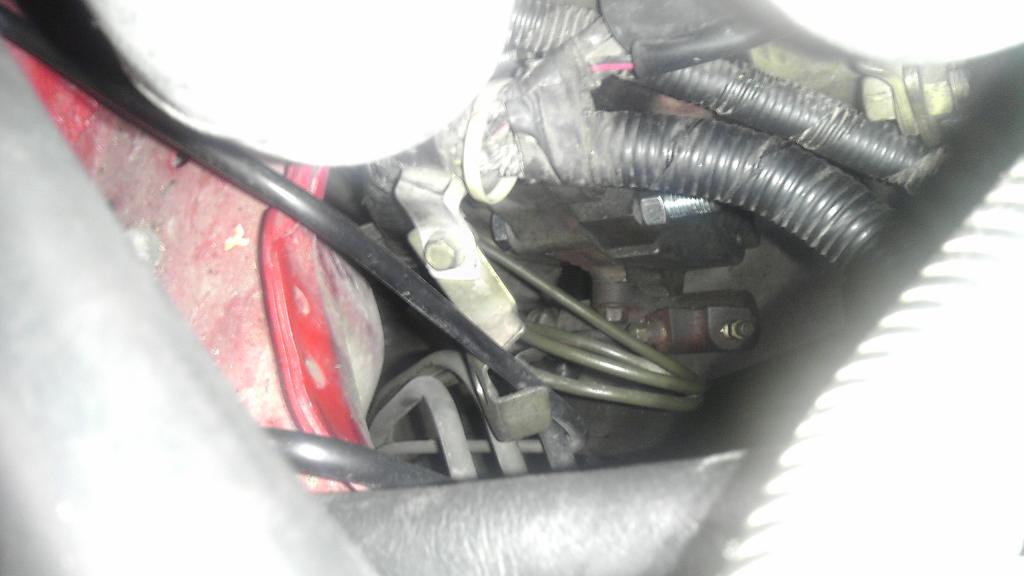

I am finishing putting a junkyard engine in my 97, I kept everything straight but these two things.

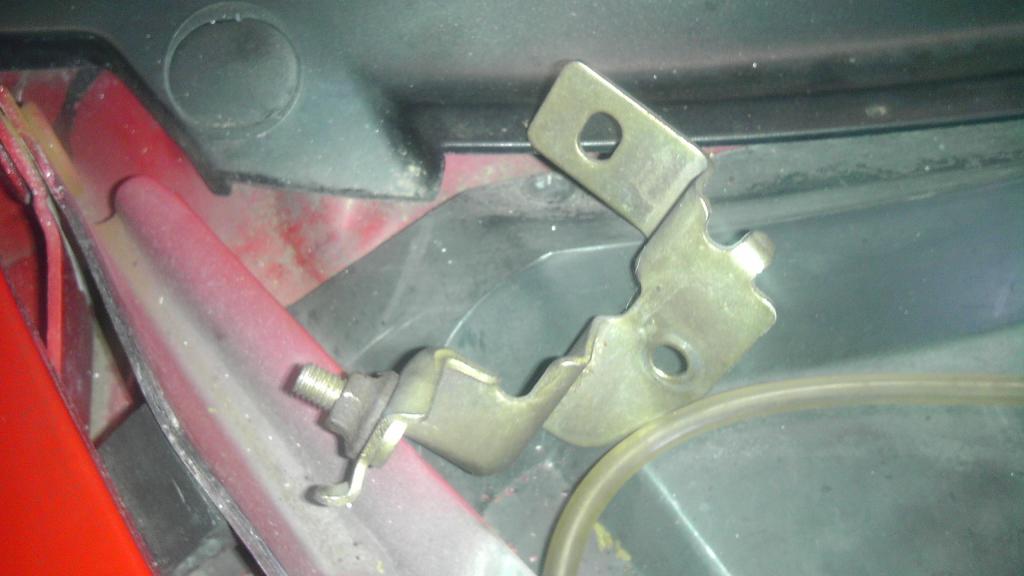

The first is the bracket for the alternator and starter wiring. What does it bolt to?

What is this?
Attached Thumbnails
Where do these brackets go? (pics)-imag0110.jpg   Where do these brackets go? (pics)-imag0111.jpg
jspadaro is offline   Reply With Quote
Old 09-07-2013, 01:52 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,163
Total Cats: 2,573
Default

it holds the curly-q
18psi is offline   Reply With Quote
Old 09-07-2013, 03:17 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2013
Location: Knoxville, TN
Posts: 182
Total Cats: 10
Default

You mean the bracket by itself is for the clutch line hard to soft bracket? That'd explain why I can't reinstall! Hah.
jspadaro is offline   Reply With Quote
Old 09-07-2013, 04:29 PM   #4
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

second bracket bolts to the IM, connects to a ground, and supports a solenoid.
fooger03 is offline   Reply With Quote
Old 09-07-2013, 10:06 PM   #5
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Quote:
Originally Posted by 18psi View Post
it holds the curly-q
My curly-q bracket has some rubber molded over it...



Either way, i didn't hook it back on. Just bent the line in a way where it wouldn't be rubbing on anything.
Erat is offline   Reply With Quote
Old 09-07-2013, 10:32 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2013
Location: Knoxville, TN
Posts: 182
Total Cats: 10
Default

Wait so which bracket is the curly q? And by curly q you guys mean clutch hard line?
jspadaro is offline   Reply With Quote
Old 09-08-2013, 03:08 PM   #7
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Yes the clutch hardline. The bracket in the first photo goes on the transmission bolt, the brand new one (that's way too long btw) pictured right behind the wiring harness.

The second one as mentioned goes to the back of the intake manifold, holds a ground and connector for the coils I believe. If you're lazy like me, or have COPs, eliminate that bracket, bolt the ground right to the intake manifold, and let the coil connector be free!
curly is offline   Reply With Quote
Old 09-08-2013, 03:11 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jul 2013
Location: Knoxville, TN
Posts: 182
Total Cats: 10
Default

Quote:
Originally Posted by curly View Post
Yes the clutch hardline. The bracket in the first photo goes on the transmission bolt, the brand new one (that's way too long btw) pictured right behind the wiring harness.

The second one as mentioned goes to the back of the intake manifold, holds a ground and connector for the coils I believe. If you're lazy like me, or have COPs, eliminate that bracket, bolt the ground right to the intake manifold, and let the coil connector be free!
Yeah I know it's too long, a couple of old bolts snapped and I improvised with the grade 10.9's I had on hand (intended to mount engine to stand.) Figured it wouldn't hurt anything.

That makes total sense, now I get it. Thanks a bunch!
