Old 11-26-2007, 03:29 PM   #21
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by brgracer View Post
If you want a really clean console install, consider the item below. It comes in black as well so it will blend in with your console and not be as attention getting as the stainless version. Also has two gauge versions as well as stereo on top or bottom.

http://www.ddmworks.com/Miatastore/s...surrounds.html

[IMG]http://www.ddmworks.com/Picture_032.jpg[/G]

Oh yea, now thats sexy. But for 80 dollars it better come with a blow job otherwise I think ill pass. Dont get me wrong, the din below the stereo is a great place for gauges but only for gauges that dont change frequently or require frequent monitoring.

Im starting to like the A Pillar idea more because I don't have to put holes in my steering column plastics to mount gauges, the less holes the better.
Saml01 is offline   Reply With Quote
Old 11-26-2007, 03:44 PM   #22
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Eventually im just gonna get a 3 pod a-pillar mount.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-26-2007, 04:24 PM   #23
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

This is offtopic but its my thread and I can hijack all I want, but how do you guys get the signal lines for the gauges into the cabin. I kinda looked around for a similar plug on the right like on the left and didnt find one. Only thing remotely like it was a big old fatty grommet with wires running through it and it was molded around the wires, i think.

edit: Just realized I should have made this thread into a poll. Damnit.

edit 2: Can someone with pillar mounted gauges post a picture of your setup if you dont mind. Thank You.
Saml01 is offline   Reply With Quote
Old 11-26-2007, 04:46 PM   #24
Junior Member

Join Date: Oct 2006
Location: Santa Rosa, CA
Posts: 244
Total Cats: 0
Default

Hi Sam - I fished my oil temp line through a grommet on the firewall behind the ABS unit, under the carpet, and along the AC ducting under the dash.

It was kind of a PITA to get started through, but otherwise piece of cake.

//edit, and I put the OTG in the left center eyeball vent. Boost (when and if) will go in the right center eyeball. WB, I figure on making a LED bar indicator, 1/2"x1", sticking it somewhere REALLY obvious.
kyle242gt is offline   Reply With Quote
Old 11-26-2007, 04:48 PM   #25
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Pillar gauges suck dick. I hated mine.
cjernigan is offline   Reply With Quote
Old 11-26-2007, 05:19 PM   #26
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by cjernigan View Post
Pillar gauges suck dick. I hated mine.
Why?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-26-2007, 06:06 PM   #27
Senior Member
iTrader: (4)

Join Date: May 2007
Location: Ontario
Posts: 790
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
Why?
Nothing says rice, or pull me over more then a-pillar gauges.

I think I am going to fiberglass 2 pods onto the gauge console surround. Maybe redo the entire thing in CF with my SAE team. I have a spare anyways, probably going to do it on that one.
reddroptop is offline   Reply With Quote
Old 11-26-2007, 06:31 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

http://www.youtube.com/watch?v=v0PF0hQBAaY

look at my single pod. really, is it that "rice?!"

give me a break....



you can see my wideband guage just below as i rapidly spin the wheel.
Braineack is offline   Reply With Quote
Old 11-26-2007, 06:43 PM   #29
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

What would be nice is if someone made something like this for the Miata.

http://cgi.ebay.com/ebaymotors/96-97...spagenameZWDVW
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-26-2007, 07:30 PM   #30
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by levnubhin View Post
Why?
Same reason most hate them, visibility. It's not that they block my vision so much as they're just there. They're in the way, they increase the small blind spot the pillar creates. I just don't like it, i much prefer my gauges above the stereo.

There is a mount that replace the gauge hood, it has 2 gauges molded into it. Looks like a frog but it works. I would prefer that route if I wanted them right in front of me. Or I would just screw them to the hood like savington. I'm almost 6'3, my head rubs the softop so my line of sight is about as high as it gets.
cjernigan is offline   Reply With Quote
Old 11-26-2007, 07:32 PM   #31
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by Braineack View Post
http://www.youtube.com/watch?v=v0PF0hQBAaY

look at my single pod. really, is it that "rice?!"
give me a break....
you can see my wideband guage just below as i rapidly spin the wheel.
I still like that spinout. What tires were you running?
cjernigan is offline   Reply With Quote
Old 11-26-2007, 07:56 PM   #32
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

5-yo azenis that have no traction.
Braineack is offline   Reply With Quote
Old 11-26-2007, 08:26 PM   #33
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by nester View Post
I put mine in the vents.
werd
kotomile is offline   Reply With Quote
Old 11-26-2007, 08:38 PM   #34
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

cjernigan is offline   Reply With Quote
Old 11-26-2007, 10:43 PM   #35
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by cjernigan View Post
Or I would just screw them to the hood like savington. I'm almost 6'3, my head rubs the softop so my line of sight is about as high as it gets.
I like savingtons idea, but I really dont want to take my gauge hood off. Plus if im mounting them up there then might as well just screw them to the column, which I think I will do in the end. Easiest to get wires there, easiest to get power too, and easiest to see for me and attracts the least attention. Plus the gauge cups that WOT linked me to are metal and look nice.

I am trying to draw as little attention as possible with this. My friend on the other hands keeps insisting that I get a knock off porsche "turbo" logo from ebay and stick that on my car.
Saml01 is offline   Reply With Quote
Old 11-26-2007, 10:59 PM   #36
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The gauge hood comes off with a quick pull after you've taken the steering column cover off with 3 screws. Nothing difficult.
cjernigan is offline   Reply With Quote
Old 11-26-2007, 11:54 PM   #37
Elite Member
Thread Starter
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by cjernigan View Post
The gauge hood comes off with a quick pull after you've taken the steering column cover off with 3 screws. Nothing difficult.
Stop making things so simple.
Saml01 is offline   Reply With Quote
Old 11-27-2007, 12:20 AM   #38
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I'm all for A-pillars. There are already state inspection and registration stickers blocking that view so throwing gauges right there can't hurt anymore.
Bryce is offline   Reply With Quote
Old 11-27-2007, 12:41 AM   #39
Senior Member
iTrader: (4)

Join Date: May 2007
Location: Ontario
Posts: 790
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
Stop making things so simple.
More often then not they break when pulled out, Just a FYI.
reddroptop is offline   Reply With Quote
Old 11-27-2007, 01:56 AM   #40
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

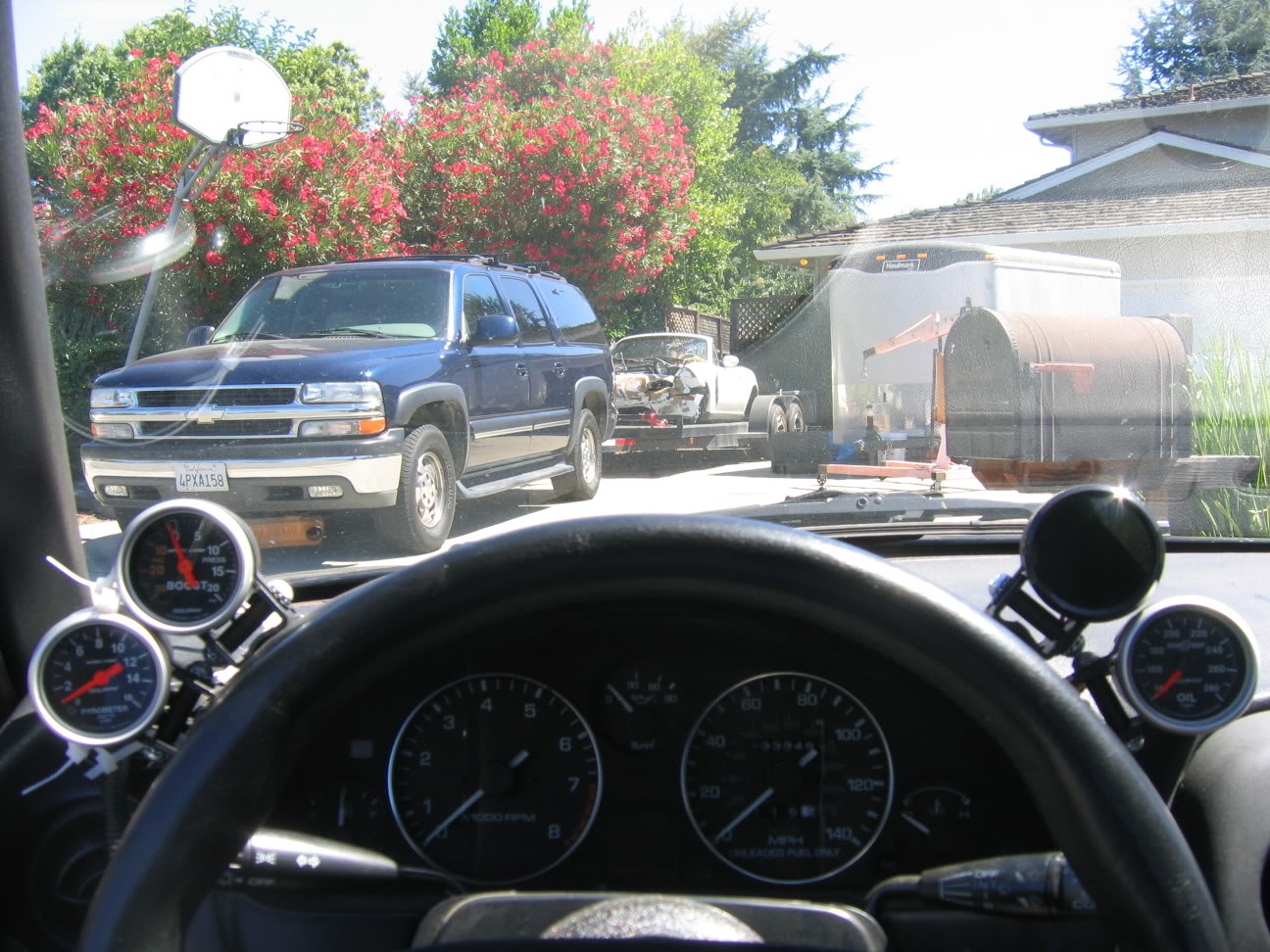

Name:  IMG_7452.jpg
Views: 19
Size:  245.1 KB

Not exactly "stealth", but you cannot beat the visibility. My car is being built as a track car that I can use on the street (even though I daily drive it), so I chose line-of-sight over aesthetics. I can take a quick glance at my gauges at any time and get a very good reading of how the car's doing. It makes keeping tabs on things very easy, which was my goal. I'm very pleased with the layout.

I've driven cars with the 3 gauges where the radio is. Don't expect to look at them when you're actually driving.

(excuse the zip-ties. The screw holding the boost gauge cup came out at Buttonwillow and I haven't had time to get the hood off and put a nut/bolt in the hole.)
Savington is offline   Reply With Quote
