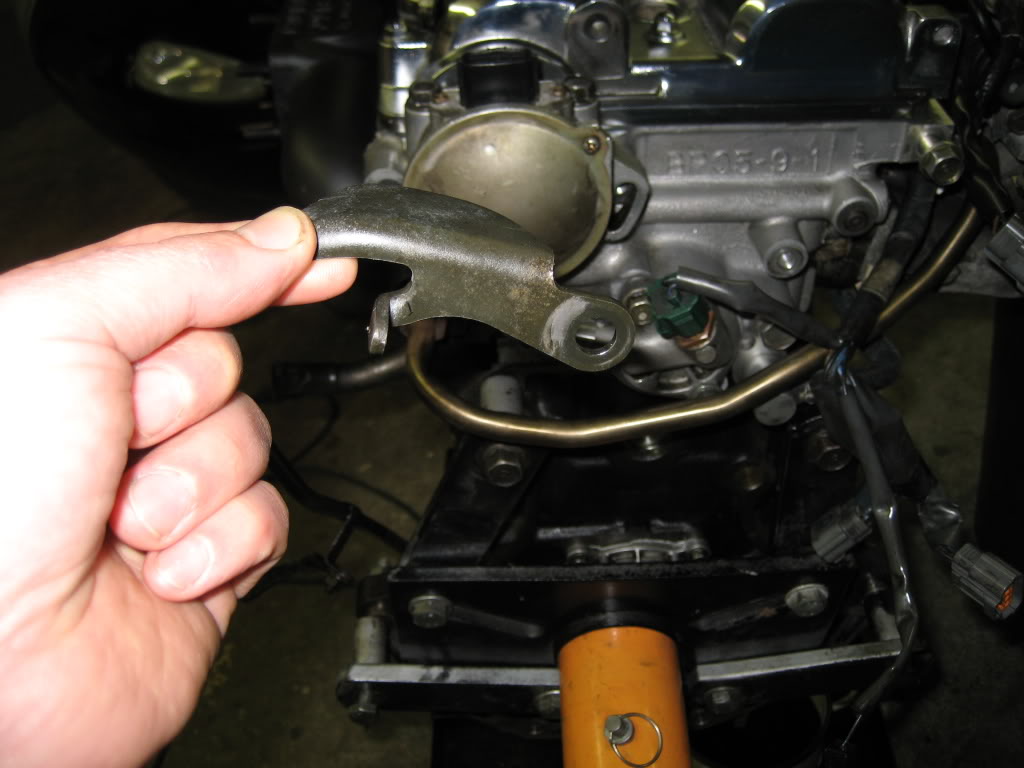

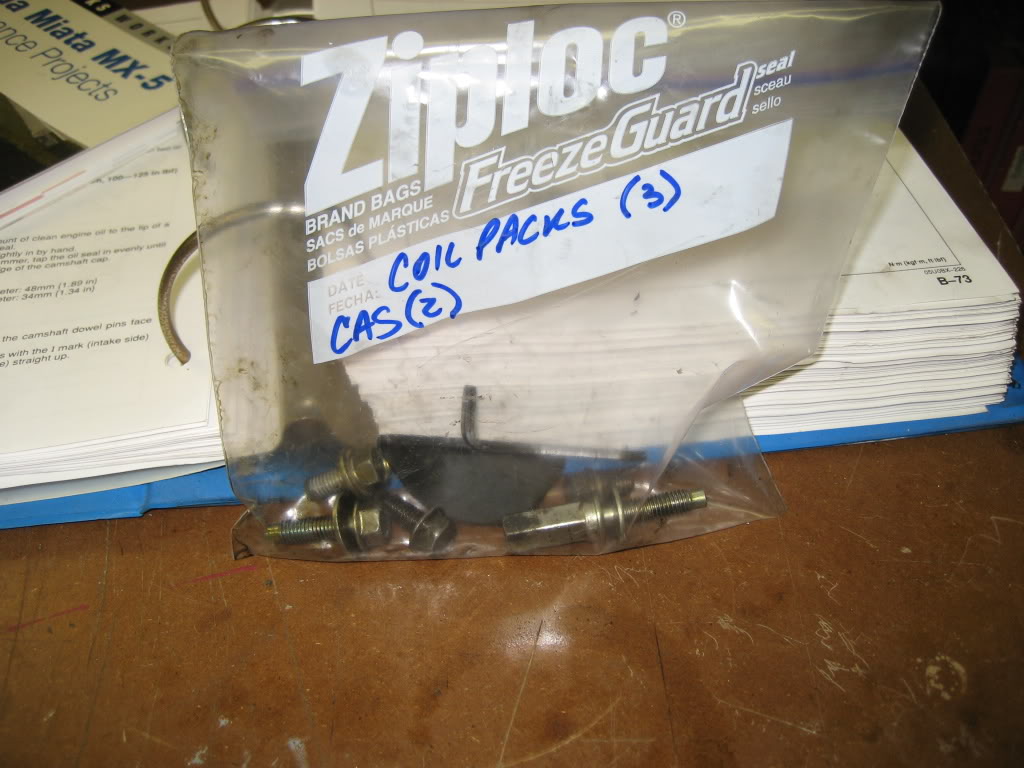

Where the hell does this bracket go? Somewhere by the CAS & Coilpack, but I can't figger it out.

Name:  IMG_6101.jpg
Views: 1
Size:  109.8 KB
Name:  IMG_6098.jpg
Views: 1
Size:  82.7 KB

Thanks,
Chris
chriscar is offline   Reply With Quote
Old 03-11-2009, 03:21 PM   #2
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Pretty much how you have it orientated in the pic is how it is installed. CAS bracket - nothing to do with coil packs.
*** Edit*** I don't do fancy diagrams like Brain or Joe, but I am sure is in the works as we speak.
Machismo is offline   Reply With Quote
Old 03-11-2009, 03:43 PM   #3
Elite Member
Thread Starter
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

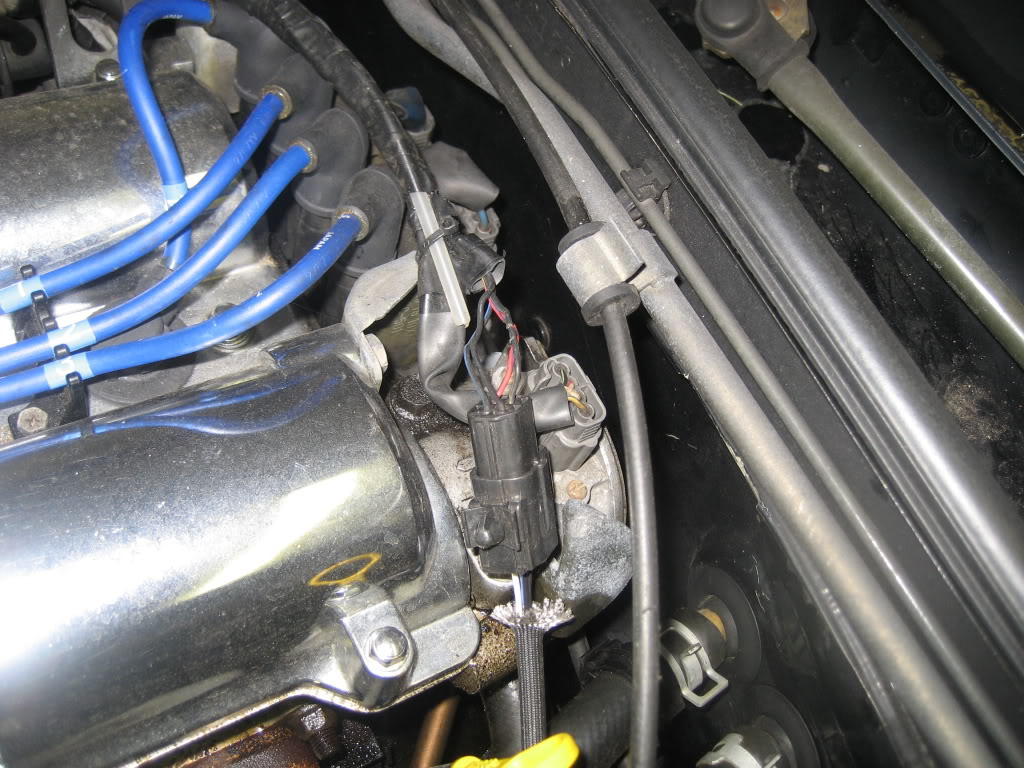

Ok, you can just see it here in this pre-dissasembly pic.
Name:  IMG_6000.jpg
Views: 1
Size:  167.1 KB

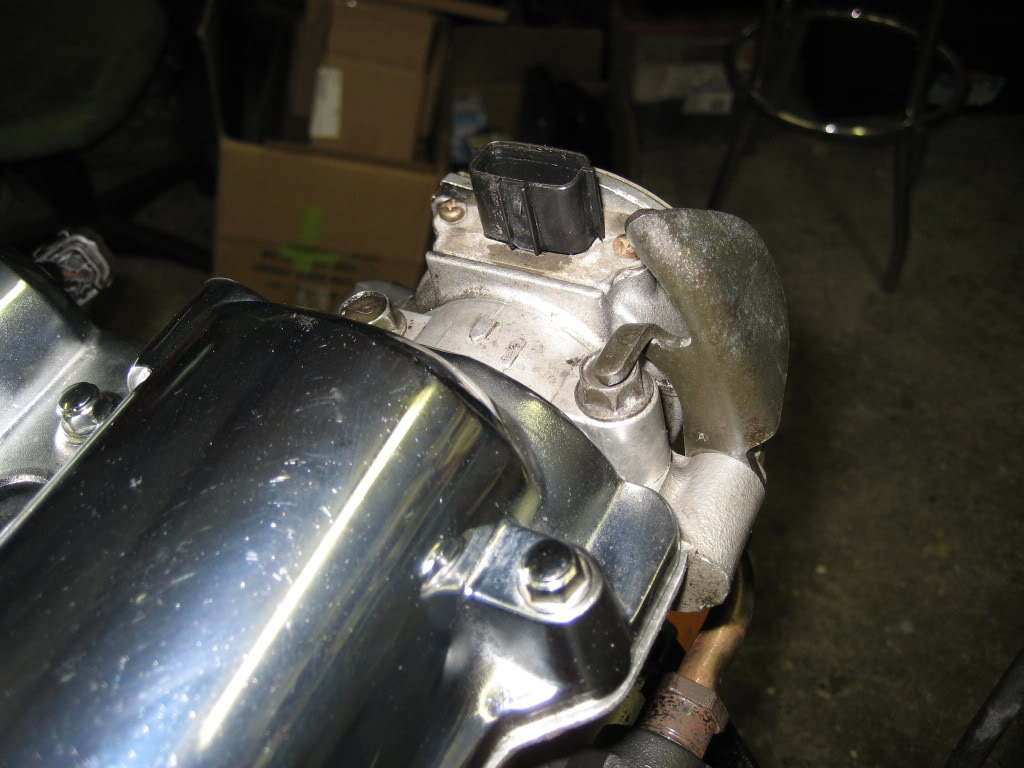

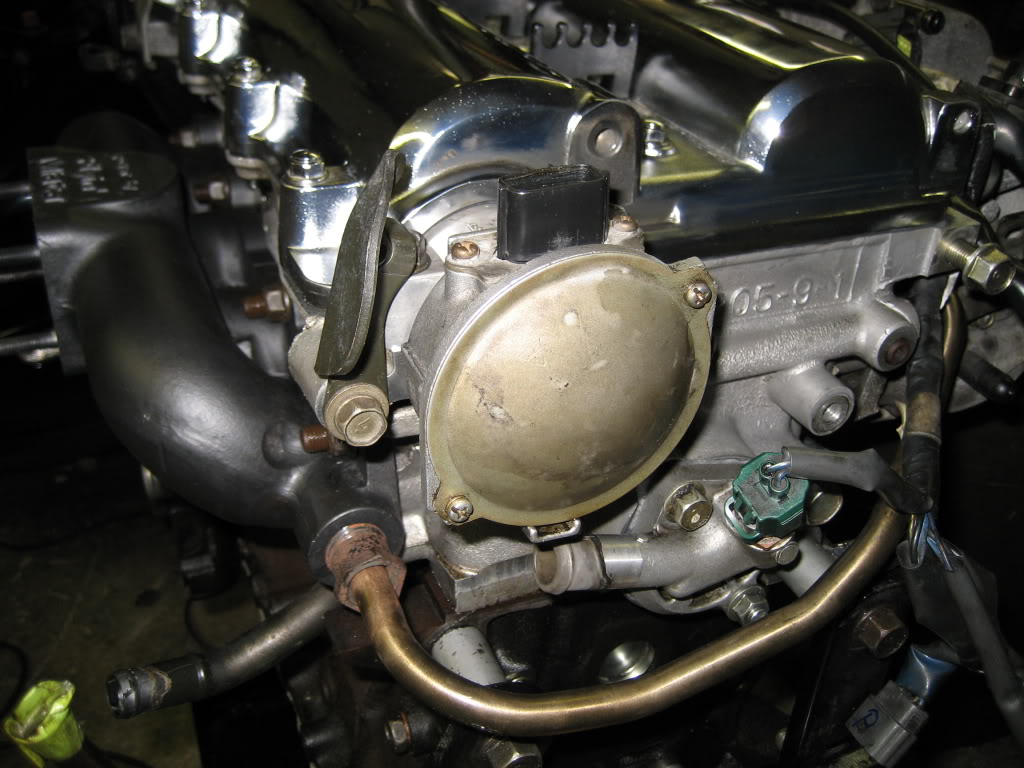

Assuming it's on correctly here, it appears to me that it serves no purpose.
Name:  IMG_6102.jpg
Views: 1
Size:  120.6 KB
Name:  IMG_6108.jpg
Views: 1
Size:  97.6 KB

C
chriscar is offline   Reply With Quote
Old 03-11-2009, 03:47 PM   #4
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

That is also how mine was before. I just left mine off. I couldnt see any real purpose.
NA6C-Guy is offline   Reply With Quote
Old 03-11-2009, 04:00 PM   #5
Senior Member
iTrader: (5)

Join Date: Apr 2008
Location: VA
Posts: 828
Total Cats: -2
Default

The purpose of that bracket is to hold the stock 02 sensor connector.
thymer is offline   Reply With Quote
Old 03-11-2009, 04:06 PM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,336
Default

Didn't include that one when I swapped the CAS to the 99 block.
Savington is offline   Reply With Quote
Old 03-11-2009, 04:16 PM   #7
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

I agree with its purpose....doesn't seem to have a real purpose. Always wondered WTF is this for?
Machismo is offline   Reply With Quote
Old 03-11-2009, 04:50 PM   #8
Elite Member
Thread Starter
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Quote:
Originally Posted by thymer View Post
The purpose of that bracket is to hold the stock 02 sensor connector.
Are you sure about that? There's a hole on the driver side of the coil pack bracket which the o2 sensor connector clips into.

C
chriscar is offline   Reply With Quote
Old 03-23-2009, 11:43 AM   #9
Newb

Join Date: Jan 2008
Posts: 10
Total Cats: 0
Default

No purpose? So its similar to the bracket that holds up the intake, oh yea, that's the oil filter knuckle buster bracket.
