Quote:
Originally Posted by Braineack View Post
ask BEGi how they position theirs, since your manifold is a cheap copy of it.

Prepare to have your manifold explode in a shower of flaming tinfoil. I have one new in my garage I'll sell you for $70 when yours dies.
Faeflora is offline   Reply With Quote
Old 09-05-2012, 06:46 PM   #22
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

Quote:
Originally Posted by Faeflora View Post
Prepare to have your manifold explode in a shower of flaming tinfoil. I have one new in my garage I'll sell you for $70 when yours dies.
Can I ask why you think it is a fake and why you think it will explode?
travisb is offline   Reply With Quote
Old 09-06-2012, 04:24 PM   #23
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

I talked to Stephanie. The original owner lost the turbo support and sent the manifold back to Begi. They added additional supports along the runners and collector area.
travisb is offline   Reply With Quote
Old 09-15-2012, 01:08 PM   #24
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

I got the turbo and manifold flanges milled this week. The air leak is smaller than before, but still there.

This time when I installed the turbo and manifold, I connected them both together outside of the car to make sure that everything was nice and flat and tight.

I took another video today. I had my wife sit in the car and rev it a few times and I also sprayed some soapy water to look for air leaks. The noise is usually there at idle, but starts to disappear at higher revs.

Here are two videos. The first is from today and the second is from a couple weeks ago.

My question is, is the noise related to an air leak or is it something with the turbo itself? A couple people have told me it sounded metallic, not like air.


travisb is offline   Reply With Quote
Old 09-15-2012, 01:19 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

guess you need a gasket.
Braineack is offline   Reply With Quote
Old 09-15-2012, 01:24 PM   #26
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

I've thought about a gasket, but begi says not to put one there.
Brain, what does the noise sound like to you? Air or something wrong with the turbo itself?
travisb is offline   Reply With Quote
Old 09-16-2012, 11:13 PM   #27
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

If you bought this from BEGi, the manifold leaks/stretches studs, and they tell you not to use a gasket...ask them what you are doing wrong.

I don't think it's the turbo. Usually when the bearing makes strange noises, that noise changes with turbine rpm.
hustler is offline   Reply With Quote
Old 09-17-2012, 01:20 AM   #28
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,364
Total Cats: 1,325
Default

If the noise doesn't change with turbine shaft speed, it's not the turbo. It's just an air leak somewhere, probably in your bypass valve (if you have one).
Savington is online now   Reply With Quote
Old 09-17-2012, 02:22 AM   #29
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Wow that sucks. I vote just drive it for a little while and maybe it will seal itself with soot.
Faeflora is offline   Reply With Quote
Old 09-17-2012, 10:55 AM   #30
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

you can see the air leak when/if you watch the videos.

it's clear he has a leak between the manifold and turbo.

so either tha flanges are still not true, or you tigthen bolts like a ninny.
Braineack is offline   Reply With Quote
Old 09-17-2012, 11:24 AM   #31
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

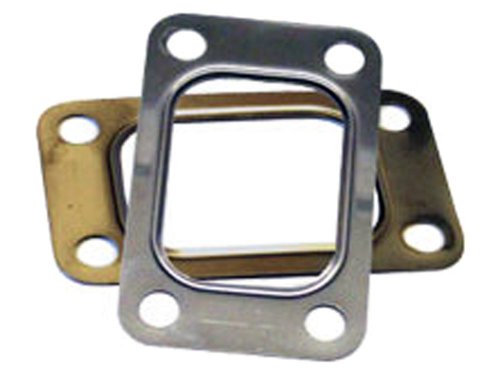

I used a stamped steel gasket with the little groove before, is what many OEM's use, and works absolutely great.

I don't see anything wrong with using one of those
18psi is offline   Reply With Quote
Old 09-17-2012, 04:29 PM   #32
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

Thanks for the input. Would something like Permatex Ultra Copper Maximum Temperature RTV Silicone Gasket Maker or Rutland Hi-Temp Stove & Gasket Cement be acceptable instead or purchasing a metal gasket?
travisb is offline   Reply With Quote
Old 09-17-2012, 04:30 PM   #33
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

no, metal gasket.
Braineack is offline   Reply With Quote
Old 09-17-2012, 04:37 PM   #34
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

Attached Thumbnails
whistling turbo-grt-gsk-005.jpg
18psi is offline   Reply With Quote
Old 09-17-2012, 04:40 PM   #35
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

Are we still worried about them blowing out and destroying the turbo?
travisb is offline   Reply With Quote
Old 09-17-2012, 04:41 PM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

they wont destroy a turbo. but they might blow out, one day, and put you back to square one.
Braineack is offline   Reply With Quote
Old 09-17-2012, 04:58 PM   #37
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

Quote:
Originally Posted by Braineack View Post
they wont destroy a turbo. but they might blow out, one day, and put you back to square one.
I thought that was always the concern about putting one there is that it would get sucked into the turbo if the gasket broke.

If I get a gasket, any recommendations on the material or thickness?
travisb is offline   Reply With Quote
Old 09-17-2012, 05:04 PM   #38
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

one that looks like what 18psi posted, and one that fits.
Braineack is offline   Reply With Quote
Old 09-28-2012, 11:09 PM   #39
Junior Member
Thread Starter

Join Date: Sep 2011
Location: Chesterfield, VA
Posts: 252
Total Cats: 2
Default

I got a gasket and it stopped the air leak visible in my videos. However, the noise is still there exactly as before. The noise is loudest at the rear of the turbo, above the downpipe. I guess there could be another leak.

Some have suggested it could be something wrong with the turbo. If it is, what might it be and how could I check?
travisb is offline   Reply With Quote
Old 09-28-2012, 11:19 PM   #40
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

If it spools aok then dont worry about it.
Faeflora is offline   Reply With Quote
