Old 06-04-2010, 08:16 PM   #41
Junior Member
iTrader: (1)

Join Date: May 2009
Location: Niagara Falls, ON
Posts: 433
Total Cats: 0
Default

Full boost? To be honest i really never paid attention to that, ahh im going to say 3500? Id go down the street right now but the cars in the body shop :(
stranges12712 is offline   Reply With Quote
Old 06-04-2010, 08:39 PM   #42
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,683
Total Cats: 10
Default

Quote:
Originally Posted by johnmatt View Post
I call that the "supra" effect

buffon01 is online now   Reply With Quote
Old 06-04-2010, 09:20 PM   #43
Guest

92verty's Avatar

Join Date: May 2010
Location: earth
Posts: 111
Total Cats: 0
Default

That was ridiculous!!!!!
92verty is offline   Reply With Quote
Old 06-04-2010, 10:39 PM   #44
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

Good timing for this thread...I was thinking the same thing as OP and likely going with a china 3076 for my build in progress....

It would be HUGE if anyone running one can take accurate measurements as I know whats posted in those auctions is crap. I'm planning on doing a little mix and matching, and if it works I think quite a few people will be happy. Sub'd for pertinent info!
TonyV is offline   Reply With Quote
Old 06-05-2010, 11:10 AM   #45
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

a 3071 or even a 3076 with a smallish A/R on a built VVT motor would be a track dominator.

If you had 275 rubber.
y8s is offline   Reply With Quote
Old 06-05-2010, 11:43 AM   #46
Junior Member
iTrader: (4)

Join Date: Jun 2008
Location: Colorado
Posts: 345
Total Cats: 8
Default

I'm having my a stock msm turbo upgraded with an EVO3 16G compressor wheel / new comp housing and TD05 turbine wheel. It will probably be a month before all is finished.
05pearl is offline   Reply With Quote
Old 06-05-2010, 12:01 PM   #47
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

Quote:
Originally Posted by faeflora View Post
No, you're pretty much correct. When I had stock exhaust with RB duals I hit 10 psi at about 4800 or so. When I went to 3" all the way I could hit 10 psi around 3500.
damn, thats a huge difference.....ill look forward to it if i dont part out this whole car....
Preluding is offline   Reply With Quote
Old 06-05-2010, 01:48 PM   #48
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Preluding View Post
damn, thats a huge difference.....ill look forward to it if i dont part out this whole car....
Note that your wastegate spring hugely affects spool. When I had a 15psi spring in my tial I could actually hit 15psi at 3500. When I went to a 9psi spring I would only hit 9psi at 3900 or so. That's because the wussbaby spring opens up the wastegate partially prior to target which vents out the spool goodness.
Faeflora is offline   Reply With Quote
Old 06-05-2010, 08:21 PM   #49
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

what kind of boost control were you using?
manual boost controller, an electric system like greddy, or an electric solinoid off the ECU?

I would imagine the ECU style EBC would allow you to make it 95% as fast... maybe 3550 in your case.
shlammed is offline   Reply With Quote
Old 06-05-2010, 08:43 PM   #50
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

I'm pretty sure he's talking about running on wga spring only. adding an mbc would significantly increase spool and boost onset even with a whimpy wga spring of 7psi
18psi is offline   Reply With Quote
Old 06-05-2010, 11:53 PM   #51
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by shlammed View Post
what kind of boost control were you using?
manual boost controller, an electric system like greddy, or an electric solinoid off the ECU?

I would imagine the ECU style EBC would allow you to make it 95% as fast... maybe 3550 in your case.

I was not talking about boost control. Just external tial gate spring. Well if the ECU has boost assist then yes, it could be be as fast. I have the hydra though which does not boost assist.
Faeflora is offline   Reply With Quote
Old 06-06-2010, 12:18 AM   #52
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

Quote:
Originally Posted by faeflora View Post
I was not talking about boost control. Just external tial gate spring. Well if the ECU has boost assist then yes, it could be be as fast. I have the hydra though which does not boost assist.
lol @ hydra.

Sorry, I couldn't help it.
dustinb is offline   Reply With Quote
Old 06-06-2010, 11:34 AM   #53
I'm Miserable!
iTrader: (33)

Join Date: Jan 2009
Location: San Jose, CA
Posts: 1,066
Total Cats: -3
Default

speedyracer 2870 turbo is on its way to me =)

2870+fully built 1.6 = Hmmm?
railz is offline   Reply With Quote
Old 06-06-2010, 01:21 PM   #54
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,488
Total Cats: 0
Default

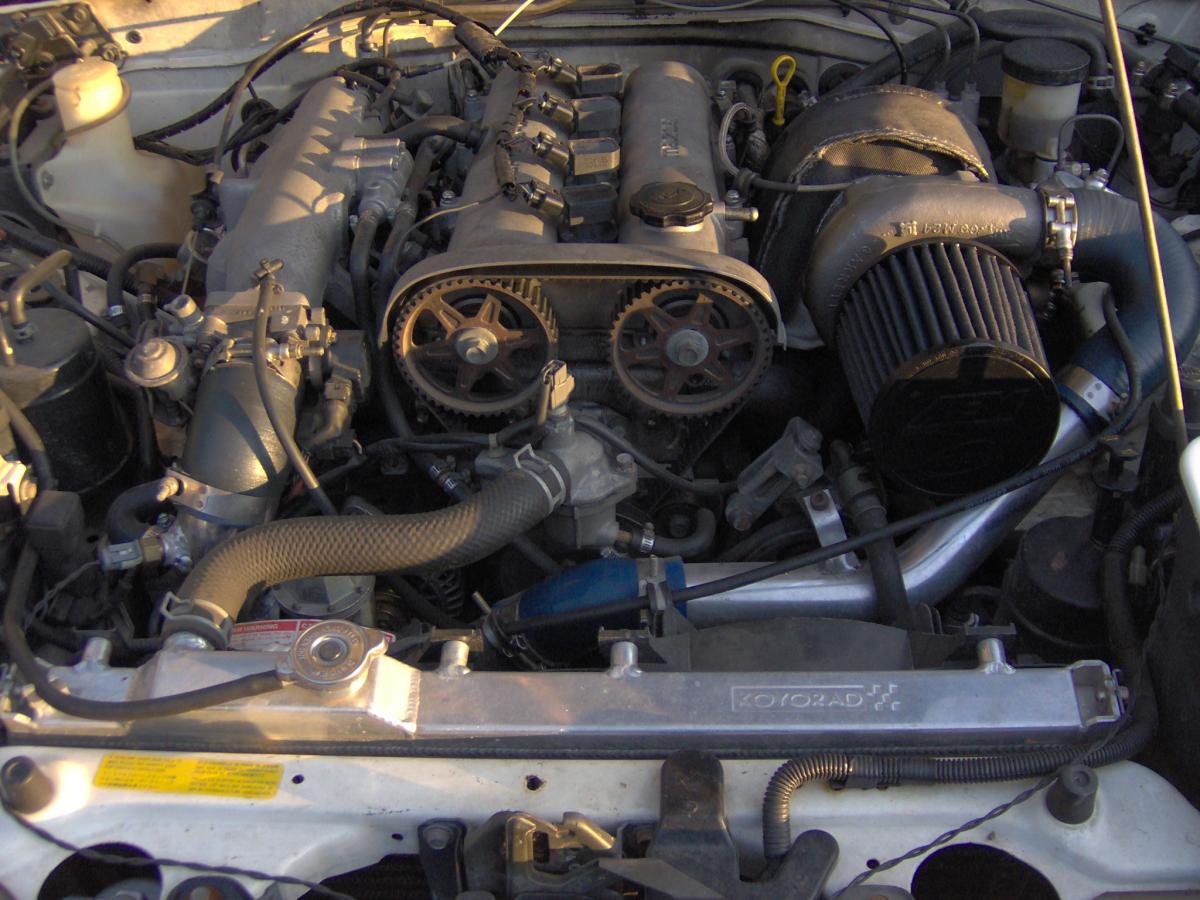

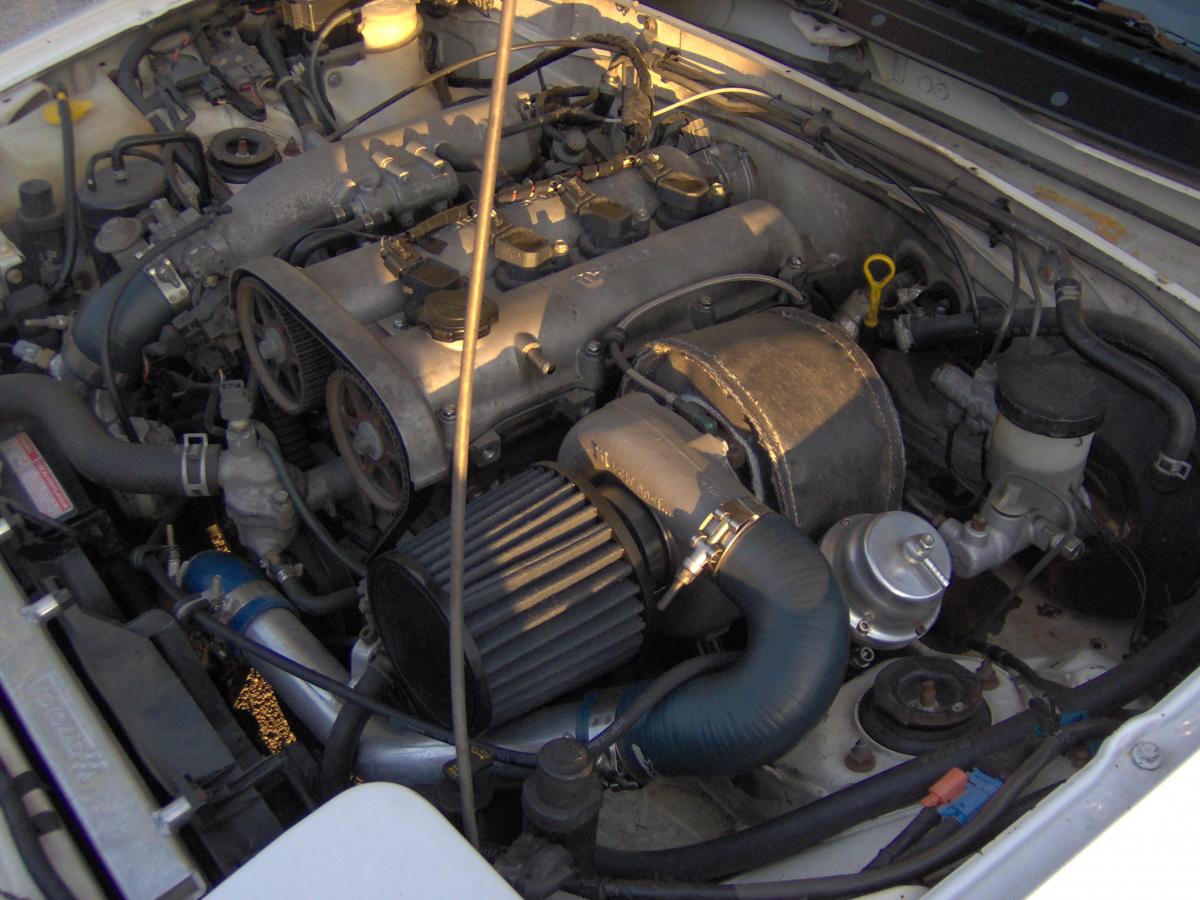

Mine is a Garrett t3/t4e 57 trim, stage 3 wheel .60/.48 ar comp./turbine on a JGS 1.375 tube 4 into 1. Running a 2.5" exhaust with Dynomax muffler and resonator. It spools great...above 3800 rpm. Anything under that , it's pretty laggy. Above that, it's quite the little Supra.


My goal, however unrealistic it may be on my current setup(needz moar rodz,injectorz,tranz, rear endz), is 400whp on a 1.6l.


No the madness never ends...it continues.

who is running bigger turbos? get in here.-im000502.jpg

who is running bigger turbos? get in here.-im000504.jpg
lordrigamus is offline   Reply With Quote
Old 06-06-2010, 01:27 PM   #55
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
a 3071 or even a 3076 with a smallish A/R on a built VVT motor would be a track dominator.
Awesome, all I have left is everything else.
JayL is offline   Reply With Quote
Old 06-06-2010, 01:53 PM   #56
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

hah

well I was thinking road course, but the strip is a track too.

I forget what turbo you have though. The early part of the thread said SC61...
y8s is offline   Reply With Quote
Old 06-06-2010, 02:01 PM   #57
Elite Member
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

A very unique 3076 and my drag strip days are behind me.
JayL is offline   Reply With Quote
Old 06-06-2010, 02:38 PM   #58
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

I've noticed we have trouble making big numbers, but I do realize it's all relative. Who has the most powerful turbo Miata?

Quote:
Originally Posted by johnmatt View Post
I call that the "supra" effect
90 roll, bro.
pusha is offline   Reply With Quote
Old 06-06-2010, 02:59 PM   #59
Elite Member
iTrader: (9)

Join Date: Sep 2008
Location: Livonia, Michigan
Posts: 5,683
Total Cats: 10
Default

Quote:
Originally Posted by Pusha View Post
I've noticed we have trouble making big numbers, but I do realize it's all relative. Who has the most powerful turbo Miata?



90 roll, bro.
That greek guy ~700+ IIRC
buffon01 is online now   Reply With Quote
Old 06-06-2010, 03:00 PM   #60
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Quote:
Originally Posted by Pusha View Post
I've noticed we have trouble making big numbers, but I do realize it's all relative. Who has the most powerful turbo Miata?
There are people out there making alot of power of.

https://www.miataturbo.net/dynos-timesheets-21/18psi-336whp-20psi-349whp-47931/ 350whp at like 20psi.

http://forum.miata.net/vb/showthread.php?t=258833 Over 500whp at 23psi.

http://forum.miata.net/vb/showthread.php?t=242677 Like 800whp at 30psi.

JayL, DearHunter, CEO, Lev,ect.

There are plenty of people in the 300+whp range.
viperormiata is offline   Reply With Quote
