Default wideband bung on stock NA downpipe

Is there enough room for someone to weld in a bung for a WB on the stock NA downpipe at a reasonable angle (10 degree incline or greater) right before the cat without dropping the exhaust?

The reason I ask is I'm having a hell of a time finding a shop that will touch the pre-cat exhaust and the place that I found only deals with GM cars. I don't want to pay them $$$ just to figure out how to remove the downpipe. Worst case I just bring the downpipe in with a mark where to put the bung, but I'm lazy and would prefer to just drive the car in.
orion4096 is offline   Reply With Quote
Old 01-16-2008, 01:49 AM   #2
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

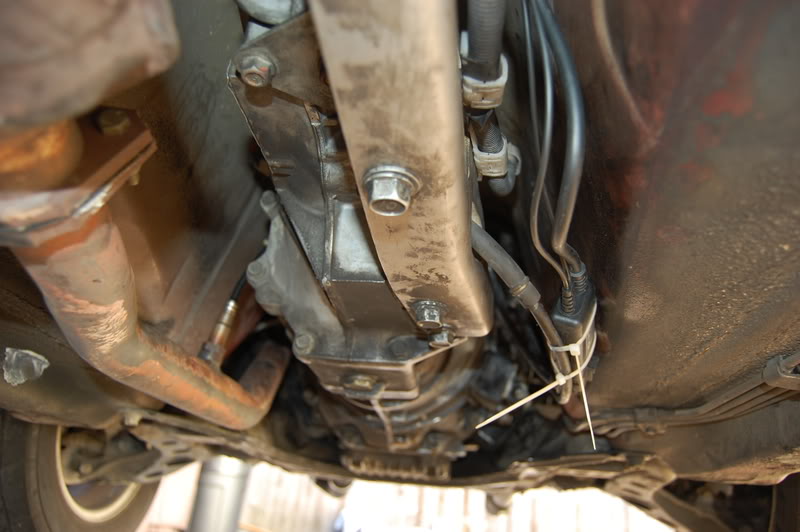

Like this?

Name:  DSC_1030.jpg
Views: 3
Size:  87.2 KB

I paid 45 to have it done at an exhaust shop. If I were to do it again I would just mark the spot and bring the pipe in to avoid silly labor costs.
Bryce is offline   Reply With Quote
Old 01-16-2008, 01:52 AM   #3
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

silly labor costs? Compy paid for like 5 hours of labor cuz they struggled to get his downpipe separated from the factory header on his 01. hahahhaha
paul is offline   Reply With Quote
Old 01-16-2008, 01:59 AM   #4
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by paul View Post
silly labor costs? Compy paid for like 5 hours of labor cuz they struggled to get his downpipe separated from the factory header on his 01. hahahhaha
Gahhh that would suck!
Bryce is offline   Reply With Quote
Old 01-16-2008, 02:00 AM   #5
Senior Member
Thread Starter
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Thanks for the pic. I guess I'll be pulling off the downpipe Friday night.
orion4096 is offline   Reply With Quote
Old 01-16-2008, 02:01 AM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Mike, have you talked to Modern Muffler? They're on El Camino right by Lawrence Expressway.
Savington is offline   Reply With Quote
Old 01-16-2008, 02:02 AM   #7
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

make sure you mark it first so you get the orientation right. it would suck if you got it back and it hits the trans or tunnel
paul is offline   Reply With Quote
Old 01-16-2008, 02:05 AM   #8
Senior Member
Thread Starter
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Quote:
Originally Posted by Savington View Post
Mike, have you talked to Modern Muffler? They're on El Camino right by Lawrence Expressway.
Not yet, I figured they wouldn't do it since the other places I talked to in the area wouldn't. That would be badass if they'll do it since I can basically walk there with the pipe. I'm a dumbass for not asking them first.
orion4096 is offline   Reply With Quote
Old 01-16-2008, 06:55 AM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Modern sort of specializes in a lot of custom/high performance stuff. Definitely more gearhead-oriented than most. If anyone were to go welding stuff onto my BEGI DP, I'd want it to be them.
Savington is offline   Reply With Quote
Old 01-19-2008, 06:04 PM   #10
Senior Member
Thread Starter
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Got this done for $25 in case anyone reads this thread and wants to do the same. Hardest part was getting all the nuts off to pull the downpipe.

IMG_0658.jpg?t=1200780083
orion4096 is offline   Reply With Quote
Old 01-19-2008, 06:29 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

wouldnt it be easier to replace the stock o2 with the WB and output a 0-1v signal with the LC-1 to the ecu ?!
Braineack is offline   Reply With Quote
Old 01-19-2008, 06:37 PM   #12
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by Braineack View Post
wouldnt it be easier to replace the stock o2 with the WB and output a 0-1v signal with the LC-1 to the ecu ?!
That would kill the WB O2 sensor, waaay too hot for it.
Bryce is offline   Reply With Quote
Old 01-19-2008, 06:45 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

not on a non-turbo.
Braineack is offline   Reply With Quote
Old 01-19-2008, 07:27 PM   #14
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Agghh, yeah. Forgot he was N/A.
Bryce is offline   Reply With Quote
Old 01-19-2008, 08:58 PM   #15
FHS
Senior Member
iTrader: (2)

Join Date: Oct 2004
Location: Los Angeles, Ca.
Posts: 502
Total Cats: 0
Default

Quote:
wouldnt it be easier to replace the stock o2 with the WB and output a 0-1v signal with the LC-1 to the ecu ?!
I guess that would depend on how you feel about cracking open your floorboard carpeting and cutting/splicing wires on your main harness versus turning wrenches to remove your DP. Kinda depends on what mood I'm in on any given day.
FHS is offline   Reply With Quote
Old 01-19-2008, 10:16 PM   #16
Senior Member
Thread Starter
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

I didn't want to splice the NB wiring and I don't trust the LC1 to last as long as the NB. And mostly I just don't trust my wiring skills. It's nice that I now can setup the WB and only rely on data from it for changing the tune. Also, this way when I finally get the money together for the begi s2 I can just drop the stock pipes and swap my NB and WB into the two bungs on their DP.
orion4096 is offline   Reply With Quote
Old 01-19-2008, 10:33 PM   #17
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

not to sound like a newb but why is that spot more advantageous for wiring than the factory narrow band location.
johndoe is offline   Reply With Quote
Old 01-19-2008, 11:15 PM   #18
Senior Member
Thread Starter
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Quote:
Originally Posted by johndoe View Post
not to sound like a newb but why is that spot more advantageous for wiring than the factory narrow band location.
It's all part of my master plan for turbo'ing my 97 - a plan which I'm sure has flaws. I was just going to follow these steps:
  1. Install MSPNP.
  2. Install WB. Mess around with tune.
  3. Install injectors. Clean up VE tables.
  4. Install turbo kit. Tune.
  5. ???
  6. Profit

Someone should correct me if I'm wrong, but it would be extra work to install the WB in the factory NB location and wire it in the engine bay and then later have to move it by the tranny to support the turbo. I don't like running the wires by the exhaust for too long. Plus I would have to install the WB correctly or I could have issues with the car. Now when I finally get around to installing the WB on my stock car I can just take the sensor out and put it in the new DP which will have a bung real close to where the pictured bung was just welded on.
orion4096 is offline   Reply With Quote
Old 01-20-2008, 04:30 AM   #19
Senior Member
iTrader: (2)

Join Date: May 2007
Location: Malibu, CA
Posts: 749
Total Cats: 0
Default

Quote:
Originally Posted by orion4096 View Post
It's all part of my master plan for turbo'ing my 97 - a plan which I'm sure has flaws. I was just going to follow these steps:
  1. Install MSPNP.
  2. Install WB. Mess around with tune.
  3. Install injectors. Clean up VE tables.
  4. Install turbo kit. Tune.
  5. ???
  6. Profit
HAHAHAHAHAHAH I hope somebody else got that reference.

Good luck with your build, I wish I had the money to start hooking up electronics in preparation for a turbo, but there isn't much point when it doesn't look like I will have a turbo for a long time.
