Wilwood Releasing Miata BBK, Only $635 for Fronts - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 09-16-2010, 12:19 PM   #1
Elite Member
Thread Starter
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default Wilwood Releasing Miata BBK, Only $635 for Fronts

Someone on m.net was apparently a tester:

http://forum.miata.net/vb/showthread.php?t=393124

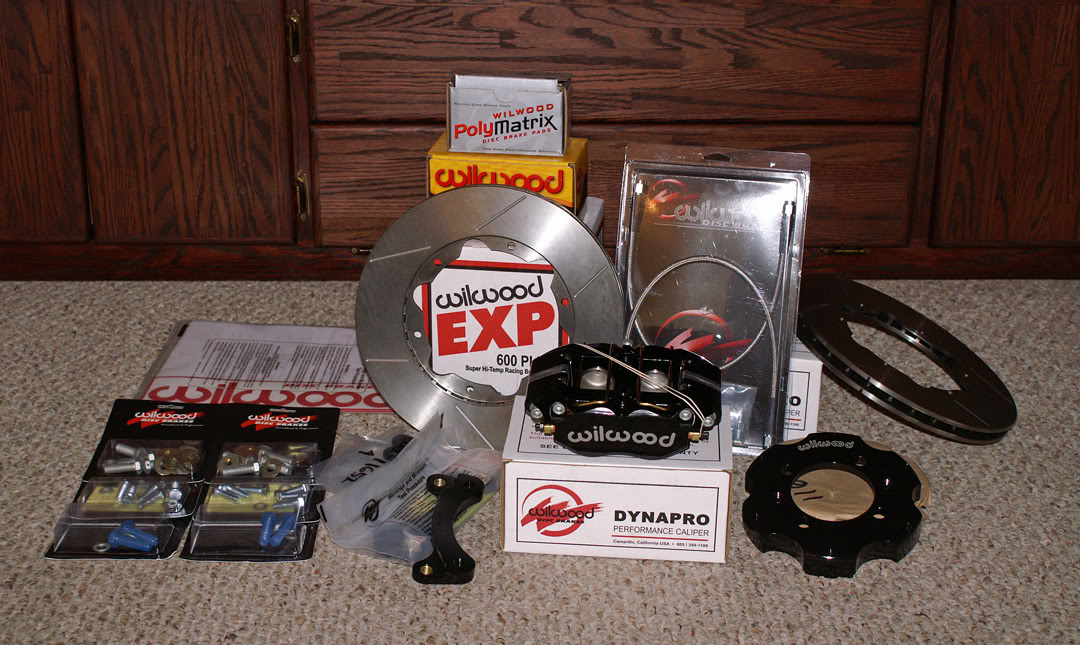

He upgraded a few parts from the standard kit:

Name:  Brakes.jpg
Views: 4
Size:  197.5 KB

And some other information, posted on CR.net of all places:

Quote:
Just got this email from wilwood. Sharing the information.

Thank you for the inquiry with Wilwood Disc Brakes. Our Mazda Miata kit was just released and has not been updated on our website. The kit is for the 95-2005 Miata and includes 11" x 0.81" vented plain-faced rotors, Dynalite 4-piston calipers, BP-10 Street pads (Wilwood), aluminum hat, brackets and hardware. The kit is priced at $634.69 and the line kit (OEM style lines will not work) are part number 220-11751 priced at $66.61 for the front set.
RotorNutFD3S is offline   Reply With Quote
Old 09-16-2010, 01:02 PM   #2
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Can't see the pic - does this use a two-piece rotor?
kotomile is offline   Reply With Quote
Old 09-16-2010, 01:07 PM   #3
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Quote:
Originally Posted by kotomile View Post
Can't see the pic - does this use a two-piece rotor?
Yup.
Splitime is online now   Reply With Quote
Old 09-16-2010, 01:34 PM   #4
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Hrmmmmm.... I might have to look more into this.
thagr81 us is offline   Reply With Quote
Old 09-16-2010, 01:41 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Wirelessly posted

How much are replacement rotors, do they fit with 6ul offsets, are the rotors readily available at all times?
hustler is offline   Reply With Quote
Old 09-16-2010, 01:52 PM   #6
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Not big enough to justify replacing my big sport brakes.
Reverant is offline   Reply With Quote
Old 09-16-2010, 02:28 PM   #7
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by Reverant View Post
Not big enough to justify replacing my big sport brakes.
FWIW

The off the shelf wilwood kit 140-8740 made for a Mini Cooper is pretty near a direct bolt on for a Miata. A couple of washers and a hat centering ring are all that is needed.

Dyna-Pro > Dyna-Lite
11.75 > 11
.60 thick pads > .49 thick pads
Directional Vane > Straight Vane

I have been running this kit for a number of years. I Pioneered the installation.

Id like to figure out how a setup for the rear using one of their parking brake combo calipers. Seems like the parking brake cable is oriented wrong however and they are only made for vented rotors which in my testing has shown is just unnecasary weight for the rear of even the highes powerd miata track cars.

Currently I have a custom 11.44 two peace rear rotors with stock calipers.

Bob
bbundy is offline   Reply With Quote
Old 09-16-2010, 05:21 PM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

bbundy, it's also $1075 vs. $700 for this supposed new BBK. I'd take the dyna-lites, 11" rotors, .49" thick pads, and straight vanes to say $375. Then again I may not be finding the best price for the kit, this was directly off Wilwood's site.
curly is offline   Reply With Quote
Old 09-16-2010, 05:30 PM   #9
Elite Member
iTrader: (10)

leatherface24's Avatar

Join Date: Dec 2006
Location: Pembroke Pines
Posts: 4,033
Total Cats: 2
Default

bah. non abs only for now
leatherface24 is offline   Reply With Quote
Old 09-16-2010, 06:31 PM   #10
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by curly View Post
bbundy, it's also $1075 vs. $700 for this supposed new BBK. I'd take the dyna-lites, 11" rotors, .49" thick pads, and straight vanes to say $375. Then again I may not be finding the best price for the kit, this was directly off Wilwood's site.
I built mine when the only other options were Goodwin and FM who I felt wanted twice what it should cost so I got a much better kit which still cost slightly less than theirs. I was regularly destroying both pads and rotors on the corrado based wilwood setups. my new kit works better and has at least 4X the pad and rotor life.

Finally wilwood stepped up and put the kit together for what it should cost. I suspect the other players will have to lower prices or sales will die off.

I have found www.Summitracing.com usually has the best wilwood prices usually less that wilwood lists.

Bob
bbundy is offline   Reply With Quote
Old 09-16-2010, 06:32 PM   #11
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

What would make this non-ABS compatible?
jayc72 is offline   Reply With Quote
Old 09-16-2010, 06:34 PM   #12
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by leatherface24 View Post
bah. non abs only for now
For the life of me I cant figure out how it would not work with ABS. The tone ring is on the hub I can't see how anything would interfere with the abs.

Bob
bbundy is offline   Reply With Quote
Old 09-16-2010, 06:46 PM   #13
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by bbundy View Post
Finally wilwood stepped up and put the kit together for what it should cost. I suspect the other players will have to lower prices or sales will die off.
Hopefully the prices and hype are true. Isn't the free market wonderful?
JasonC SBB is offline   Reply With Quote
Old 09-16-2010, 06:49 PM   #14
Elite Member
Thread Starter
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Seems Good-Win is following the trend for $699 (including lines) front only, looks like different hats, caliper brackets, and pads:

http://www.good-win-racing.com/Mazda...ml?id=yZeqAupi

RotorNutFD3S is offline   Reply With Quote
Old 09-16-2010, 07:17 PM   #15
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

So the wilwood and goodwin kits are pretty much the same price. The rotor hat on the wilwood kit looks better =P

I know what i'm buying this spring!
wayne_curr is offline   Reply With Quote
Old 09-16-2010, 08:42 PM   #16
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Id recommend 2001+ sport brakes for the rear to go with it.

Oh and a 1" master cylinder on a 2001 + booster does wonders for pedal feel.

Bob
bbundy is offline   Reply With Quote
Old 09-16-2010, 08:52 PM   #17
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by JasonC SBB View Post
Hopefully the prices and hype are true. Isn't the free market wonderful?
Yes when it finally works right. I forget how long ago it was that I complained about the price. Goodwin and FM were charging nearly double what basically the same kit cost made for cars even with a smaller or much larger markets than a Miata.

Bob
bbundy is offline   Reply With Quote
Old 09-16-2010, 09:09 PM   #18
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by bbundy View Post
Id recommend 2001+ sport brakes for the rear to go with it.

Oh and a 1" master cylinder on a 2001 + booster does wonders for pedal feel.

Bob
Oh ya that too. I'm planning on doing more track days than autox next summer so I really want to get my brakes and cooling (oil and water) sorted out before then. I think this would be a good setup to grow into and if I outgrow it I'll sell it and go with a copy of your setup.
wayne_curr is offline   Reply With Quote
Old 09-16-2010, 09:49 PM   #19
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by bbundy View Post
Yes when it finally works right. I forget how long ago it was that I complained about the price. Goodwin and FM were charging nearly double what basically the same kit cost made for cars even with a smaller or much larger markets than a Miata.
That's the advantage of being first on the market, such as with the 949 wheels. FM AFAIK is a reseller of the Goodwin kit so they weren't competing. I'm not saying 949 wheels are overpriced, as even when they first came out they were priced right vis a vis the not-quite-competition (15x7's).

The time it took for Wilwood to enter the market tells me that there's a lot of opportunity out there for small biz to compete (auto aftermarket, not specifically miata bbk's).

If you want to be horrified, look at the prices of E36 BMW BBK's. My car came with front BBK's which I didn't need, I downgraded to stock, and sold the ones from the car for $1700.
JasonC SBB is offline   Reply With Quote
Old 09-17-2010, 12:04 AM   #20
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Hopefully the replacement rotors will get cheaper, they are about $80-100 each right now, if they went with the 11.75 they can be had for $30ea.
Gotpsi? is offline   Reply With Quote
