Old 05-28-2007, 10:24 PM   #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2006
Location: Hartville, OH
Posts: 174
Total Cats: 0
Unhappy woe is me, [email protected]#$ing oil pump

yesterday my car ran perfect . this morning i started it and the lifters wouldn't quiet down . i look at the "oil gauge" NO pressure . i shut it down. No damage to motor. it's a 1997. after doing some research i find out 97s have oil pump problems . specificly the pressure relief valve sticks. Its going to be a bitch to change.

if you were me, would you pull the motor, or drop the subframe to change pump?

What brand of pump would you buy?

Last edited by left field; 06-03-2007 at 11:29 PM.
left field is offline   Reply With Quote
Old 05-28-2007, 10:38 PM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

buy the billet gears/pump from miataraodster( https://www.miataturbo.net/forums/member.php?u=2108 ), and just pull the motor alot less work trust me esp if you have a lift that tilts and a good work enviroment ie garage. remember to replace all of the seals WP and timming belt etc while it is all out to save some trouble later. GL man.
magnamx-5 is offline   Reply With Quote
Old 05-28-2007, 11:04 PM   #3
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

i would check the oil before i did anything
Mach929 is offline   Reply With Quote
Old 05-28-2007, 11:20 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

check the oil level and refill if needed, see if the pressure isn't back....
Braineack is offline   Reply With Quote
Old 05-28-2007, 11:51 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

$500 for those ******* gears...god damn. Is that **** really worth it? I've never heard anyone here bitch about the oil pump.
hustler is offline   Reply With Quote
Old 05-29-2007, 12:31 AM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

they say the billet gears aren't needed until 350+ hp. i wouldn't sweat it for your build. what is your goal, 275 whp?
Ben is offline   Reply With Quote
Old 05-29-2007, 01:19 AM   #7
Senior Member

Join Date: Mar 2005
Location: Holiday, FL
Posts: 563
Total Cats: 0
Default

I had the oil pump fail in my old 99 as well. Same thing, the pressure relief valve would stick open and bypass all the oil pressure. It unstuck itself twice while troubleshooting the problem, but would always stick back open.

Dropped the subframe, pulled the pan and replaced the oil pump with another stock part (new). Pain in the ***, but it had to be done.

Some told me to pull the motor to do the swap, that may have been nice but I had access to a local shop (family friend) where I could put the car on a lift and drop the subframe and work that way. Seemed like a LOT less work that way IMO.
Fritch is offline   Reply With Quote
Old 05-29-2007, 03:38 AM   #8
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Ben View Post
they say the billet gears aren't needed until 350+ hp. i wouldn't sweat it for your build. what is your goal, 275 whp?
HP doesn't effect your oil pump and pump gears don't control volume or pressure if there the same size as the OEM. Unless your running high RPM I don't see the ($500 -cough-) point. I'd get a replacement pump then shim the spring with a washer. (= more pressure)
$.02
lazzer408 is offline   Reply With Quote
Old 05-29-2007, 08:59 AM   #9
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

They are cheep sintered metal gears and htey fail with excessive vibration. If it wasn't for the 2-3 week wait for a set i woulda done it on mine last time i pulled the motor for sure.
magnamx-5 is offline   Reply With Quote
Old 05-29-2007, 10:18 AM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2006
Location: Hartville, OH
Posts: 174
Total Cats: 0
Default

Quote:
Braineack check the oil level and refill if needed, see if the pressure isn't back....
first thing i did.


Quote:
I'd get a replacement pump then shim the spring with a washer. (= more pressure)
$.02
how much to shim? mazda pump or is there a more trustworthy brand?


can the pressure relief valve be axcessed without dropping the pan?
left field is offline   Reply With Quote
Old 05-29-2007, 10:22 AM   #11
Senior Member

steelrat's Avatar

Join Date: Jul 2005
Posts: 514
Total Cats: 0
Default

If you caught it in time, it should be OK... but, you might want to consider pulling the motor, just so, you can check everything out at the same time, bearings, and the rest of it. Just to make sure you haven't missed it before (remember the 95+ have stupid oil pressure gauges). IIRC, a buddy with a '97 swapped a motor, since when he checked, the compression was down on a few of the cylinders.

You might want to do a compression/leak down before you go any further. My buddy's original plan was to just do the oil pump.... compression said otherwise. <VBG>

Dave,
steelrat is offline   Reply With Quote
Old 05-29-2007, 02:28 PM   #12
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

no it can not. it is right beside the oil inlet of the pump. get a melling or Other replacement pump. I think they are 100 or so $ but i am not sure. Also dont shim it to much or you will blow your turbo's seals out search m.net for oilpump shim for more info.
magnamx-5 is offline   Reply With Quote
Old 05-29-2007, 07:22 PM   #13
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

I installed two standard height SS washers from lowes, I want to say they were 1/4" ID washers and 1/16" tall each. That boosted my oil pressure from 35-40 psi up to 55-60 psi. I'm pretty satisfied.
Arkmage is offline   Reply With Quote
Old 06-03-2007, 11:44 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Nov 2006
Location: Hartville, OH
Posts: 174
Total Cats: 0
Default

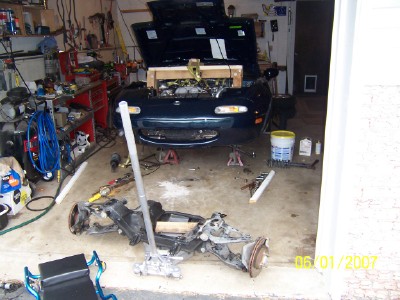

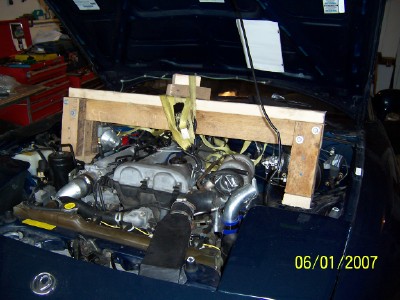

got the f*&%ing pump out what a nightmare from hell. it would of been easyer to pull the motor, but i did it the hard way dropping the sub frame.

When i pulled the pump apart the relief was stuck. in fact when i tried to pry it out the end of my screwdriver broke.
Attached Thumbnails
woe is me-oil1.jpg   woe is me-oil2.jpg
left field is offline   Reply With Quote
Old 06-04-2007, 12:15 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

oh that does not look like fun....
Braineack is offline   Reply With Quote
