Default Woohoo! 4 bolts sheared off in manifold!

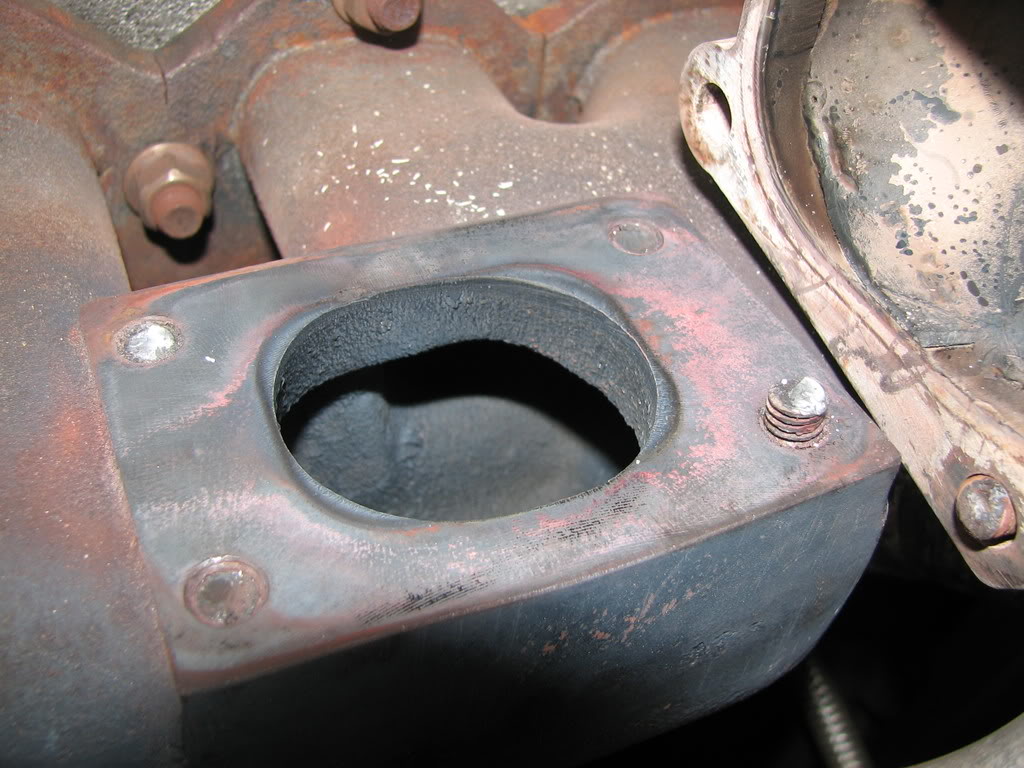

Name:  IMG_4668.jpg
Views: 2
Size:  133.2 KB

2 of them sheared off on their own from normal driving. The other 2 sheared off pulling the turbo to fix the first 2 bolts. They were all class 10.9 stainless bolts. WHY??!
It looks like I'm going to drill it all out to 10 mm bolts to hopefully keep this from happening.
Bryce is offline   Reply With Quote
Old 08-15-2008, 09:38 PM   #2
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

too much stress from engine moving against exhaust and vice versa. got a flex section in the DP?
paul is offline   Reply With Quote
Old 08-15-2008, 10:04 PM   #3
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

No flex section. Stupid downpipe had been modified to include a flex section and cat in one piece. I had a test pipe made and that took the place of the cat and flex section. Guess I'll get one welded in.

Any Greddy people have their turbo to manifold bolts up sized to 10 mm? I was thinking about that but clearance could be an issue.
Bryce is offline   Reply With Quote
Old 08-15-2008, 10:05 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

you should port match the manifold when you pull it to fix
Braineack is offline   Reply With Quote
Old 08-15-2008, 10:08 PM   #5
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Will stiffer motor mounts help with this problem?

Port match... Yummy
Bryce is offline   Reply With Quote
Old 08-15-2008, 10:20 PM   #6
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

exact problem i have right now. i sent in my manifold to get fixed, cost a pretty penny just to ship the damn thing. it will be upgraded to 10mm studs and hopefully the problem will be dealt with for good.
Marc D is offline   Reply With Quote
Old 08-15-2008, 11:03 PM   #7
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Aint no way I'm gonna ship my manifold off and pay someone to do something I can do myself.
Bryce is offline   Reply With Quote
Old 08-15-2008, 11:29 PM   #8
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

true, but i dont exactly trust myself drilling cast iron and hardened steel, especially with removing broken studs that are deep inside the manifold. easy-outs dont work so "easy" on hardened metal.
Marc D is offline   Reply With Quote
Old 08-15-2008, 11:49 PM   #9
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Good luck getting those out. Take it to an engine builder/machine shop and have them drill them out and tap for 3/8". 3/8" exhaust stud is pretty easy to locate, 10mm not so much.

I did this on mine when the exact same thing happened, was all shinny and happy after that.
jayc72 is offline   Reply With Quote
Old 08-16-2008, 12:01 AM   #10
I'm Miserable!
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

Quote:
Originally Posted by Bryce View Post
Will stiffer motor mounts help with this problem?

Port match... Yummy
MMR mounts here, no flex, no problems
bryantaylor is offline   Reply With Quote
Old 08-16-2008, 01:49 AM   #11
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I've got a set of Mazdacomp mounts in the garage that have been waiting to go in for a very long time. Hmm, the coolant reroute I picked up at Begi last weekend shall go in too.

My attempts at removing the bolts have not been very successful. Trying again tomorrow.
Bryce is offline   Reply With Quote
Old 08-16-2008, 03:11 AM   #12
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

Quote:
Originally Posted by Bryce View Post
I've got a set of Mazdacomp mounts in the garage that have been waiting to go in for a very long time. Hmm, the coolant reroute I picked up at Begi last weekend shall go in too.

My attempts at removing the bolts have not been very successful. Trying again tomorrow.
like he said, good luck. if you use an easy out and get that broken on that, youre in for a treat.
Marc D is offline   Reply With Quote
Old 08-16-2008, 03:55 AM   #13
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Stainless steel is your problem. Dissimilar metals FTL. Use high grade steel next time and go bigger as already said. If it was me, I'd use castled nuts too and drill the studs so you can cotter pin the nuts.
patsmx5 is offline   Reply With Quote
Old 08-16-2008, 04:00 AM   #14
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

You know, the bolts gained a white flaky crust after a couple heat cycles but I don't remember if they were stainless or not now that I think about it. All I know for sure is they were class 10.9.

Haha, turbo mounted with cotter pinned nuts, not even god could make it fall off.

Notice in the picture, the relief cuts I made with a hack saw were fusing back together. They tightened down on the head studs and made pulling the manifold an absolute PITA. I ended up hitting the manifold with a sledgehammer up and down dozens of times to get it off.
Bryce is offline   Reply With Quote
Old 08-16-2008, 04:02 AM   #15
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Sounds like you used galvanized bolts then. That's a no no too.

Not even with both hands.
patsmx5 is offline   Reply With Quote
Old 08-16-2008, 12:53 PM   #16
Elite Member

Join Date: Jan 2005
Location: vancouver canada
Posts: 1,618
Total Cats: 0
Default

Bryce,don't waste your time trying to get them out on your own,take the manifold to a engine builder/machine shop and pay them to do it.
spike is offline   Reply With Quote
Old 08-16-2008, 02:27 PM   #17
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by spike View Post
Bryce,don't waste your time trying to get them out on your own,take the manifold to a engine builder/machine shop and pay them to do it.
Yeah come Monday that's what's happening.
Bryce is offline   Reply With Quote
Old 08-16-2008, 02:54 PM   #18
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Pssh. Go to a good hardware store or the likes and get a set of left hand drill bits, center punch, and a hammer. Center punch the broken stud, drill a pilot, and slowly drill larger and larger. When you get to about the largest you can drill, as your drilling, you 'carefully' bury the bit making it hang in the metal. The bit breaks or the stud spins out. Usually works for me. If it breaks you can chip it out of the way and just drill it out completely and put helicoils back in. Helicoils are stronger anyways.
patsmx5 is offline   Reply With Quote
Old 08-16-2008, 03:57 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

helicoils are the stuff that dreams are made of, but why not just convert to 10mm studs?
hustler is offline   Reply With Quote
Old 08-16-2008, 04:35 PM   #20
Elite Member
Thread Starter
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

I've never seen a helicoil before. I'll be upgrading to 3/8" studs if anything, much easier to find around here. I'm taking at look at the M-tuned manifold and contemplating maybe, just maybe, I should ditch this stuff and upgrade the turbo.


A replacement mani from Greddy supposedly only costs 150 but that could take awhile to get here and god forbid I have to throw the stock exhaust header on and go naturally aspirated for awhile.
Bryce is offline   Reply With Quote
