Old 05-30-2008, 01:32 PM   #81
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

ok so we are some how going to get my car to my gf's dads machine shop, hes got air tools and I assume he has a couple of BFH's.
icantthink4155 is offline   Reply With Quote
Old 06-13-2008, 11:36 AM   #82
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

ok got the new 1.8 in, wasnt too bad once we got the big *** bolts out of the hubs everything went pretty quick. Now I have a new problem, the diff I put in has shitty bearings. So what is that front part of the diff called, the bell(ish) shapped part that bolts to the driveshaft. Hoping maybe I can get one from one of the dudes on ebay that part out miatas and just swap it with the one I have.
icantthink4155 is offline   Reply With Quote
Old 06-13-2008, 01:12 PM   #83
Senior Member
iTrader: (13)

Join Date: Mar 2008
Location: Uniontown, OH
Posts: 510
Total Cats: 0
Default

So what technique did your girlfriend's dad use to get those bolts off?
hackerchris is offline   Reply With Quote
Old 06-13-2008, 01:41 PM   #84
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

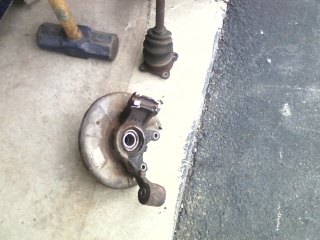

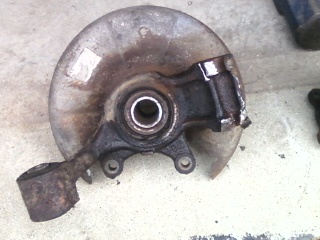

actualy it was her cousin that helped me(he works at the shop) we took a grinder to my old hubs, to free the bolts from the rust

After we got them out everything else went really fast, the only other thing that took a while was getting that piece out of the bottom of the PPF, but that only took like a half hour.
Attached Thumbnails
WOOT! I broke something!-photo0078.jpg   WOOT! I broke something!-photo0079.jpg
icantthink4155 is offline   Reply With Quote
Old 06-13-2008, 02:02 PM   #85
Junior Member
iTrader: (34)

Join Date: Oct 2007
Location: Garner, NC
Posts: 269
Total Cats: 0
Default

Quote:
Originally Posted by icantthink4155 View Post
ok got the new 1.8 in, wasnt too bad once we got the big *** bolts out of the hubs everything went pretty quick. Now I have a new problem, the diff I put in has shitty bearings. So what is that front part of the diff called, the bell(ish) shapped part that bolts to the driveshaft. Hoping maybe I can get one from one of the dudes on ebay that part out miatas and just swap it with the one I have.
So your new to you 1.8L open rear diff has bad bearings... nice. If you need a replacement center section without the carrier, let me know, I should have one from a 1996.
harleybutter is offline   Reply With Quote
Old 06-13-2008, 02:55 PM   #86
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

Quote:
Originally Posted by harleybutter View Post
So your new to you 1.8L open rear diff has bad bearings... nice. If you need a replacement center section without the carrier, let me know, I should have one from a 1996.
which part is the carrier? I dont know what all the parts are called lol at this point I think all I need is the housing with the bearings.
icantthink4155 is offline   Reply With Quote
Old 06-14-2008, 03:21 PM   #87
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

taking the diff apart... what needs torque and what should it be torqued to?
icantthink4155 is offline   Reply With Quote
Old 06-16-2008, 01:34 PM   #88
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

Does anyone sell a diff rebuild kit? One set of bearings is roast. If I can get all the bearings together that would be helpful.
icantthink4155 is offline   Reply With Quote
Old 06-18-2008, 05:39 PM   #89
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

is a 99 1.6 open stronger then a 90 1.6 VLSD?
icantthink4155 is offline   Reply With Quote
Old 06-20-2008, 11:06 AM   #90
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

so what am I supposed to start a new thread everytime I have a question? I found the bearings I need, and I got the seal I need. But I still want to know if a 99 1.6 open stronger then a 90 1.6 VLSD?
icantthink4155 is offline   Reply With Quote
Old 06-20-2008, 11:11 AM   #91
Senior Member
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

Quote:
Originally Posted by icantthink4155 View Post
taking the diff apart... what needs torque and what should it be torqued to?
Check m.net in garage section or get a factory repair manual. 99 differential is stronger and it's 1.8 not 1.6.
supra441979 is offline   Reply With Quote
Old 06-20-2008, 11:31 AM   #92
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by icantthink4155 View Post
which part is the carrier?
The Housing.

Quote:
Originally Posted by icantthink4155 View Post
taking the diff apart... what needs torque and what should it be torqued to?
Here is the differential section of the '00 FSM: http://www.mediafire.com/?v05w0vvcrjj

Quote:
Originally Posted by icantthink4155 View Post
is a 99 1.6 open stronger then a 90 1.6 VLSD?
Yes. All diffs from '94-'05, Torsen or open, use the same Ring & Pinion gear design- different ratios, but the same family.
Joe Perez is offline   Reply With Quote
Old 06-20-2008, 05:01 PM   #93
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

ok my gf's dad know a dude (Ted) that has several miatas. He sold me a diff from a 99. He told me that its from a 1.6, its the same size as the 1.6 that was in my 90. I also have a 1.8 diff from a 94 that will be being fixed when I get the seals in the mail. So should I put the 94 diff in or keep the 99 there? They are both open.
icantthink4155 is offline   Reply With Quote
Old 06-20-2008, 05:07 PM   #94
Senior Member
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

If it's the same size as your 1.6 open then then it's a 90-93 differential. Unless you had a 94+ 1.8 differential on your car before.
supra441979 is offline   Reply With Quote
Old 06-20-2008, 05:48 PM   #95
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

so then what does the 99 diff look like?
icantthink4155 is offline   Reply With Quote
Old 06-20-2008, 06:11 PM   #96
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Externally, the 1.6 ('90-'93) and 1.8 ('94+) diff housings are very similar. The 1.8 diff is slightly longer, slightly wider, and slightly heavier, but it's really hard to tell without looking at the two side by side.

I'm not sure if I'm misunderstanding you, if you're misunderstanding Ted, or if Ted doesn't know how to count, however this line has me puzzled: "gf's dad know a dude (Ted) that has several miatas. He sold me a diff from a 99. He told me that its from a 1.6"

While European Miatas still had the 1.6 available in later years, in North America, the 1.6 was shipped from '90 to '93 only. No '99 originally delivered in in the states (or Canada) had a 1.6 drivetrain.

Now, internally, the actual differential mechanism and the Ring & Pinion gears are all pretty much interchangeable between all diffs from '90-'93, and from '94-'05, but not across those boundaries. You can put the gears from a '94 diff into an '05 housing, but you can't use the gears from a '94 in the housing of a '93, etc.
Joe Perez is offline   Reply With Quote
Old 06-20-2008, 06:33 PM   #97
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

Ok Ill try to explain this better. I have a 1990 miata, blew the diff, took it out, put in a 1.8 from a 94, purchased from deliverator. Turns out the bearings were on the way out, so I got a diff from Ted for cheap since he's a friend. Was told its a 1.6 diff from a 1999. It appears to be the same size as the diff that was in my 90(I dont know how many diffs this car has been through before me.) The 1.8 that I got from deliverator is noticably bigger then the other two. I didnt put them close together but I would say the 99 and the 90 diffs are the same size if not very close. But the 99 diff is definatly not as big as the 1.8, and I used the original halfshafts and drive shaft that I had from the car.
icantthink4155 is offline   Reply With Quote
Old 06-20-2008, 06:57 PM   #98
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by icantthink4155 View Post
I got a diff from Ted for cheap since he's a friend. Was told its a 1.6 diff from a 1999. It appears to be the same size as the diff that was in my 90(I dont know how many diffs this car has been through before me.) The 1.8 that I got from deliverator is noticably bigger then the other two.
This my my point- unless Ted imported that '99 into the US from Europe (or Japan) it did not originally come with a 1.6. For that matter, I'm not even sure that the '94+ Euro-spec 1.6 cars didn't get the later diff anyway.

Now, it's possible (though stupid) that someone may have blown the original diff in Ted's '99 and swapped in a '90-'93 diff, but it seems improbable.

Tell 'ya what-one easy way to check is to attempt to mate the diff to a propshaft. The flange on the '94+ diffs is larger. So if you have a propshaft that you know came from a '90-'93, or from a '94+, you can use it as a absolute reference.
Joe Perez is offline   Reply With Quote
Old 06-20-2008, 07:03 PM   #99
Elite Member
Thread Starter
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

ok it sounds like Ive got a shitty 1.6 again yay
icantthink4155 is offline   Reply With Quote
Old 08-06-2008, 06:04 PM   #100
Senior Member
iTrader: (14)

Join Date: Aug 2007
Location: Buffalo, NY
Posts: 734
Total Cats: 1
Default

Quote:
Originally Posted by icantthink4155 View Post
Ok Ill try to explain this better. I have a 1990 miata, blew the diff, took it out, put in a 1.8 from a 94, purchased from deliverator. Turns out the bearings were on the way out,
Just saw this post, not sure how I missed it before.

Replying to point out that the diff was just fine when I sold it- the diff was "on its way out" only in the sense that icantthink ran it without gear oil in it.

Which is ironic since when I delivered the diff I gave him my spare copy of Tanner's book that contains a chapter on how to swap in a Torsen... One of the steps is, of course... add gear oil.

Still have the PM's where he admits to this.
deliverator is offline   Reply With Quote
