Default Yet Another LS2 Coil Install

I did this a while back thought I'd get around and post it. The car came with COP's and I thought it would be cool to have the bad *** LS2 on here. I have to say first that at only 10 lbs of boost I don't think I could tell any difference. I was able to increase the spark plug gap from .28 to .48.

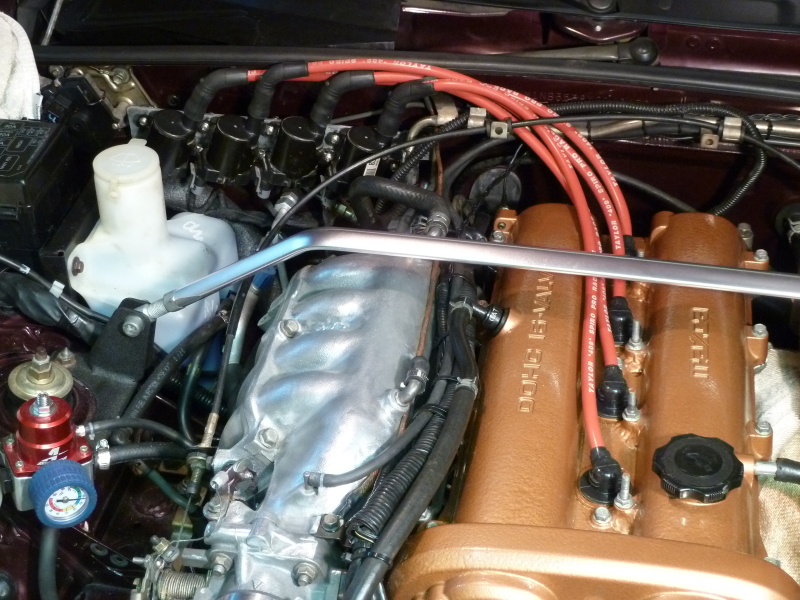

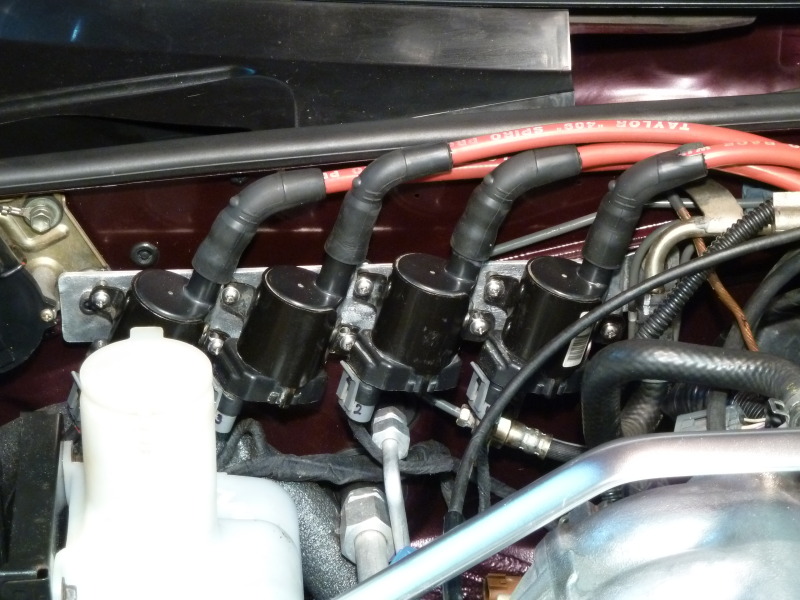

I started off with bending a piece of 1" aluminum to off set the coils off the fire wall about 1/2". Using an existing bolt hole from the windshield wiper, all that was left was to drill one hole for the other side.

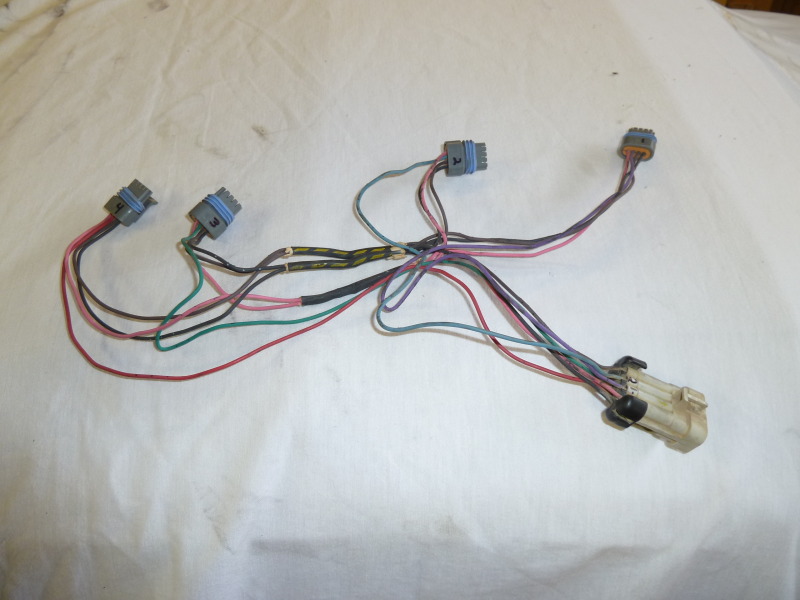

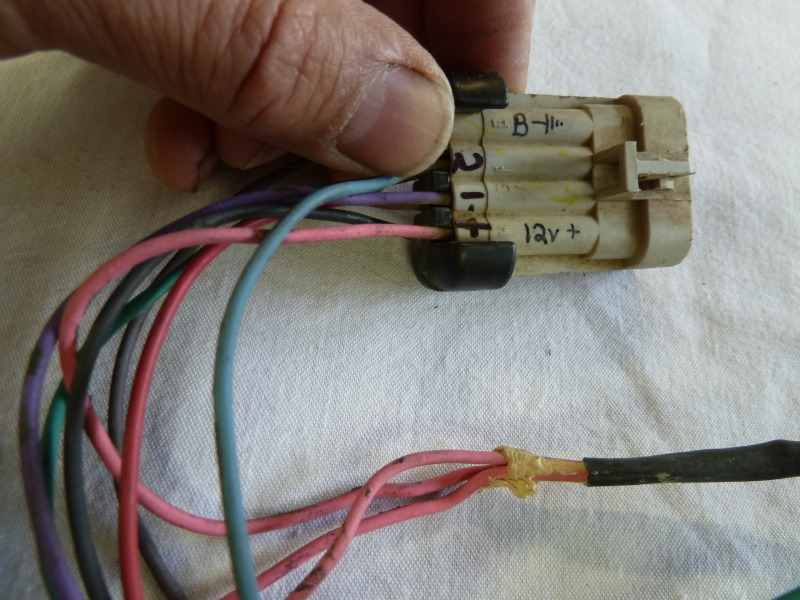

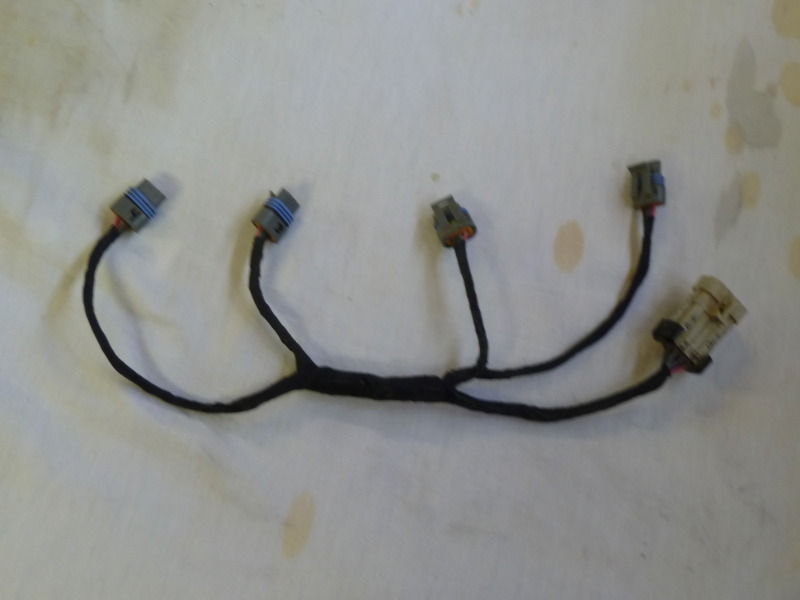

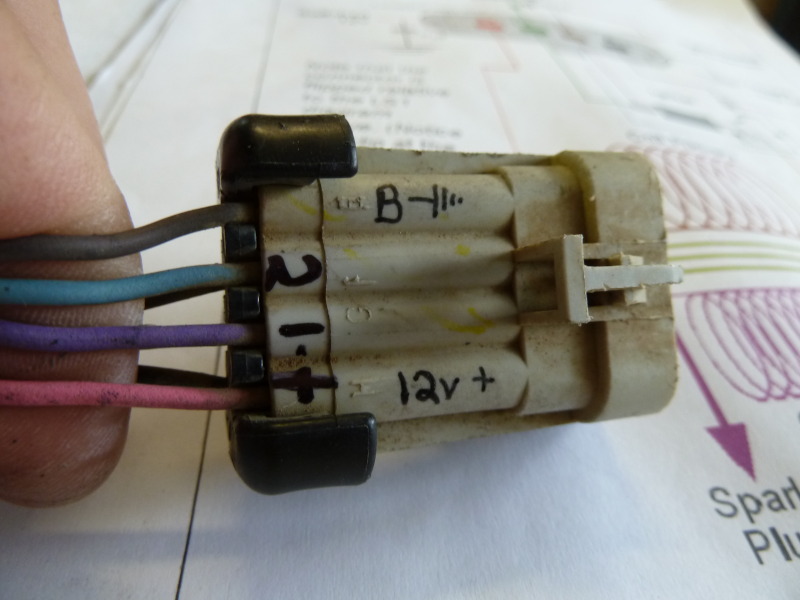

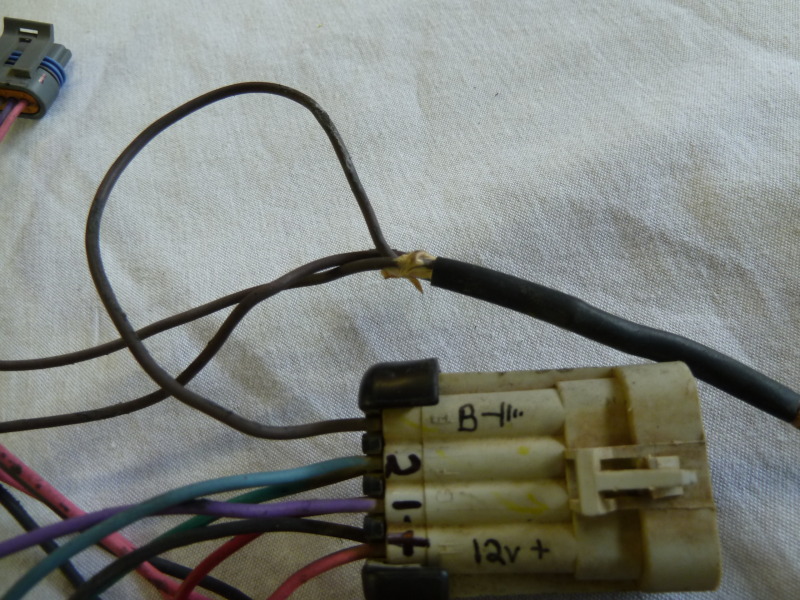

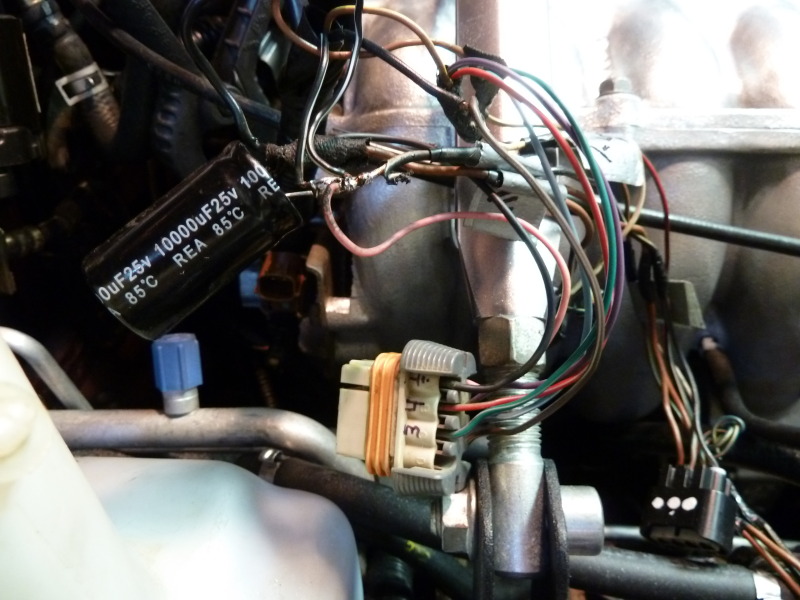

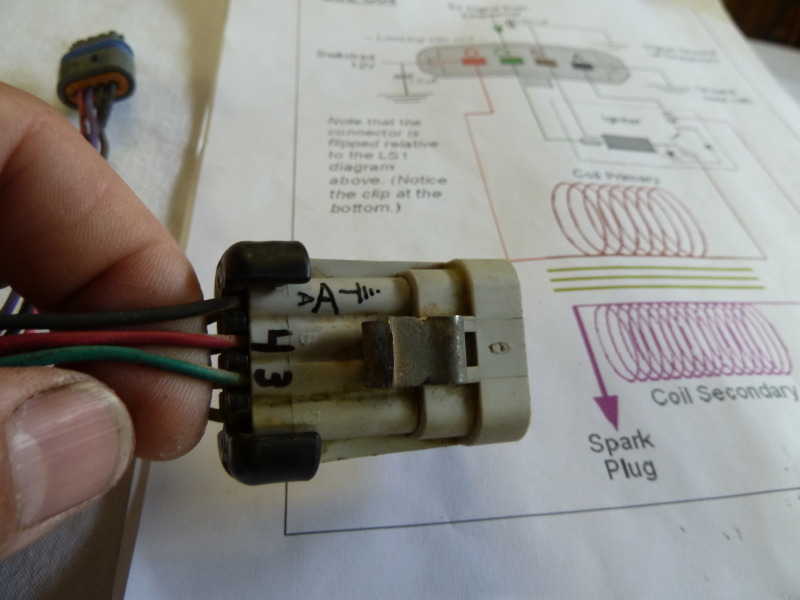

I put some pics of the wiring but I don't know how much sense it will make. The info is out there, just search.
I contacted Taylor Wire and had a set of wires made. I chose there "409" 10.5mm wires. I wasn't sure how long to make them at the time and left the coil side open. In hind sight I would have measured and have them install the coil side too. Man what a PITA to get the boots over the 10.5mm wires. The wire set was around $80.
Thanks for looking, I hope this helps.
Cheers,
-JB









Attached Thumbnails
Yet Another LS2 Coil Install-p1000820.jpg   Yet Another LS2 Coil Install-p1000833.jpg   Yet Another LS2 Coil Install-p1000819.jpg   Yet Another LS2 Coil Install-p1000818.jpg   Yet Another LS2 Coil Install-p1000834.jpg

Yet Another LS2 Coil Install-p1000816.jpg   Yet Another LS2 Coil Install-p1000824.jpg   Yet Another LS2 Coil Install-p1000821.jpg   Yet Another LS2 Coil Install-p1000829.jpg
2manyhobyz is offline   Reply With Quote
Old 07-31-2012, 01:26 AM   #2
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,518
Total Cats: 258
Default

Nice location for the bracket!
I don't understand why you fuсked with the wiring harness...? I just cut the stock harness plug off and wired the 7 wires (4 signal, 12V, signal ground, ground).
