Default Goodwin Carbon Clutch

Here is your complimentary thread, discuss:
http://www.good-win-racing.com/Mazda...v_source=News1

Quote:
YES, you can have it all....full carbon ability to HOLD all the power (300 Ft/LBs!) but with a pedal that feels like stock! You will feel the difference coming off every corner.
This is the first and only fully rebuildable carbon Miata clutch on the market currently.

Smooth engagement!

This is a single disc carbon/carbon clutch with a Billet Aluminum flywheel. It uses a stock style clutch cover but the friction plate is a light weight Billet Aluminum piece to replace the steel casting. Just by doing this we save 3-4lbs along with almost 2 lbs in the disc. The lighter the disc the less wear and tear on the trans syncros! Carbon has to rub against itself so this new friction plate has a carbon surface screwed into it. The disc is carbon on both sides, which makes for very smooth engagement. The flywheel is aluminum and uses the same style carbon inserts as the friction plate. By building the clutch this way it is completely rebuildable by the customer out in the field. All they have to do is install new carbon pucks in the flywheel and friction plate and replace the disc at a cost much less than a new unit.

BRIAN'S APPLICATION NOTES: This is the clutch and flywheel combo we use in our supercharged MX5. Pedal feels much like stock clutch, no heavy pedal here yet it works great for those with 12psi and more! This is a great choice for those who are stock hp now but planning to race or add boost. All the clamping ability of a full race clutch but as friendly to drive as stock replacement.
How much are the replacement parts?
How does the service interval compare to an organic or metal clutch?
Why no sprung hub?
What kind of warranty coverage on marcel springs and pressure plate "finger" springs?
Attached Thumbnails

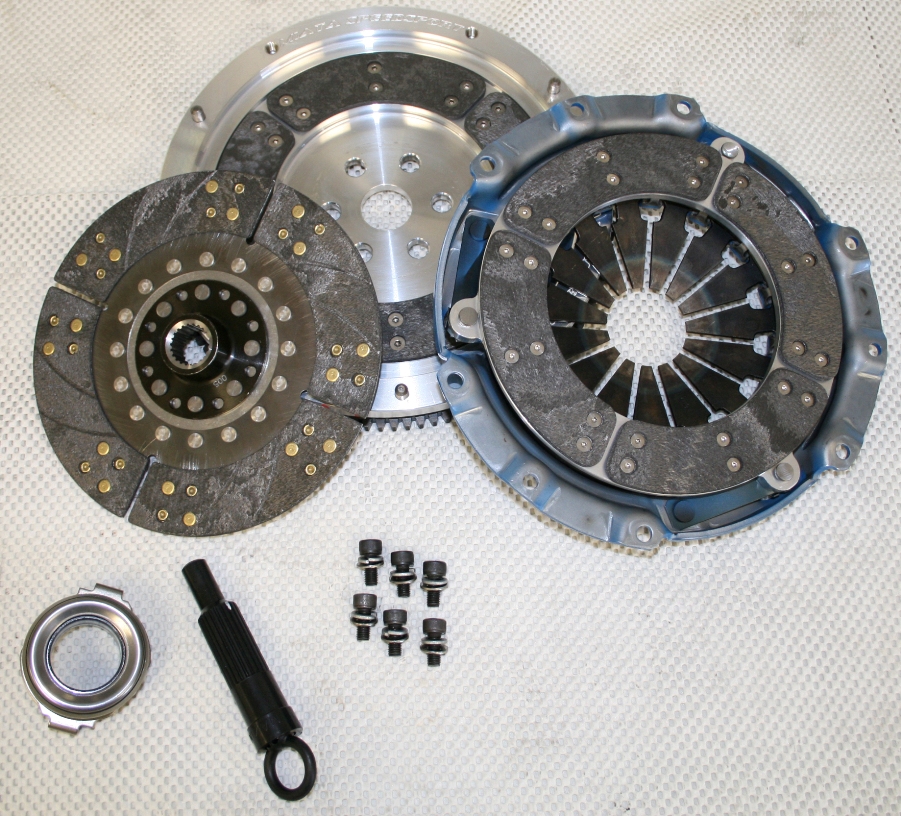

Goodwin Carbon Clutch-miataspeedsportsl1cluth-flywheel.jpg
hustler is offline   Reply With Quote
Old 06-28-2012, 12:03 AM   #2
Supporting Vendor

Good-Win Racing LLC's Avatar

Join Date: Feb 2008
Posts: 634
Total Cats: 18
Default

We worked with the folks at RPS (famous for their high RPM S2000 clutch kits). Thus, you can read feedback for hours on the RPS carbon clutches over in the S2000 forum, duty cycle, cost of replacement bits, etc. Bottom line is that my little wife is 110 pounds and could not drive the ACT clutch in our 300 hp supercharged autocross toy. She burned up two ACT Heavy Duty clutches in just a few months and wiped out the starter when she filled it with clutch shavings because the pedal was just too heavy and difficult for her. At that point we went on the hunt for something even my 110 pound little wife could drive. So, when you ask why no sprung hub, the answer is: because you just don't need it with this design....it really is THAT EASY to drive, feels almost stock...yet is the lightest NC clutch/flywheel combo on the market that I know of....and it holds all the power.

Good-Win Racing LLC is offline   Reply With Quote
Old 06-28-2012, 12:46 AM   #3
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

What about replacement part availability for the long run?
hustler is offline   Reply With Quote
Old 06-28-2012, 01:05 AM   #4
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

No springs because carbon is sproingy? absorbs vibration?

What is total weight?
Faeflora is offline   Reply With Quote
Old 06-28-2012, 02:38 AM   #5
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

NA / NB availability ?
Mobius is offline   Reply With Quote
Old 06-28-2012, 02:55 AM   #6
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Mobius View Post
NA / NB availability ?
Is this a serious question?
hustler is offline   Reply With Quote
Old 06-28-2012, 04:39 AM   #7
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Well, it was, since "it's the lightest NC clutch on the market."

I have now taken the time to peruse the website, and see it listed in the 1990-2005 clutch section, so I retract my question.

I feel it was fair, however, given the above response, and the pictures of the NC. Of course, I should have known that you would not post the question had it not been relevant to your vehicles.
Mobius is offline   Reply With Quote
Old 06-28-2012, 10:55 AM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,040
Total Cats: 407
Default

Quote:
Originally Posted by Faeflora View Post
No springs because carbon is sproingy? absorbs vibration?

What is total weight?
I think there is a vast misunderstanding of what sprung hub clutches accomplish.

Your driveline doesn't care about tiny springs. I promise.
y8s is offline   Reply With Quote
Old 06-28-2012, 11:12 AM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

Whats the life expectancy on one of these? I ask because a friend of mine had something similar on a vw and it lasted all of 6months street driving.
18psi is offline   Reply With Quote
Old 06-28-2012, 12:29 PM   #10
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by y8s View Post
Your driveline doesn't care about tiny springs. I promise.
Your input shaft splines might. Unsprung discs can lead to premature wear of these splines, especially if it's an unsprung dual disc clutch, and will certainly increase the effects of driveline chatter/vibration everywhere down the line.
matthewdesigns is offline   Reply With Quote
Old 06-28-2012, 02:33 PM   #11
Supporting Vendor

Good-Win Racing LLC's Avatar

Join Date: Feb 2008
Posts: 634
Total Cats: 18
Default

Quote:
Originally Posted by Mobius View Post
NA / NB availability ?

Yes, we have them for NA/NB too....and same $100 discount special until end of this month.

Miata Performance Parts : MX5 Speedsport SL-1 Carbon Clutch and Flywheel COMBO package:
Good-Win Racing LLC is offline   Reply With Quote
Old 06-28-2012, 02:34 PM   #12
Supporting Vendor

Good-Win Racing LLC's Avatar

Join Date: Feb 2008
Posts: 634
Total Cats: 18
Default

Quote:
Originally Posted by matthewdesigns View Post
Your input shaft splines might. Unsprung discs can lead to premature wear of these splines, especially if it's an unsprung dual disc clutch, and will certainly increase the effects of driveline chatter/vibration everywhere down the line.
It's a single disc....not a dual.
Good-Win Racing LLC is offline   Reply With Quote
Old 06-28-2012, 02:36 PM   #13
Supporting Vendor

Good-Win Racing LLC's Avatar

Join Date: Feb 2008
Posts: 634
Total Cats: 18
Default

Quote:
Originally Posted by 18psi View Post
Whats the life expectancy on one of these? I ask because a friend of mine had something similar on a vw and it lasted all of 6months street driving.
"something similar" strikes me as meaningless unless it was an RPS carbon clutch.

Regardless, I easily have over 1000 hard launches on the original in my car with no issues.

Last edited by Good-Win Racing LLC; 06-28-2012 at 03:28 PM.
Good-Win Racing LLC is offline   Reply With Quote
Old 06-28-2012, 03:43 PM   #14
Junior Member

Join Date: Mar 2011
Location: Louisville ky
Posts: 479
Total Cats: -110
Default

Sweet. How many miles are in yours?
