Default New Singular MotorSports Brake Ducts!

Singular Motorsports 2.5" and 3" brake ducts are designed to fit all 1990-2005 Miatas with wheel sizes 14" and up.
Key features of our brake ducts include:

Precision Waterjet and TIG Welded
Lightweight Aluminum Construction
Reduced Brake Temperature
Increased Rotor and Pad Life
Improved Brake Consistency
Made In The USA

Note: There are some limitation to the hose size which you can run to the ducts:

2.5" hose is compatible with the factory under trays, requiring little to no modifications . We recommend the 2.5" brake ducts for those who want the most cooling ability with the least amount of modification. 2.5" hose can clear 15x9" wheels with the factory undertray intact and without the use of any spacers.

In most cases, 3" hose requires a non-factory or fabricated under tray to clear 9" wheels or larger. With the factory plastic undertray removed, 3" hose will clear 15x9 and 15x10 with a 5mm spacer.

We recommend users run the largest size brake ducts that they are able to accommodate on their car. Brake pad and rotor life is increased further with the larger diameter units, as well as a larger reduction in operating temperatures.

INSTALLED PICTURES at LINKS BELOW!

2.5 on our site HERE.
3.0 on our site HERE.

Attached Thumbnails

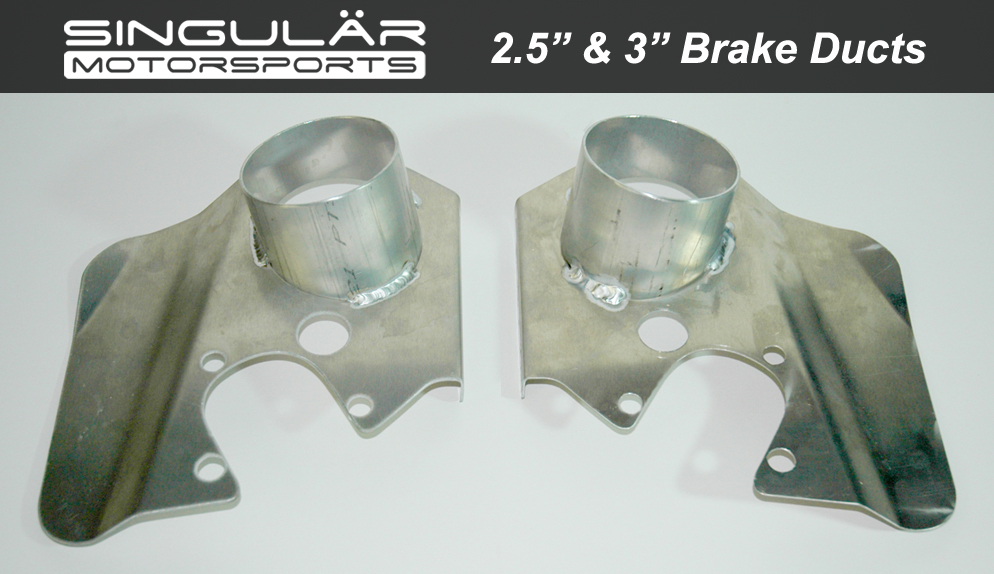

New Singular MotorSports Brake Ducts!-singularbrakeducts.jpg
Good-Win Racing LLC is offline   Reply With Quote
Old 08-26-2014, 03:29 PM   #2
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,574
Total Cats: 151
Default

Do these fit 11.75" brake kits? Are they ABS compatible? Besides coming from a different supporting vendor, what advantage do these offer over the very similar ducting option offered by Trackspeed that sell for $10 cheaper?
Ryan_G is online now   Reply With Quote
Old 08-26-2014, 03:35 PM   #3
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,008
Total Cats: 583
Default

Quote:
Originally Posted by Ryan_G View Post
Besides coming from a different supporting vendor, what advantage do these offer over the very similar ducting option offered by Trackspeed that sell for $10 cheaper?
Allows you to use larger diameter hose (2.5" or 3" vs 2").
hornetball is offline   Reply With Quote
Old 08-26-2014, 04:13 PM   #4
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,862
Total Cats: 484
Default

Very excited to finally have these in stock with such a great vendor and available to the community! I'll try to help out and answer specific questions that people have as they come up.

Do these fit 11.75" brake kits?

Yes

Are they ABS compatible?

Yes

Besides coming from a different supporting vendor, what advantage do these offer over the very similar ducting option offered by Trackspeed that sell for $10 cheaper?

Our 2.5" and 3" brake ducts are also going to be sold through Trackspeed alongside their existing 2" design. They offer higher performance for a higher cost, as opposed to being a directly competing product.

There will be those who still want the 2" for how easy the 2" hose is to route. There are a couple additional design details that ours offer, but the obvious major benefit is the larger size. Airflow increases as a square of the diameter increase, so 2.5" flows nearly double the airflow as 2" and 3" flows over triple as much.

The original thing that prompted me to go down the path of designing these was hearing what the 949 guys had found for their race cars:

Quote:
Originally Posted by emilio700
Brake ducts are key. Good ducting almost doubles pad life. 2.5" works, 3" is best. 2" just doesn't flow enough CFM according to our testing....
We did some crude testing at the shop with 2" and it only flows a useful amount of air if its pretty much straight. 2.5 is borderline with two 45* bends. 3" is awesome but, a ***** to fit...
After I heard this and other similar statements, I decided to take on the challenge of providing a solution that made running the larger hose sizes possible. The toughest part with large hose (especially 3") is getting the orientation just right between the wheel, spindle, sway bar, etc. since tolerances are slim - and that's what these do for you.

AFAIK, Andrew dropped the price on the TSE 2" units a bit so there is some progressive pricing increase as you go up in size.

-Ryan

Last edited by ThePass; 08-26-2014 at 04:45 PM.
ThePass is offline   Reply With Quote
Old 08-26-2014, 04:39 PM   #5
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,574
Total Cats: 151
Default

I appreciate the quick and exceptionally thorough response. Luckily I have an MSM so I can just route them directly through the wheel well via my fog light holes and completely avoid all of the other routing nonsense. I am sure you will be seeing quite a bit of my money soon.
