Old 10-31-2011, 01:15 PM   #21
Senior Member
iTrader: (10)

Join Date: Oct 2005
Posts: 718
Total Cats: 5
Default

Quote:
Originally Posted by Good-Win Racing LLC View Post
This is a 2.3. Was a Formula Atlantic motor...rebuilt with low compression pistons suitable for the boost. Could easily make 500 hp with a big turbo but will use a small one with the aim of making hyper responsive XP car....
I understand. I also would not want a "big" turbo. I just will have to see the dyno plot to see if its something I can work with.

Good to see something fresh going on...
TURNS101 is offline   Reply With Quote
Old 02-13-2012, 12:08 AM   #22
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Any updates on this? I'm thinking about going the NC route after driving one today.
wittyworks is offline   Reply With Quote
Old 02-13-2012, 12:11 AM   #23
Supporting Vendor
Thread Starter

Good-Win Racing LLC's Avatar

Join Date: Feb 2008
Posts: 633
Total Cats: 18
Default

Yes, hope to finally have it run next Sunday. Too many little items needed to be custom made and that has set us back, but we are closing in on the finish. The shop is moving soon, so it needs to run soon!
Good-Win Racing LLC is offline   Reply With Quote
Old 02-13-2012, 02:02 AM   #24
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I was hoping you were going to say 1000hp and make my penie sad.

What fuel will you run?

Looks like the compressor inlet piping will be interesting. Not much room thanks to that alternator.
Faeflora is offline   Reply With Quote
Old 02-13-2012, 02:10 AM   #25
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by hustler View Post
Where is the TiAL wastegate?
Beat me to it.
With how well setup this thing is, it deserves EWG.
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-13-2012, 02:23 AM   #26
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

My question is what injectors are you running?
elesjuan is offline   Reply With Quote
Old 02-17-2012, 12:29 PM   #27
Senior Member
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

Hey Brian, I've been researching NC ecu's the last few days, word on the street is you use Moto East's system. Are you at the point where you tune your own cars using the Commando, or you still have mike send you tunes back and forth?
wittyworks is offline   Reply With Quote
Old 02-17-2012, 01:09 PM   #28
Supporting Vendor
Thread Starter

Good-Win Racing LLC's Avatar

Join Date: Feb 2008
Posts: 633
Total Cats: 18
Default

Both this NCExtreme project and NCLIGHT use Motec M400 ECUs. If my recollection is correct we have 1000cc injectors in this one. Thus, these projects have nothing to do with the factory ECU or Mike's excellent tune work.

But our supercharged 2007 uses Mike's tune. Tried the DPTUNE that FlyinMiata sells but didn't have much luck with it. Mike's tune has been awesome. Yes, we did the simple email back and forth of the calibration to get the tune. We started with his basic tune, sent him some datalogs to fine tune the results, and he sent us a final that has worked flawlessly. Last on the dyno the car did 265hp with 235 ft-lbs. I highly recommend Mike's MottoEast tunes.

Last edited by Good-Win Racing LLC; 02-17-2012 at 01:20 PM.
Good-Win Racing LLC is offline   Reply With Quote
Old 02-17-2012, 01:13 PM   #29
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Does Motec still have that awful turning interface it had 3-years ago?

Why are you guys using Motec and not something more Miata-typical? Wifi/BlueTooth data to the crew while on track?
hustler is offline   Reply With Quote
Old 02-17-2012, 01:31 PM   #30
lub
Newb

Join Date: Dec 2011
Posts: 14
Total Cats: -1
Default

lub is offline   Reply With Quote
Old 02-17-2012, 01:33 PM   #31
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

We're gonna need more pics of the rest of the car.
vehicular is offline   Reply With Quote
Old 02-17-2012, 01:42 PM   #32
Supporting Vendor
Thread Starter

Good-Win Racing LLC's Avatar

Join Date: Feb 2008
Posts: 633
Total Cats: 18
Default

Quote:
Originally Posted by hustler View Post
Does Motec still have that awful turning interface it had 3-years ago?

Why are you guys using Motec and not something more Miata-typical? Wifi/BlueTooth data to the crew while on track?

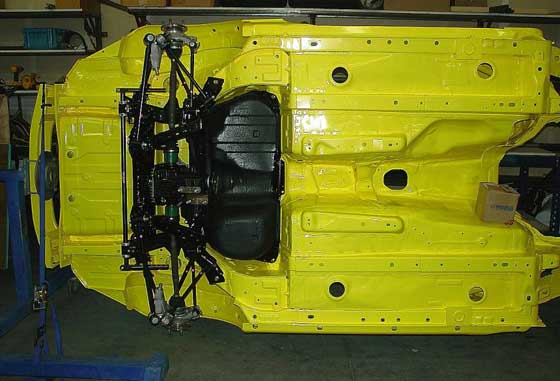

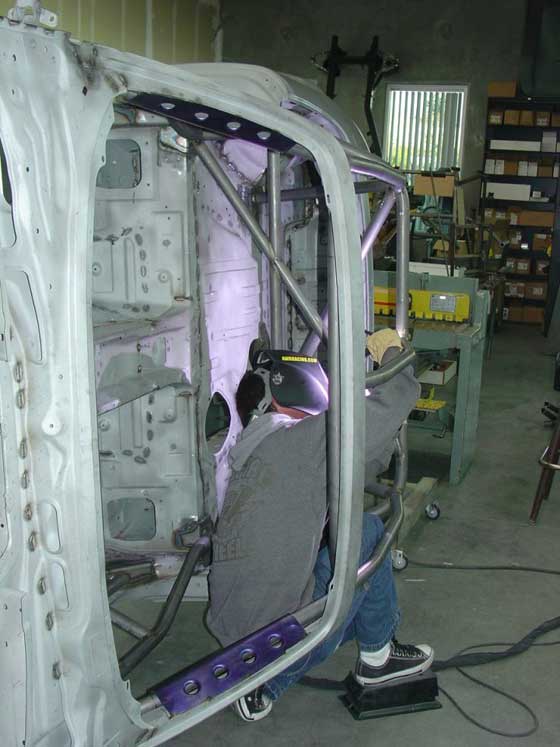

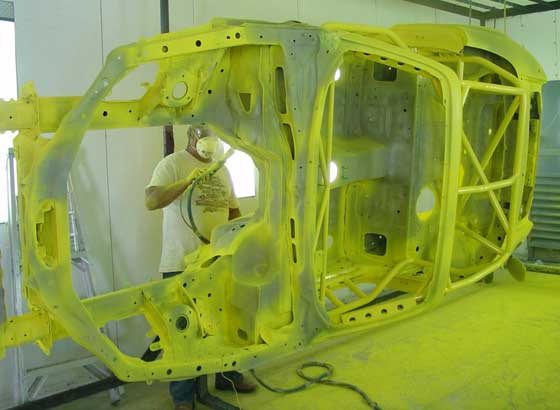

Both cars built from scratch, fully stitch welded as you can see below. They never had VIN numbers, never had factory ECUs, never had factory harness to plug that factory ECU into, etc. When you start from raw shell it is actually more trouble to get and use factory harness than to use something else designed for track abuse. Also, factory harness has failed a few Playboy Cup Cars, causing ignition issues, etc. If you don't already have a factory harness, not much need to buy the problems that come with it, all the connections on it we don't need, etc.







In contrast, our supercharged 2007 started on a dealer's lot, factory everything....so it continues with reflashed ECU.
Attached Thumbnails
Our TURBO 2.3 NC-EXTREME Project....-nclight2.jpg   Our TURBO 2.3 NC-EXTREME Project....-nclight3.jpg   Our TURBO 2.3 NC-EXTREME Project....-nclight4.jpg

Last edited by Good-Win Racing LLC; 02-17-2012 at 01:55 PM.
Good-Win Racing LLC is offline   Reply With Quote
Old 02-17-2012, 02:05 PM   #33
I'm Miserable!

Join Date: Jan 2012
Location: Springfield, MA
Posts: 19
Total Cats: 0
Default

love the hood vent (and the rest of the build / car) .. did something very very similar to the hood on my 90. mine looked atrocious.. your's looks the cats meow. kudo's!
rohmer is offline   Reply With Quote
Old 02-17-2012, 02:10 PM   #34
Supporting Vendor
Thread Starter

Good-Win Racing LLC's Avatar

Join Date: Feb 2008
Posts: 633
Total Cats: 18
Default

Quote:
Originally Posted by rohmer View Post
love the hood vent (and the rest of the build / car) .. did something very very similar to the hood on my 90. mine looked atrocious.. your's looks the cats meow. kudo's!
Thanks, that's a recent change. Stayed up late thinking about cutting the freshly painted hood and finally just did it. Was able to drop some weight from the nose by going to much smaller oil cooler.


Good-Win Racing LLC is offline   Reply With Quote
