Default 120VAC wiring help

i got a new bath fan, here's how they want it installed:
http://www.broan.com/ImageLibrary/br...s/99044368.pdf

can i do it this way?
i want the fan to come on with the light switch, but i also want the humidity sensing switch to operate indepedently, can i do this?
Attached Thumbnails
120VAC wiring help-wiring.jpg
Mach929 is offline   Reply With Quote
Old 09-30-2009, 01:18 AM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Um assuming the black is ground where is your hot comming in?
Or is that the new circuit you put in? If the unit you show there has a relayed ground system that gets its source from the switch on the wall or the humidity sensor then you are ok.
magnamx-5 is offline   Reply With Quote
Old 09-30-2009, 01:35 AM   #3
Elite Member
Thread Starter
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

black is hot in ac, trouble is a house doesn't work like a car so i have to unlearn stuff

both circuits have a hot, one leading to the switched on the other giving constant power for the humidity sensor, at least that's how it's working in my mind. will it be a problem if the switch is on and the humidity sensor is tripped at the same time?
Mach929 is offline   Reply With Quote
Old 09-30-2009, 01:38 AM   #4
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

nah it works like a car except you have the black is hot and the cold wich is whatever collor you have and the ground with until like the mid 90's was a flybynight option. And realy came into play when flourescent bulbs etc are put into play. But the electricity is still the same hot a cold with a ground for safety as it where to disipate any roque energy. And instead of grounding to your frame or block etc your negative needs to go back to the box this means that the picture you show lacks a negative lead going into the system and will not work.
Unless the new circiut is fresh wire etc you pulled to the box and the hot feed off the light switch goes into a relay to engage the internal mechanism of the fan.
magnamx-5 is offline   Reply With Quote
Old 09-30-2009, 10:06 AM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,325
Total Cats: 1,923
Default

Quote:
Originally Posted by magnamx-5 View Post
Um assuming the black is ground where is your hot comming in?
We'll all be killed...

For residential work in the US, the following standards apply:

White is always neutral.

Black is always hot. In a three-phase (208/230) environment, red and blue are also hot. (480/277 3-phase circuits use a brown-yellow-orange scheme)

In single-phase 110/220 applications where both hot legs are present in a circuit, one is always black, the other is almost always red. In such an environment, the potential between white and black or white and red is 110v, the potential between black & red is 220v.

In single-phase applications where two or more unique hot wires are present in a circuit (such as on a three-way switch or a multi-gang switch) they are typically coded 1-black, 2-red, 3-blue, 4-yellow... It is both permissible and not uncommon for other colors to be used for additional hot legs, so long as they are not white or green.

For a 220v appliance where no neutral is needed, standard white/black/gnd romex is often used, with the white wire carrying the second hot leg in lieu of a red wire. The white wire must be clearly marked at both ends to indicate this use, usually with a few turns on black or red electrical tape.

Ground may be uninsulated when in romex or NMT, but must be jacketed in green or green/yellow if in a metallic carrier.
black and red.

(Note that this refers only to premise wiring.)




Now, check out Wiring Option #2 in the documentation:



The "Model 68W" switch they refer to is a non-interlocking two circuit switch. Here's the documentation on it: http://www.plumbersurplus.com/pdf/99043739.pdf

So, wiring it the way you propose is essentially the same as if you wired it as per Option #2 and simply left the lower switch "on" all the time.
Joe Perez is offline   Reply With Quote
Old 09-30-2009, 10:16 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

Yep just need that switch. So the Common (white) and GRD (copper) get wired directly to the unit, the 110v (black) goes into the switch then out to the BRN and ORG on the unit. It's essentially the same wiring as #1 but you spitting the power at the switch and giving the unit it's magical constant power.

Braineack is offline   Reply With Quote
Old 09-30-2009, 10:19 AM   #7
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,325
Total Cats: 1,923
Default

Incidentally, if you take a moment to register here, you can access the complete, unabridged 2008 NEC for free.
Joe Perez is offline   Reply With Quote
Old 09-30-2009, 10:21 AM   #8
Elite Member
Thread Starter
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
So, wiring it the way you propose is essentially the same as if you wired it as per Option #2 and simply left the lower switch "on" all the time.
joe is there anything you're not an expert on?

anyhow, i'm a little confused. What do you mean by the lower switch on all the time?

are you saying that the way i have it drawn up will only activate with the lower switch on?

what i really want is that the fan will come on when the switch is on, because if someone takes a nasty **** i want it to expel the stench. I also want the humidity sensor portion of the fan to be able to operate the fan when the light switch is turned off, because i like to get a shower in the morning with the light off. Also with this fan, when the humidity sensor activates the fan it will stay running for an additional 20 minutes to make sure it gets rid of most of the moisture. that way i can leave the bathroom, get dressed and leave for work without leaving the bathroom light on all day.
Mach929 is offline   Reply With Quote
Old 09-30-2009, 10:22 AM   #9
Elite Member
Thread Starter
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

i don't want to change out my switch because it's got one switch for the the light and an outlet for my wifes appliances.
Mach929 is offline   Reply With Quote
Old 09-30-2009, 10:23 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

Quote:
Originally Posted by Mach929 View Post
anyhow, i'm a little confused. What do you mean by the lower switch on all the time?

are you saying that the way i have it drawn up will only activate with the lower switch on?

look at my post again, I included a picture of the switch.

basically the power is going into the switch and splitting. The ORG should always be powered for the auto function, and the top will manually control the fan when you want it.
Braineack is offline   Reply With Quote
Old 09-30-2009, 10:25 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

Quote:
Originally Posted by Mach929 View Post
i don't want to change out my switch because it's got one switch for the the light and an outlet for my wifes appliances.
Then you could just run that constant power line from any other source (like the outlet), but you'd have to run the damn line up the wall...
Braineack is offline   Reply With Quote
Old 09-30-2009, 10:31 AM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,325
Total Cats: 1,923
Default

Quote:
Originally Posted by Mach929 View Post
joe is there anything you're not an expert on?
Love.



Quote:
anyhow, i'm a little confused. What do you mean by the lower switch on all the time?
In the diagram provided with the fan, in "Option #2" they depict a model 68W switch. I provided a link to the documentation for that switch, and Brainey posted a picture of it.

The 68W is just two switches in one housing, an upper and a lower, which share a common input and have two separate outputs.

In "Option #2", the upper switch is connected to the orange wire at the fan, and thus controls the manual on/off function. The lower switch is connected to the brown wire at the fan, and controls the automatic function.

In looking at what I just wrote, I realize I mis-typed, and I believe your diagram may be backwards. It looks like you want to tie the brown wire directly to the incoming hot leg, and put the switch on the orange wire. This should be equivalent to leaving the lower switch turned on all the time in "Option #2".
Joe Perez is offline   Reply With Quote
Old 09-30-2009, 10:37 AM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Mach929 View Post
i don't want to change out my switch because it's got one switch for the the light and an outlet for my wifes appliances.
You can always rip that out and put in a double gang box with a dual switch on one side and a proper GFI outlet on the other. That's what I'd do.

I've also seen a decora style single gang dual switch that was a combination light dimmer and fan timer at home depot. Kinda pricey, but I like dimmers.

<edit>
Or you can replace your existing switch/outlet combo with a dual switch combo, and then towards the center of the stud bay simply install a GFI in a retro box. No sheetrock work required that way.
Ben is offline   Reply With Quote
Old 09-30-2009, 10:39 AM   #14
Elite Member
Thread Starter
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

****, i feel like an idiot over here. getting more confused
you guys are suggesting new switches. can this be done with my existing normal, single on/off switch?
Mach929 is offline   Reply With Quote
Old 09-30-2009, 10:39 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

well if you have the means to provide the black to the unit through a constant supply and a second through your switch like you have drawn, then yes that will work.
Braineack is offline   Reply With Quote
Old 09-30-2009, 10:51 AM   #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Mach929 View Post
****, i feel like an idiot over here. getting more confused
you guys are suggesting new switches. can this be done with my existing normal, single on/off switch?
Sure it can. But consider this.

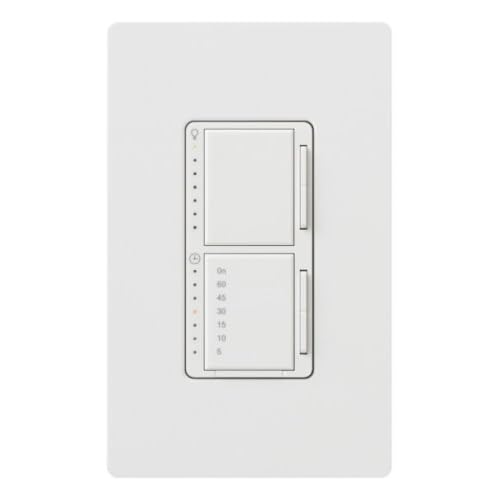

Replace your existing single gang combination switch/outlet with this combination light dimmer/fan timer





Then a few inches from the switch location, install a retro box with a GFI outlet. You will have to run a small lead of romex from the swtich location to the outlet location.





You can also put the switch and outlet side by side in a double gang box, but it will require a little sheetrock finishing work.
Ben is offline   Reply With Quote
Old 09-30-2009, 10:59 AM   #17
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,325
Total Cats: 1,923
Default

Quote:
Originally Posted by Mach929 View Post
you guys are suggesting new switches. can this be done with my existing normal, single on/off switch?
Yes. You can do it exactly like you drew in post #1, but flip the orange and brown wires.


Quote:
Originally Posted by Ben View Post
Sure it can. But consider this.

Replace your existing single gang combination switch/outlet with this combination light dimmer/fan timer
The documentation for the unit states that it is not to be used with a dimmer / speed control.


From what I gather in all this, the big holdup is needing to work with an existing wire in the wall which is currently supplying an incandescent fixture, and not wanting to run additional wiring from the j-box up to the fixture. I can sympathize with this. Assuming that an unswitched hot wire is available in the location where you want to put the fan, all is well.
Joe Perez is offline   Reply With Quote
Old 09-30-2009, 11:28 AM   #18
Elite Member
Thread Starter
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

thanks scott, do you also agree with switching brown and orange? either way it's an easy switch back and i can't really see any harm.

Ben i'll trying to keep costs and work to a minumum, since it's also a little daunting for me to also have to cut a hole in my roof.

exactly joe, i have a new junction box i installed when i put ceiling fans in, it's directly over where i'll be putting the fan.

anyway you guys are the best!

and joe i'll make you an expert on love, are you allergic to latex?
Mach929 is offline   Reply With Quote
Old 09-30-2009, 11:38 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

yeah, the constant black wire should go the BRN and the switched black wire to ORG.

Look at Option #2 in the pdf, when power goes to the BRN wire, it's using the Humidity Controls, the red to orange is labeled as fan on/off.
Braineack is offline   Reply With Quote
Old 09-30-2009, 11:39 AM   #20
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Joe Perez View Post
The documentation for the unit states that it is not to be used with a dimmer / speed control.
A timer is not a speed control.

Quote:
Originally Posted by Mach929 View Post
Ben i'll trying to keep costs and work to a minumum
Dude if you get a standard type single gang combo switch, single gang retro box, and a GFI outlet (you'll already have romex), you'll spend about $20. The most expensive part by far is the GFI outlet. You'll then at any time be able to run dimmers or timers. I don't understand how people don't have dimmers on bathroom lights personally.

Upside:
You have independent fan and light control so the bathroom does not feel like a motel, plus your power outlet will be GFI protected.
Ben is offline   Reply With Quote
