Default all TIG welders chime in please?

here soon ill be looking into buying a TIG welder. its been a while since i have messed with TIG

what things do i look for?

water cooled vs air cooled
single phase???
other stuff?

its been like 5 years since i have touched one. thoughts, comments, concerns?


and here is one i found!
Syncrowave 200 TIG Welder

options to keep in mind
250 amps or better(aluminum requires more amps)
miller

Last edited by WonTon; 02-11-2010 at 07:37 PM.
WonTon is offline   Reply With Quote
Old 02-11-2010, 06:04 PM   #2
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

anybody?

what TIG machines are yall using?
WonTon is offline   Reply With Quote
Old 02-11-2010, 06:14 PM   #3
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Man I wish I had input but i'm in to hear the input of some of the experts as i'm curious myself.

I've actually been kind of considering the Diversion series but just dont know enough about them.
wayne_curr is offline   Reply With Quote
Old 02-11-2010, 06:18 PM   #4
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

yeah, there are a few other brands out there i have never heard of and im curious to know if they are any good!

i just want to make sure i make a good decision on my purchase!
WonTon is offline   Reply With Quote
Old 02-11-2010, 06:47 PM   #5
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

That miller looks good,you want 250 amps or better if you can,water cooled if you can,and you need to think about how much 3 Phase service will cost.It can hurt you when that bill comes in.Miller is my prefered brand.I am college trained in tig welding and have 5yrs experience.Aluminum will require alot of amps to weld and you do not want to be limited by your machine.
(G)
Reverend Greg is offline   Reply With Quote
Old 02-11-2010, 07:31 PM   #6
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

the welder will be used at a shop that is already set up for the option of 3 phase! i like Miller as well, thats what i learned on in school for stick, MIG, and TIG, and its what i used at my last job. we had one water cooled ESAB that broke every other day, thats why i asked about the watercooled vs air cause that thing leaked all the ****** time!
WonTon is offline   Reply With Quote
Old 02-11-2010, 08:01 PM   #7
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

I have only had the opportunity to use Lincoln stuff. I'm sure it's the same. I have a TIG185 air cooled which is fine for 95% of the stuff I do. I use the bigass watecooled lincoln at work if I need more amps. They fill in ports on aluminum heads with the thing, it's more than enough for what I need to do.
TurboTim is offline   Reply With Quote
Old 02-11-2010, 08:08 PM   #8
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

I use a miller dynasty 200 dx and I can weld .25 alu without preheat. Air cooled torch will burn through consumables such as collet bodies more often then water cooled. My work uses all lincoln tig welders and they break down very often and have to be repaired. "The Power Of Blue" holds true in my experiences. What kind of tig are you doin? Alu, steel, chrome-moly, titanium, etc...?
SKMetalworks is offline   Reply With Quote
Old 02-11-2010, 08:14 PM   #9
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

pretty much, carbon steel, stainless, and aluminum.......probably wont venture far from that!

im getting ready to go take some more classes in welding, i already have been through a couple but i want more. (i didnt get to do much TIG welding in my TIG class cause we had 20+ students and only 3 or 4 TIG machines) it was somewhat of a bloodbath for time on the machines!
WonTon is offline   Reply With Quote
Old 02-11-2010, 09:28 PM   #10
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Tbh. If you could get a job tigging; that will teach you how to weld better than any class can. I would say to go with the blue my friend.
SKMetalworks is offline   Reply With Quote
Old 02-11-2010, 09:33 PM   #11
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

i wanna take the classes to get the fundamentals down better (and to have the certs), and im looking into getting a TIG machine so i can start teaching myself the stuff i wont learn in classes!

i wanna get into custom fabrication!

other classes im gonna take are machining and CAD or whatever the best is?
WonTon is offline   Reply With Quote
Old 02-11-2010, 10:34 PM   #12
Junior Member
iTrader: (6)

Join Date: Dec 2008
Location: Boulder, CO
Posts: 291
Total Cats: 7
Default

[Off topic]
Where are you taking the classes?

--Ferdi
ftjandra is offline   Reply With Quote
Old 02-11-2010, 10:37 PM   #13
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

either west central tech or griffin tech why?
WonTon is offline   Reply With Quote
Old 02-12-2010, 12:33 AM   #14
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I have a basic Miller syncrowave 180. It's air cooled, single phase and does everything that I ask of it as a hobbyist. It's not hobby toy welder, though.

I don't know about the Lincoln TIG's bue I have a Lincoln 175 plus MIG. I'm partial to Miller as our company made all of the plastic components in the flowmeter/regulators of their welders for Smith Equipment. Plus, they make good welders. I don't think that you will go wrong with either a blue or a red welder, though.
Stein is offline   Reply With Quote
Old 02-12-2010, 12:39 AM   #15
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

yeh! i have a lincoln mig and a llincoln stick welder in the garage! i likes them!

im a huge fan of miller products. i uses a millermatic (MIG) at my last job, i was doin production welding and the only things i had to replace on that sucker was the drive wheels and the lead! never had a single big problem with it!

miller FTW!
WonTon is offline   Reply With Quote
Old 02-12-2010, 01:40 AM   #16
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

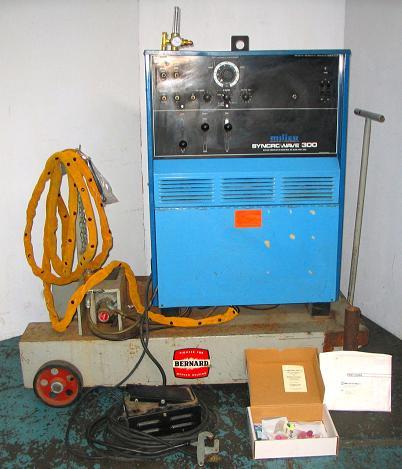

Find yourself a used Synchrowave 300... they're an absolute workhorse and they will run on single or 3 phase (mine is wired single and works fine).

Bought mine for $650 off of EBay... 2 years ago when I got it they generally were running $1200-1800 but it was mislabeled "synchromatic" in the listing so didn't get a lot of action. Came with a new torch (water cooled) and lead cover, a Bernard cooler, regulator, and a super heavy duty cart.

Downside, they're huge and heavy...
Attached Thumbnails
all TIG welders chime in please?-syncrowave.jpg
Rennkafer is offline   Reply With Quote
Old 02-12-2010, 01:45 AM   #17
Elite Member
Thread Starter
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

sweet! ill start checking ebay!

is there any other places i can look for TIG machines besides ebay, and craidslist?
WonTon is offline   Reply With Quote
Old 02-12-2010, 01:18 PM   #18
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Cyberweld.com is where I got mine but CL will have them cheaper.
SKMetalworks is offline   Reply With Quote
