Default All your electronic are belong to us: TIN WHISKERS

So I've been reading up on tin whiskers, and WHAT THE HELL.

All of your modern electronics made with lead-free solder will probably last 10-15 years at most* before tin whiskers start producing shorts and errors. In the early days of electronic circuitry, the tin whisker phenomenon was observed but not understood, but a switch to leaded solder fixed the problem.

As environmental concerns reduced the use of leaded solder (and consumer electronics were again made with lead-free solder), the mysterious menace returned: tin whiskers.

http://en.wikipedia.org/wiki/Whisker_(metallurgy)

Basic Info on Tin Whiskers

Not only is it going to KILL your iPod, we don't even understand how it works. We know that it happens, but we don't know how or why. Actually, "how" and "why" are redundant questions with modern reductionist scientific method, but I digress.

What shall be done about the tin whisker menace?





*Granted, all of your consumer electronics are obsolete 3 times over by the time tin whiskers finally kills them, but whatever.
Attached Thumbnails

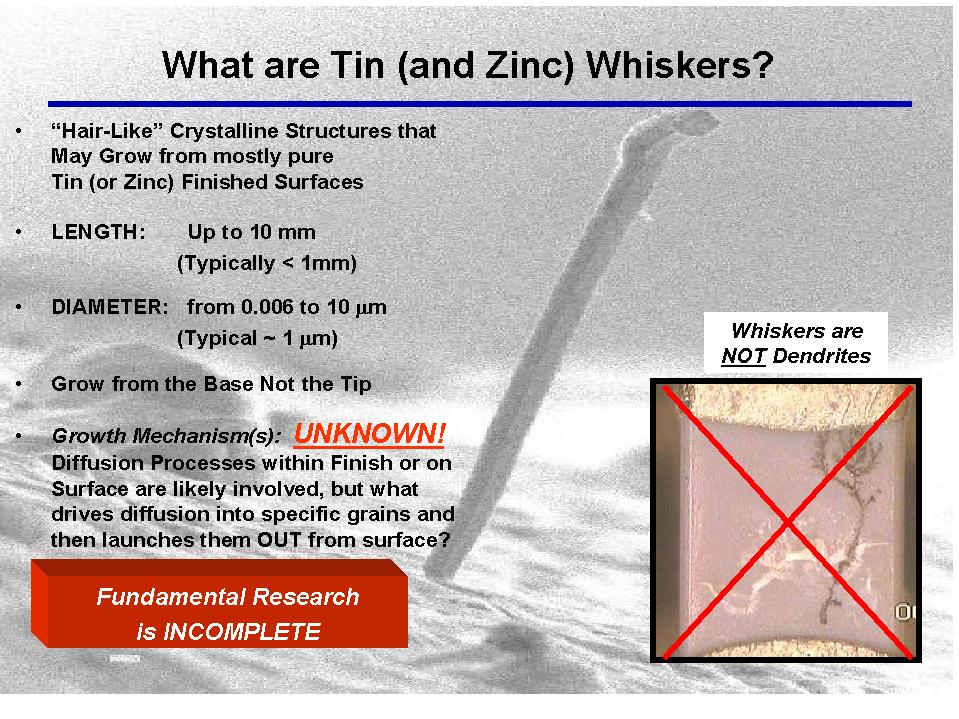

All your electronic are belong to us: TIN WHISKERS-what-whiskers.jpg
mgeoffriau is offline   Reply With Quote
Old 02-25-2013, 08:58 PM   #2
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I work with a guy from IBM who was involved with some in-depth studies from a few decades ago so I'm aware of the problem.

The electronics lead scare and subsequent lead bannage was based on a flawed study. Try undoing *any* enviro-related regs that were justified by bad science....

When lead-free solder was first introduced, there were a lot of failures as the industry had to re-learn how to solder properly. Lots of folks predicted that there would be long-term reliability problems even after that initial learning phase. In our lab, the stuff is banned from being used in prototypes, because hand soldering with the unleaded stuff produces unreliable joints and overheated parts.
JasonC SBB is offline   Reply With Quote
Old 02-25-2013, 09:36 PM   #3
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Much worse in electronics operated at high altitude. Big deal in avionics.

Thank you EU. They drove it.
hornetball is offline   Reply With Quote
Old 02-25-2013, 09:53 PM   #4
Junior Member

Join Date: May 2009
Location: Dayton, OH
Posts: 291
Total Cats: 12
Default

Even worse in a vacuum. Lead does it too, just not as readily.
shooterschmidty is offline   Reply With Quote
Old 02-25-2013, 10:15 PM   #5
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

I dont think I currently own/use any electronics that are 10 years old or more...

(Thats not entirely true, I own a dreamcast and a PS2, I dont know the exact age but they have to be close to 10 years right?)
icantthink4155 is offline   Reply With Quote
Old 02-25-2013, 10:29 PM   #6
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Ridgecrest CA
Posts: 448
Total Cats: 44
Default

I read an article a while ago about this causing significant problems with satellites. The solution (according to a friend who flew DSP sats) was to send a power surge through the system and burn out the shorts.
czubaka is offline   Reply With Quote
Old 02-26-2013, 03:27 AM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Thankfully, ECUs (and all "control devices", including life-support systems) are exempt from using lead-free solder.
Reverant is offline   Reply With Quote
Old 03-01-2013, 02:39 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

The ROHS transition has been kind of a pain in the *** for us in the electronics-manufacturing industry.

There were some initial yield problems, but nothing too severe. And while we've been lead-free for about six years now, we haven't seen much in the way of abnormal whiskering.

The biggest annoyance is simply with servicing lead-free boards on the bench. Lead-free solder is, quite frankly, a pain in the *** to deal with as compared to 63/37. At first, the company was pretty strict about declaring that we had to stock (and use) lead free solder for all bench repairs, but they've long since stopped paying attention. We now have a box full of lead-free solder in the storage locker, and have gone back to the old stuff at the bench.

Fortunately, it's not illegal to make or sell conventional leaded solder, and I haven't heard anything that makes me believe this will change any time soon. The price has gone up a bit, but you can still buy it just as easily as ever from Fry's / Radioshack / Mouser / etc.


Sidebar: You have a lot of electronic devices older than ten years in your life. Your microwave oven, the clock-radio beside your bed, the amplifier in the cable TV line that's just outside your house (and the dozen or so like it between you and the headend), the dimmers / fan-speed-controls in your walls, most of the underlying infrastructure of the internet, the keycard entry system where you work, the phones and PBX in your office, your garage-door opener and its associated remote, the cash register at the place where you buy your pony-related plush collectables, etc...
Joe Perez is offline   Reply With Quote
Old 03-03-2013, 06:55 PM   #9
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

my orginal nintendo entertainment system still works... and my xbox does as well.
Pen2_the_penguin is offline   Reply With Quote
Old 03-03-2013, 07:41 PM   #10
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by Joe Perez View Post
The ROHS transition has been kind of a pain in the *** for us in the electronics-manufacturing industry.
Consider what a pain it is in the avionics (aircraft electronics) industry, where all designs are approved by the FAA or EASA and changes to design are unauthorized without approval. This non-value added work consumes a couple of full time positions in the branch of the company that I work in -- people that could be engaged in creating new products.

Oh well.
hornetball is offline   Reply With Quote
Old 03-03-2013, 09:37 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

You guys weren't exempt?

What's a typical service lifetime for a commercial jet? Yes, I know it's expressed in hours and cycles, but in real-world terms, 30 years?

The Military folks push their stuff a lot longer than that. Whole lotta military jets older than the crews that are flying them. They stopped building the B52 in 1962, so the very youngest of those planes is 51 years old.

In my world (broadcast equipment), 20 years is pretty common for studio gear, and transmitters are expected to last 30+ years, operating at full power 24/7.
Joe Perez is offline   Reply With Quote
Old 03-03-2013, 10:46 PM   #12
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Quote:
Originally Posted by Joe Perez View Post
You guys weren't exempt?
Doesn't matter. When the non-ROHS part goes end of life, you either have to swag what you might use for the next 20 years and make a lifetime buy or you change the design to use the ROHS part (and recertify). The manufacture of basic electronic componenents is driven by consumer equipment, not by the miniscule volume of avionics/military. Design cycles for consumer equipment is measured in months to 2 years, not in decades.
hornetball is offline   Reply With Quote
Old 03-03-2013, 11:08 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,920
Default

Quote:
Originally Posted by hornetball View Post
Doesn't matter. When the non-ROHS part goes end of life, you either have to swag what you might use for the next 20 years and make a lifetime buy or you change the design to use the ROHS part (and recertify).
True. We use a lot of FPGAs in products which have been in production for over 10 years, so EOL-hoarding is just a fact of life. I can see your problem when a new design simply isn't available in a non-RoHS package.

I've no idea what FAA certs have to say on the subject, but it's been my personal experience that RoHS-compliant parts seem to be entirely compatible with conventional leaded-solder processes, regardless of whether you're doing wave, reflow, or hand-placement. We don't even flux them differently.
Joe Perez is offline   Reply With Quote
Old 03-03-2013, 11:44 PM   #14
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Our issue is that when we replace ROHS with non-ROHS (even if the part is otherwise identical -- think basic resistors/capacitors), we have "changed" the design as far as the FAA b'crats are concerned. It's maddening.

The other fun part is when the MBAs that run the joint (and don't have the slightest clue) decide that you're holding too much inventory and sell off the lifetime buys.

Even though my focus is software, I still get to deal with this on a seemingly weekly basis.
