Default alternative to sorbothane washers? (vibration control)

So I want to install an attic vent fan in my house (1600 s.f.). I bought one for $88. I've done this in my old house, but didn't like the noise transmitted to the frame. I could hear it in the house.

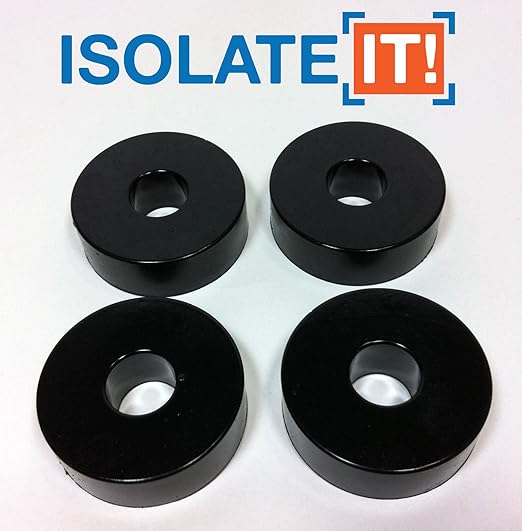

So this time I want to mount it with rubber washers. I thought, well, Sorbothane should work great! Um, $30 worth of rubber washers to mount an $88 fan:

Amazon.com: Isolate It: Sorbothane Vibration Isolation Washer 30 Duro (0.5" ID - 1.5" OD - 0.5" Thick) - 4 Pack: Home Improvement Amazon.com: Isolate It: Sorbothane Vibration Isolation Washer 30 Duro (0.5" ID - 1.5" OD - 0.5" Thick) - 4 Pack: Home Improvement



Would regular rubber work as well?
Does anyone know a cheaper source of Sorbothane washers?
Why are they so pricey anyway? Active patent?
Attached Thumbnails
alternative to sorbothane washers? (vibration control)-81kl0g95lxl._sx522_.jpg
JasonC SBB is offline   Reply With Quote
Old 01-22-2015, 05:16 PM   #2
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

Cable grommets, like for through a firewall?
NiklasFalk is offline   Reply With Quote
Old 01-22-2015, 05:16 PM   #3
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

I've used these at work with positive results. Not much cheaper i guess...

McMaster-Carr

McMaster has a pretty big selection of vibration reducing washers. I've also used specialty rubber isolators that you cut dow to your own desired thickness. But now i can't find it. Maybe i bought it off ebay.

Edit* This fan has 8 mounting points?
Erat is offline   Reply With Quote
Old 01-22-2015, 05:56 PM   #4
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

McMaster-Carr


These are excellent. They'll absorb your vibrations.
vehicular is offline   Reply With Quote
Old 01-22-2015, 07:08 PM   #5
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,686
Total Cats: 559
Default

What vehicular posted. I have used them with amazing results.
rleete is offline   Reply With Quote
Old 01-22-2015, 08:25 PM   #6
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Thanks for the ideas. I went and got these from ebay:
Set of 4 Universal Vibration Mount Isolator 3 4" | eBay
JasonC SBB is offline   Reply With Quote
Old 01-24-2015, 09:58 AM   #7
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Also consider a mass damper. I made one for a valve grinding machine I built a while back, just used 10% the mass of the system, glued it to a piece of rubber and glued the rubber to the system. Very nice level of dampening and super easy to do in my case. Also did rubber feet too
patsmx5 is offline   Reply With Quote
Old 02-06-2015, 05:19 PM   #8
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

The project is done. I'm quite pleased with the results using the eBay isolators I linked.
From inside the house under the fan, the cat fountain pump is louder.

Attached Thumbnails
alternative to sorbothane washers? (vibration control)-bwcurmw-2k%7E%24-kgrhqmoknievyfrydd0bmi8hhct9w%7E%7E_12.jpg
JasonC SBB is offline   Reply With Quote
