Default Crimper for Uninsulated Butts

lol @ title

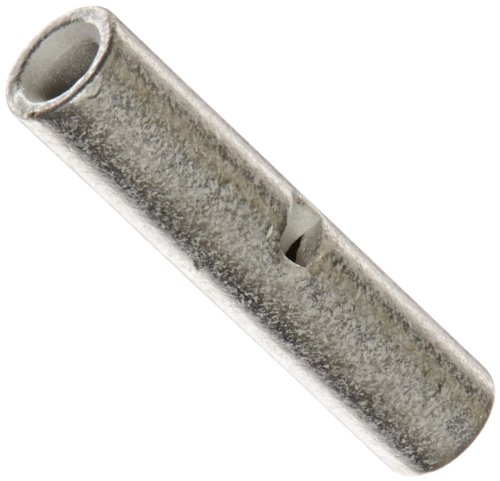

But pretty soon I'll be starting on cleaning up my engine bay, removing anything unnecessary or moving anything necessary. Lengthening & shortening wires (I'm trying hard not to use the term "wire tuck"). I'll be using uninsulated butt connectors similar to these:
"><img src=" /> ">

(also 14-16g as well as 10-12 gauge connectors for larger wires) and then covering with heatshrink similar to
<b>this</b> this
.

The problem is I'm having a hard time finding a nice crimper that will do 10g through ~22g uninsulated terminals. All of the racheting crimpers I find only do insulated ones, your typical red/blue/yellow butt connectors. I'm trying not to use those cause they're big and bulky and don't look clean at all.

Any suggestions?
Attached Thumbnails
Crimper for Uninsulated Butts-417mikpewgl.jpg   Crimper for Uninsulated Butts-417mikpewgl.jpg
Onyxyth is offline   Reply With Quote
Old 03-22-2015, 02:13 PM   #2
Senior Member
iTrader: (3)

Join Date: Dec 2008
Location: KY
Posts: 699
Total Cats: 50
Default

I've been really happy with this one:

Klein Journeyman Crimper Klein Journeyman Crimper



Also, Ballenger Motorsports sells those uninsulated butt connectors and they also sell a nice adhesive-lined heat shrink. I really like the adhesive-lined stuff so that the joint is completely sealed.
jpreston is online now   Reply With Quote
Old 03-22-2015, 04:37 PM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Klein D213-9NECR 9" High-Leverage Side-Cutting Pliers - Connector Crimping

My go-to crimpers for butt connectors. Don't buy a cheap pair, the $40 ones are worth the extra money.
Savington is offline   Reply With Quote
Old 03-22-2015, 04:53 PM   #4
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Really? You guys don't use ratcheting style? I just recently got a set and I'll never go back to the old side cutter pliers.

This is what I got for insulated connectors. I have not made a single bad crimp with them yet.
Titan 11477 Ratcheting Wire Terminal Crimper - - Amazon.com Titan 11477 Ratcheting Wire Terminal Crimper - - Amazon.com

Not sure if they have one for non-insulated.
240_to_miata is offline   Reply With Quote
Old 03-22-2015, 05:22 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Quote:
Originally Posted by Savington View Post
Klein D213-9NECR 9" High-Leverage Side-Cutting Pliers - Connector Crimping

My go-to crimpers for butt connectors. Don't buy a cheap pair, the $40 ones are worth the extra money.
Huh. Interesting to see the old school style being suggested twice. I thought a lot of people were using the ratchet style like 240_to_miata suggested. Maybe I'm overthinking it - after all it really just has to squeeze a bit of metal together.
Onyxyth is offline   Reply With Quote
Old 03-22-2015, 07:05 PM   #6
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,577
Total Cats: 155
Default

I use a ratcheting style similar to what 240 linked and it is amazing. Never a bad crimp and now I don't hate wiring.
Ryan_G is online now   Reply With Quote
Old 03-23-2015, 02:17 AM   #7
Junior Member

Join Date: Dec 2014
Location: Boston, MA
Posts: 143
Total Cats: 8
Default

You can buy the jaws for the ratcheting ones to crimp the uninsulated connectors. Amazon is your friend. Paladin/Greenlee's are a good place to start. They should swap right into the insulated one's frame.
PatCleary is offline   Reply With Quote
