Default butt joint style exhaust band clamp

So there are 2 styles of band clamps.

Do you guys think one works as well as the other?

The 'butt joint" type

"360 degree sealing and good looks to boot.
These band-style exhaust clamps give you a 360 degree seal that won't leak. This particular style was created to "butt-joint" two pipes of the same diameter together--without the need to fit one pipe inside the other.

http://store.summitracing.com/partde...5&autoview=sku



And the regular lap joint kind:

"360 degree sealing and good looks to boot.
These steel band-style exhaust clamps combine a 360 degree seal with a unique design that won't crush pipes and ruin exhaust flow. This particular style was created to "lap-joint" two pipes of different diameters together (one pipe fits inside the other). "

http://store.summitracing.com/partde...5&autoview=sku
JasonC SBB is offline   Reply With Quote
Old 10-23-2008, 09:43 PM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Pretty sure I'd rather have the first type. One, it's easier. I won't have to expand the pipes to fit them. This part actually makes something easier as I can just cut, butt the pieces to each other, and clamp. Besides, if you slip fit them, they mostly seal anyways. Well, I slip fitted mine in a coupler places and now I've been wanting to get the band clamp thing like the first one so that stuff can be disassembled without having slide back the exhaust to remove the slip fit.

Choice 1 is the clear winner.
patsmx5 is offline   Reply With Quote
Old 10-23-2008, 10:26 PM   #3
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

the first img is dead.
hustler is offline   Reply With Quote
Old 10-24-2008, 12:16 AM   #4
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

I have one of each in my exhaust. I have a slip-fit at the end of the dp, and a butt-joint a couple feet after the cat. I used the same clamp for both, the thin metal just stretched over the flared end of the dp so it seals it up pretty well.
skidude is offline   Reply With Quote
Old 10-24-2008, 12:20 AM   #5
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

+1 the thin metal of number 1 will stretch. number two is redundant.
johndoe is offline   Reply With Quote
Old 10-24-2008, 08:51 AM   #6
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

um i vote if you have a butt joint use #1
if you have a slip fit use #2
Mach929 is offline   Reply With Quote
Old 10-24-2008, 08:58 AM   #7
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by Mach929 View Post
um i vote if you have a butt joint use #1
if you have a slip fit use #2
Kinda what I was thinking...depends on what your situation is. Obviously if your pipes are different diameter's the first won't work...right?
KPLAFIN is offline   Reply With Quote
Old 10-24-2008, 12:20 PM   #8
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

The cuts in the pipe haven't been made yet, and they can be made either way. Thus my question really is, which joint is better?
JasonC SBB is offline   Reply With Quote
Old 10-24-2008, 12:44 PM   #9
Elite Member
iTrader: (3)

Mach929's Avatar

Join Date: Oct 2004
Location: lansdale PA
Posts: 2,500
Total Cats: 0
Default

i'd say the slip fit is better but much more work
Mach929 is offline   Reply With Quote
Old 10-24-2008, 12:50 PM   #10
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

This one time... in band clamp....
BenR is offline   Reply With Quote
Old 10-24-2008, 03:48 PM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,867
Total Cats: 1,790
Default

depending on the component....most mufflers and resonators are made to be slightly larger than your pipes to slip over top.

I used the butt-joint bands for these two slip joints:

Braineack is online now   Reply With Quote
Old 10-25-2008, 03:02 PM   #12
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

nevermind

Last edited by Trent; 10-25-2008 at 11:09 PM.
Trent is offline   Reply With Quote
Old 10-25-2008, 03:15 PM   #13
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

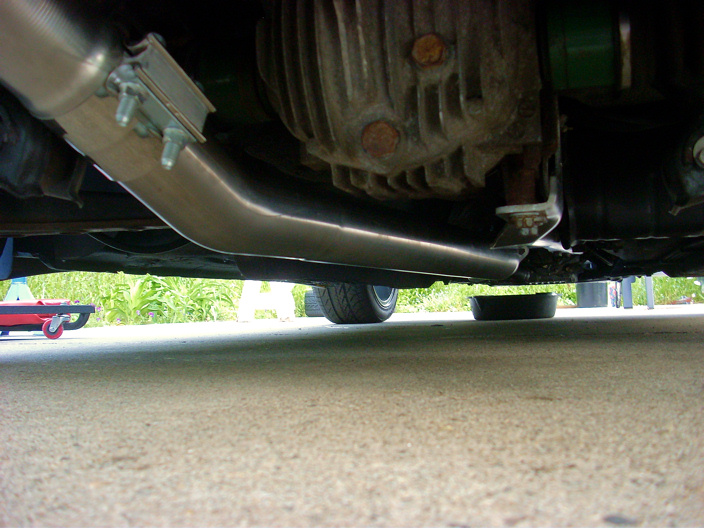

My Enthuza came like dat.

Vash-
Attached Thumbnails
butt joint style exhaust band clamp-exhaust-clamp.jpg
Vashthestampede is offline   Reply With Quote
Old 10-25-2008, 11:09 PM   #14
Elite Member
iTrader: (11)

Trent's Avatar

Join Date: Feb 2006
Location: Louisiana
Posts: 1,625
Total Cats: 5
Default

Quote:
Originally Posted by Vashthestampede View Post
My Enthuza came like dat.

Vash-
hmmm.......the enthuza goes under the rear subframe?
Trent is offline   Reply With Quote
Old 10-29-2008, 07:20 PM   #15
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

So the butt joint band clamp is now installed behind my cat.

The exhaust's first hanger was behind the resonator (which is between the cat and the final muffler).

The band clamp cannot prevent the exhaust from drooping at its location. It is strong enough to prevent the pipe from getting yanked, but it's not strong enough to prevent bending.

Exhaust guy had to add a hanger at the front of the resonator (near the band clamp).
JasonC SBB is offline   Reply With Quote
