Default Ever wonder what happens when..

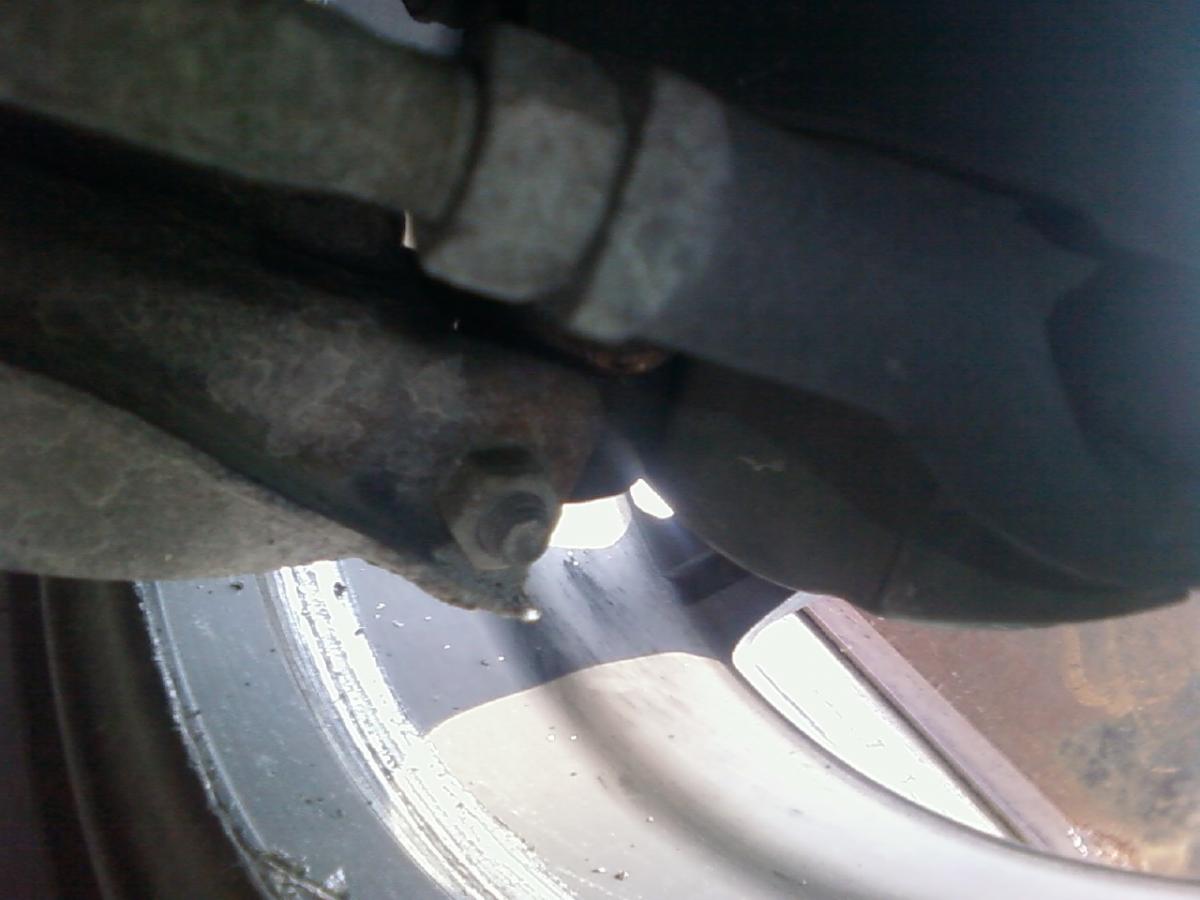

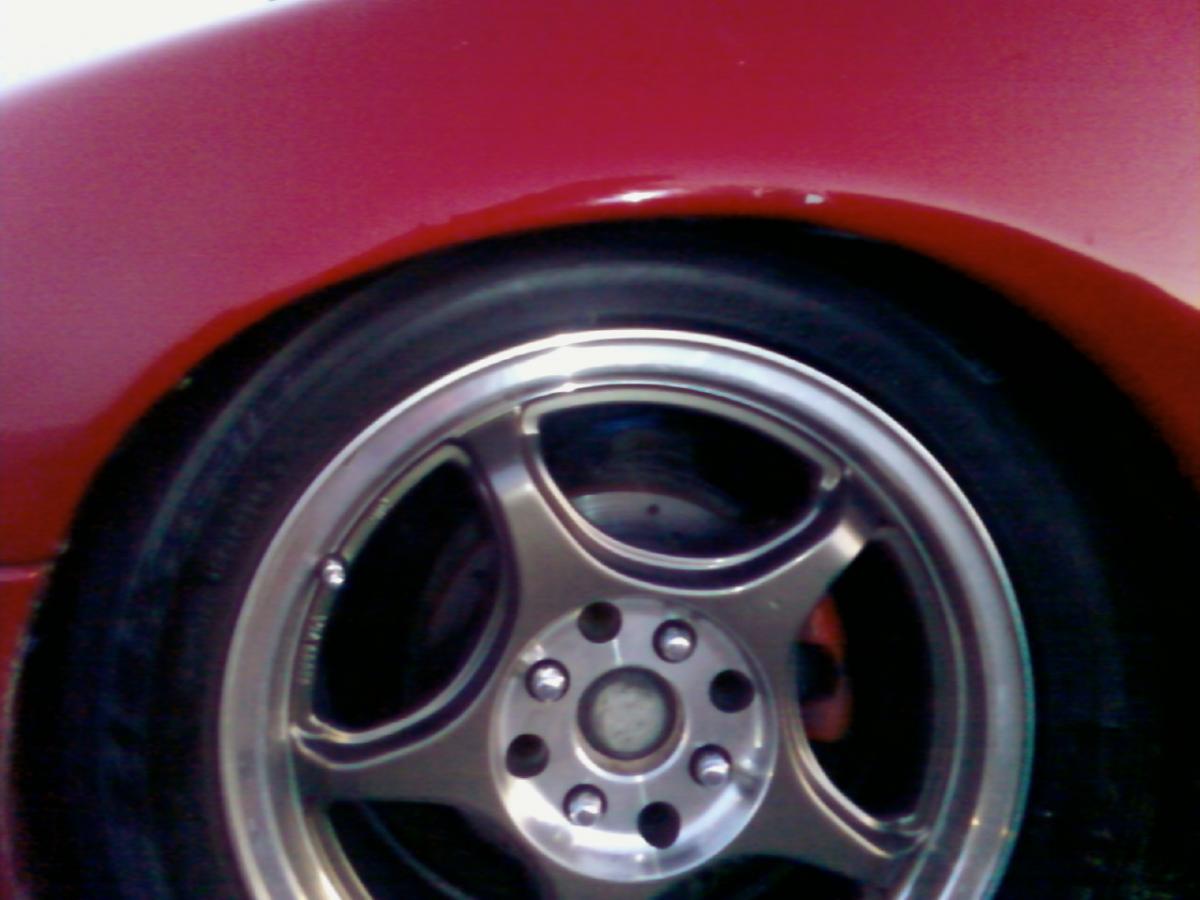

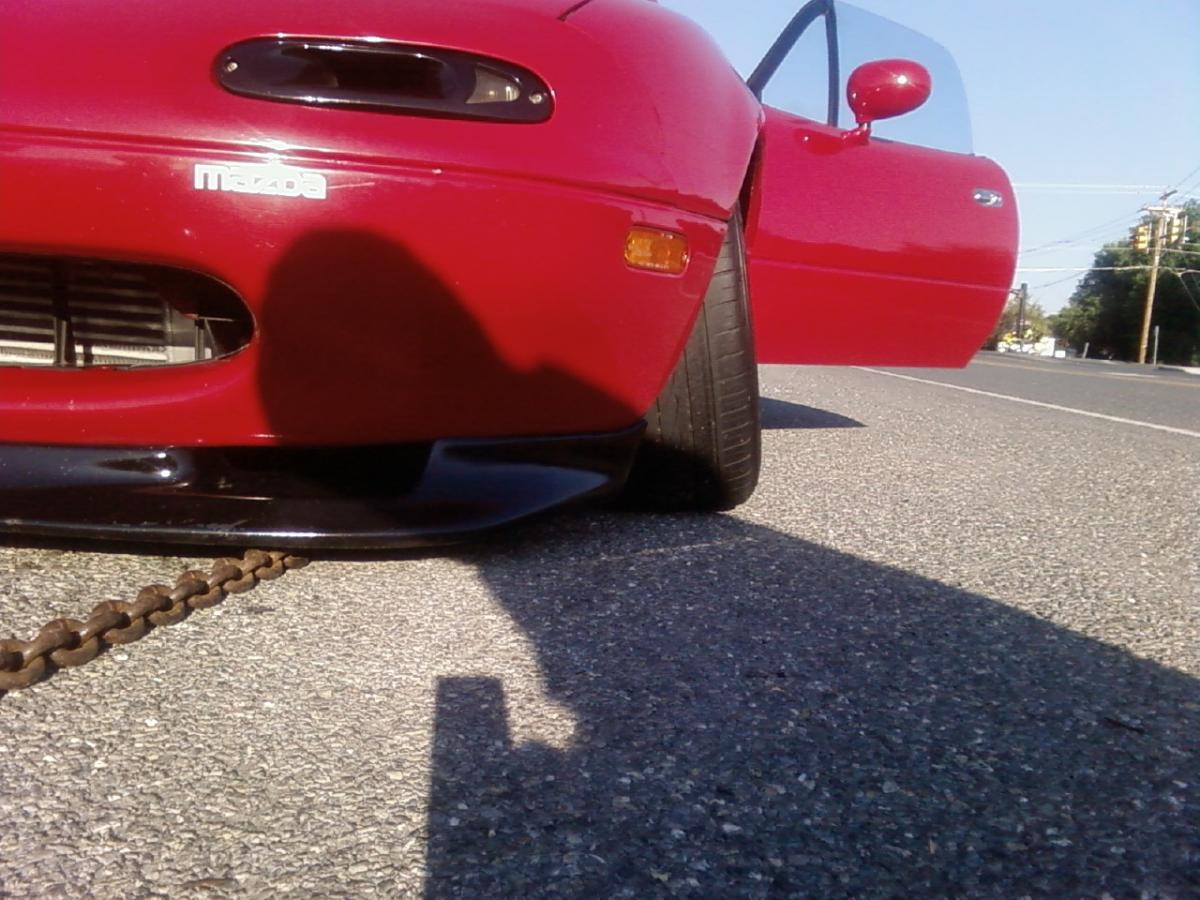

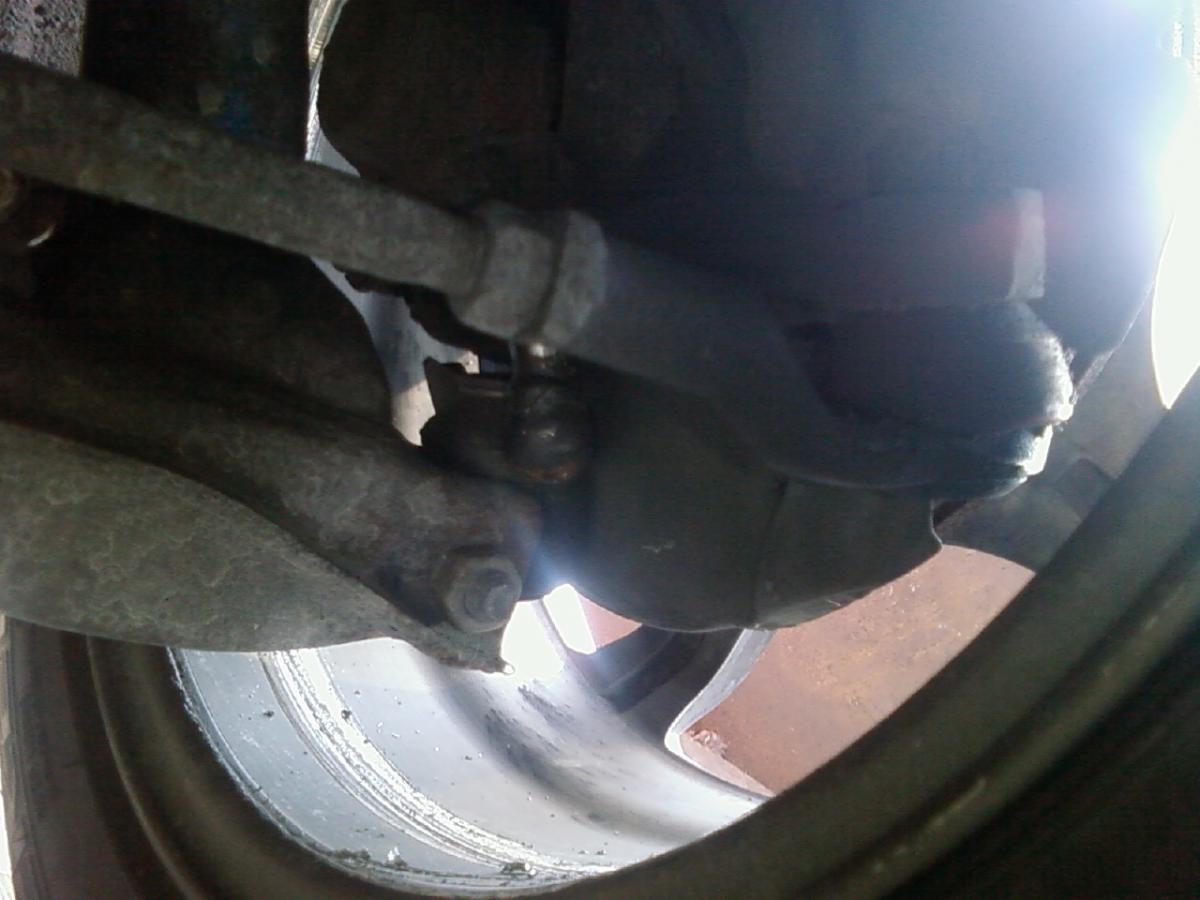

A ball joint completely fails while driving?

Luckily I was only going about ten miles an hour when this happened.

More pics with a decent camera to follow once I get the car apart.

Getting a low miata onto a trailer is pain in the ***. But not nearly as hard as getting a low miata with a wheel that's got a control arm digging into it, and is pivoting off the upper control arm, and also dragging on the wheel well.

and to top things off the trailer doesn't have an electric winch, so i pulled the car up using a coffin hoist.
It was an exciting morning
Attached Thumbnails
Ever wonder what happens when..-p090729001.jpg   Ever wonder what happens when..-p090730001.jpg   Ever wonder what happens when..-p090730003.jpg   Ever wonder what happens when..-p090730004.jpg
nicacus is offline   Reply With Quote
Old 07-31-2009, 08:15 AM   #2
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

ouch.

Looks like it dug into your wheel too. Similar to what happened at the track for me, although it wasn't the ball joint that failed.

During the years I had an ae86, I replaced the front brakes because they seized up. I put locktite on where the brakes mount. At buttonwillow track on a mid summer day, my top bolt on the caliper failed and backed out. It lunged forward, bending the caliper bracket, and digging straight into the wheel. The wheel warped out of shape and was no longer useable.

Before you get back on the road with those wheels, make sure the integrity isn't compromised. And while you're at it, check that entire side for any other damage.

EDIT: If you were only going 10 mph, I'm sure it would be fine, but at the speeds I was going when mine happened, it was a catastrophe. I drove home that day using the e-brake to slow down. The entire caliper was held up by one bolt
Marc D is offline   Reply With Quote
Old 07-31-2009, 11:42 AM   #3
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Hurts to see. I'm nervous about tow truck drivers dragging the front while loading, but it looks like this was dragging the whole way up.

Did it happen during a turn by chance?
ARTech is offline   Reply With Quote
Old 07-31-2009, 12:12 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

ok, time to buy new ball joins.
hustler is offline   Reply With Quote
Old 07-31-2009, 12:34 PM   #5
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

Now that's stance...
p51hellfire is offline   Reply With Quote
Old 07-31-2009, 12:51 PM   #6
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

ummm....how many miles are on your car?

Thinking those are finally worth the price.
gospeed81 is offline   Reply With Quote
Old 07-31-2009, 01:35 PM   #7
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Yeah it happened right after a turn, funny thing is that these ball joints aren't even a year old.
so I won't be buying generic **** again, I ordered some from the dealer last night. $62 a pop, I paid 45 for the two on there now.

I'll probably just buy a new wheel, they are pretty cheap, something like 75 a piece.
nicacus is offline   Reply With Quote
Old 07-31-2009, 02:30 PM   #8
Junior Member
iTrader: (5)

Join Date: Jul 2006
Location: Connecticut
Posts: 165
Total Cats: 0
Default

Quote:
Originally Posted by nicacus View Post
Yeah it happened right after a turn, funny thing is that these ball joints aren't even a year old.
so I won't be buying generic **** again, I ordered some from the dealer last night. $62 a pop, I paid 45 for the two on there now.

I'll probably just buy a new wheel, they are pretty cheap, something like 75 a piece.

Mazda Motorsports is your friend.
Quinn is offline   Reply With Quote
Old 07-31-2009, 02:56 PM   #9
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

They dont spontaneously fail like that do they? There had to be some warning signs.
Saml01 is offline   Reply With Quote
Old 07-31-2009, 02:59 PM   #10
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
They dont spontaneously fail like that do they? There had to be some warning signs.
Usually they just develope some play, you might feel vibration from it. Ignore it long enough and that's what happens.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 07-31-2009, 04:01 PM   #11
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Another warning for generic **** parts. We had an egay oil pump fail this week too...
Laur3ns is offline   Reply With Quote
Old 07-31-2009, 04:28 PM   #12
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
They dont spontaneously fail like that do they? There had to be some warning signs.
I didnt notice any wobble at all, the only thing I noticed was a slight squeek when I turned to the right a day before.

Last edited by nicacus; 07-31-2009 at 05:48 PM.
nicacus is offline   Reply With Quote
Old 07-31-2009, 04:50 PM   #13
I'm Miserable!
iTrader: (16)

Join Date: Dec 2008
Location: where most people are Utarded
Posts: 1,323
Total Cats: 0
Default

Oh crap man, did it catch the lip of the fender and crack the paint? I blew a shock once and had that happen on a big bump. Still need that rear hub?
zoomin is offline   Reply With Quote
Old 07-31-2009, 05:51 PM   #14
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

No, the scratch on the fender is from an ex girlfriend putting her knee into the fender. you can still see the biggest chip of paint if you look close in different pictures.

I might still need that hub. I ordered bushings from 949racing the night the ball joint failed. so I'll let you know when I get everything pulled apart.
nicacus is offline   Reply With Quote
Old 07-31-2009, 07:49 PM   #15
Senior Member
iTrader: (1)

Join Date: Jul 2009
Location: Batavia, IL
Posts: 604
Total Cats: 0
Default

Put this on a CR slammed thread. They'll orgasm.

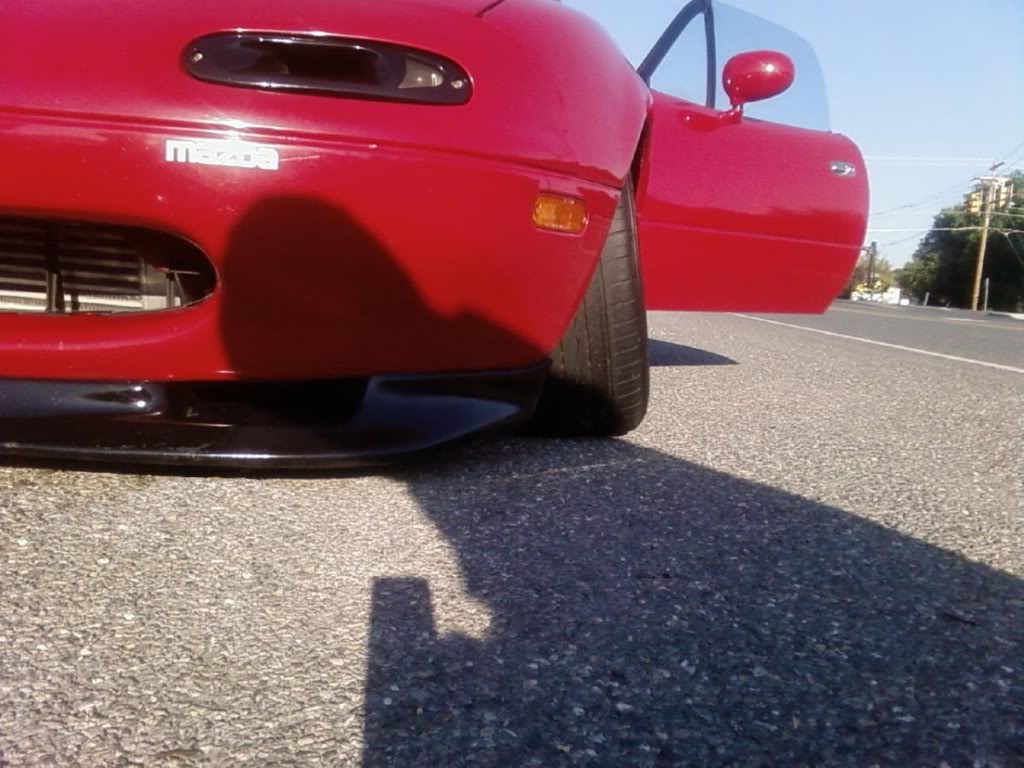

Name:  P090730001-1.jpg
Views: 2
Size:  119.4 KB

PS Man that sucks, sorry to hear
Cococarbine3 is offline   Reply With Quote
Old 07-31-2009, 09:08 PM   #16
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Damn. All of the **** I've done and I'm still on original 120k mile ball joints. This makes me kind of worry. Though yours being generic junk, thats probably 80% of the reason. I can't say I have seen an OEM joint fail like this. Can you imagine if you had been doing 60+, or hell, even 35 would have been scary as ****. Just one more thing to make me worry while driving.
NA6C-Guy is offline   Reply With Quote
Old 07-31-2009, 10:39 PM   #17
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Quote:
Originally Posted by Cococarbine3 View Post
Put this on a CR slammed thread. They'll orgasm.



PS Man that sucks, sorry to hear
Just dont tell them thats a GV knock off lip

I changed the joints out. The other side that didn't fail was completely drained of grease, and was probably on the verge of doing the same thing.

More pics after dinner
nicacus is offline   Reply With Quote
Old 07-31-2009, 11:58 PM   #18
Junior Member

Join Date: Sep 2008
Location: Chicago, IL
Posts: 234
Total Cats: 4
Default

Were these ebay balljoints? There's a thread on cr.net which had 2-3 people with failed ebay balljoints and one with NAPA rebuilds. I buy oem when it comes to things like that.
Slider is offline   Reply With Quote
Old 08-01-2009, 01:24 AM   #19
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Quote:
Originally Posted by Slider View Post
Were these ebay balljoints? There's a thread on cr.net which had 2-3 people with failed ebay balljoints and one with NAPA rebuilds. I buy oem when it comes to things like that.
Yes they were. Lesson learned

Here are some pics

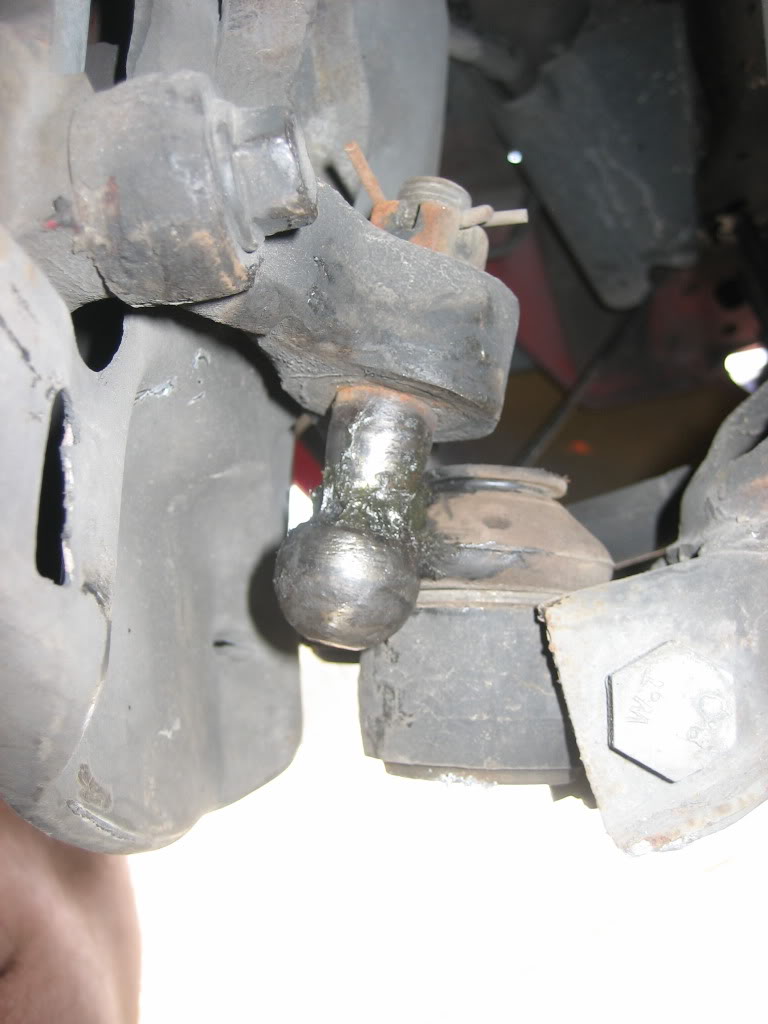

Name:  IMG_8145.jpg
Views: 2
Size:  85.3 KB

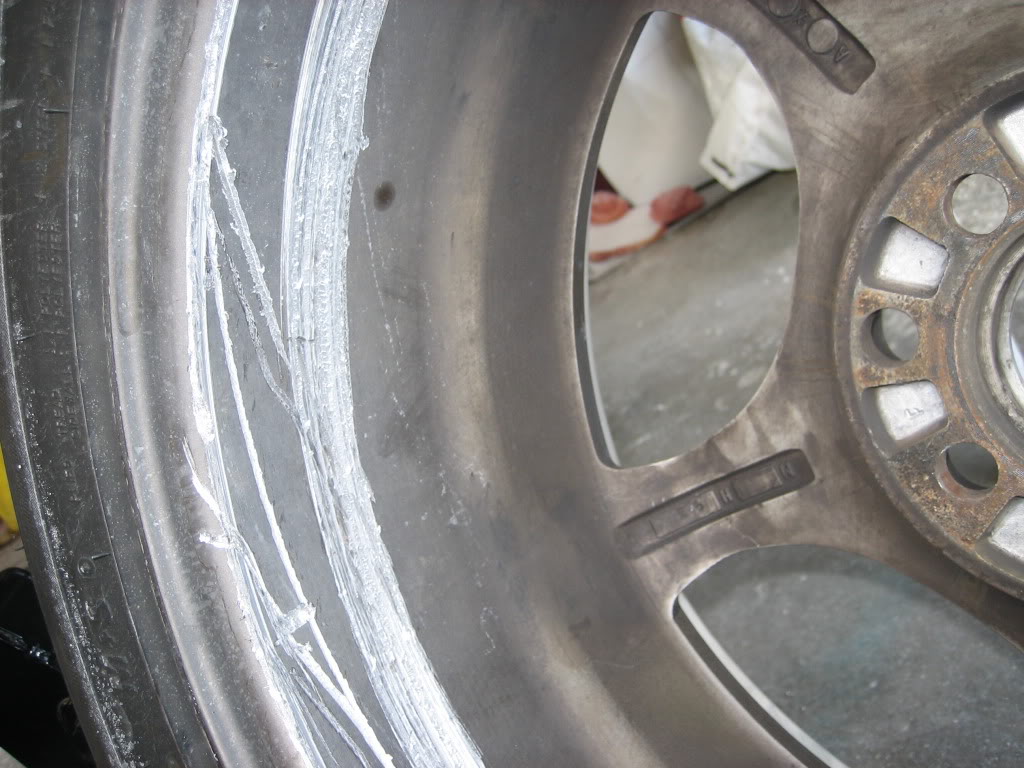

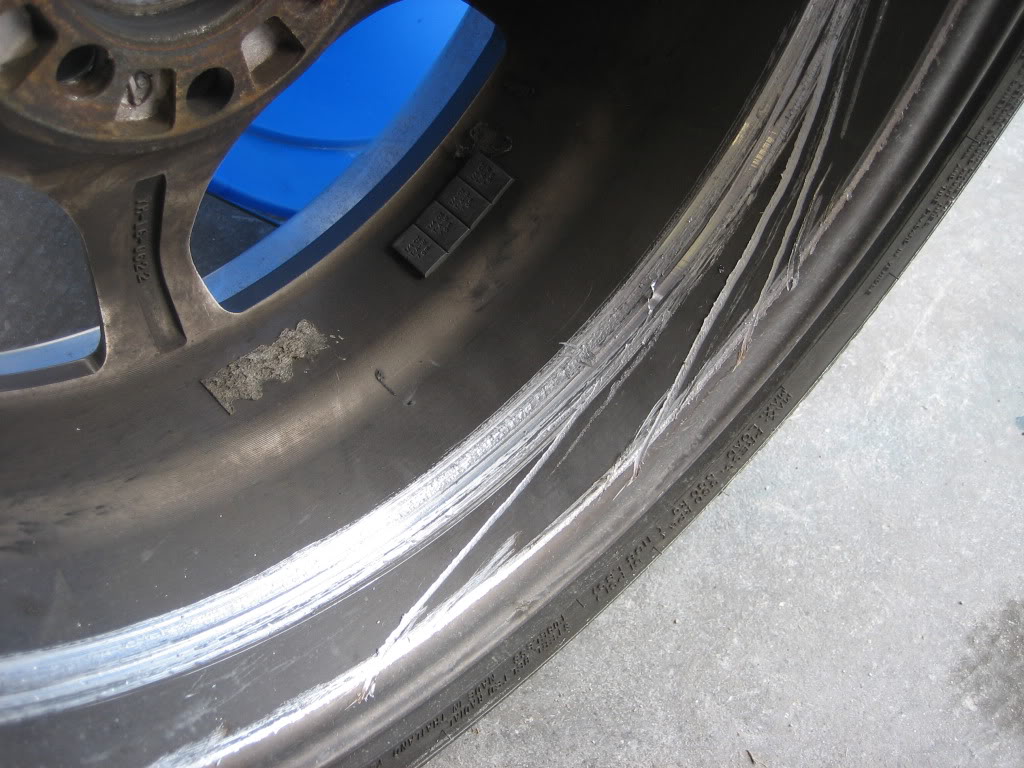

Wheel damage, wasnt as bas as I thought it was, nothing very deep. Still going to get a new wheel.
Name:  IMG_8142.jpg
Views: 2
Size:  149.0 KB

Name:  IMG_8144.jpg
Views: 2
Size:  137.1 KB

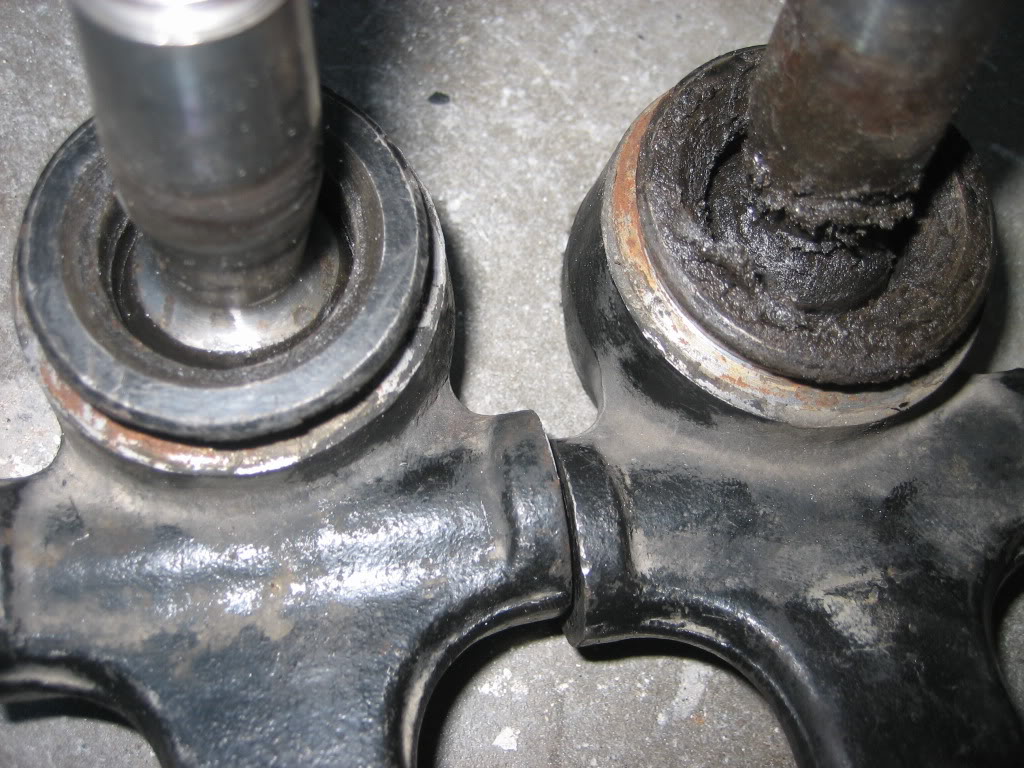

The ball joint on the left is the one that came apart, I cleaned off the grease and pressed it back together out of curiosity (wanted to see if I could pull it back apart.)
Ball joint on the right is the other side, with just the boot removed. Notice the small amount of grease, and what grease there is, is full of dirt.



Name:  IMG_8147.jpg
Views: 2
Size:  173.1 KB







The other sides ball joint had more play in it than the original ball joints that had 155 thousand or so miles on them. Oddly enough the car didn't wobble at all.

After changing these the car is at least 6 times easier to turn.
It feels like I have power steering again (lines are looped) not like I'm driving an old suburban without power steering.

So the lesson for the day is:

eBay sucks. lucky to be not dead
