Originally Posted by Dann0
(Post 1345576)
I have been looking at the Forney 125 flux welder on Amazon as a possible alternative to the Harbor Freight unit, but one of the reviewers said he hooked his multimeter up to it and found that it was putting out AC as well, rather than DC electrode negative.
Like, if you look at a PWM-controlled circuit under the hood, like the idle valve. PWM DC isn't the same thing as true AC, but a multimeter can't tell the difference. This is one reason why oscilloscopes are so nice; you can use them to visualize the magnitude of the ripple relative to the DC carrier, to determine whether or not it's going to be a big deal. |
Originally Posted by shuiend
(Post 1345110)
I have the 20 ton and I am very happy with it. I wouldn't expect the 50ton to be any worse.
|
Originally Posted by kevinspann
(Post 1349189)
I'm probably going to pick one of these up in the next couple months. Any issues with yours? I've heard the arbor plates kinda suck, but I hopefully won't use it for anything crazy. Just wheel bearings and the like.
|
The 20 is the one to get. Some reports of the cast arbor plates exploding, swag parts makes plate steel ones.
|
Well I just picked up this charmer on Craigslist for $50:
https://cimg4.ibsrv.net/gimg/www.mia...ea56a2a099.jpg Add in my $27 of additions: https://cimg5.ibsrv.net/gimg/www.mia...20d7c3536b.jpg And another $10 of incidentals, and I'm going to get a capable little welder for really cheap. |
Originally Posted by kevinspann
(Post 1349189)
I'm probably going to pick one of these up in the next couple months. Any issues with yours? I've heard the arbor plates kinda suck, but I hopefully won't use it for anything crazy. Just wheel bearings and the like.
|
Not a harbor tool but definitely pretty cool.
Facebook Post |
Picked up the 14" cutoff saw the other day.
It works. Things get cut. $60 with coupon |
Originally Posted by triple88a
(Post 1351674)
|
Originally Posted by y8s
(Post 1351697)
Tell me why this is significantly better than large diameter wheels or the cool tank tread things. Does it not roll down stairs?
The tank threads would have to be too long not to get caught on each stair. |
bought more of those windshield repair kits from HF
they still work okayish, but for some reason the glue doesn't dry anywhere near as effectively as the ones I got before. kinda annoying, since it's like 100F here, way hotter than the time I used the last set |
Originally Posted by triple88a
(Post 1351710)
Because with large wheels you are still stuck with going over the corner of the stair with the full diameter of the wheel while with this the "diameter shrinks".
The tank threads would have to be too long not to get caught on each stair. https://lh5.googleusercontent.com/-R...l_catenary.gif |

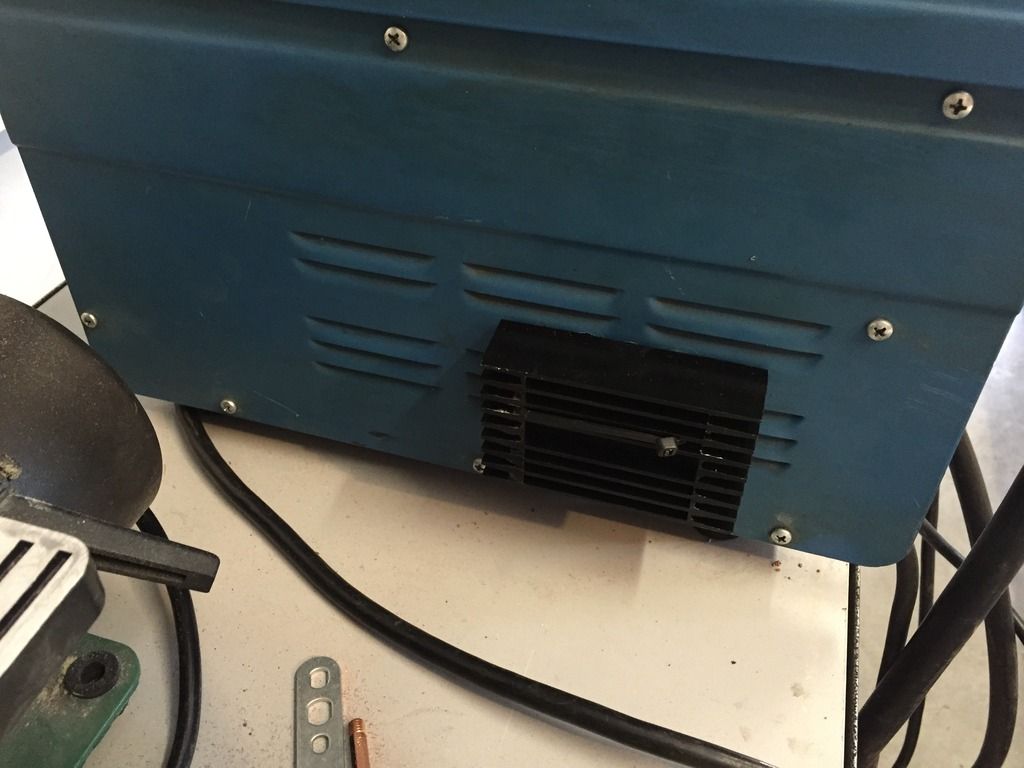

So I finally got around to my Harbor Freight 90a welder project. Pretty simple stuff - routed the power on the far side of the main transformer through a 150a 1200v bridge rectifier, to convert the AC to DC. Mounted the rectifier on the outside of the case for better cooling.

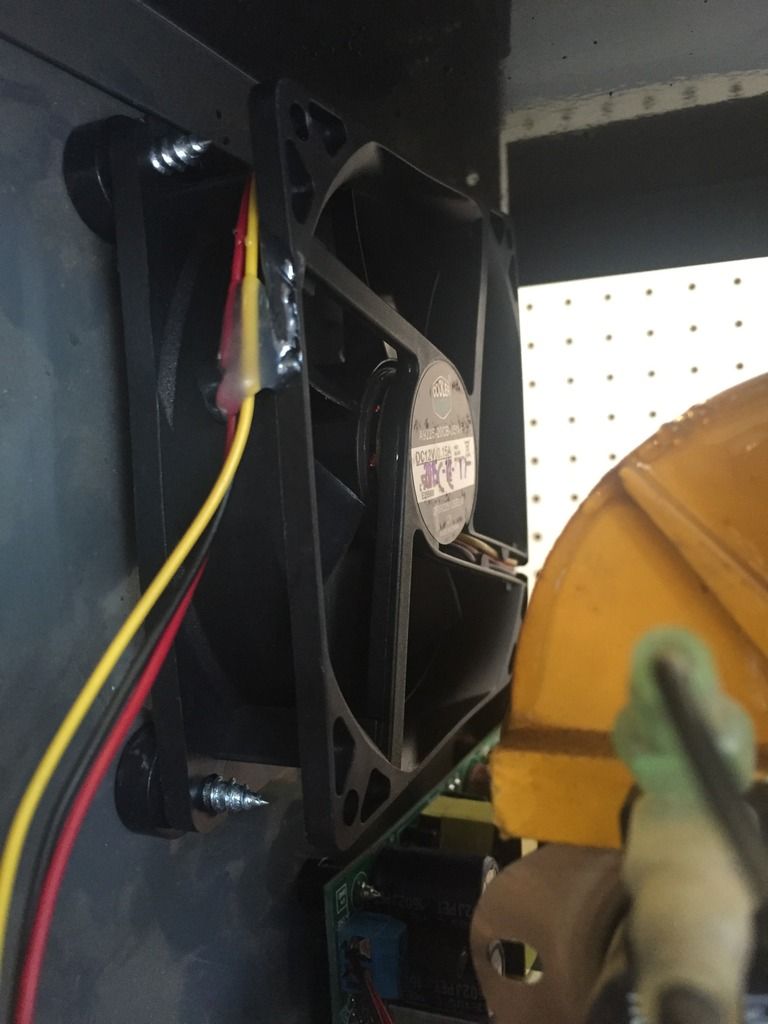

http://i54.photobucket.com/albums/g1...a.jpg~original Sent the positive and negative output from the rectifier to a bank of three 63v 22000uF capacitors, wired in parallel, with a 10w 150ohm bleed resistor. http://i54.photobucket.com/albums/g1...1.jpg~original Electrode was wired to negative, ground clamp to positive. I also added a 90mm computer fan for better cooling. http://i54.photobucket.com/albums/g1...v.jpg~original Total cost for this whole operation, including the cost of the welder, was less that $90. For that money, and for my hobby needs, I suspect this is going to be a capable little machine. Now I guess I have to weld something! |
Has anyone tried the HF safety wire pliers? Junk? Or useable?
|
They're usable, but pretty darn bad. The only thing I've used them for are TSE 2-piece rotors, and it was a pain. I'm used to using very legit pliers from aircraft spruce, so maybe it's just me. But you kind of have to assist the pliers to twist, and assist them to retract. They also don't clamp very evenly so you have to make sure you're clamping the wire in the spot that actually makes contact.
|
Originally Posted by aidandj
(Post 1356575)
Has anyone tried the HF safety wire pliers? Junk? Or useable?
|
Links to better ones?
|
https://cimg9.ibsrv.net/gimg/www.mia...c3bad11406.png

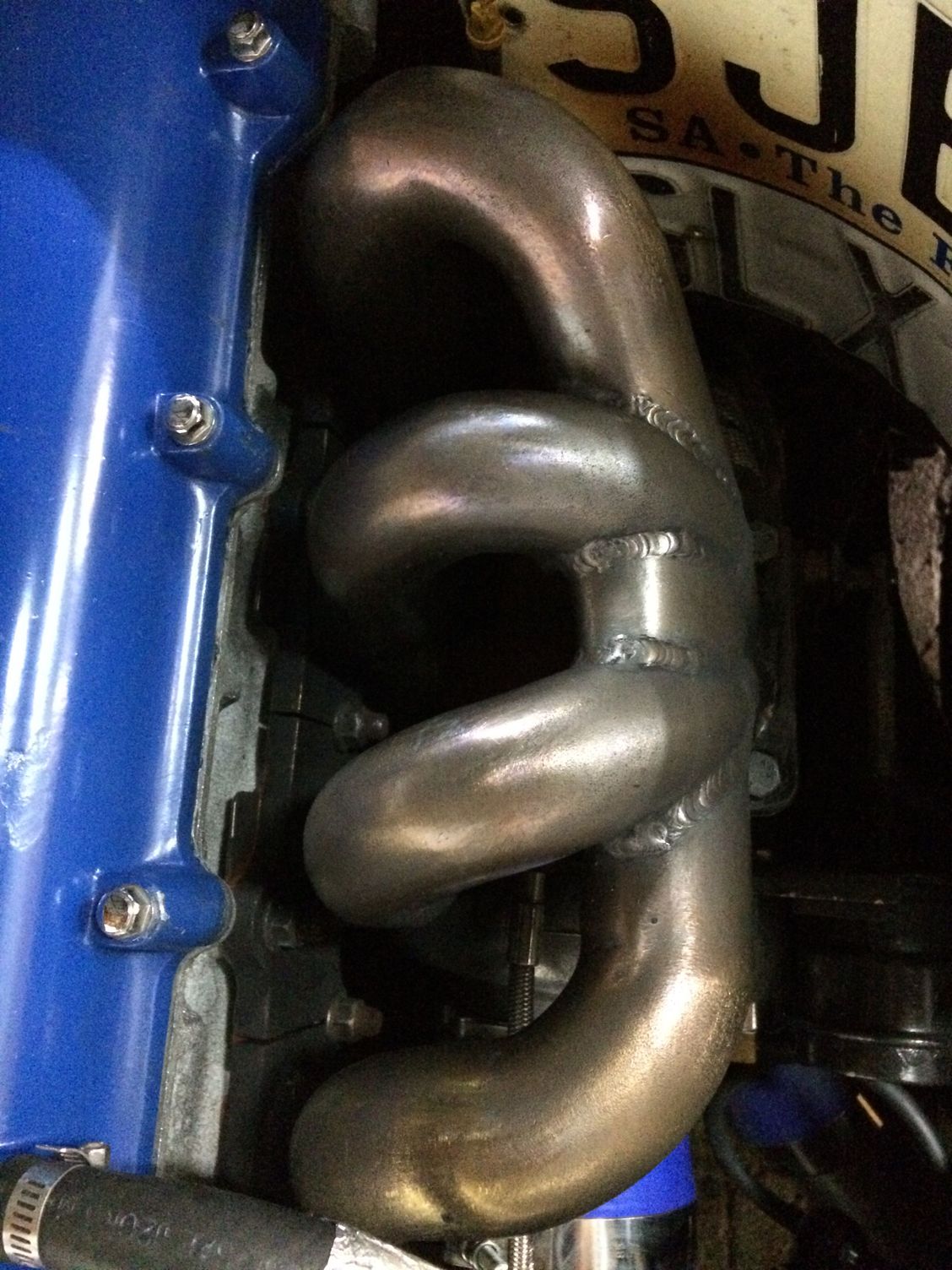

https://cimg2.ibsrv.net/gimg/www.mia...d24988ee6.jpeg Bought this a year or two ago. Thing has been great. Made my own stainless manifold . |
Originally Posted by aidandj
(Post 1356575)
Has anyone tried the HF safety wire pliers? Junk? Or useable?
|
Cool thanks.
|
