Old 10-07-2015, 08:56 PM   #21
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

You are wrooooong.

If you change the leads on the start capacitor it will run backwards, the motor placard clearly depicts this. The two hots are identical to each other, inversely, sixty times a second. How can reserving that make it spin backwards?
deezums is offline   Reply With Quote
Old 10-07-2015, 08:57 PM   #22
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by Erat View Post
It could be split phase.

Either way, it could have a cap. It still doesn't matter, if you change the leads on the motorthen it will run the opposite way.
And you're absolutely right, if he doesn't touch it, no matter what hot gets what it will run the proper way. Since a shop already had it setup and running at one time.
It is split phase, specifically single phase 240V.

It for sure has as starting cap, wouldn't start without one.

And yes if he hooks the two hots and nuetral up it will work, motor was setup the correct direction when it was wired up as you say.
patsmx5 is offline   Reply With Quote
Old 10-07-2015, 09:02 PM   #23
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Quote:
Originally Posted by deezums View Post
You are wrooooong.

If you change the leads on the start capacitor it will run backwards, the motor placard clearly depicts this. The two hots are identical to each other, inversely, sixty times a second. How can reserving that make it spin backwards?
I know this.

How am i not making myself clear?
Erat is online now   Reply With Quote
Old 10-07-2015, 09:05 PM   #24
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

I have changed the plug twice now.moving it different places. Replacing the 6-20 plug with a 6-30 plug won't do jack if the wiring behind it is still 12 gauge.
aidandj is offline   Reply With Quote
Old 10-07-2015, 09:06 PM   #25
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Bottom line.

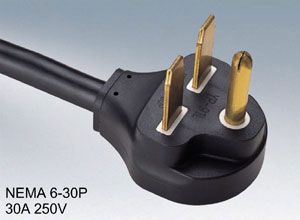

He needs this:



The machine should already have this on it. All is see is the back of it in the picture.

He needs the female end of this wired into a box in his house. Two hots and a ground.

If this is done then you SHOULDN'T need to check rotation. I would still check, but whatever do what you want it's not mine.

If you hook up a 6-20 male plug and get into the pecker head. Then good luck.
Attached Thumbnails
Help me hook up my air compressor-80-infrared_sauna_240v_nema630_c162c0a4db800963e8710087f0f25e8d2fcf9216.jpg
Erat is online now   Reply With Quote
Old 10-07-2015, 09:06 PM   #26
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I don't know, you seemed confused about the existence of the cap so I wanted to be sure.

Most compressors I've messed with have terminal blocks on the pressure switch. That should be all he needs to hook up, and it doesn't matter which gets which.

Everything more complicated happens past that terminal block, so don't reverse the leads inside the motor to the terminal block and all is well.
deezums is offline   Reply With Quote
Old 10-07-2015, 09:18 PM   #27
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Quote:
Originally Posted by aidandj View Post
Replacing the 6-20 plug with a 6-30 plug won't do jack if the wiring behind it is still 12 gauge.
That is just the rating of the plug.

Split the difference and put a 25a breaker in. It'll be fine.

Erat is online now   Reply With Quote
Old 10-07-2015, 09:20 PM   #28
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

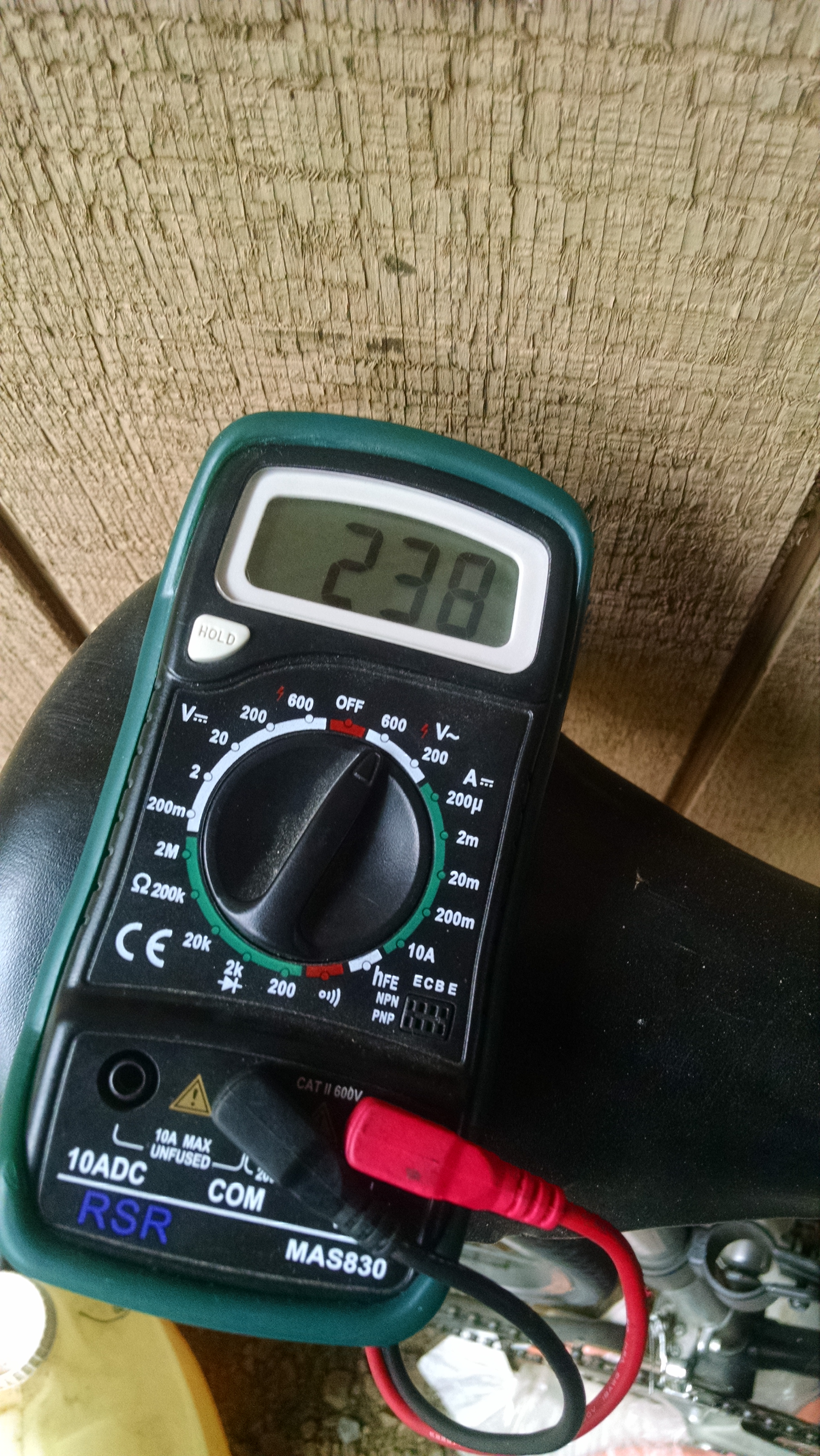

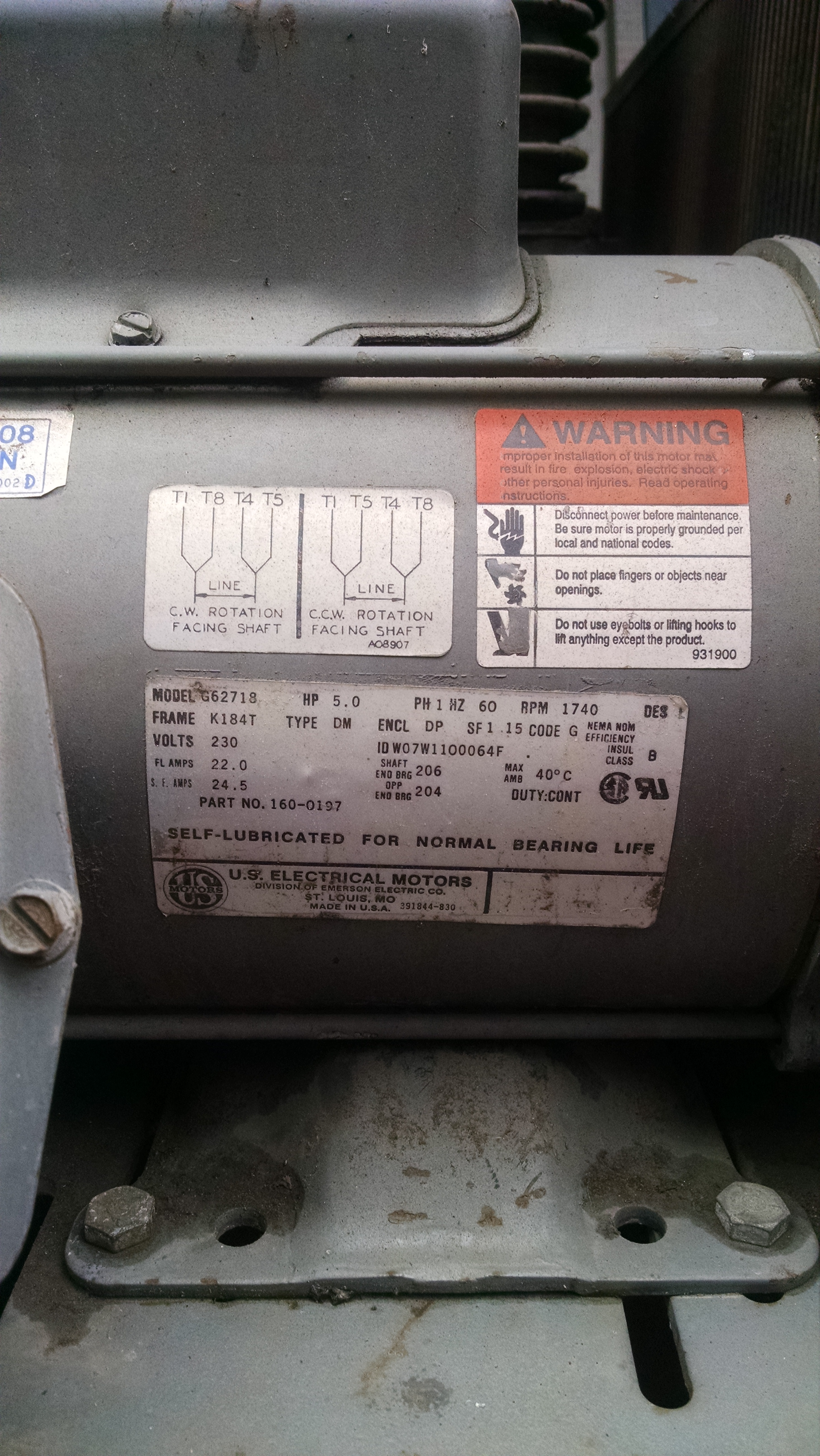

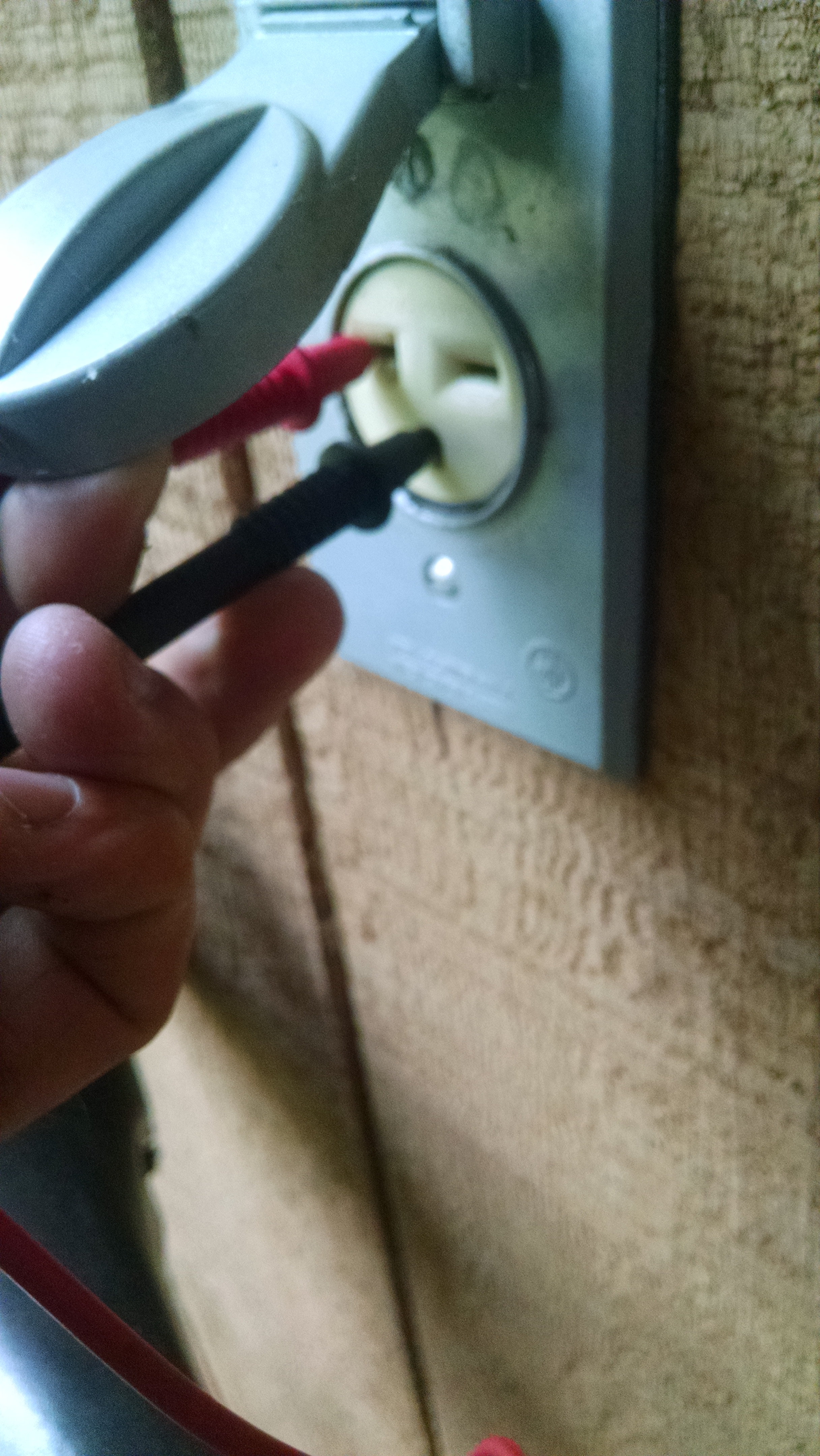

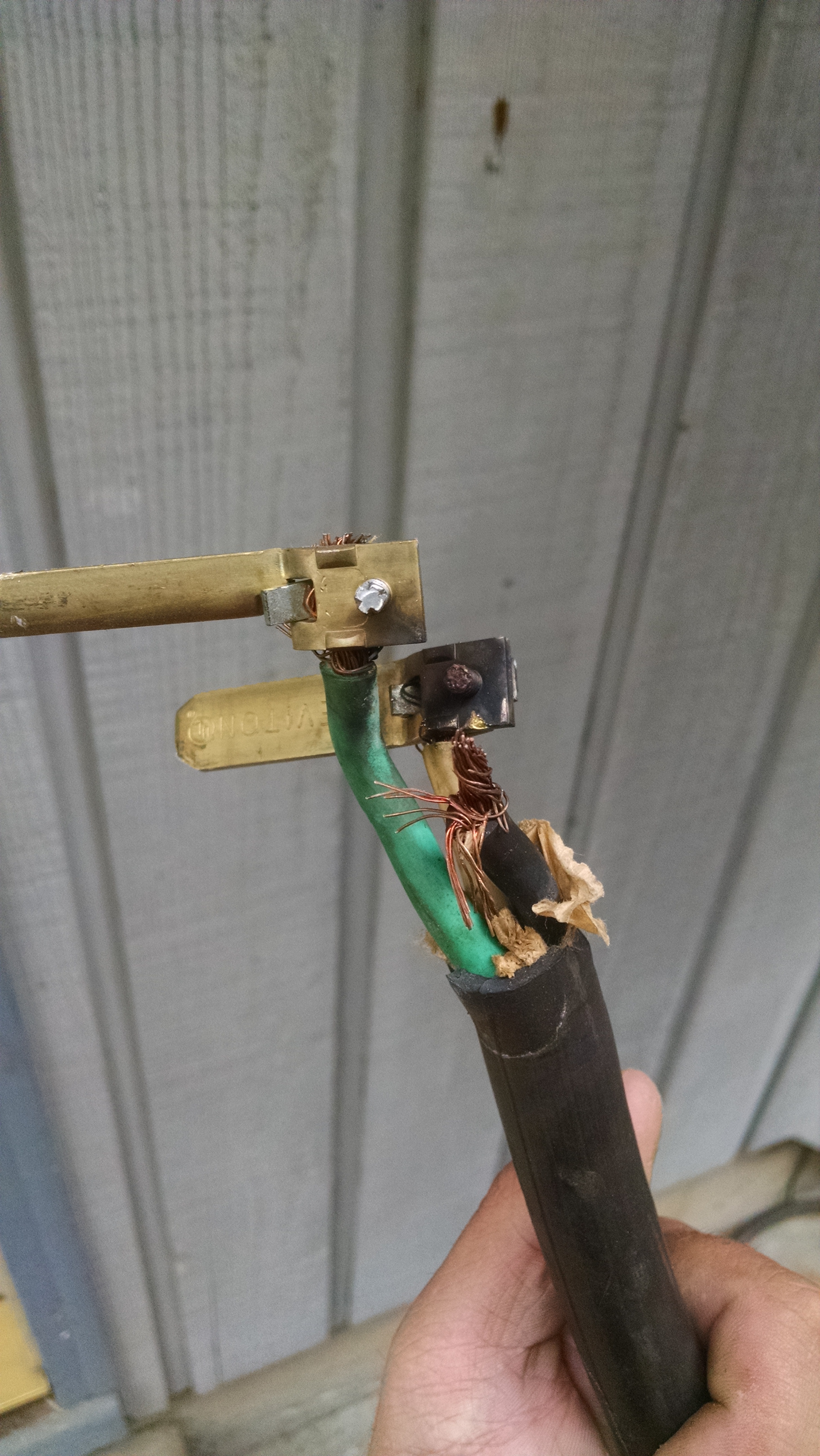

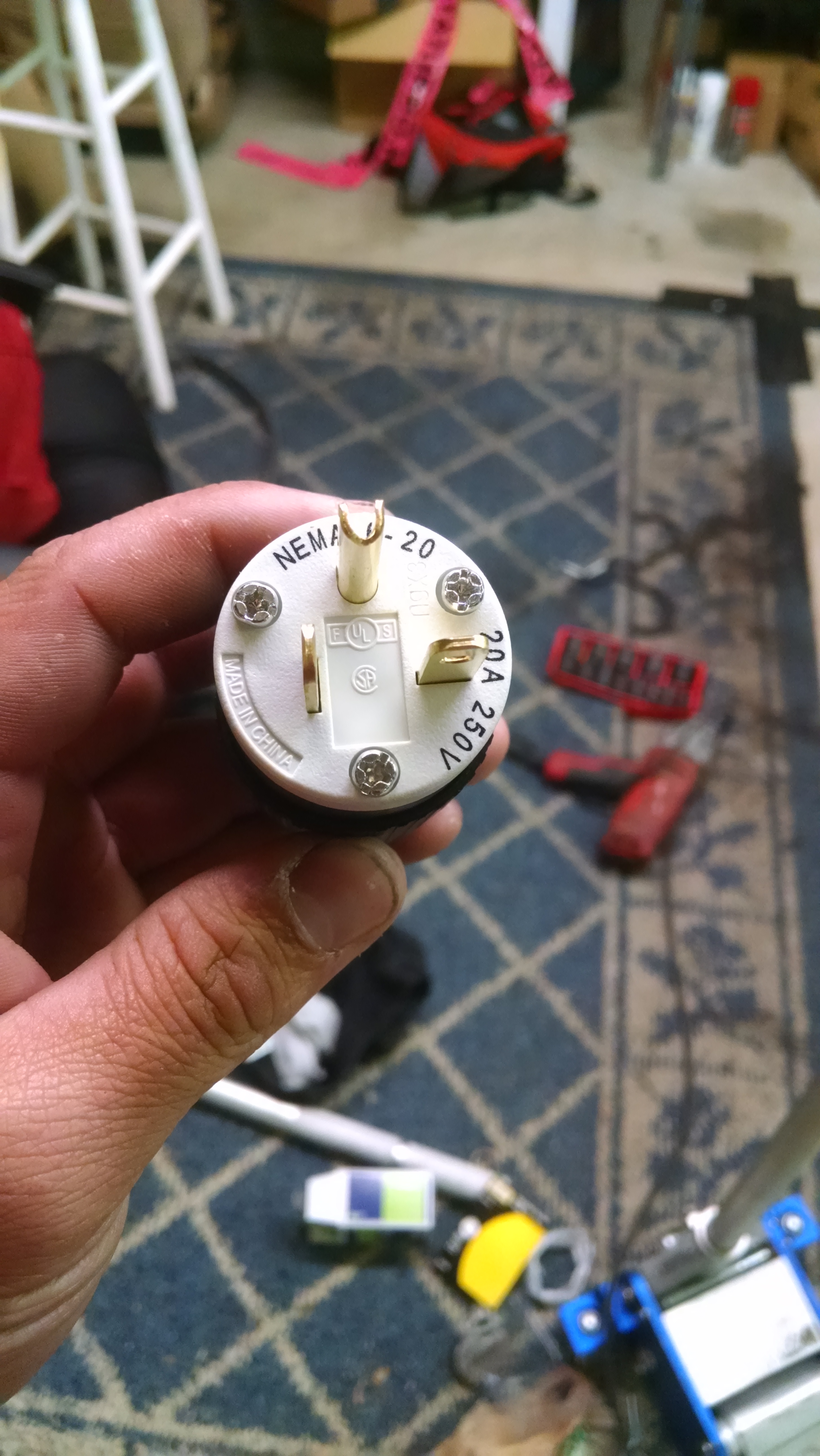

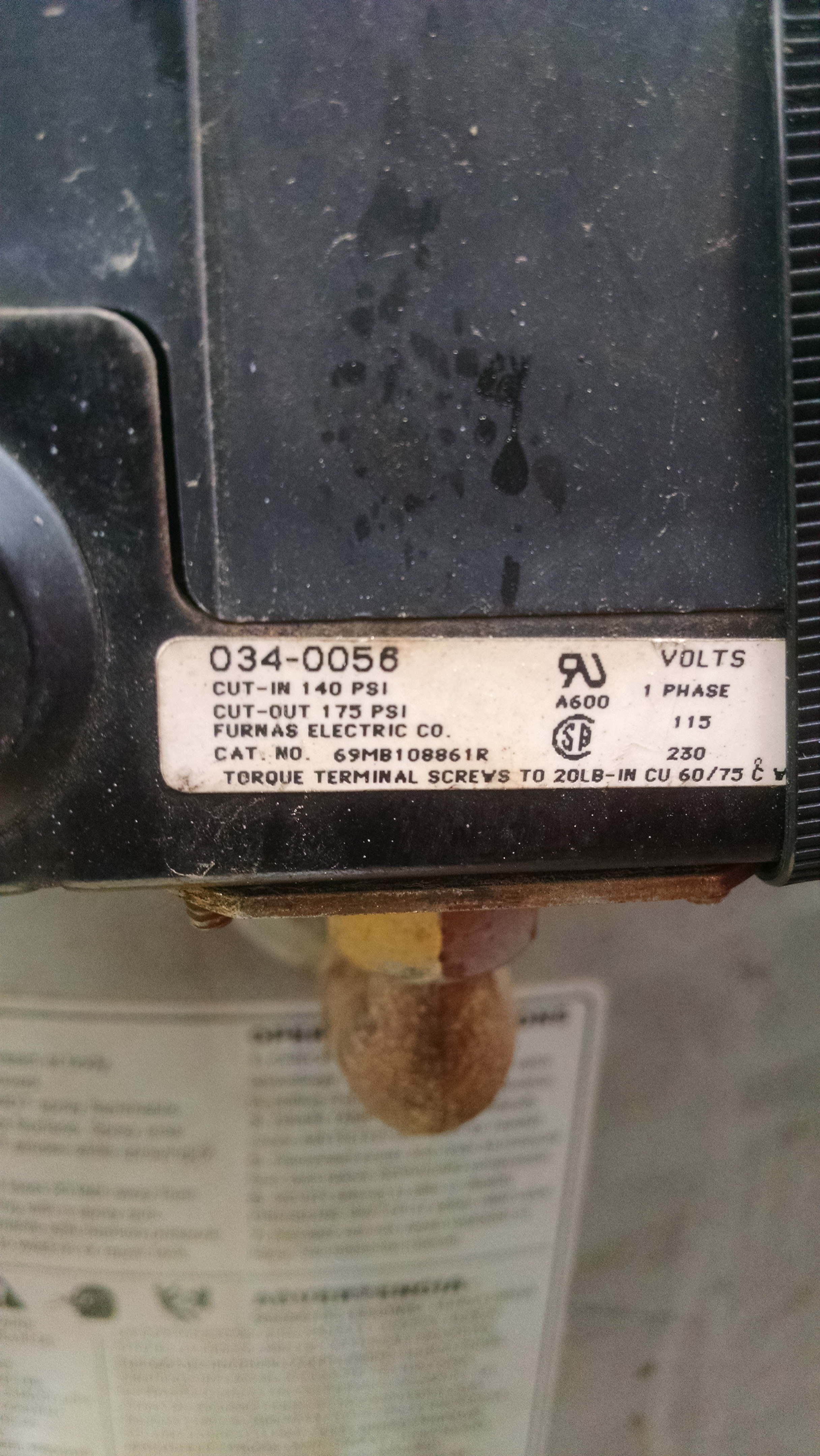

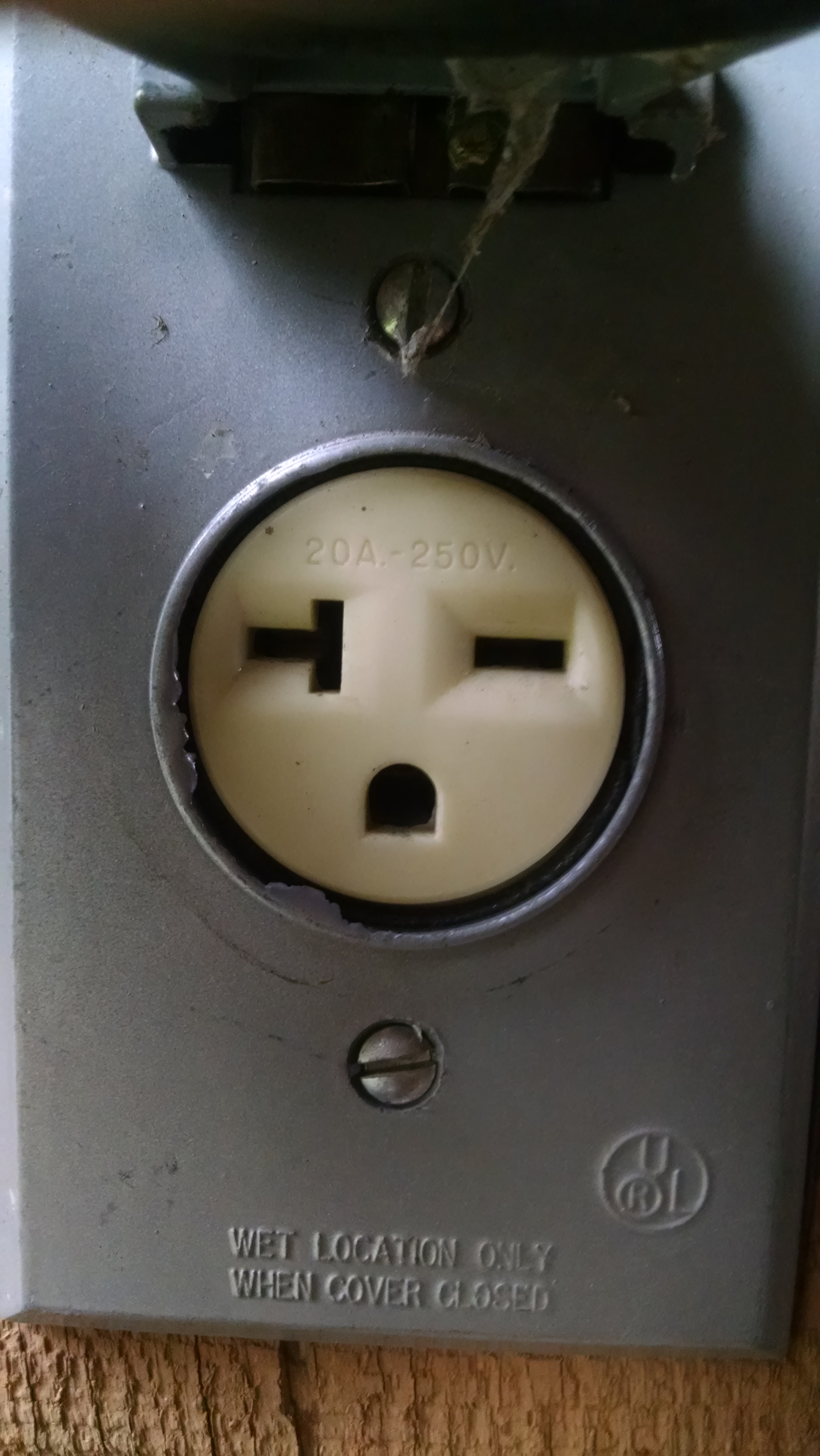

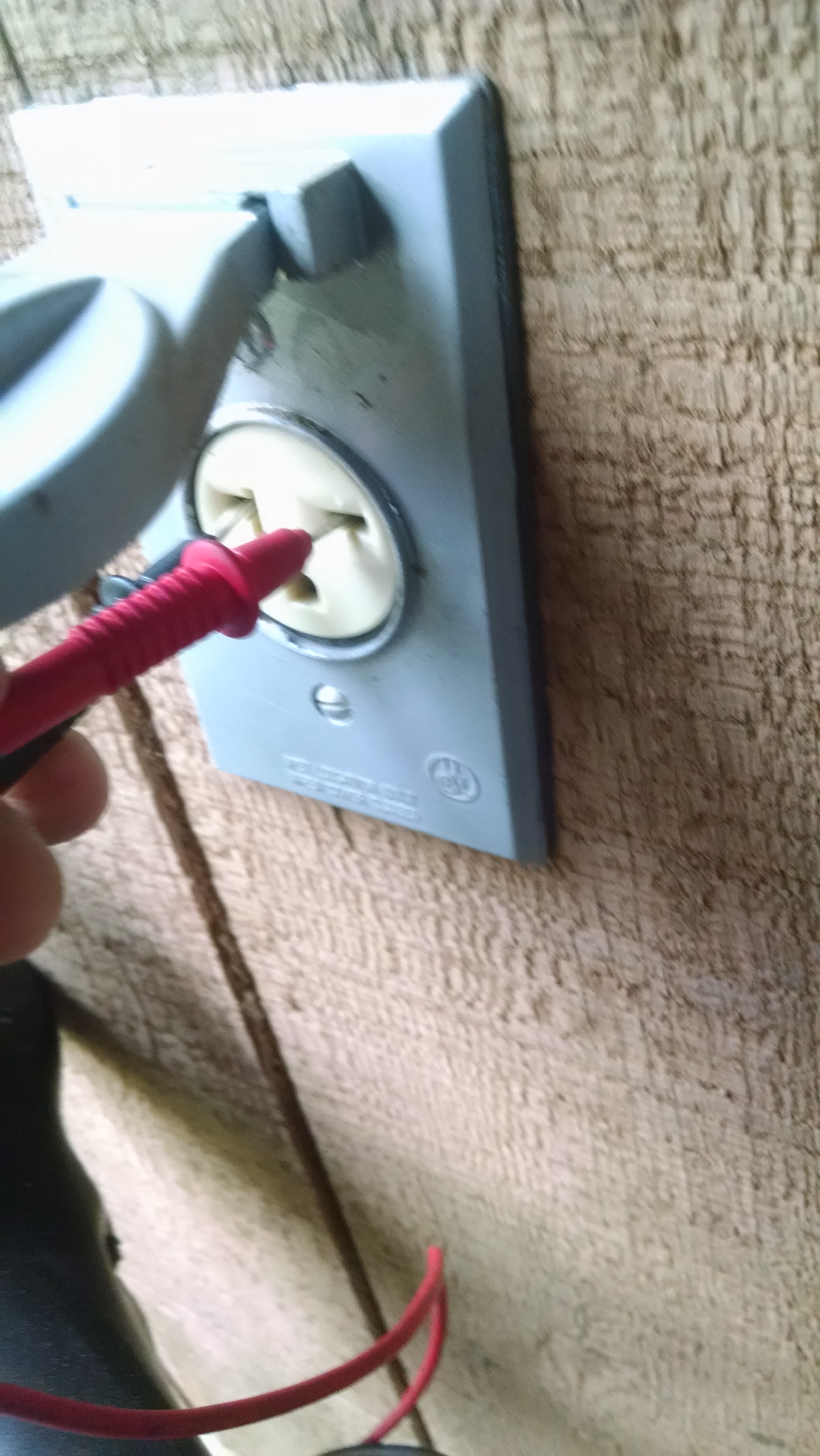

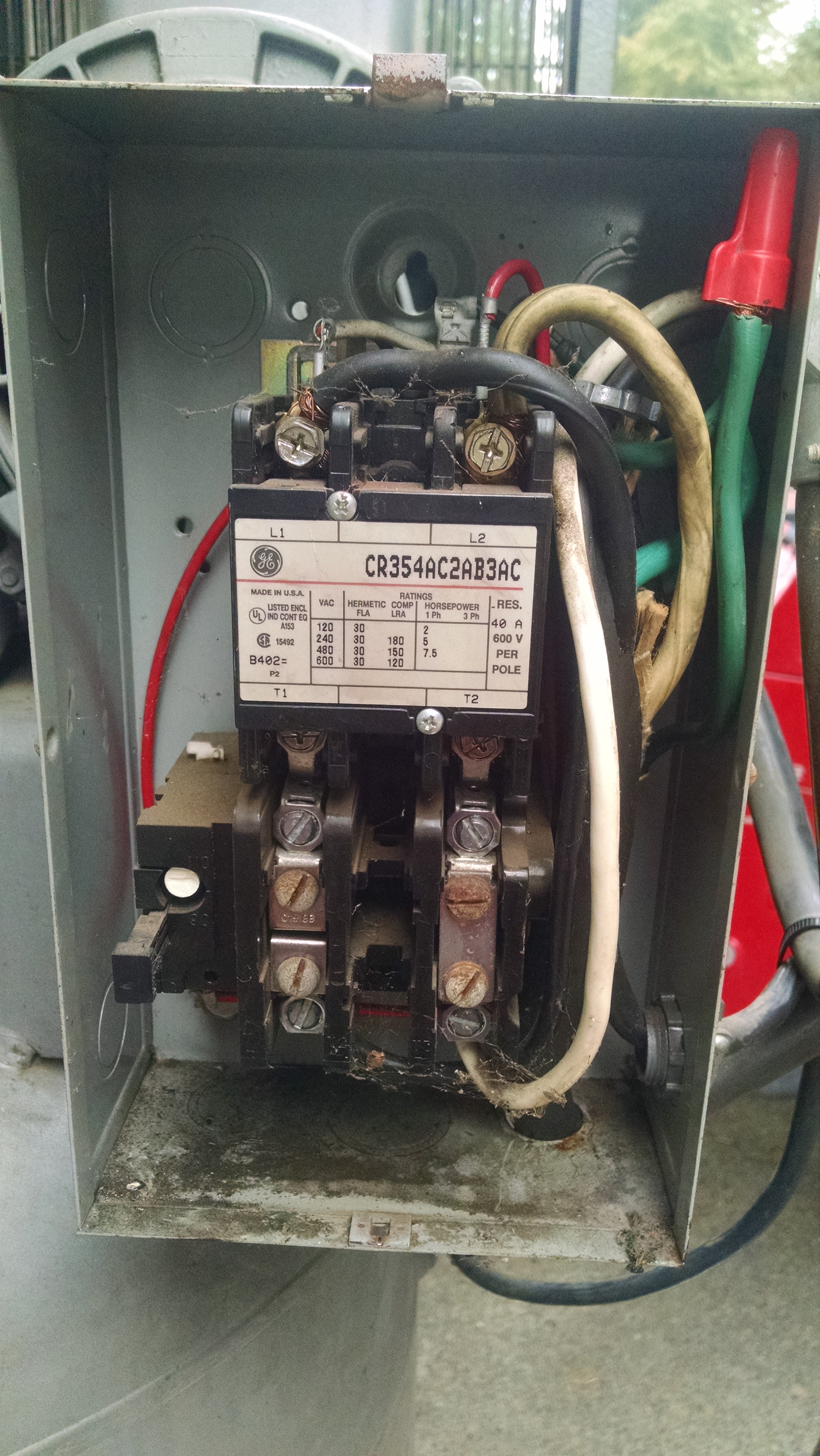

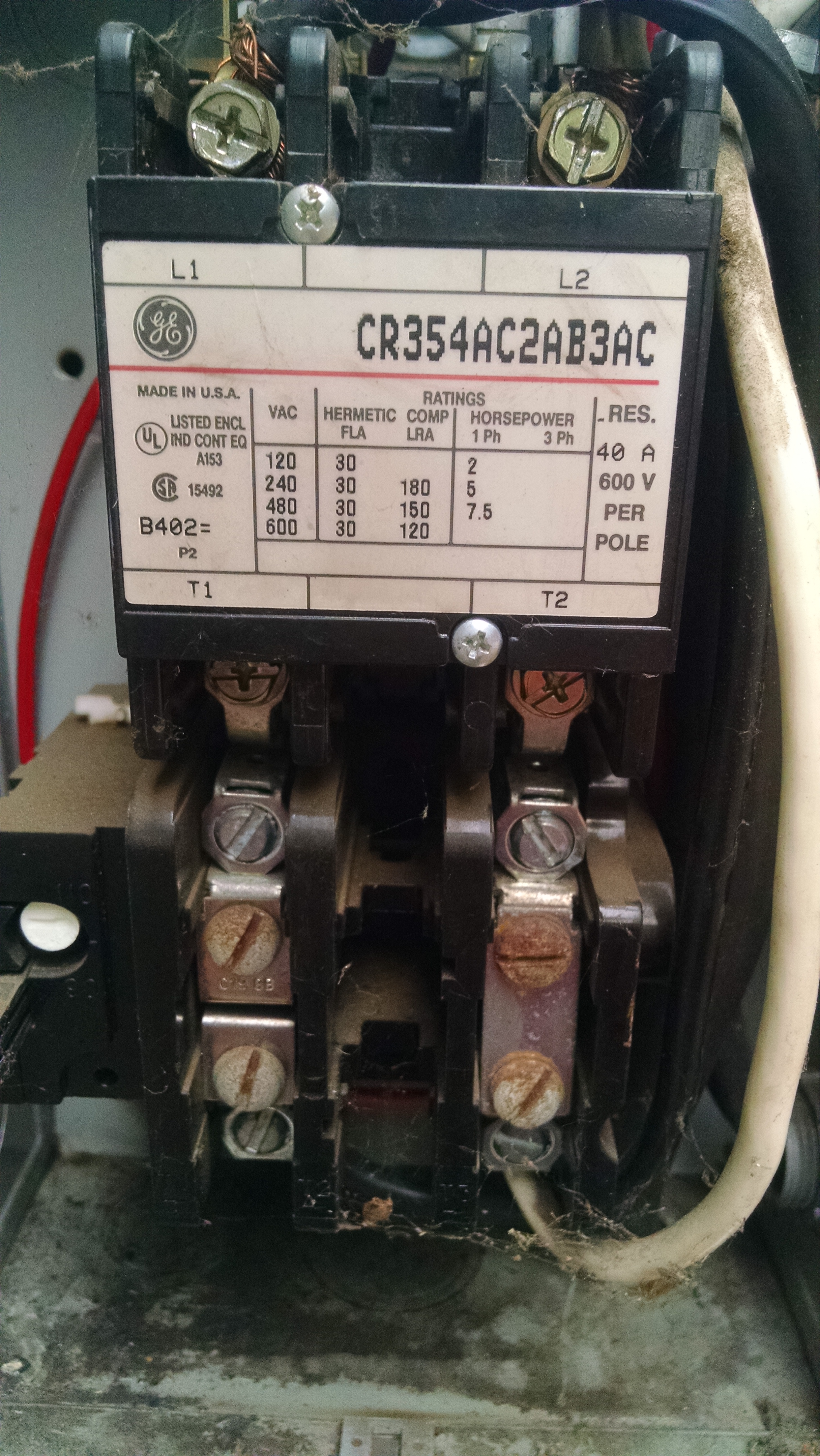

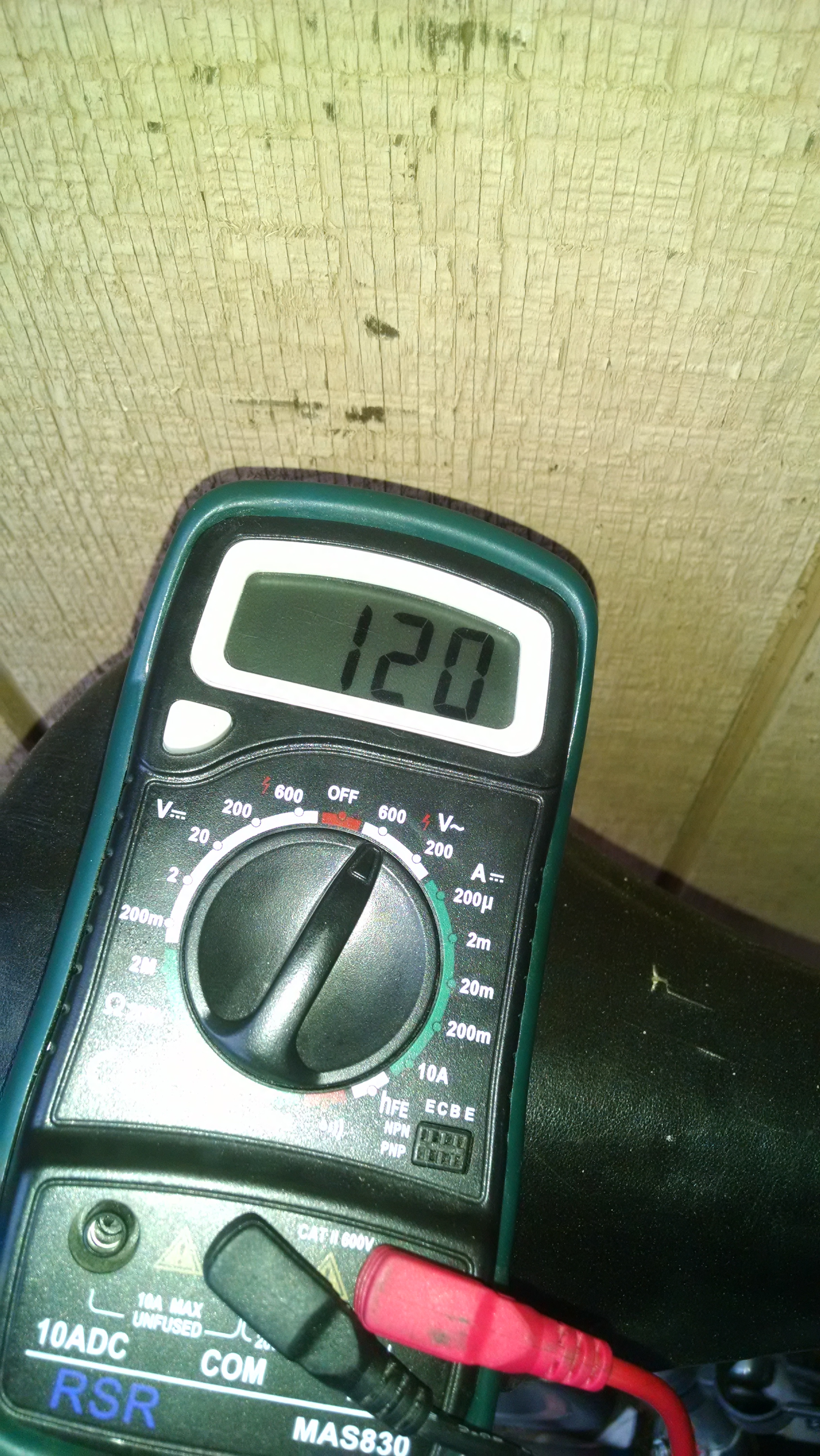

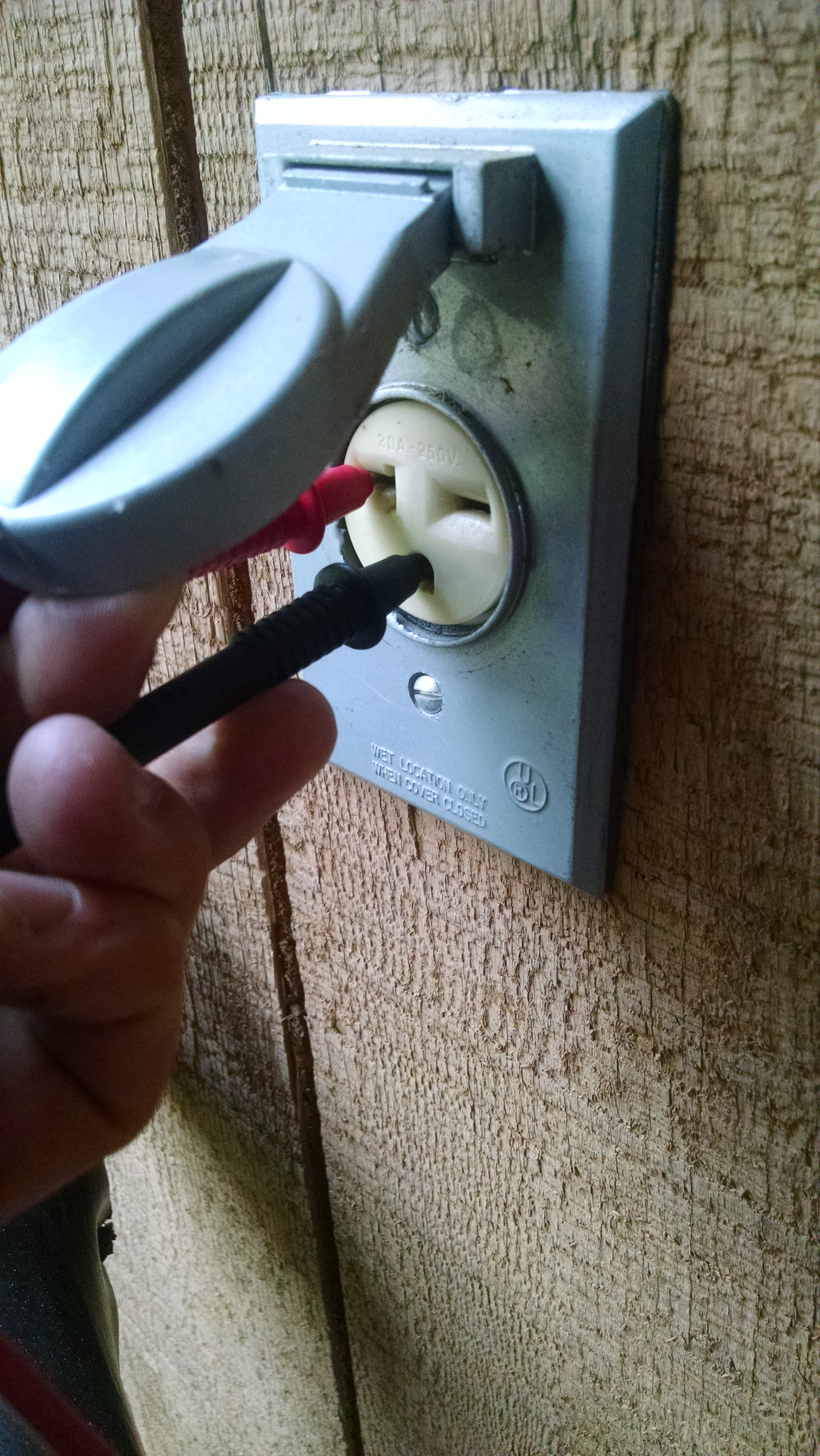

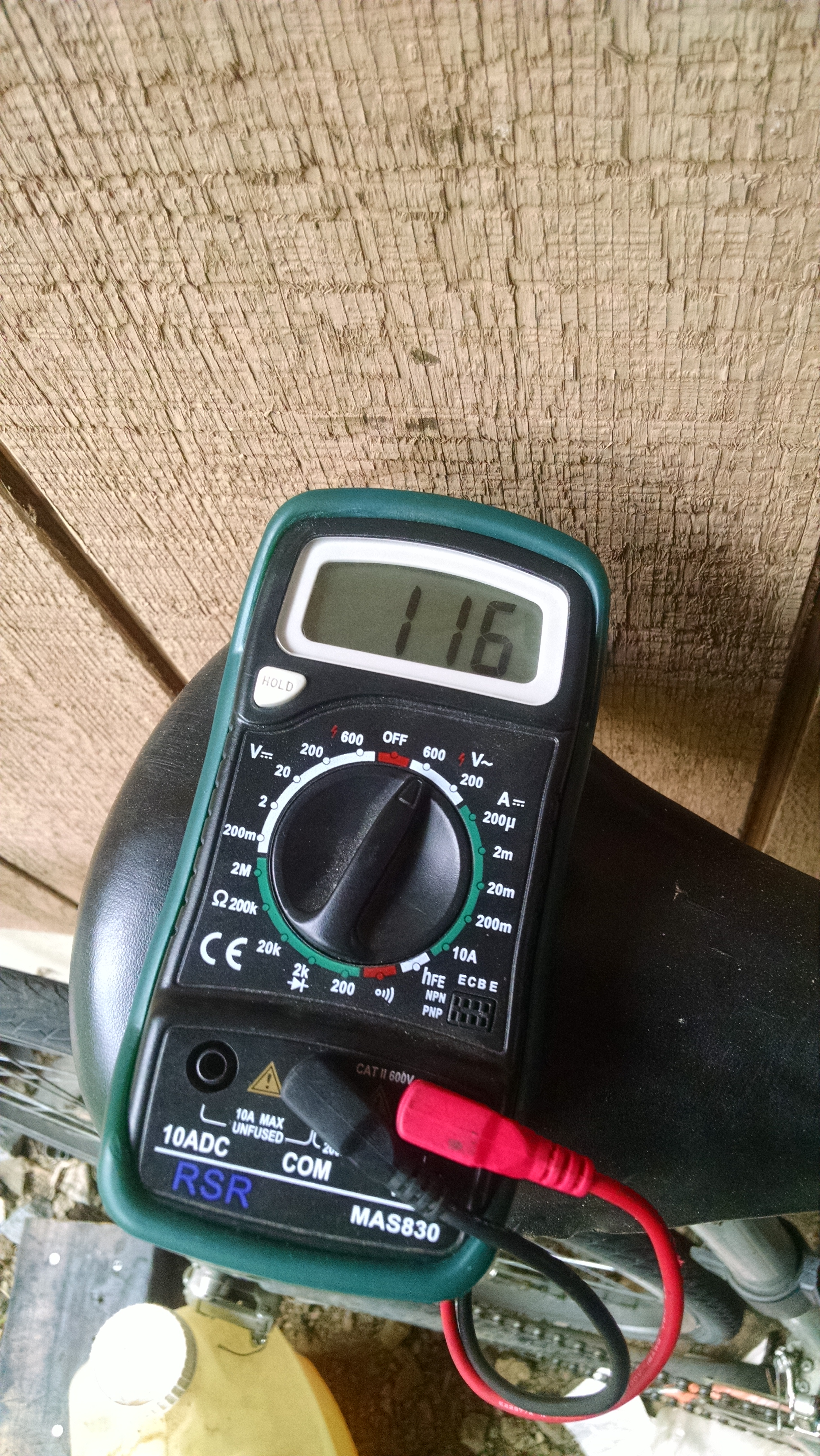

Does this help?













Attached Thumbnails
Help me hook up my air compressor-k0x5a3o.jpg   Help me hook up my air compressor-b5zgzfp.jpg   Help me hook up my air compressor-gtwwtpf.jpg   Help me hook up my air compressor-jk0pq9p.jpg   Help me hook up my air compressor-iv36wif.jpg

Help me hook up my air compressor-oj34wv6.jpg   Help me hook up my air compressor-obv4rsw.jpg   Help me hook up my air compressor-bwtdrjv.jpg   Help me hook up my air compressor-fwibx8a.jpg   Help me hook up my air compressor-5q1dd6n.jpg

Help me hook up my air compressor-bwglosk.jpg   Help me hook up my air compressor-oxvbrsq.jpg   Help me hook up my air compressor-yhjdrhn.jpg
aidandj is offline   Reply With Quote
Old 10-07-2015, 09:20 PM   #29
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

oops
Attached Thumbnails
Help me hook up my air compressor-k0x5a3o.jpg   Help me hook up my air compressor-b5zgzfp.jpg   Help me hook up my air compressor-gtwwtpf.jpg   Help me hook up my air compressor-jk0pq9p.jpg   Help me hook up my air compressor-iv36wif.jpg

Help me hook up my air compressor-oj34wv6.jpg   Help me hook up my air compressor-obv4rsw.jpg   Help me hook up my air compressor-bwtdrjv.jpg   Help me hook up my air compressor-fwibx8a.jpg   Help me hook up my air compressor-5q1dd6n.jpg

Help me hook up my air compressor-bwglosk.jpg   Help me hook up my air compressor-oxvbrsq.jpg   Help me hook up my air compressor-yhjdrhn.jpg
aidandj is offline   Reply With Quote
Old 10-07-2015, 09:25 PM   #30
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Check what gauge wires you have in the wall and what the breakers are. That motor pulls 22A when it's running, your wiring in the house/garage/box may not be beefy enough.
patsmx5 is offline   Reply With Quote
Old 10-07-2015, 09:27 PM   #31
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Yeah. Which is why i don't even suggest the 6-20 plug.
Erat is online now   Reply With Quote
Old 10-07-2015, 09:28 PM   #32
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Its 12v wire. Need to see what breaker it is on.
aidandj is offline   Reply With Quote
Old 10-07-2015, 09:31 PM   #33
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by aidandj View Post
Its 12v wire. Need to see what breaker it is on.
Assuming you meant 12 gauge wire, then yeah, no dice on that.
patsmx5 is offline   Reply With Quote
Old 10-07-2015, 09:34 PM   #34
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Measuring voltage without the compressor running won't really tell you much either. You should watch it while the thing is trying to start and run both, assuming it even will start/run without blowing the breaker. That's what will damage the compressor.

I think most the people here are optimistic thinking it doesn't run near full load amps when it runs, so I don't think you'll be too successful no matter what you do. This style compressor runs 100% wide open while it runs, but then it shuts off for a duty cycle dependent on how fast you drain it.

In other words, it's 25A for starting or bust, with 22A for run.

I also think you can adapt whatever modern motor frame you want to that compressor, it's really not that complicated.
deezums is offline   Reply With Quote
Old 10-07-2015, 09:36 PM   #35
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Yeah and since you don't own the place, it wouldn't be safe to go violating code.

You may be able to talk them into running flexible metal conduit to a location with a box of your choosing.


I wonder how hard it would be to put a 110v motor on.
Erat is online now   Reply With Quote
Old 10-07-2015, 09:39 PM   #36
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Well I have the plug so I'm going to give it a shot. Then I'll call the landlord if it doesn't work.
aidandj is offline   Reply With Quote
Old 10-07-2015, 09:42 PM   #37
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

What's the bet?

I got $10 that says it works.
Erat is online now   Reply With Quote
Old 10-07-2015, 09:52 PM   #38
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 248
Default

Quote:
Originally Posted by Erat View Post
What's the bet?

I got $10 that says it works.
For sure if you give it power it will work. The question is, will the breaker trip before the wire catches on fire?
patsmx5 is offline   Reply With Quote
Old 10-07-2015, 09:53 PM   #39
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I just learned something new, some manufacturers have different rated beakers for different inrush current loads, basically different trip characteristics.

That's probably a AC plug, why else would it be outside? It's probably got an inductive load curve breaker, for motors.

There's another curve that apparently tolerates inrush currents for longer, but apparently it can damage inductive loads like motors allowing them to operate outside spec for longer than necessary.

Since it has a AC compressor breaker, or probably the standard residential "c" curve breaker, you might be able to switch to the "d" curve breaker. It would still pop at 12gauge safe levels, but it might be the extra bit it needs to get running if it won't now.
deezums is offline   Reply With Quote
Old 10-07-2015, 09:53 PM   #40
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

I'll check the breaker next. If its a 20amp then I'm not worried. If its a 40amp breaker I'm going to ask for new wire.
aidandj is offline   Reply With Quote
