Old 02-03-2008, 10:42 PM   #1
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default Interior Decorating

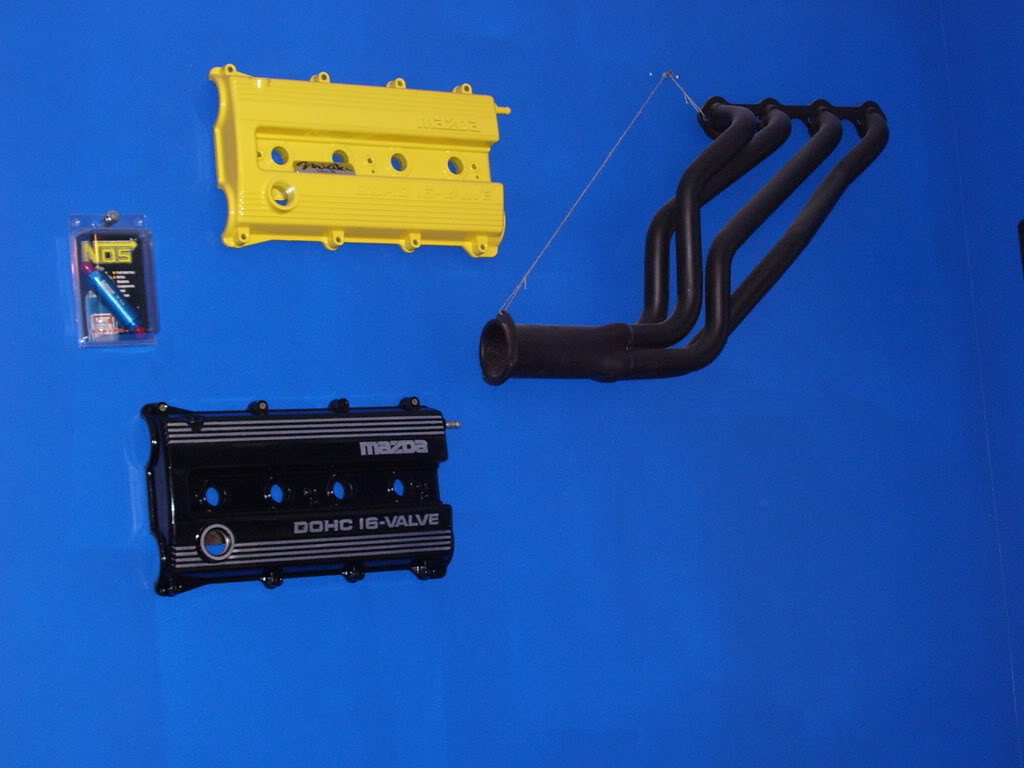

My wall of parts:

Name:  100_0638.jpg
Views: 1
Size:  80.1 KB

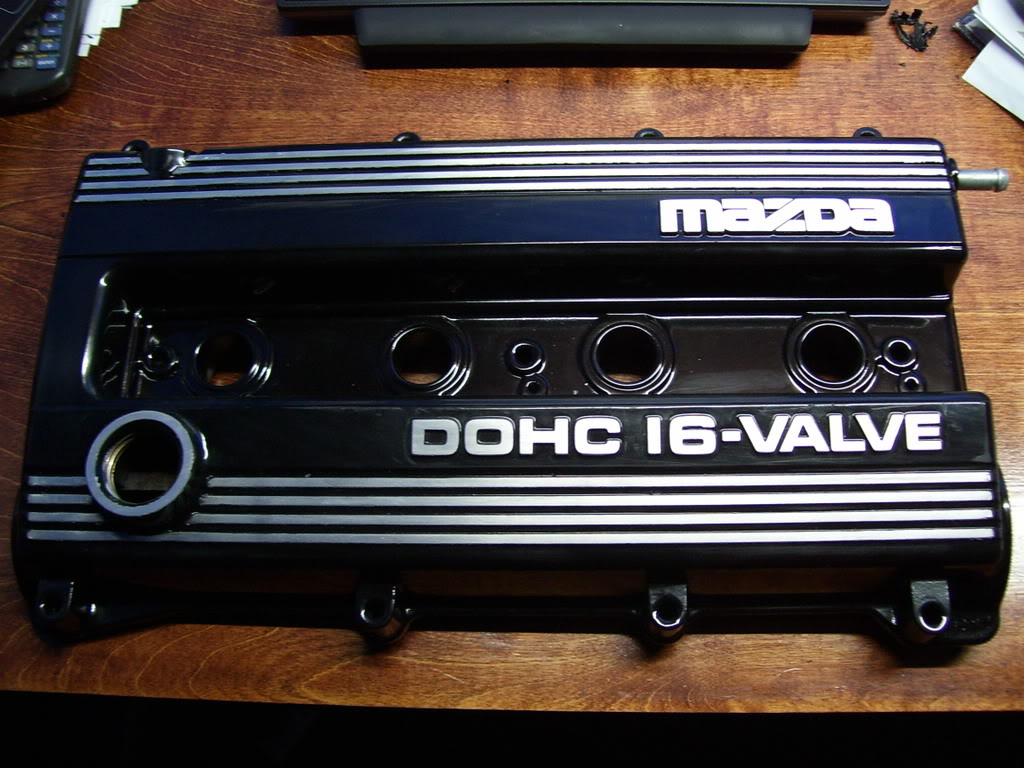

Name:  100_0635.jpg
Views: 1
Size:  136.9 KB

http://s231.photobucket.com/albums/e...Valve%20Cover/

What should I add next? I'm trying to figure out how to hang the SC on there, but it's heavy. I'll have to hit studs and use string like i did on the header to support it.
patsmx5 is offline   Reply With Quote
Old 02-04-2008, 12:31 AM   #2
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

love the valve cover(black one). is it for sale?
paul is offline   Reply With Quote
Old 02-04-2008, 12:48 AM   #3
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

It will be shortly.
patsmx5 is offline   Reply With Quote
Old 02-04-2008, 12:50 AM   #4
I'm Miserable!
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

take that **** off the wall and put it on ebay dumbass
bryantaylor is offline   Reply With Quote
Old 02-04-2008, 12:57 AM   #5
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

What engine/car/year is that black one from. Sorry if it's a noob question.

C
chriscar is offline   Reply With Quote
Old 02-04-2008, 01:01 AM   #6
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Black one (and yellow one) is from a 94 Protege. It fits on a 1.8 miata and leaves the cam gears exposed.
patsmx5 is offline   Reply With Quote
Old 02-04-2008, 01:02 AM   #7
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Damn good, now I know what to look for, that's what I want. Is it 94 only, and any special package Protege? Are they hard to come across?

C
chriscar is offline   Reply With Quote
Old 02-04-2008, 10:27 AM   #8
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

should be any of the 1.8 dohc proteges of that gen

here's one installed
paul is offline   Reply With Quote
Old 02-04-2008, 10:39 AM   #9
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Thanks Paul. I bought the fugly yellow one off Pat. It'll be coated in a more appropriate color once I get it.

So I suppose I need a Protege valve cover gasket to go with it, eh? And fab up a braket to mount my coil packs, and reroute the vaccum hose that's now on the driver side of the VC, to the back where the Protege one is. Anything else I should be aware of?

C
chriscar is offline   Reply With Quote
Old 02-04-2008, 12:44 PM   #10
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

There is a process to getting it to fit right.... and i have done it a few times.

Take all internal baffles out and clean throughly.

Using a mallet, hit the breather nipple back INTO the valve cover, it will fall out nicely.

Now find a large screw to put in that hole. The trick is to tap out the hole and cross-thread a bolt in the old breather location, put it on from the inside out, this way you don't have a bolt head on the outside. Cut off excess threads and smooth down.

I forget what size drill bit you need, but drill a hole where you see the yellow X in this picture. Then use a rubber mallet to gently press the breather fitting back into the valve cover.



Then make a small 90* elbow to hold the coil-pack onto the valve cover. You can see it here on the pax side.
Doppelgänger is offline   Reply With Quote
Old 02-04-2008, 12:50 PM   #11
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

GREAT info, thanks! Will the single 90* bracket hold the coils firmly enough, or do you put one on each side?

C
chriscar is offline   Reply With Quote
Old 02-04-2008, 12:54 PM   #12
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

The drivers side bolt will bolt right up like it does on the Miata cover, and the bottom bolt will line up too. I made the bracket to make sure the coil-pack was held in place as Mazda intended. I guess what im saying is that with the 90* bracket, the coil will bolt up just like stock.
Doppelgänger is offline   Reply With Quote
Old 02-04-2008, 01:06 PM   #13
Elite Member
iTrader: (24)

chriscar's Avatar

Join Date: Dec 2007
Location: Carrollton TX
Posts: 1,702
Total Cats: 13
Default

Nice. And do I buy a new Protege spec valve cover gasket?

C
chriscar is offline   Reply With Quote
Old 02-04-2008, 01:25 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by patsmx5 View Post
My wall of parts:

What should I add next?

Star Wars Mural FTW!
Braineack is offline   Reply With Quote
Old 02-04-2008, 02:21 PM   #15
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by chriscar View Post
Nice. And do I buy a new Protege spec valve cover gasket?

C
Negative, the Miata one works perfectly fine as the gasketed surface is still the same.
Doppelgänger is offline   Reply With Quote
Old 02-04-2008, 02:22 PM   #16
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by Braineack View Post
Space ***** Mural FTW!
Fixed
Doppelgänger is offline   Reply With Quote
