Default JB weld for an oil gallery?

I need to block off an oil gallery on this scooter case.

The gallery delivers oil under pressure.

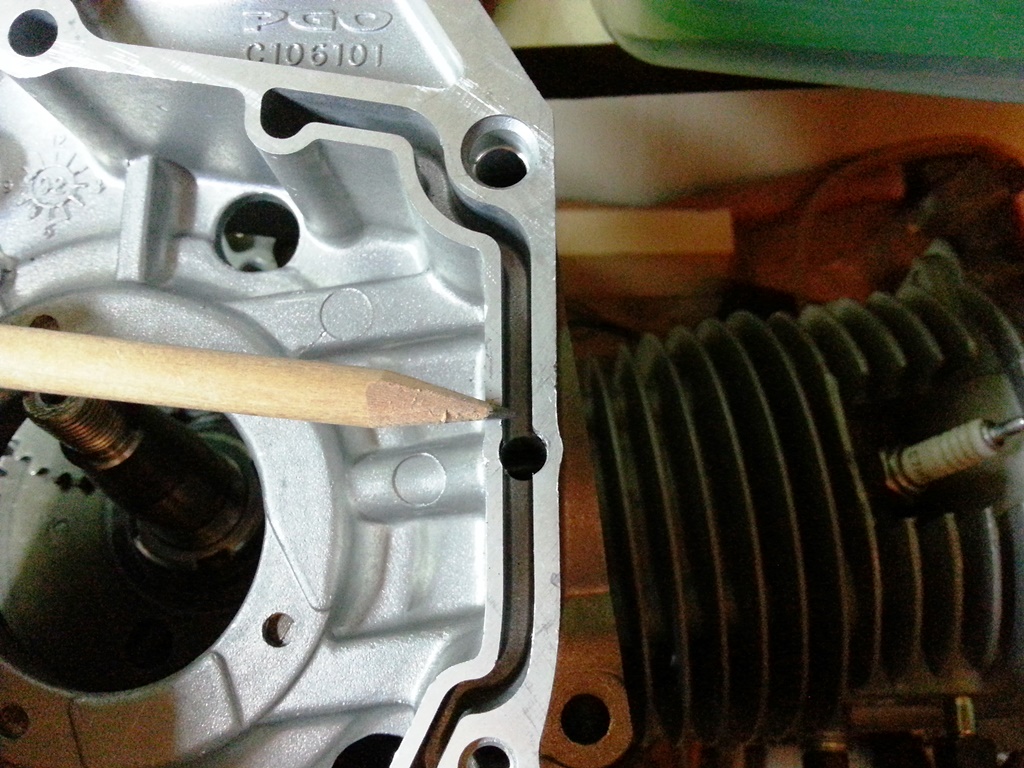

Can I use JB weld to block it off at the point I am indicating with the pencil tip?

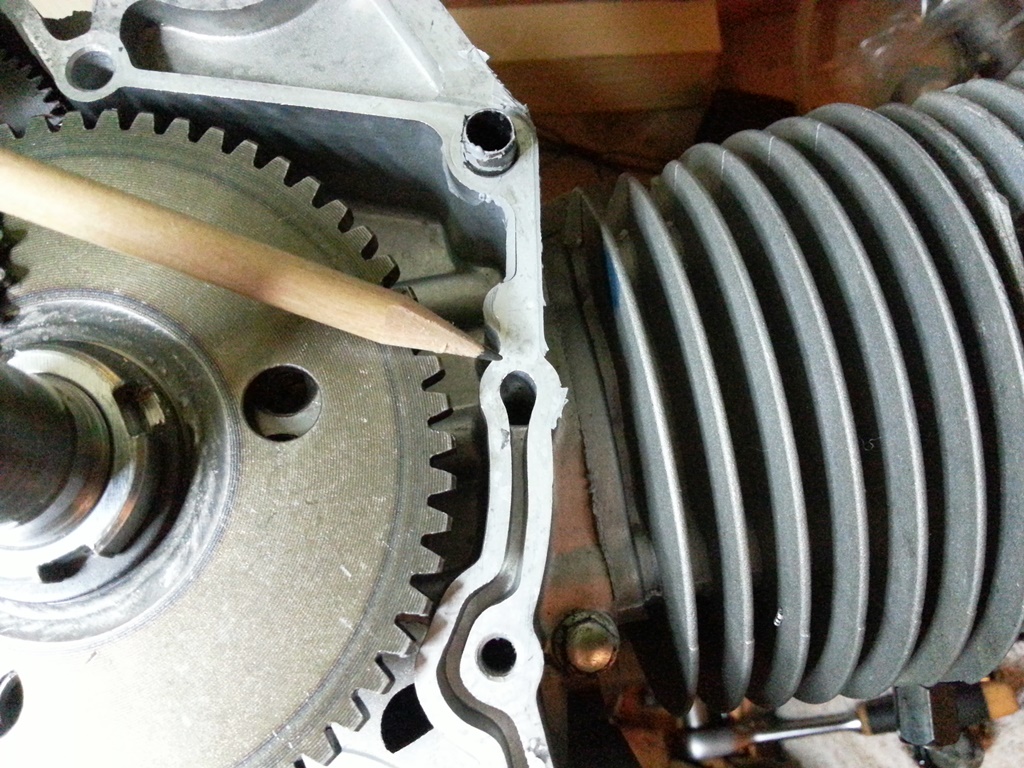

I am trying to duplicate the "groove" in the second picture.



Attached Thumbnails
JB weld for an oil gallery?-20130306000538.jpg   JB weld for an oil gallery?-20130306000600.jpg
Godless Commie is offline   Reply With Quote
Old 03-05-2013, 07:30 PM   #2
Elite Member
iTrader: (12)

Join Date: Apr 2008
Location: Longs, SC
Posts: 2,583
Total Cats: 13
Default

I have absolutely no experience doing this, and no professional knowledge to back my opinion up, so take this with a grain of salt.

I would say yes. I would think that if you can get the surface clean enough that the JB weld will bond that it should be fine.
icantthink4155 is offline   Reply With Quote
Old 03-06-2013, 02:11 AM   #3
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

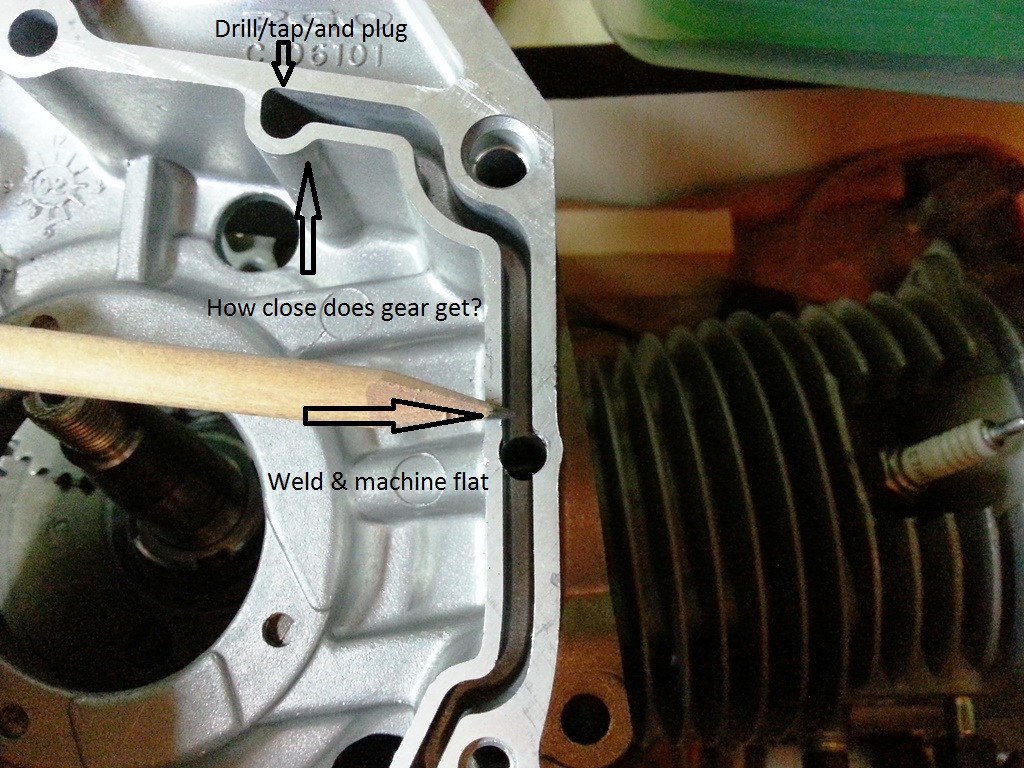

Just ideas
Attached Thumbnails
JB weld for an oil gallery?-aunc3yk.jpg
TorqueZombie is offline   Reply With Quote
Old 03-06-2013, 02:39 AM   #4
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

I want to believe that JB Weld is an awesome solution to this problem. And nothing in my personal experience suggests that it would not be.
Joe Perez is online now   Reply With Quote
Old 03-06-2013, 07:54 AM   #5
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Without more context, what this is, or what it's used for, what the part looks like that goes onto it.

What about welding it? I guess if that surface has to be perfectly flat, and machining isn't an option that might not be the best way. Or if the entire groove needs to be filled or not.
Erat is offline   Reply With Quote
Old 03-06-2013, 09:34 AM   #6
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

I've had bad luck with JB weld in continuous contact with petroleum products. I would try to find something from loctite or 3m (buy either on amazon pretty cheap) rated for constant contact with gas and oil that will bond to aluminum.
Leafy is offline   Reply With Quote
Old 03-06-2013, 10:11 AM   #7
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

I have a twin cylinder Kohler engine. The back of the case was destroyed by an exploding battery, which sprayed acid all over and ate holes in the case. I wire brushed off the corrosion, and slathered it with JB weld. Sealed up the holes, and has lasted for several years. This is the bottom of the engine (crankcase), so it holds the oil. Hasn't leaked a bit.

I'd say go for it.
rleete is offline   Reply With Quote
Old 03-06-2013, 10:36 AM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

If the JB weld comes off, then won't you have JB Weld in the oiling bits?
hustler is offline   Reply With Quote
Old 03-06-2013, 10:39 AM   #9
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2009
Location: Istanbul, Turkey
Posts: 2,050
Total Cats: 433
Default

Good point..

I better quit being a cheapskate and order the proper part.

piece of mind = priceless.
Godless Commie is offline   Reply With Quote
Old 03-07-2013, 04:49 PM   #10
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

whats wrong with filling that with silicone and letting it dry? Unlike JB Weld, silicone doesnt have the potential to crack and get tiny sand-like pieces everywhere. I have used JB weld before to plug stuff, but they aren't under pressure, however I have used JB weld on pressurized coolant systems.
Pen2_the_penguin is offline   Reply With Quote
