Alright so are some of you know I have been working on a turbine housing issue. And well after finding that a 53mm turbine housing didnt fit on my 53mm turbine i was confused (it didnt fit over the turbine)

So i went through the possible combos and sure enough there is a 53.8 turbine wheel. So i crab my trusty (harbor freight) caliper and go at it. Sure enough its odd bladed so i cant measure directly. So I measure across two blades to a third blade (imagine a peace sign). Get 2.066in, 2.065in, and 2.065in.

I run the calcs and get a turbine wheel that is 54mm.
So is my harbor freight caliper right and were i have a custom turbine wheel that has no record of existing in any other turbo or is my caliper off
by
0.371747212%


Lets here your opinions, and if anyone wants to double check my math i would appreciate it.

Use 2.065in and 9 blades (so 40deg apart)
Loki047 is offline   Reply With Quote
Old 01-30-2008, 12:49 AM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

will do the math shortly, when I get done with my ME HW.
patsmx5 is offline   Reply With Quote
Old 01-30-2008, 01:03 AM   #3
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

My harbor freight calipers were sent to a calibration group a while back... +/-.003 @2" +/-.006 @4" +/-.01X @6" I can't remember exactly what the 6" reading was... hence the "X". not shabby really seeing as how I got the calipers for $9.95 on sale.
Arkmage is offline   Reply With Quote
Old 01-30-2008, 01:10 AM   #4
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,254
Total Cats: 7
Default

The only math I'm doing right now in my dorm room involves the current -12* temp and -42* wind chill along with yesterday's +46* temps. That, and I don't quite understand the peace sign measurements.
SamS is offline   Reply With Quote
Old 01-30-2008, 01:22 AM   #5
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

I get 54.081 mm as the diameter of the turbine blade based on your 2.065 in measurement and a 9 blade turbine (40 degs between blades). That is about +0.003" from 54mm which is in the realm of measurement error (from your calipers). At 2.066 I get +0.004" from 54mm.

I would sketch it out but I am already up past my bed time

Last edited by ZX-Tex; 01-30-2008 at 01:41 AM.
ZX-Tex is offline   Reply With Quote
Old 01-30-2008, 10:36 AM   #6
Elite Member
Thread Starter
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Quote:
Originally Posted by ZX-Tex View Post
I get 54.081 mm as the diameter of the turbine blade based on your 2.065 in measurement and a 9 blade turbine (40 degs between blades). That is about +0.003" from 54mm which is in the realm of measurement error (from your calipers). At 2.066 I get +0.004" from 54mm.

I would sketch it out but I am already up past my bed time
Dead on thanks ZX-Tex, im pretty confident its a measurement error.

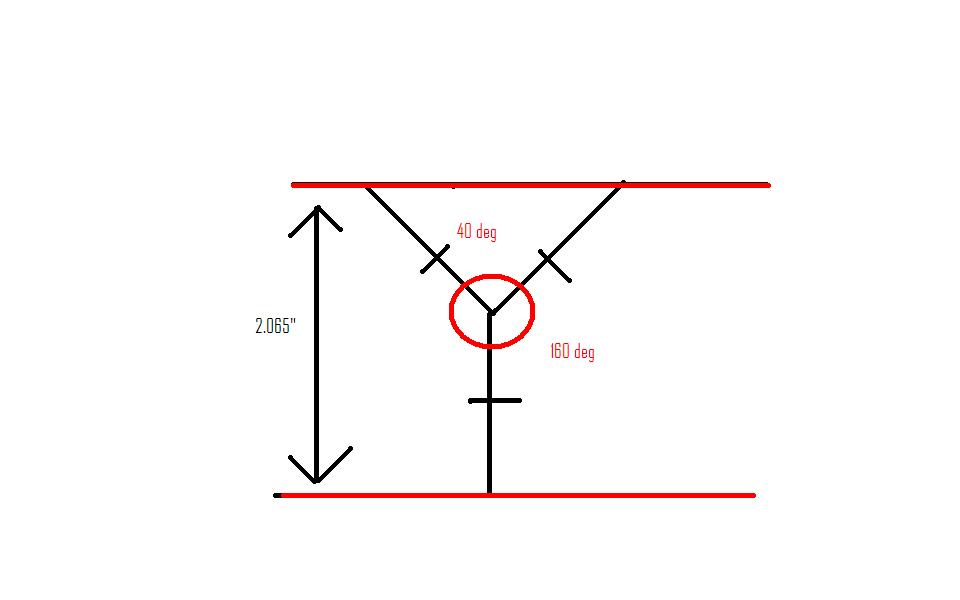

Sam, when you have odd even tooth/blade objects you can not measure directly the diameter because opposing each tooth would be a valley. So knowing the amount of blades (9) and the configuration (a circle 360 deg) you can measure from two blades across to one.
