Old 04-30-2007, 07:04 PM   #21
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

thx and no thx guys haha. i am the guy int eh red/white striped shirt. i do have tennis shoes on, my old *** worn thin ones. the guy whereing sandles was just there for the ride. kevin, stupid flying guy... hes just an idiot, always. yea i made the roll bar, never got around to putting it in untill last weekend. and yes i did destroy the diff on my way down. after i got to the bottom i saw a good gas station so i told granger (flip flop dude riding with me) that i was gonna see if it could even hold any boost with it all fucked up, so i went into second, hit about 7 psi and it exploded, the subbie behind me saw a ton of oil fly out the axle holes and they werea bout 50 ft back and heard it go out. then it just sounds like rocks after that and the engine is no longer connected to the ground so we pulled into the gas station.

no wire tuck, megasquirt and not using any extra options on the car is why is pretty much empty, but nothing is tucked. turns out i have been rich and can still pull another 15-20whp more out of it next time i tune. looks like itll be awhile till i am back on the road, gotta swap diffs, change front main seal, change the plugs, alignment, bolt on the new suspension, primer the rest of the body and paint it and get it tuned again. probly be done by the end of may. .... then she will be done! well except for the hardtop when i get rich
mxv is offline   Reply With Quote
Old 05-01-2007, 12:49 AM   #22
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

and on the way up before it went out

http://s96.photobucket.com/albums/l1...t=CIMG0421.flv
mxv is offline   Reply With Quote
Old 05-01-2007, 12:58 AM   #23
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

i lost mine a month ago. the pinion broke on mine, not the ring gear. the u-joints on the driveshaft were really stiff. i like my MS lsd, so i had a shot peened ring and pinion installed with new bearings and seals.
kung fu jesus is offline   Reply With Quote
Old 05-01-2007, 02:35 AM   #24
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

putting in my 1.8 open/(torsen) ((fingers crossed for it being a torsen) in a few weeks. donor car has 90k miles. would you suggest me replacing the bearings and seals when i put it in or when i switch it over to a clutch pack? or just never bother?
mxv is offline   Reply With Quote
Old 05-01-2007, 02:59 AM   #25
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

how about bushings too? Mmrdirect.com?
akaryrye is offline   Reply With Quote
Old 05-01-2007, 03:07 AM   #26
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

You guys keep reminding me. I need to go see mmr and see what's up. They're like 2 miles from me.
cjernigan is offline   Reply With Quote
Old 05-04-2007, 09:21 PM   #27
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default





there is your carnage
mxv is offline   Reply With Quote
Old 05-04-2007, 09:27 PM   #28
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

surprised the pinon went and not the ring.
Braineack is offline   Reply With Quote
Old 05-04-2007, 09:28 PM   #29
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

that'll buff out
neogenesis2004 is offline   Reply With Quote
Old 05-04-2007, 09:31 PM   #30
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
surprised the pinon went and not the ring.
had a few teeth get chewed up on the ring, but not as bad i was going to expect. and even that was probly caused by the pinion going out. so tecnically that means, my 1.8 rear end is just as suseptable to breaking as this one right?
mxv is offline   Reply With Quote
Old 05-04-2007, 11:03 PM   #31
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

yours looks like mine, but not as bad. the pinion split of about 40% of the helix, not just the teeth, the actual pinion.

i have a shop i goto here since i don't have the time or garage space anymore. the owner is japanese as are the rest of the employees (all are difficult to understand), but their workmanship and knowledge of miatas is second to none. he told me that when the u-joints start to stiffen on the miatas, the vibration it causes just eats up the pinion. i never knew that.

i'm not one to take my car in for repairs, but i have to admit, i never doubt these guys. hiro's garage in costa mesa. koji-san ftmfw.
kung fu jesus is offline   Reply With Quote
Old 05-05-2007, 11:56 PM   #32
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

got the 1.8 conversion in with some modification of the ends of the axles from me trying to knock them out. everything went it great other than that. my hoping for a torsen was for nothing. but i never looked inside.

is there a way to tell by turning the pinon and seeing what happens to the axles or buy turning the axles?
mxv is offline   Reply With Quote
Old 05-06-2007, 02:15 AM   #33
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

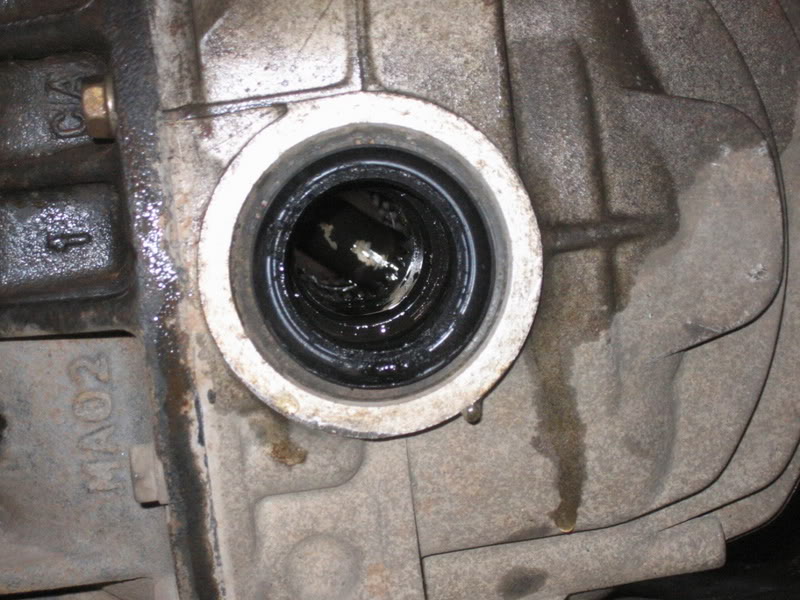

ya if you take off the stubshafts off and look through the hole, if there is a bar going across in the middle it is an open.

Name:  differential004.jpg
Views: 0
Size:  99.5 KB
akaryrye is offline   Reply With Quote
Old 05-06-2007, 11:28 AM   #34
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

Quote:
Originally Posted by mxv View Post
is there a way to tell by turning the pinon and seeing what happens to the axles or buy turning the axles?
aka its already in
mxv is offline   Reply With Quote
Old 05-06-2007, 03:24 PM   #35
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

make your own water box and dump the clutch?
kung fu jesus is offline   Reply With Quote
Old 05-06-2007, 03:27 PM   #36
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

yeah, prettymuch the only way i believe, just drive it hard, you should be able to tell. you can't turn the wheels because a torsen will turn opposite ways like an open.
Al Hounos is offline   Reply With Quote
Old 05-06-2007, 04:04 PM   #37
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

the pinon gear on the 1.8 should still be larger.

look through the stub holes, if you can see through it's a LSD, see the bar (as above) it's an open.
Braineack is offline   Reply With Quote
Old 05-06-2007, 11:34 PM   #38
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

braineack:
Quote:
Originally Posted by mxv View Post
aka its already in
just do a couple of donuts in a parking lot and if the car wants to go wide, you have an open differential.
akaryrye is offline   Reply With Quote
Old 05-06-2007, 11:45 PM   #39
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I have an open, my brodies suck. When turning my driveshaft both wheels turn the same direction though, is that normal?
cjernigan is offline   Reply With Quote
Old 05-07-2007, 01:57 AM   #40
mxv
Senior Member
Thread Starter
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

yea it wont take long to find out if its open or not by driving, but its still not drivable. front main seal is out, thats my next job. i got 13 tires on wheels to take care of, all bald and need to be thrown. when i get her back on the road and pump out another 15-20 more whp out of her ill take care of some rubber and well know if its an open or not haha.
mxv is offline   Reply With Quote
