Old 03-02-2009, 06:54 PM   #1
Senior Member
Thread Starter

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default Oh my god....I just came....

So yesterday we hooked up the air shifter on the SAE car and did some testing runs on the road by the shop.

Seriously, I have never driven something so fast. I was in charge of the shifting system, so I got to do the testing, and 1-4 gear are ridiculous. It never quits pulling, and I have no idea how fast I was going but I do know that third tops out at 80mph and fourth is in the 115 range.

My face after I just came.

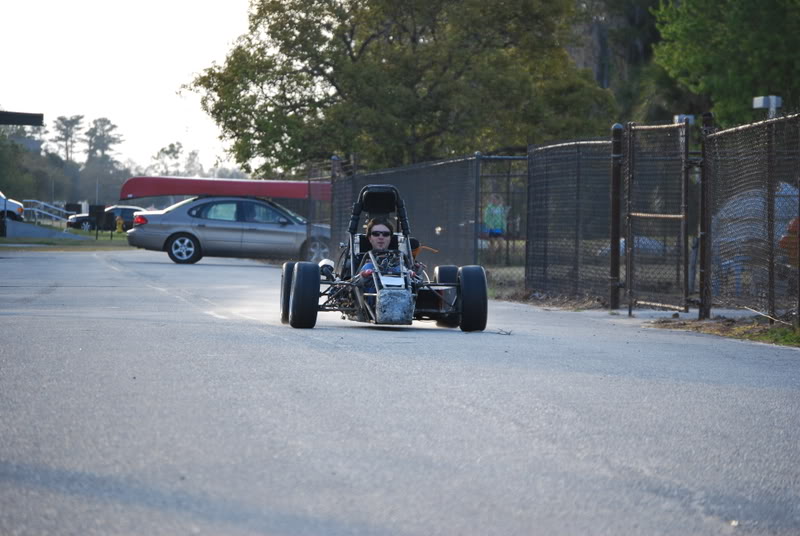

Name:  DSC_2900.jpg
Views: 10
Size:  95.9 KB

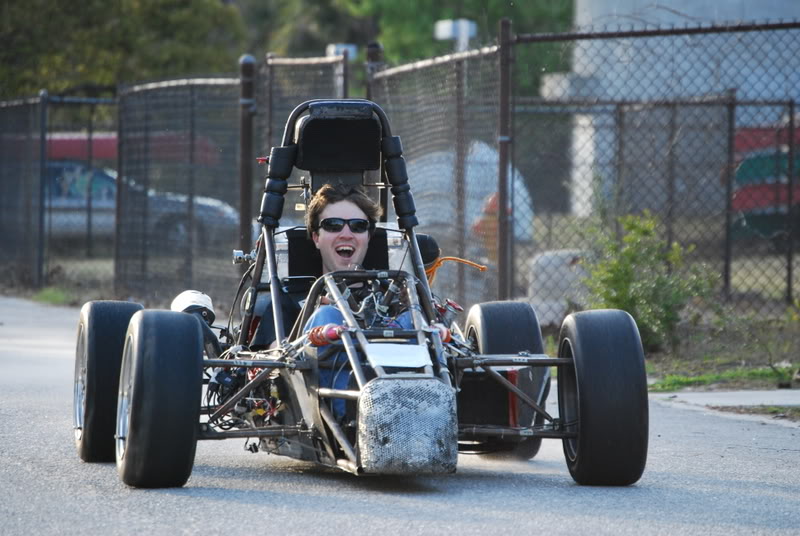

Name:  DSC_2901.jpg
Views: 60
Size:  106.7 KB

Unfortunately it made the ride home terrible as the Miata felt slow as **** respectively.
coastertrav is offline   Reply With Quote
Old 03-02-2009, 07:02 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

But where are the pics of the air shifter? Similar to what drag cars use?
cjernigan is offline   Reply With Quote
Old 03-02-2009, 07:09 PM   #3
Senior Member
Thread Starter

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Here are some pics of the setup.

It was just a prototype to show proof of concept so we could put it on the '09 car.

It is just an air tank with two solenoids connected to buttons mounted to the steering wheel, and an air ram to actuate the shift lever on the F4i transmission.

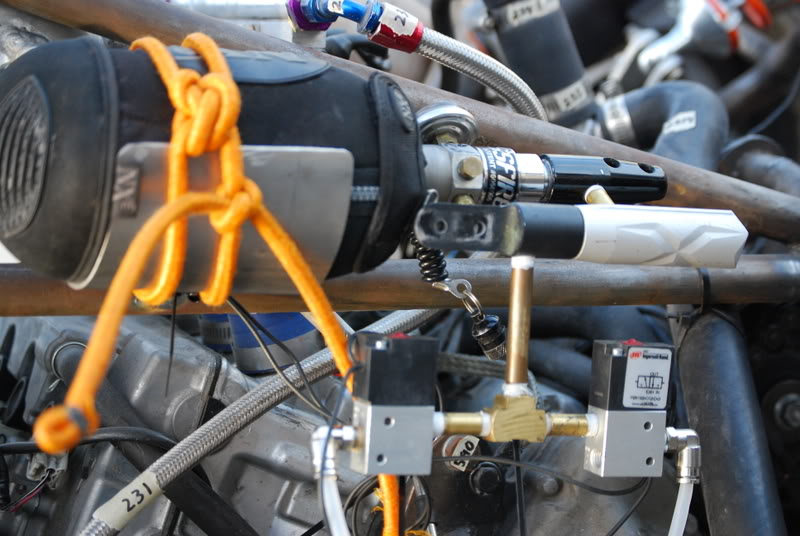

Name:  DSC_2916.jpg
Views: 44
Size:  103.3 KB

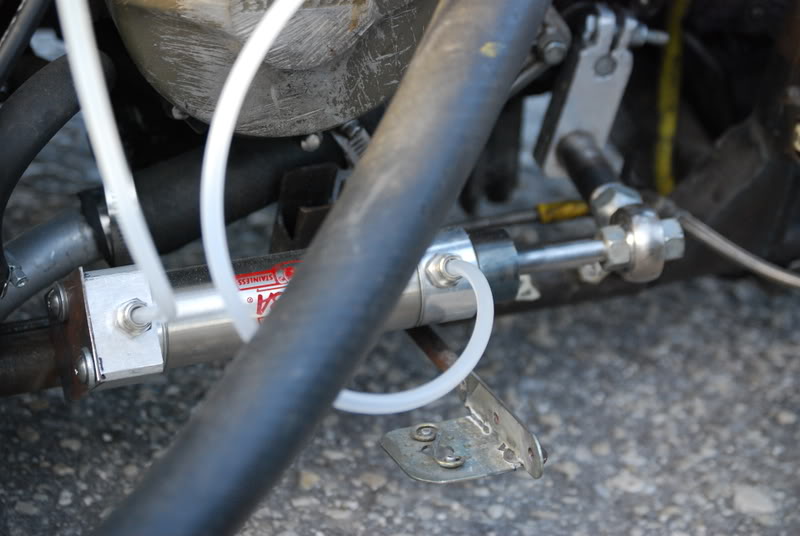

Name:  DSC_2917.jpg
Views: 28
Size:  81.1 KB

We found out the air tank needs to be bigger, we should lower the pressure, and get a smaller ram that self centers. Most of this was due to air consumption, as we were estimating only 250 shifts per bottle at the rate we were using it.
coastertrav is offline   Reply With Quote
Old 03-02-2009, 07:13 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

That's still awesome, wish I was still involved in FSAE
cjernigan is offline   Reply With Quote
Old 03-02-2009, 07:19 PM   #5
Senior Member
Thread Starter

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Man, it is a blast.

Seriously the best thing I have done coming down here. Between all that I have learned and experienced, and the people I have met, this has to be one of my favorite things about UCF.
coastertrav is offline   Reply With Quote
Old 03-02-2009, 07:37 PM   #6
Senior Member
iTrader: (3)

Join Date: Feb 2006
Location: Centennial, CO
Posts: 672
Total Cats: 20
Default

Obviously you have never driven a shifter kart.......FSAE cars are somewhat slow in comparison.
karter74 is offline   Reply With Quote
Old 03-02-2009, 07:38 PM   #7
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

I'm jealous, that thing would be badass!
Turbo_4 is offline   Reply With Quote
Old 03-02-2009, 07:47 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

**** yes. I want to drive one of those sooooo bad.
hustler is online now   Reply With Quote
Old 03-02-2009, 07:58 PM   #9
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

wish uconns FSAE didnt suck so much.
240_to_miata is offline   Reply With Quote
Old 03-02-2009, 08:00 PM   #10
Junior Member

Join Date: Sep 2008
Posts: 218
Total Cats: 0
Default

FSAE is badass. Makes me wish I had done mech e back in the day.
JimAtFSU is offline   Reply With Quote
Old 03-02-2009, 08:08 PM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

How does neutral work? Do you still have a manual lever to find it?
Joe Perez is online now   Reply With Quote
Old 03-02-2009, 08:25 PM   #12
Senior Member
Thread Starter

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Quote:
Originally Posted by karter74 View Post
Obviously you have never driven a shifter kart.......FSAE cars are somewhat slow in comparison.
Nyj3r Plz, do not even start trying to compare the two,

Quote:
Originally Posted by JimAtFSU View Post
FSAE is badass. Makes me wish I had done mech e back in the day.
Well, at least with our team, Engineering is not a requirement to participate. We have two business majors on our team and a nurse that I know of.

Quote:
Originally Posted by Joe Perez View Post
How does neutral work? Do you still have a manual lever to find it?
For neutral you just shift down into first, then lightly tap up to engage either neutral or second if you did it wrong. It take some skill, but can be done. Also on the actual car we will still have a jockey shifter on the right side as a backup.
coastertrav is offline   Reply With Quote
Old 03-02-2009, 08:27 PM   #13
Junior Member

Join Date: Sep 2008
Posts: 218
Total Cats: 0
Default

It seems like the older I get, the more awesome engineering projects I discover.
JimAtFSU is offline   Reply With Quote
Old 03-02-2009, 08:33 PM   #14
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,251
Total Cats: 7
Default

I wish we had FSAE instead of SAE Baja, just a bunch of hicks seeing how much air they can get or how many times they can roll it with the spec 5hp Briggs motor.
SamS is offline   Reply With Quote
Old 03-02-2009, 08:42 PM   #15
Senior Member
Thread Starter

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Quote:
Originally Posted by SamS View Post
I wish we had FSAE instead of SAE Baja, just a bunch of hicks seeing how much air they can get or how many times they can roll it with the spec 5hp Briggs motor.
LOL

Yeah, we have the same thing down here, but the guys are all pretty cool, and they know there stuff. Also our last jump didn't go so well.
