Default Turbo Lawnmower

Is it possible?

Lets say you have an old 13hp 600cc lawnmower laying around and you want to turbo it?

Is there a turbo small enough to actually make boost on something like that?
How would you control boost levels?
Is there a carb available (dirtbike, go cart) that you could set up as a blow through?

Just curious me and a few friends have been tossing the idea around and just cant figure out if we could make it work. We have tons of dirt bike stuff and can fabricate and weld, we just cant put a plan all together.

You guys think its possible?
Opti is offline   Reply With Quote
Old 11-10-2010, 09:27 PM   #2
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

2 words. Nitrous oxide.
thirdgen is offline   Reply With Quote
Old 11-10-2010, 09:31 PM   #3
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Name:  0819071420-00.jpg
Views: 138
Size:  67.8 KB

Name:  0819071345-00.jpg
Views: 36
Size:  60.6 KB

Name:  0819071317-00.jpg
Views: 38
Size:  66.3 KB

Name:  0819071157-00.jpg
Views: 23
Size:  79.0 KB
Name:  0819071659-00.jpg
Views: 31
Size:  41.7 KB

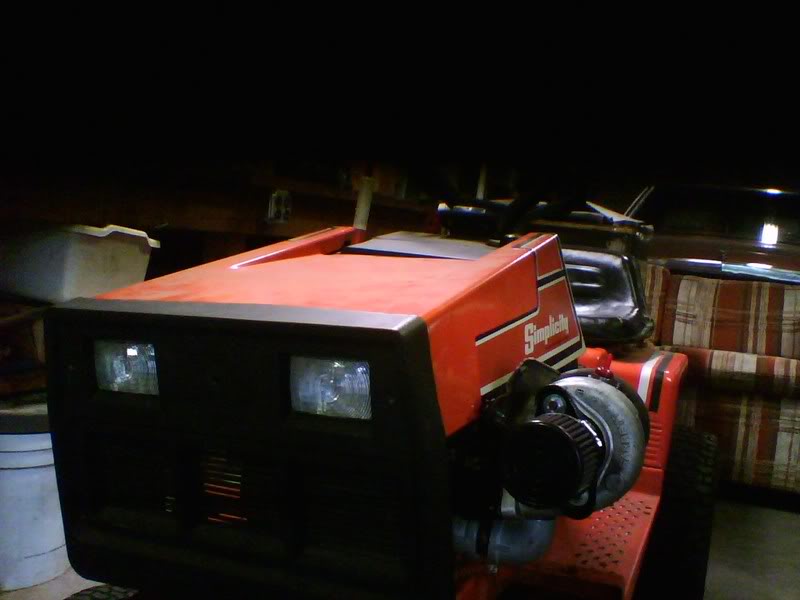

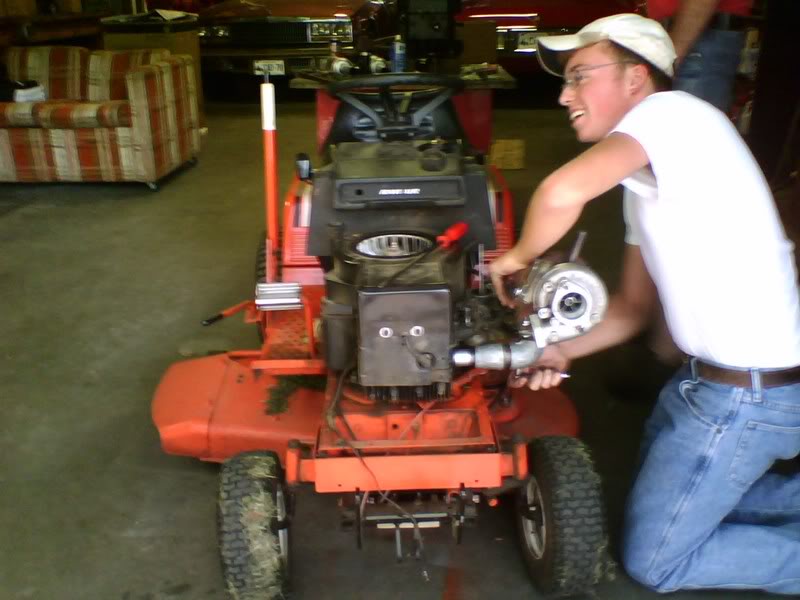

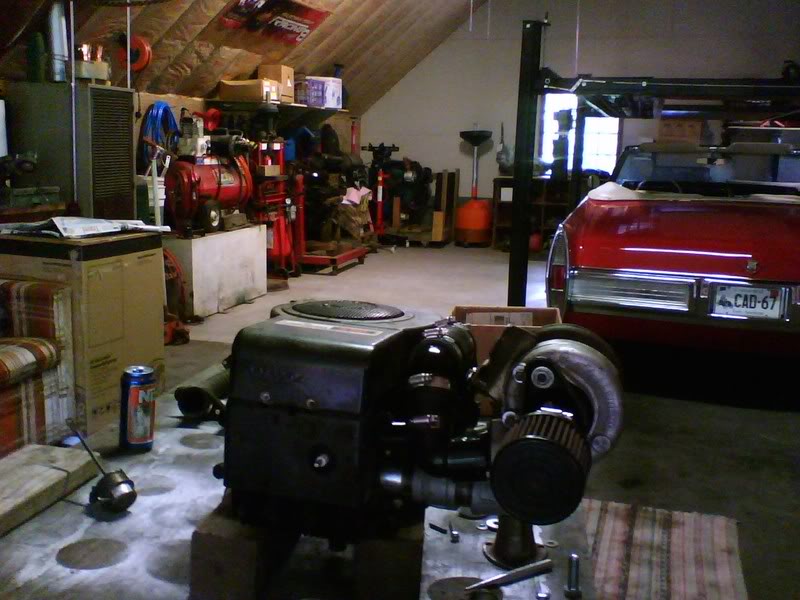

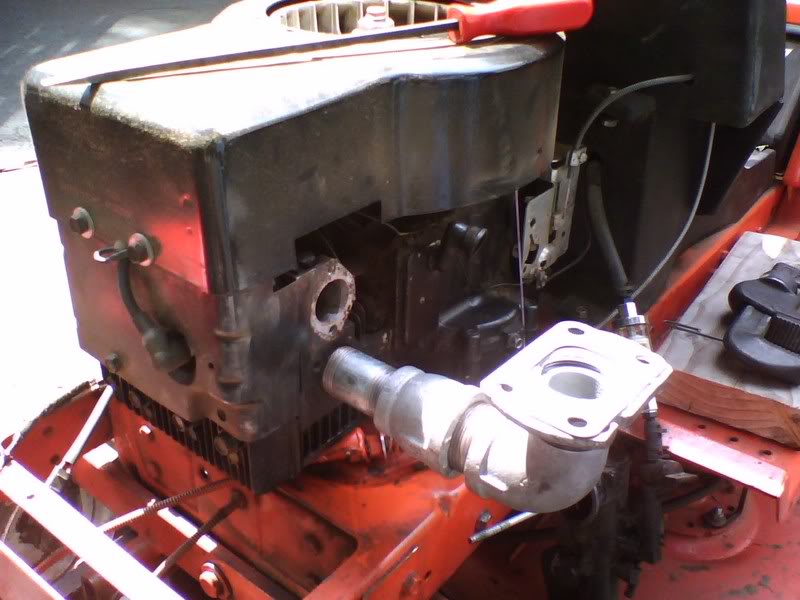

I know I have posted those before. T25 turbo. Yes it spooled. . . JUST WAY AFTER THE GOVERNOR

Fun project just messing around. We have a turbo off of a kabota diesel tractor that we were going to put on. Inlet is 1"...should work great, but its been a few years since we even thought about it. I found a gokart efi kit the other day that was ridiculously simple and fairly cheap, i forget where.
240_to_miata is offline   Reply With Quote
Old 11-10-2010, 09:37 PM   #4
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: South East Florida
Posts: 690
Total Cats: 6
Default

94mx5red is offline   Reply With Quote
Old 11-10-2010, 10:27 PM   #5
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

^^ I knew i posted my pics in someone else's thread before.
240_to_miata is offline   Reply With Quote
Old 11-10-2010, 11:37 PM   #6
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

I still want to know of a nice oiling solution. Your typical lawnmotor engine doesn't have an oil pump.
TurboTim is offline   Reply With Quote
Old 11-10-2010, 11:42 PM   #7
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

I know there used to be a little baby ihi turbo on ebay.
jacob300zx is offline   Reply With Quote
Old 11-10-2010, 11:43 PM   #8
Senior Member
Thread Starter

Join Date: Feb 2009
Location: DF-DUB
Posts: 640
Total Cats: 19
Default

Run seperate oiling system, just a little resovior and a remote mount oil pump, like in the F-body STS kits.
Opti is offline   Reply With Quote
Old 11-10-2010, 11:55 PM   #9
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

jacob300zx is offline   Reply With Quote
Old 11-10-2010, 11:59 PM   #10
Senior Member
Thread Starter

Join Date: Feb 2009
Location: DF-DUB
Posts: 640
Total Cats: 19
Default

I think ive figured it out....draw through carb.
I completely forgot about draw through setups (been into EFI too long i guess).

I am searching for that cart EFI setup someone mentioned.

The plan is to actually do it right, I mean actually match a compressor map to the engine and try and have it as optimal as possible.

We plan to use the lawn mower as a test bed, and if we can get the engine sorted then its time to find a cart frame.
Opti is offline   Reply With Quote
Old 11-11-2010, 04:08 AM   #11
Newb

Join Date: Nov 2010
Posts: 24
Total Cats: 0
Default

wow... please upload a video when done
kevinism is offline   Reply With Quote
Old 11-11-2010, 09:08 AM   #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by TurboTim View Post
I still want to know of a nice oiling solution. Your typical lawnmotor engine doesn't have an oil pump.
Some do. I have a Murray with a 22hp B&S that's been in the midst of a GT15 installation for over a year now. Microsquirt module for the EMS, single fuel injector, and the flywheel itself is the trigger wheel. Should be pretty cool if I ever find time to finish it!

The project started because the muffler was starting to get shot out and the tractor is loud.
Ben is offline   Reply With Quote
Old 11-11-2010, 12:30 PM   #13
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

aHH I was thinking your typical briggs & stratton, like the one on my push mower. I'd love to put that tiny ebay one on my 5hp briggs.
TurboTim is offline   Reply With Quote
Old 11-11-2010, 04:09 PM   #14
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Quote:
Originally Posted by TurboTim View Post
I still want to know of a nice oiling solution. Your typical lawnmotor engine doesn't have an oil pump.
diesel fuel lift pump from a truck.
240_to_miata is offline   Reply With Quote
Old 11-11-2010, 04:30 PM   #15
Newb

Join Date: Nov 2010
Location: Bellingham, Wa
Posts: 16
Total Cats: 0
Default

http://totalruckus.com/phpBB3/viewto...450t&start=360

How about a 450cc turbo Honda Ruckus with nitrous?
specialchowmein is offline   Reply With Quote
Old 11-11-2010, 05:34 PM   #16
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by specialchowmein View Post
http://totalruckus.com/phpBB3/viewto...450t&start=360

How about a 450cc turbo Honda Ruckus with nitrous?
That doesn't have nitrous. The nitrous is a balast tank. Well at least it was back when that build was on some honda forum. And that build is one of the reasons why I HATE epic build threads that start from the beginning of the build, making people wait a year + for it to be done. Lame. Finish it then post pics. Ha.

Good to see him almost done with it. Excellent fab work.
TurboTim is offline   Reply With Quote
Old 11-11-2010, 05:42 PM   #17
Junior Member

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

Opti, ur gonna make a death kart? to beat the na benchmark, ur gonna need a small aluminum high revving motor i would think. can you turbo a honda rs125 2-stroke? i wonder if they make a 125 4 stroke... good times. in for the build thread.

jasonb is offline   Reply With Quote
Old 11-11-2010, 05:55 PM   #18
Junior Member

Join Date: Mar 2010
Location: onion city,ca
Posts: 428
Total Cats: 1
Default

what motor is that? not too big. excuse the double post.

jasonb is offline   Reply With Quote
Old 11-11-2010, 09:52 PM   #19
Senior Member
Thread Starter

Join Date: Feb 2009
Location: DF-DUB
Posts: 640
Total Cats: 19
Default

I wouldnt consider it a death kart.
Sunday when im off ill run out to air port to grab the mower.
Then the plan is to get the tranny back in the S10 blazer so I can have some garage room.
ill probably spend a few hours and rebuild the enigne in the mower, give me some time to familiarize myself with the platform, and see if I even have a workable platform.

If we can make it work with a IHI RB31 and have it actually run well, i will buy a cart from this little go kart track in FW and transfer the engine.

Cool thing is, when i sent the message out this morning to some friends to rally the troops, I got a repsonse from a friend of mine saying he has an LC-1 and a boost gauge hes will to donate for tuning reasons. I loled hard.

I would be incredibly surprised if I can make 20hp.
Opti is offline   Reply With Quote
Old 11-11-2010, 10:26 PM   #20
Newb

Join Date: Nov 2010
Location: Bellingham, Wa
Posts: 16
Total Cats: 0
Default

Quote:
Originally Posted by TurboTim View Post
That doesn't have nitrous. The nitrous is a balast tank. Well at least it was back when that build was on some honda forum. And that build is one of the reasons why I HATE epic build threads that start from the beginning of the build, making people wait a year + for it to be done. Lame. Finish it then post pics. Ha.

Good to see him almost done with it. Excellent fab work.
That could be about the nitrous. I know what you mean about the long thread, I followed it for about a year before I lost interest, but now it's looking pretty tasty.
specialchowmein is offline   Reply With Quote
