Default Why do my pistons look like this?

Each of the 4 pistons are cleaner along the edge on the intake side of the motor. What's up with this?







Last edited by paul; 05-02-2008 at 04:35 AM.
paul is offline   Reply With Quote
Old 05-02-2008, 03:44 AM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

Mine were like that too. It's from the air/fuel mixture flowing right by it when the valves first open for the intake stroke. Air flows out of the valve and follows the contour of the combustion chamber and it sweeps down onto the piston. It's also clean around the edges of the reliefs in the pistons for the same reason.

Furthermore, you will note the clean spot goes away as you move toward the reliefs in the pistons. That is because your intake valves are extemely shrouded and not much air comes out of that area of the valve. Therefore not a lot of air sweeps down the combustion chamber in these areas and hits the pistons. As you move away from the reliefs, you see another clean spot develop. That's where the valve starts moving some air again.
patsmx5 is online now   Reply With Quote
Old 05-02-2008, 03:48 AM   #3
Elite Member
Thread Starter
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

ok. had a feeling it was from the fuel mixture flowing in there. thanks for the info. so i guess i should have my valves unshrowded for the sake of having cleaner pistons
paul is offline   Reply With Quote
Old 05-02-2008, 03:53 AM   #4
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,796
Total Cats: 247
Default

And of course you'll want to add nitrous to keep the rest of the pistons clean too.

Yea I would suggest unshrouding the pockets around the valves a minimum radius of X% the diameter of the face of the valve. For the exhaust a minimum of 25%, for the intakes 30%. That's how mine are. Those numbers are ideal for a NA motor. FI the numbers are more like 30,35, or 35,40. Less compression and more flow is a win/win for FI setups. Mine will go to 30/35 next time the head is off.
patsmx5 is online now   Reply With Quote
Old 05-02-2008, 10:16 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

similar:

my new block:



my old pistons looked great after steam cleaning, that's with like 10K on them:
Braineack is offline   Reply With Quote
Old 05-02-2008, 07:51 PM   #6
Junior Member
iTrader: (9)

Join Date: Apr 2007
Location: Hanover, MA
Posts: 237
Total Cats: 0
Default

Are you sure thatís not from detonation? Its hard to tell from the picture but the edge kind of looks rough.
Pseudosport is offline   Reply With Quote
Old 05-02-2008, 08:02 PM   #7
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Pretty sure most miata pistons look like that, and pat is on the money.

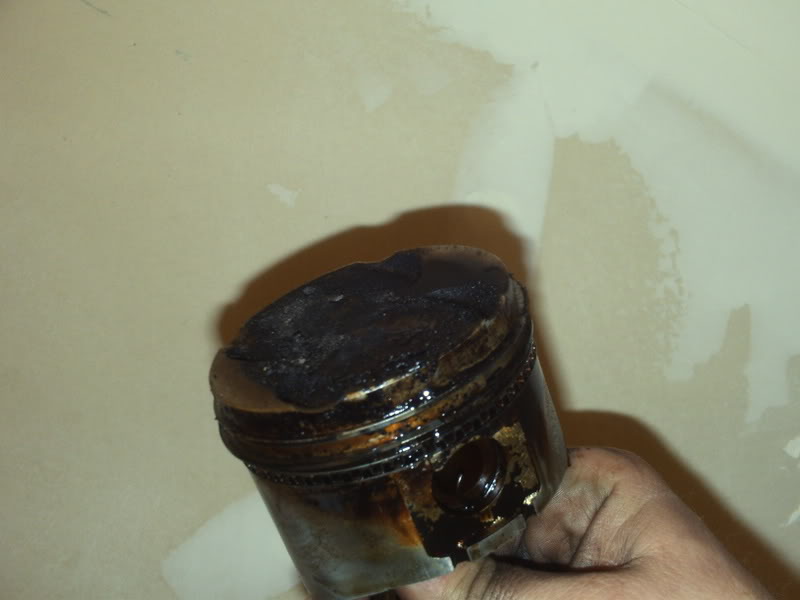

Name:  PICT0214.jpg
Views: 2
Size:  35.1 KB

Name:  PICT0211.jpg
Views: 2
Size:  95.3 KB
BenR is offline   Reply With Quote
Old 05-02-2008, 08:21 PM   #8
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

hey Scott, whats that thing to the left of your oil filter. I see the pressure sender but its got a huge base.
Saml01 is offline   Reply With Quote
Old 05-02-2008, 08:32 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

that's the 1.6L pressure sender.
Braineack is offline   Reply With Quote
Old 05-02-2008, 09:43 PM   #10
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

my pistons looked the same way, except for gobs of gooey carbon buildup on the exhaust side. a bit rich with the SC+AFPR garbage
Stealth97 is offline   Reply With Quote
Old 05-02-2008, 10:57 PM   #11
Elite Member
Thread Starter
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Quote:
Originally Posted by Saml01 View Post
hey Scott, whats that thing to the left of your oil filter. I see the pressure sender but its got a huge base.
Quote:
Originally Posted by Braineack View Post
that's the 1.6L pressure sender.
also came on the 94.

on the left is the 90-94 REAL oil pressure sender
on the right is the dummy sender that only tells you if you have some or none

paul is offline   Reply With Quote
