Post Windtunnel photos of various cars

A buddy of mine posted this on another forum:

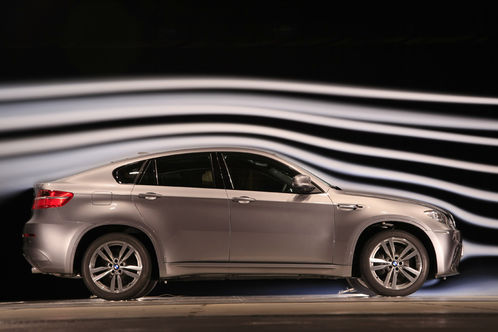

BMW X6 M

frontal surface area (A) 2.85m
cw (cd) 0.38
airdragindex (cd x A) 1.07
at 200km/h (125mph)
lift front axle 69kg
lift rear axle 48kg

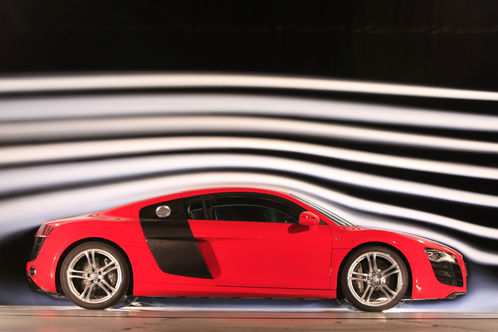

Audi R8 V10 5.2
(A) 2.024m
(cd) 0.36
(cd x A) 0.72
at 200km/h
lift front 23kg
downforce rear 3kg

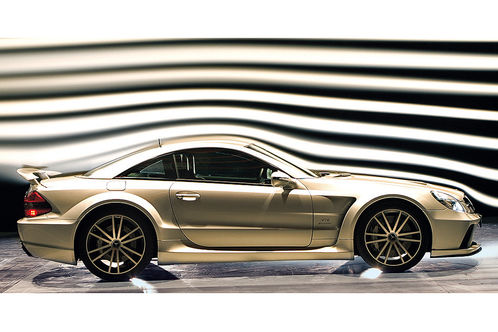

Mercedes SL 65 AMG Black Series
(A) 2.17 m
(cd) 0.37
(cd A) 0.80
at 200km/h
lift front 56kg
downforce rear 22kg

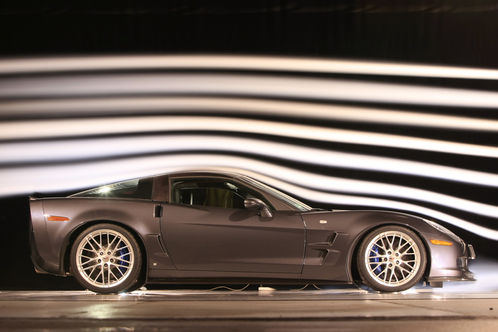

Corvette ZR1
(A) 2.059 m
(cd) 0.32
(cd A) 0.66
at 200km/h
lift front 39kg
lift rear 14kg

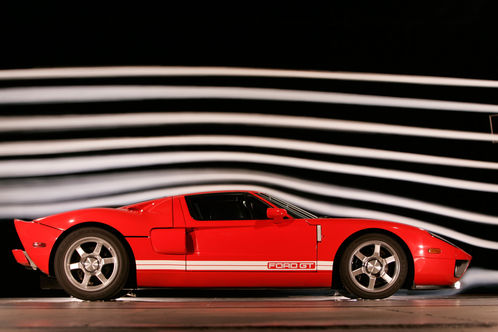

Ford GT
(A) 1.92 m
(cd) 0.35
(cd A) 0.67
at 200km/h
downforce front 44kg
lift rear 2kg

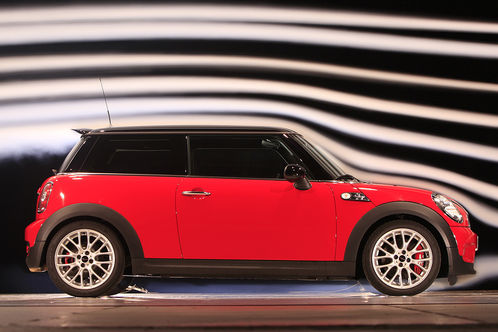

Mini Cooper S John Cooper Works
(A) 2.05 m
(cd) 0.36
(cd A) 0.73
at 200km/h
lift front 17kg
lift rear 20kg

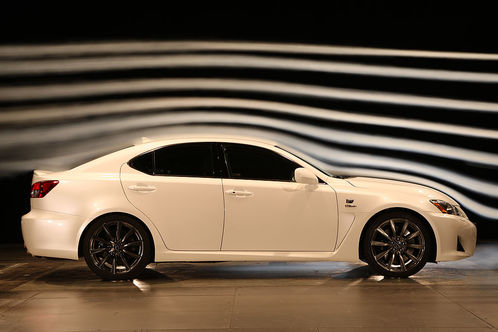

Lexus IS-F
(A) 2.22 m
(cd) 0.30
(cd A) 0.67
at 200km/h
lift front 31kg
lift rear 7kg

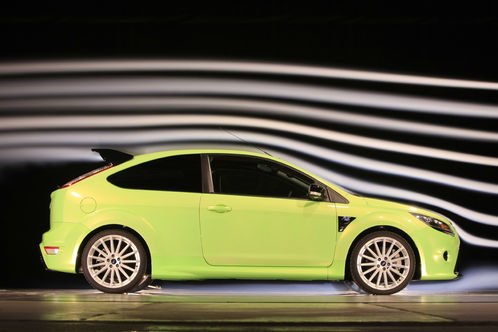

Ford Focus RS
(A) 2,35 m
(cd) 0,36
(cd A) 0,86
at 200km/h
downforce front 8kg
lift rear 4kg

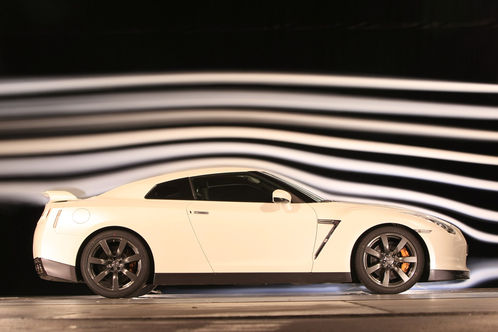

Nissan GT-R
(A) 2,30 m
(cd) 0,31
(cd A) 0,71
at 200km/h
lift front 3kg
downforce rear 8kg

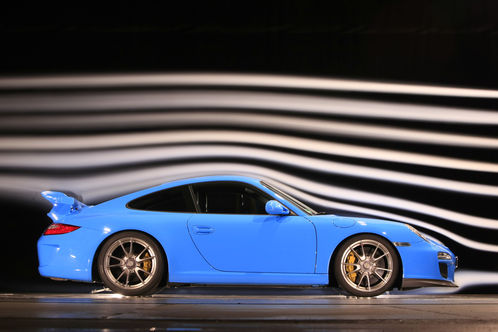

Porsche GT3 facelift
(A) 2.04 m
(cd) 0.32
(cd A) 0.66
at 200km/h
downforce front 15kg
downforce rear 19kg

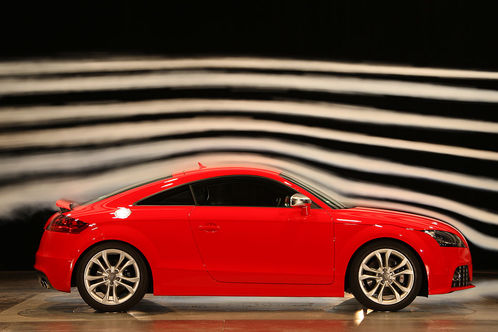

Audi TT-S
(A) 2.10 m
(cd) 0.32
(cd A) 0.68
at 200km/h
lift front 42kg
lift rear 17kg

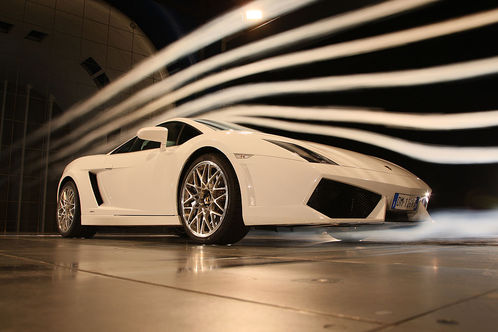

Lamborghini Gallardo LP 560-4
(A) 1.93 m
(cd) 0.35
(cd A) 0.67
at 200km/h
downforce front 4kg
lift rear 37kg

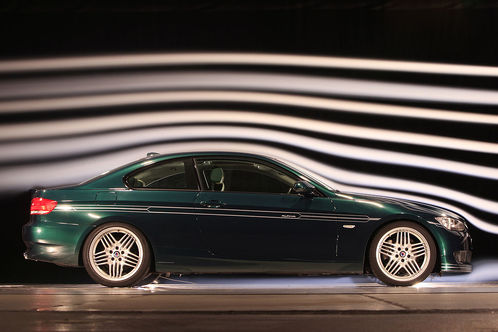

Alpina B3 Coupe
(A): 2.14 m
(cd): 0.29
(cd A): 0.63
at 200km/h
lift front 12kg
lift rear 13kg

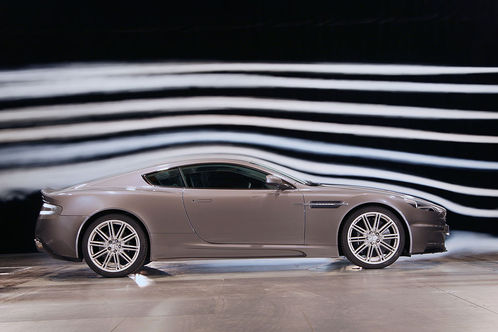

Aston Martin DBS
(A): 2.11 m
(cd): 0.36
(cd A): 0.76
at 200km/h
lift front 11kg
lift rear 10kg

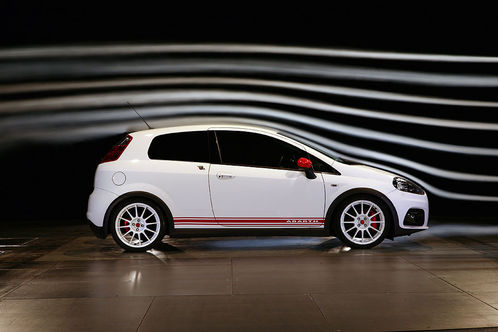

Abarth Grande Punto esseesse
(A): 2.21 m
(cd): 0.34
(cd A): 0.75
at 200km/h
lift front 26kg
lift rear 31kg

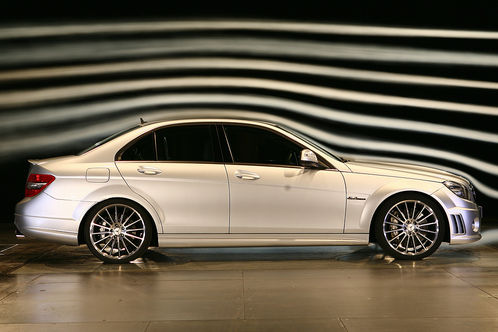

Mercedes C 63 AMG
(A): 2.18 m
(cd): 0.32
(cd A): 0.69
at 200km/h
lift front 35kg
lift rear 42kg

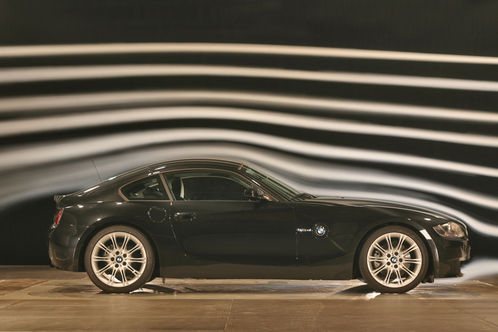

BMW Z4 3.0si Coup
(A): 1.94 m
(cd): 0.33
(cd A): 0.64
at 200km/h
lift front 28kg
lift rear 43kg

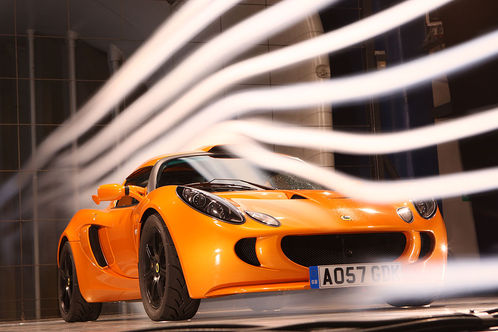

Lotus Exige S
(A): 1.62 m
(cd): 0.44
(cd A): 0.71
at 200km/h
downforce front 5kg
downforce rear 24kg

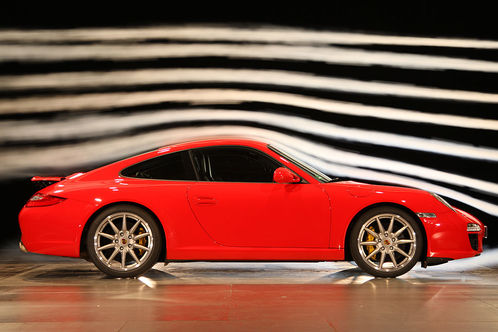

Porsche 997 Carrera S facelift
(A): 2.02 m
(cd): 0.29
(cd A): 0.59
at 200km/h
lift front 24kg
lift rear 14kg

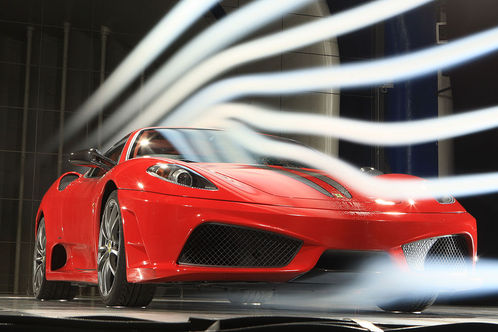

Ferrari 430 Scuderia
(A): 2.02 m
(cd): 0.33
(cd A): 0.66
at 200km/h
lift rear 4kg

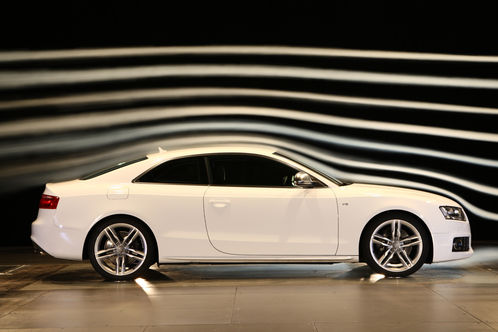

Audi S5
(A): 2.18 m
(cd): 0.31
(cd A): 0.67
at 200km/h
lift front 52kg
lift rear 34kg

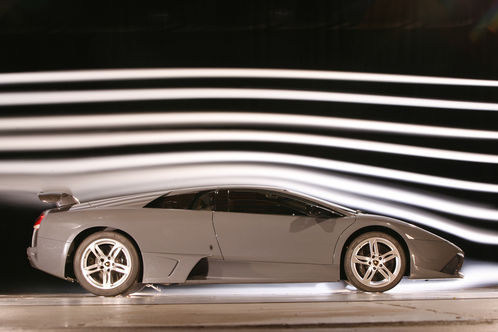

Lamborghini Murcielago LP 640
(A): 2.04 m
(cd): 0.35
(cd A): 0.71
at 200km/h
downforce front 30kg
downforce rear 11kg



from a other planet were the Gumpert Apollo numbers..

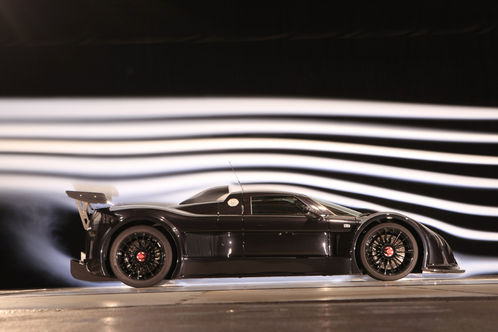

Gumpert Apollo Sport
(A): 1,99 m
(cd): 0,57
(cd A): 1,14
downforce front 20kg
downforce rear 176kg

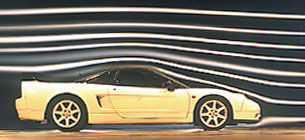

Honda NSX-R (2002)
(A): 1.7800 m
(cd): 0.34
(cd A): 0.60
at 200km/h
downforce front 32kg
downforce rear 5kg

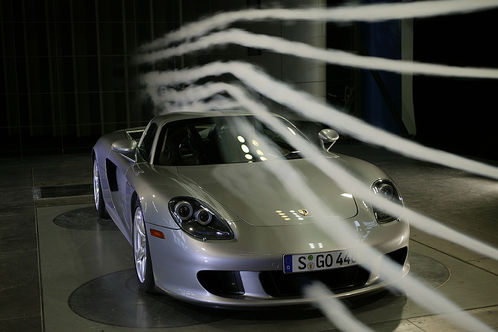

Porsche Carrera GT
(A): 1.95 m
(cd): 0.37
(cd A): 0.72
at 200km/h
downforce front 49kg
downforce rear 40g

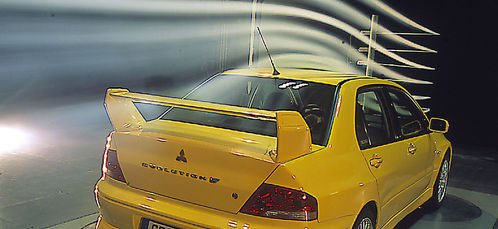

Mitubishi Evo VII
(A): 2.12 m
(cd): 0.37
(cd A): 0.79
at 200km/h
downforce front 37kg
downforce rear 8kg

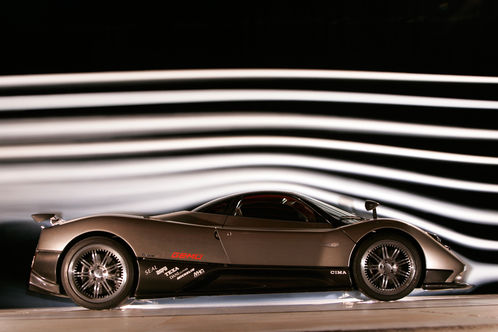

Pagani Zonda F
(A): 2,08 m
(cd): 0,36
(cd A): 0,74
at 200km/h
downforce front 1kg
downforce rear 25kg

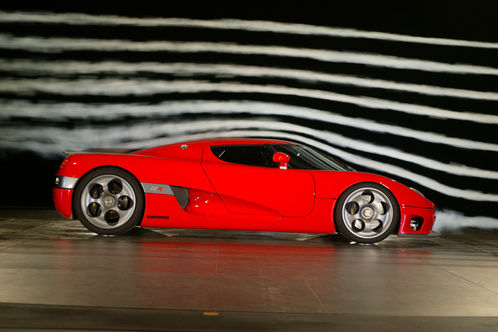

Koenigsegg CCR
(A): 1,86 m
(cd): 0,35
(cd A): 0,64
at 200km/h
downforce front 13kg
lift rear 11kg

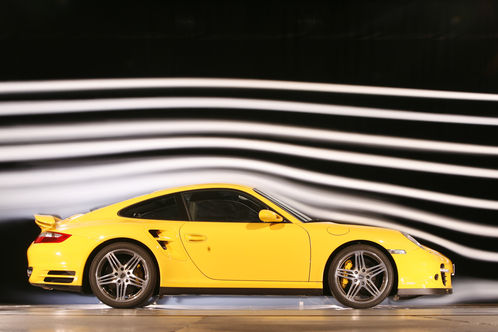

Porsche 997 Turbo old
(A): 2.04 m
(cd): 0.29
(cd A): 0.59
at 200km/h
lift front 9kg
downforce rear 12kg

Attached Thumbnails
Windtunnel photos of various cars-bmw-x6-m-r498x333-c-6c5d6f48-279843.jpg   Windtunnel photos of various cars-audi-r8-5-2-fsi-quattro-r-tronic-r498x333-c-19767f26-260889.jpg   Windtunnel photos of various cars-mercedes-sl-65-amg-black-series-r498x333-c-a532a16a-242538.jpg   Windtunnel photos of various cars-corvette-zr1-r498x333-c-fc1d26b9-267910.jpg   Windtunnel photos of various cars-ford-gt-09-r498x333-c-fc3db9dc-219808.jpg

Windtunnel photos of various cars-mini-cooper-s-jcw-r498x333-c-5b12a388-232969.jpg   Windtunnel photos of various cars-r498x333-c-50dbab9b-162751.jpg   Windtunnel photos of various cars-ford-focus-rs-r498x333-c-7fed744e-255719.jpg   Windtunnel photos of various cars-nissan-gt-r-r498x333-c-f77e4081-250214.jpg   Windtunnel photos of various cars-r498x333-c-360f7d28-245985.jpg

Windtunnel photos of various cars-r498x333-c-42b32ab4-162580.jpg   Windtunnel photos of various cars-r498x333-c-6235d850-164900.jpg   Windtunnel photos of various cars-r498x333-c-ab6bd973-159560.jpg   Windtunnel photos of various cars-r498x333-c-cf2e384f-159394.jpg   Windtunnel photos of various cars-r498x333-c-a3adae02-160595.jpg

Windtunnel photos of various cars-r498x333-c-b34909bf-161808.jpg   Windtunnel photos of various cars-r498x333-c-4a03461a-220061.jpg   Windtunnel photos of various cars-r498x333-c-b4781354-170963.jpg   Windtunnel photos of various cars-r498x333-c-c9ffd0f5-165853.jpg   Windtunnel photos of various cars-r498x333-c-95e865db-171339.jpg

Windtunnel photos of various cars-r498x333-c-b89c299e-191026.jpg   Windtunnel photos of various cars-lamborgini-murcielago-lp-640-06-r498x333-c-c397e9ab-191384.jpg   Windtunnel photos of various cars-gumpert-apollo-sport-r498x333-c-66079f55-279758.jpg   Windtunnel photos of various cars-r498x333-c-999359d1-165539.jpg   Windtunnel photos of various cars-porsche-carrera-gt-im-supertest-r498x333-c-f1e6a258-238806.jpg

Windtunnel photos of various cars-r498x333-c-b33bceca-187021.jpg   Windtunnel photos of various cars-pagani-zonda-f-08-r498x333-c-734e6041-219874.jpg   Windtunnel photos of various cars-koenigsegg-ccr-06-r498x333-c-24eb18f8-219828.jpg   Windtunnel photos of various cars-porsche-911-turbo-15-r498x333-c-a77ca6e8-191706.jpg
Scrappy Jack is offline   Reply With Quote
Old 07-25-2012, 10:51 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

No miata?
18psi is offline   Reply With Quote
Old 07-25-2012, 10:51 AM   #3
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

No NA miata, no care.

JK. Interesting info there. Obvious why the wife's cooper's rear window is filthy by the time I get to the end of my street.
TurboTim is offline   Reply With Quote
Old 07-25-2012, 10:53 AM   #4
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Love this. Cool stuff.
mgeoffriau is offline   Reply With Quote
Old 07-25-2012, 11:04 AM   #5
Elite Member
Thread Starter
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

The Gumpert (with its diffuser) is really pretty amazing to see.

I think the one I was most surprised with was the Evo VII (generating downforce front and rear).
Scrappy Jack is offline   Reply With Quote
Old 07-25-2012, 11:42 AM   #6
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

I was surprised at how high the CD was for a lot of the cars, until I realized that they had traded some of that for the downforce they were making. Made sense after I made that connection.
skidude is offline   Reply With Quote
Old 07-25-2012, 12:58 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Gumpert Apollo looks like it does pretty good.
hustler is offline   Reply With Quote
Old 07-25-2012, 01:15 PM   #8
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Carrera GT impressed me. Good numbers, and looks wonderful.
mgeoffriau is offline   Reply With Quote
Old 07-25-2012, 01:21 PM   #9
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

The NSX-R, a 10-year old car, had really good drag to lift (downforce) ratios.

Some of the newer designs are embarrassing in comparison.
Look at the Aston, the Audis TT and S5. Lots of drag and lots of lift at both ends.
Styled by the stylists and not by the wind.
JasonC SBB is offline   Reply With Quote
Old 07-25-2012, 01:39 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I wish I knew how to look at the smoke and tell what was good and what was bad.
hustler is offline   Reply With Quote
Old 07-25-2012, 02:26 PM   #11
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

I've always though a little more downforce in the front vs rear or less front lift than rear was better. Keep the front end down thinking. Wish I had a better sense for reading the airflow too. I liked the Mucielago pic. Seemed like a good set of numbers (read I have no idea what is good) Little bit of downforce and not too draggy?
TorqueZombie is offline   Reply With Quote
Old 07-25-2012, 02:50 PM   #12
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,673
Total Cats: 1,561
Default

There was apparently more in the original SportAuto info:

Originally Posted by Georg
Because at the GT-R datasheet discussion at factory claimed cd of 0.27 and sportauto clocked 0.31 on one of the most modern windtunnels in the world I thought it would be interesting to compare the sportauto results to manufacturer claims..

Important... not cd is important.. the airdragindex is the important number... the combination of cd and the size of the vehicle.. the lower cd x A the better is the aerodynamic of a car...
a other sidenote... many "noseheavy" cars can become nearly weightbalance neutral at higher speeds if the lift at the front axle is greater than it is at the rear

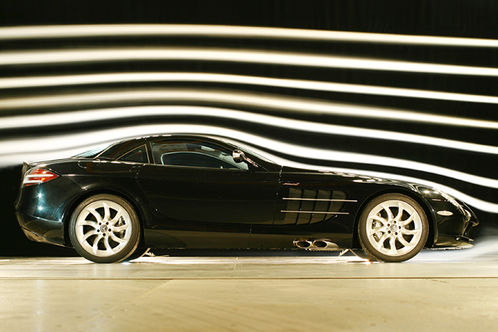

Mercedes SLR
(A): 2.07 m
(cd): 0.37
(cd A): 0.77
at 200km/h
downforce front 19kg
downforce rear 35kg

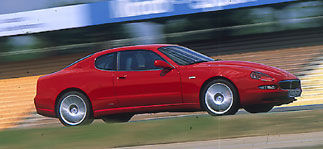

Maserati Coup Cambiocorsa
(A): 2.016 m
(cd): 0.34
(cd A): 0.68
at 200km/h
downforce front 55kg
downforce rear 45kg

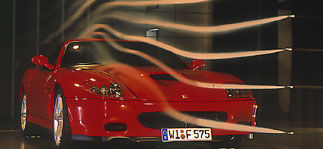

Ferrari 575 M Maranello
(A): 2.09 m
(cd): 0.32
(cd A): 0.66
at 200km/h
lift front 61kg
lift rear 40kg

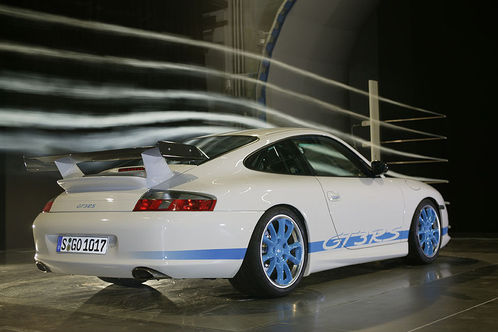

Porsche 996 GT3 RS
(A): 1.94 m
(cd): 0.30
(cd A): 0.58
at 200km/h
lift front 19kg
downforce rear 26kg

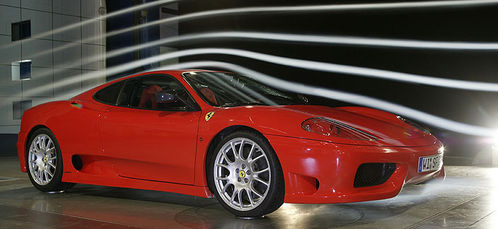

Ferrari Challenge Stradale
(A): 2.0 m
(cd): 0.31
(cd A): 0.62
at 200km/h
downforce front 10kg
lift rear 21kg

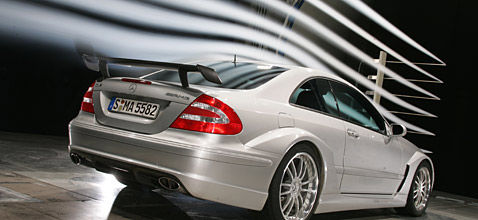

Mercedes CLK DTM AMG
(A): 2.15 m
(cd): 0.34
(cd A): 0.73
at 200km/h
lift front 37kg
downforce rear 12kg

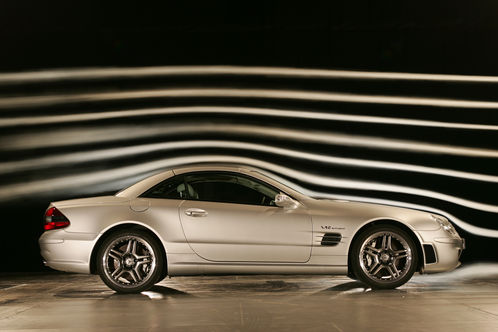

Mercedes SL 65 AMG
(A): 2.1 m
(cd): 0.31
(cd A): 0.65
at 200km/h
lift front 29kg
lift rear 33kg

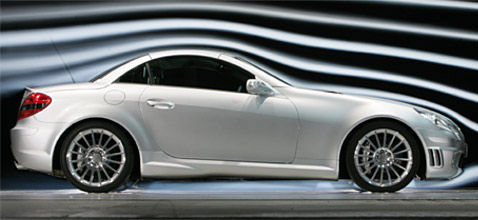

Mercedes SLK 55 AMG
(A): 1.95 m
(cw): 0.32
(cw A): 0.625
at 200km/h
lift front 23kg
lift rear 31kg

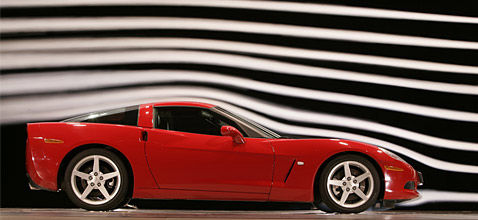

Corvette C6 Coupe
(A): 2.0 m
(cd): 0.29
(cd A): 0.59
at 200km/h
lift front 54kg
lift rear 28kg

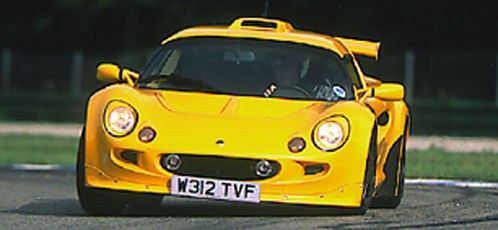

Lotus Exige (Mk I)
(A) 1,631 m
(cd) 0.43
(cd x A) 0.70
at 200km/h
downforce front 20kg
downforce rear 58kg


no windtunnel picture online

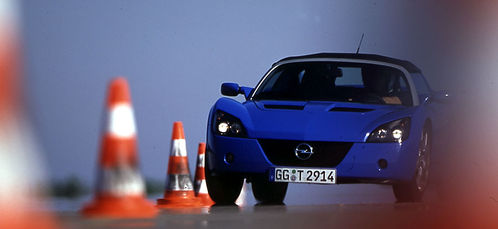

Opel Speedster Turbo
(A): 1.61 m
(cd): 0.38
(cd A): 0.61
at 200km/h
downforce front 23kg
lift rear 19kg


no windtunnel pitcure online

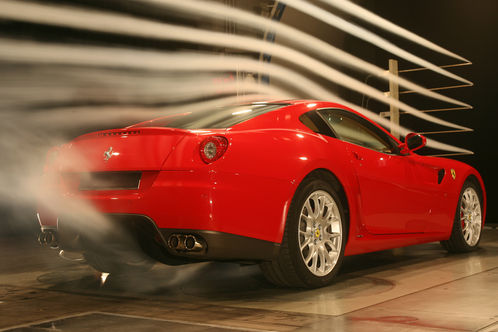

Ferrari 599 GTB Fiorano
(A): 2.23 m
(cd): 0.33
(cd A): 0.73
at 200km/h
lift front 41kg
lift rear 24 kg

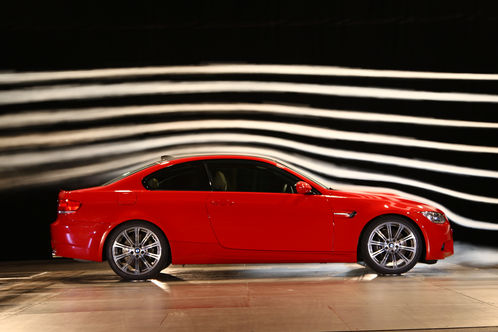

BMW e92 M3
(A): 2.17 m
(cd): 0.33
(cd A): 0.71
at 200km/h
lift front 10kg
lift rear 23kg

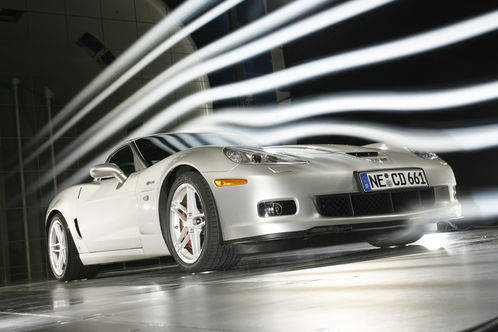

Corvette C6 Z06
(A): 2.1 m
(cd): 0.308
(cd A): 0.647
at 200km/h
lift front 49kg
lift rear 22kg

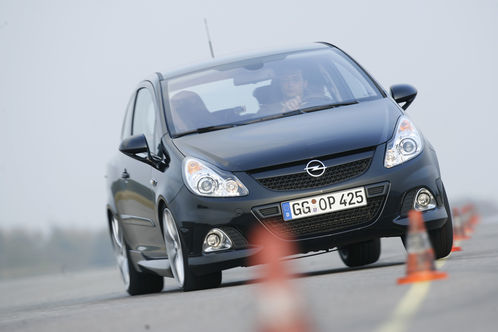

Opel Corsa OPC
(A): 2.15 m
(cd): 0.36
(cd A): 0.78
at 200km/h
downforce front 23kg
lift rear 22kg


no windtunnel picture online

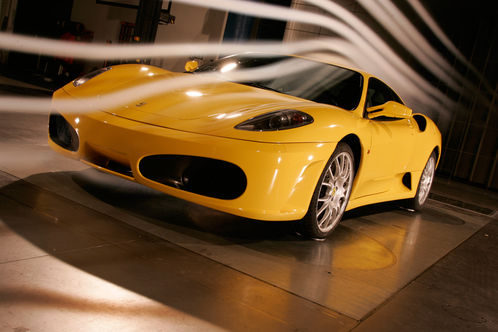

Ferarri F430
(A): 2.04 m
(cd): 0.34
(cd A): 0.70
at 200km/h
lift front 11kg
lift rear 6kg

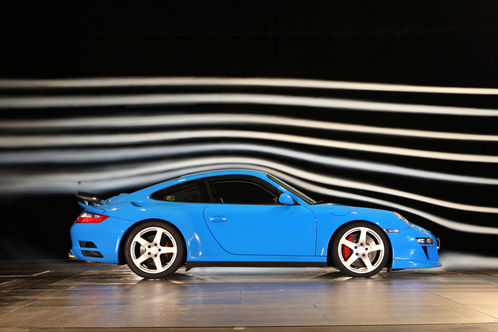

RUF RT12
(A): 2.04 m
(cd): 0.33
(cd A): 0.67
at 200km/h
lift front 11kg
downforce rear 34kg

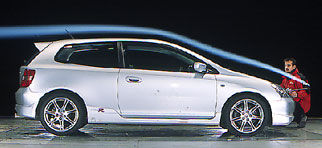

Honda Civic Type R
(A): 1.93 m
(cd): 0.326
(cd A): 0.63
at 200km/h
downforce front 19kg
lift rear 44kg

Attached Thumbnails
Windtunnel photos of various cars-mercedes-slr-mclaren-im-supertest-r498x333-c-2f669d6-243286.jpg   Windtunnel photos of various cars-r498x333-c-366dada-174210.jpg   Windtunnel photos of various cars-r498x333-c-baf8c8b-187029.jpg   Windtunnel photos of various cars-r498x333-c-e15fa0ea-238772.jpg   Windtunnel photos of various cars-r498x333-c-9f58bdc9-181483.jpg

Windtunnel photos of various cars-r498x333-c-e54564ed-158083.jpg   Windtunnel photos of various cars-mercedes-sl-65-amg-08-r498x333-c-17096354-220157.jpg   Windtunnel photos of various cars-r498x333-c-21c03e26-158130.jpg   Windtunnel photos of various cars-r498x333-c-85ed8718-188162.jpg   Windtunnel photos of various cars-lotus-exige-r498x333-c-eda61f6e-181166.jpg

Windtunnel photos of various cars-opel-speedster-r498x333-c-8e7e067e-187262.jpg   Windtunnel photos of various cars-r498x333-c-bfd328fd-191814.jpg   Windtunnel photos of various cars-bmw-m3-04-r498x333-c-6401e011-219515.jpg   Windtunnel photos of various cars-corvette-z06-13-r498x333-c-1ba83e6c-191745.jpg   Windtunnel photos of various cars-opel-corsa-opc-01-r498x333-c-4e62a4e4-191065.jpg

Windtunnel photos of various cars-ferrari-f430-f1-10-r498x333-c-b956d3a8-219791.jpg   Windtunnel photos of various cars-ruf-rt-12-16-r498x333-c-a7d2a91c-191044.jpg   Windtunnel photos of various cars-r498x333-c-f4fa4f16-186952.jpg
sixshooter is online now   Reply With Quote
Old 07-25-2012, 03:45 PM   #13
Junior Member

Join Date: May 2012
Posts: 131
Total Cats: 2
Default

Quote:
Originally Posted by TorqueZombie View Post
I've always though a little more downforce in the front vs rear or less front lift than rear was better. Keep the front end down thinking. Wish I had a better sense for reading the airflow too. I liked the Mucielago pic. Seemed like a good set of numbers (read I have no idea what is good) Little bit of downforce and not too draggy?

If you understand the effects, you can work with anything. I think the traditional thinking (even in some higher levels of racing) is to try for some downforce bias that is slightly rearward of neutral (based on the weight bias of the car). In that way, the car has similar handling bias at different speeds, but if the lift/downforce bias starts skewing things, it skews them towards understeer at higher speed, rather than towards oversteer. This makes sense to me because at higher speeds, there is insufficient torque to bias the handling with the throttle.
Rocwandrer is offline   Reply With Quote
Old 07-25-2012, 06:07 PM   #14
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

^Makes some sense. I'm sure when I get further in my degree it will make more sense. This gives me something to think about and makes me want my own wind tunnel.
TorqueZombie is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
[CT] 1999 Mazda Miata 10th Anniversary Edition - $5800 Jike Spingleton Cars for sale/trade 3 09-20-2016 05:33 PM
Turbo 1995 Miata Low mileage Clean Tekel Cars for sale/trade 29 02-05-2016 05:16 PM
94-97 JR Header, FM Stage 1 Happy Meal, Carillo rods & Supertech Pistons eddy1128 Miata parts for sale/trade 8 12-10-2015 06:34 PM
black carpet (looped) $60 Joker Miata parts for sale/trade 0 09-17-2015 07:48 PM
Obligatory "N00B" post! D_Breezy Meet and Greet 5 09-08-2015 06:37 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 12:29 PM.
